PSP核心 - Row Set Transformation Toolkit 之方法简单例子与调试



准备:

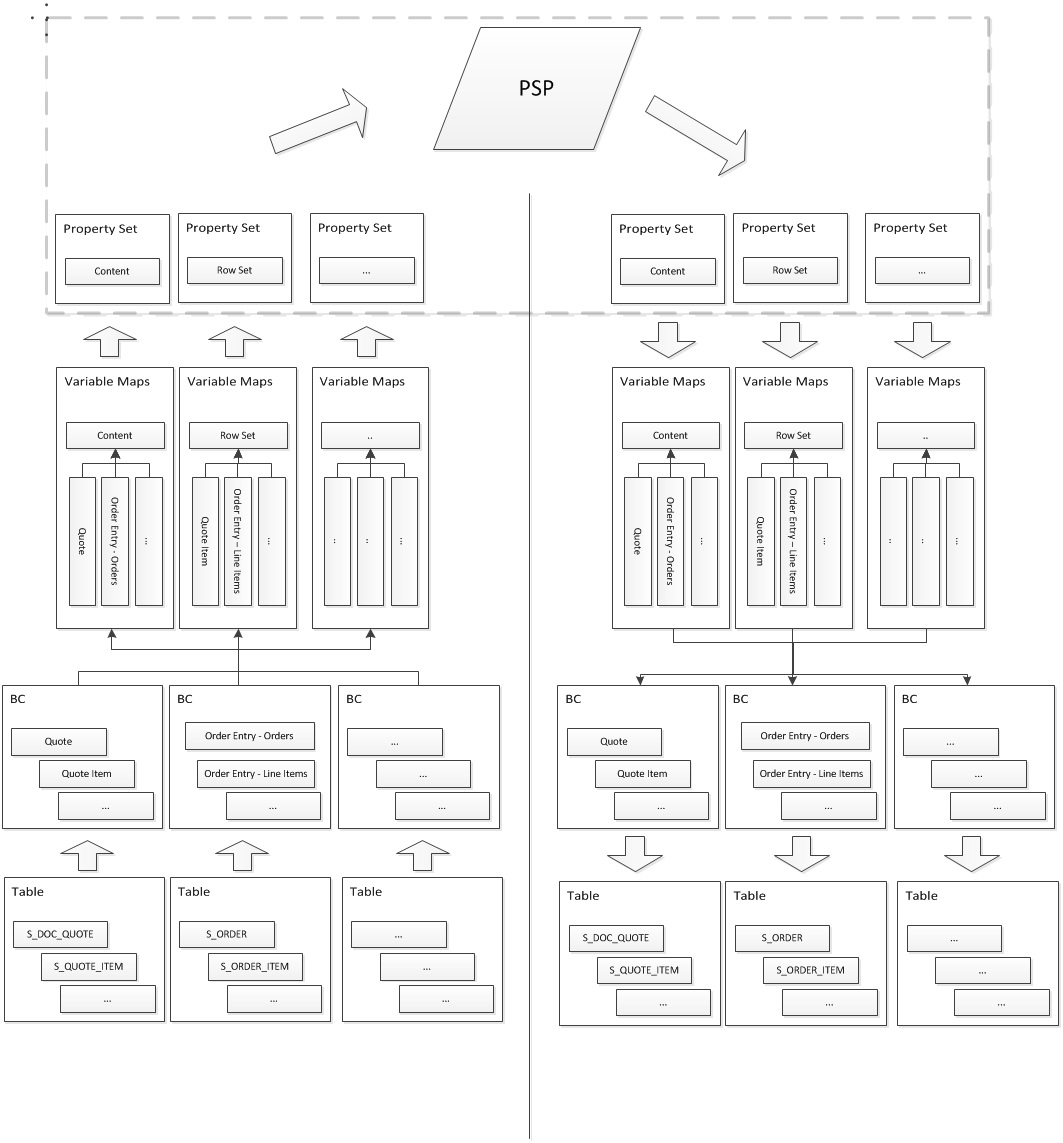

上图简单描述PSP Engine的流程，本文只对Row Set Transformation Toolkit的方法做简单的例子，也就是上图虚线内的流程做模拟，其他信息请参照Bookself。



1，  数据在Table上，BC以上都是通过各种数据结构存在于内存中，经过转换预算，又写回到Table。



2，  Variable Maps对数据的一种抽象，对于不用的数据来源（例如，来自Quote，Order Entry - Orders）都表现为一致性。可能坚固抽象性，导致Variable Maps没有层级结构。



在调试阶段我们可以XML来构造Property Set



XML2PropertySet 例子:



function GetPropertySet(fileName)

{

         var rowSet = "";

         try

         {

                   var xmlReader = TheApplication().GetService("EAI XML Read from File");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();

                   vInputs.SetProperty("FileName",fileName);

                   xmlReader.InvokeMethod("ReadPropSet",vInputs,vOutputs);

                   rowSet = vOutputs.GetChild(0);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   xmlReader = null;

                   vInputs = null;

                   vOutputs = null;

         }

         return rowSet;



}

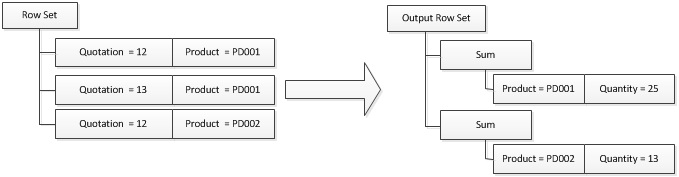

Aggregate Transform 例子：











function TestAggregateSum()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_aggregate_sum.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var outputRowset:PropertySet = TheApplication().NewPropertySet();



                   outputRowset.SetType("Output Row Set");

                   vInputs.AddChild(outputRowset);



                   vInputs.SetProperty("Aggregate Field","Quantity");

                   vInputs.SetProperty("Aggregate Type","Sum");

                   vInputs.SetProperty("Group By","Product");



                   pspBS.InvokeMethod("Aggregate Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_aggregate_sum.xml:



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="USD">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="USD">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Currency_spcCode="USD">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>

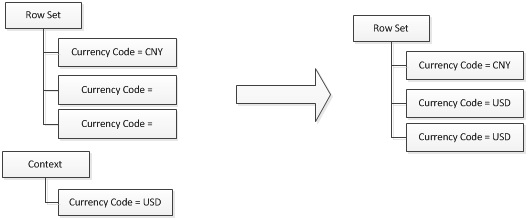

Conditional Action Transform 例子：









function TestConditional()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_conditional.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var contextRowSet:PropertySet = GetPropertySet("D:\\context_conditional.xml");



                   contextRowSet.SetType("Context");

                   vInputs.AddChild(contextRowSet);



                   var ouputRowSet:PropertySet = TheApplication().NewPropertySet();



                   ouputRowSet.SetType("Ouput Row Set");

                   vInputs.AddChild(ouputRowSet);





                   vInputs.SetProperty("Condition 1","{Row.Currency Code} is null");

                   vInputs.SetProperty("On True 1_1","{Row.Currency Code} = {Context.Currency Code}");



                   pspBS.InvokeMethod("Conditional Action Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_conditional.xml :



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="CNY">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Currency_spcCode="">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>







context_conditional.xml:



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

                    CPScope="Whole"

                    Mode="Quote"

                    RowScope="All">Context

                            <Header

                                      Revision="1"

                                      Account="OTC Test Account"

                                      Currency_spcCode="USD"

                                      Header_spcId="1-2Z61FU"

                                      Mode="Quote"

                                      Exchange_spcDate="08/01/2012"

                                      Quotation_spcTotal_spcAmount="0"

                                      Price_spcList_spcId="1-Q2V-1"

                                      Account_spcType="Customer">1-2Z61FU

                    </Header>

  </SiebelMessage>

</PropertySet>

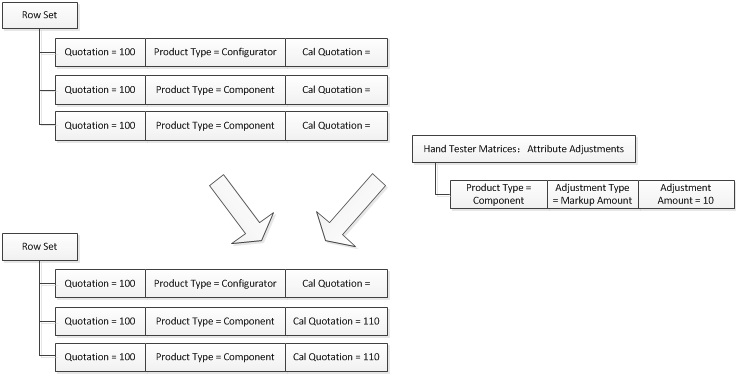

Dynamic Look-Up Transform 例子：









function TestDynamicLookUp()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_DynamicLookUp.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var outputRowset:PropertySet = TheApplication().NewPropertySet();



                   outputRowset.SetType("Output Row Set");

                   vInputs.AddChild(outputRowset);



                   vInputs.SetProperty("Dynamic Matrix Name","Hand Tester Matrices");

                   vInputs.SetProperty("On First Match 1","{Row.Cal Quotation} = AdjustPrice({Row.Quotation},{Row.Currency Code},{Match.Adjustment Type},{Match.Adjustment Amount},{Match.Currency Code},{Match.Exchange Date})");





                   pspBS.InvokeMethod("Dynamic Look-Up Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_DynamicLookUp.xml：



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Product_spcType="Configurator"

                    Cal_spcQuotation=""

                    Currency_spcCode="USD">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Product_spcType="Component"

                    Cal_spcQuotation=""

                    Currency_spcCode="USD">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Product_spcType="Component"

                    Cal_spcQuotation=""

                    Currency_spcCode="USD">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>







注：该方法参数Dynamic Matrix Name 匹配 PSP Dynamic Matrix的Name 字段，所以要在以下界面维护数据。















Dynamic Subprocedure 例子：



         Passed

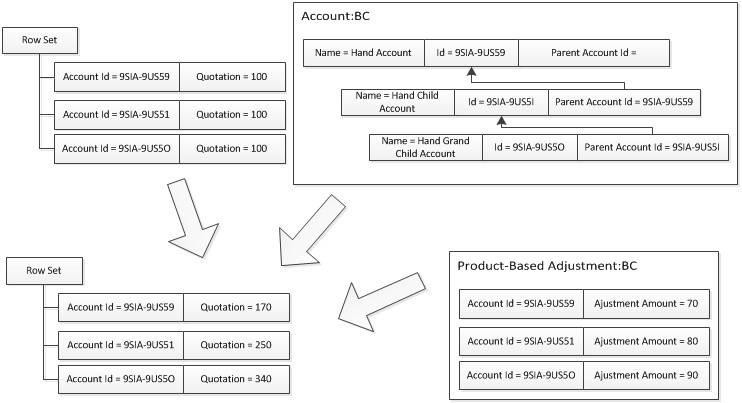

Hierarchical Look-Up Transform 例子:



         该例子使用了聚合计算，叠加父节点的计算。









function TestHierarchicalLookUp()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_HierarchicalLookUp.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var outputRowset:PropertySet = TheApplication().NewPropertySet();



                   outputRowset.SetType("Output Row Set");

                   vInputs.AddChild(outputRowset);



                   vInputs.SetProperty("Business Object","Adjustment Group");

                   vInputs.SetProperty("Business Component","Product-Based Adjustment");

                   vInputs.SetProperty("Hierarchy Business Object","Account");

                   vInputs.SetProperty("Hierarchy Business Component","Account");

                   vInputs.SetProperty("HBC Parent Field","Parent Account Id");

                   vInputs.SetProperty("HBC Id Field","Id");

                   vInputs.SetProperty("BC Id Field","Account Id");

                   vInputs.SetProperty("Row Id Field","Account Id");

                   vInputs.SetProperty("On Match 1","{Row.Quotation} = ToNumber({Row.Quotation})+ToNumber({Match.Adjustment Amount})");

                   pspBS.InvokeMethod("Hierarchical Look-Up Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_HierarchicalLookUp.xml :



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="USD"

                    Account_spcId="9SIA-9US5O">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="USD"

                    Account_spcId="9SIA-9US5I">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Currency_spcCode="USD"

                    Account_spcId="9SIA-9US59">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>

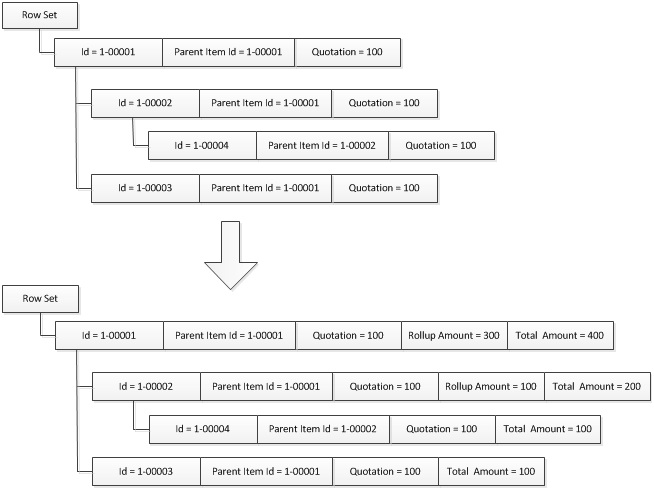

Hierarchical Transform 例子:









function TestHierarchical()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_Hierarchical.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var outputRowset:PropertySet = TheApplication().NewPropertySet();



                   outputRowset.SetType("Output Row Set");

                   vInputs.AddChild(outputRowset);



                   vInputs.SetProperty("Row Id Field","Id");

                   vInputs.SetProperty("Parent Field","Parent Item Id");

                   vInputs.SetProperty("Direction","Up");

                   vInputs.SetProperty("On Leaf Row 1","{Row.Total Amount} = {Row.Quotation}");

                   vInputs.SetProperty("On Parent Row 1","{Row.Rollup Amount} = ToNumber(Sum({Children},'Total Amount'))");

                   vInputs.SetProperty("On Parent Row 2","{Row.Total Amount} = ToNumber({Row.Quotation}) +ToNumber({Row.Rollup Amount})");





                   pspBS.InvokeMethod("Hierarchical Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_Hierarchical.xml :



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Id="1-00001"

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Parent_spcItem_spcId=""

                    Currency_spcCode="USD">1-00001</Line_spcItem>

    <Line_spcItem

              Id="1-00002"

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Parent_spcItem_spcId="1-00001"

                    Currency_spcCode="USD">1-00002</Line_spcItem>

    <Line_spcItem

              Id="1-00003"

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Parent_spcItem_spcId="1-00001"

                    Currency_spcCode="USD">1-00003</Line_spcItem>

    <Line_spcItem

                    Id="1-00004"

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Parent_spcItem_spcId="1-00002"

                    Currency_spcCode="USD">1-00004</Line_spcItem>

  </SiebelMessage>

</PropertySet>







Merge Transform 例子：



 Passed



Query Transform 例子：



 Passed

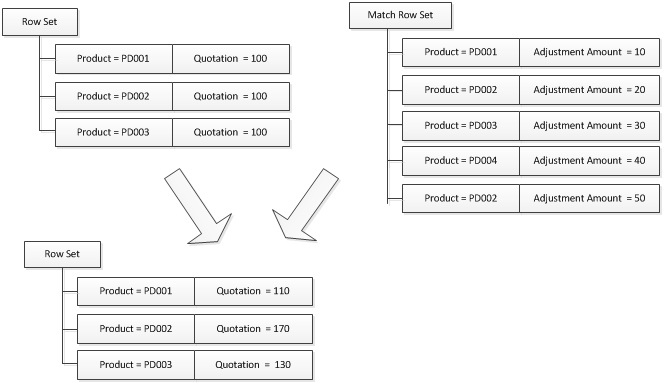

Row Set Look-Up Transform 例子：

















function TestRowsetLookup()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_RowsetLookup.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var lookupRowset:PropertySet = GetPropertySet("D:\\rowset_RowsetLookup_rowset.xml");



                   lookupRowset.SetType("Match Row Set");

                   vInputs.AddChild(lookupRowset);



                   vInputs.SetProperty("Search Specification","{Row.Product} = {Match.Product}");

                   vInputs.SetProperty("On Match 1","{Row.Quotation} = ToNumber({Row.Quotation}) +ToNumber({Match.Adjustment Amount})");



                   pspBS.InvokeMethod("Row Set Look-Up Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_RowsetLookup.xml ：



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Currency_spcCode="CNY">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Currency_spcCode="">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD003"

                    Currency_spcCode="">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>



rowset_RowsetLookup_rowset.xml ：



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage>Rowset

    <Line_spcItem

                    Product="PD001"

                    Adjustment_spcAmount="10"></Line_spcItem>

    <Line_spcItem

                    Product="PD002"

                    Adjustment_spcAmount="20"></Line_spcItem>

    <Line_spcItem

                    Product="PD003"

                    Adjustment_spcAmount="30"></Line_spcItem>

    <Line_spcItem

                    Product="PD004"

                    Adjustment_spcAmount="40"></Line_spcItem>

     <Line_spcItem

                    Product="PD002"

                    Adjustment_spcAmount="50"></Line_spcItem>

   </SiebelMessage>

</PropertySet>



Rule Set Look-Up Transform 例子：



Passed



Simple Look-Up Transform 例子：



Passed

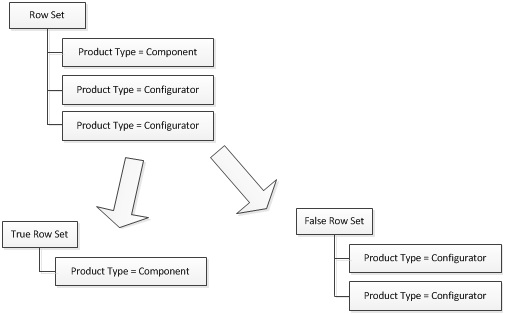

Split Transform 例子：













function TestSplit()

{

         try

         {

                   var pspBS = TheApplication().GetService("Row Set Transformation Toolkit");

                   var vInputs = TheApplication().NewPropertySet();

                   var vOutputs = TheApplication().NewPropertySet();



                   var rowset:PropertySet = GetPropertySet("D:\\rowset_Split.xml");



                   rowset.SetType("Row Set");

                   vInputs.AddChild(rowset);



                   var onTrueRowset:PropertySet = TheApplication().NewPropertySet();



                   onTrueRowset.SetType("True Row Set");

                   vInputs.AddChild(onTrueRowset);



                   var onFalseRowset:PropertySet = TheApplication().NewPropertySet();



                   onFalseRowset.SetType("False Row Set");

                   vInputs.AddChild(onFalseRowset);



                   vInputs.SetProperty("Condition","{Row.Product Type} = 'Component'");



                   pspBS.InvokeMethod("Split Transform",vInputs,vOutputs);

         }

         catch(e)

         {

                   throw e.message;

         }

         finally

         {

                   pspBS = null;

                   vInputs = null;

                   vOutputs = null;

         }

}







rowset_Split.xml：



<?xml version="1.0" encoding="UTF-8"?>

<?Siebel-Property-Set EscapeNames="true"?>

<PropertySet>

  <SiebelMessage

          Mode="Quote"

          RowScope="All">Rowset

    <Line_spcItem

                    Quantity="12"

                    Quotation="100"

                    Product="PD001"

                    Product_spcType="Component"

                    Currency_spcCode="USD">1-00001</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD001"

                    Product_spcType="Configurator"

                    Currency_spcCode="USD">1-00002</Line_spcItem>

    <Line_spcItem

                    Quantity="13"

                    Quotation="100"

                    Product="PD002"

                    Product_spcType="Configurator"

                    Currency_spcCode="USD">1-00003</Line_spcItem>

  </SiebelMessage>

</PropertySet>





转载于:https://www.cnblogs.com/franky-z-super/archive/2012/11/20/2779132.html

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
