今天给大家介绍如何在Android下实现一个带动画效果的Tab Menu。Tab Menu的打开动画效果为自下而上的淡入推进效果，关闭效果为自上而下的淡出推出效果。

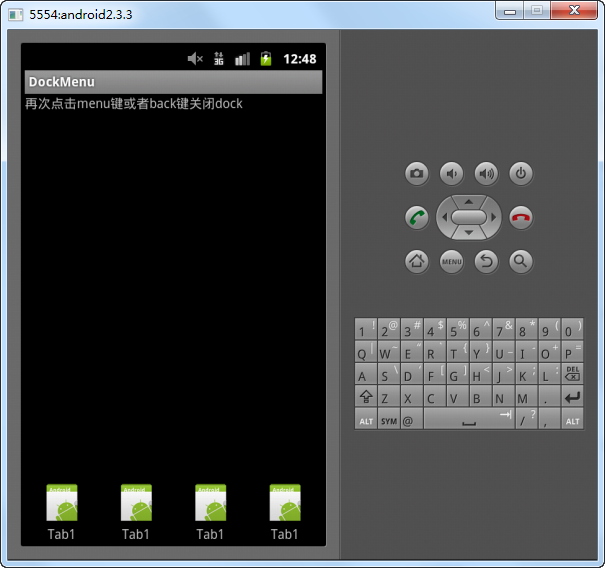

实现的效果图如下(没有找到合适的屏幕录像工具，只能截静态图)：

程序运行效果

[文件] dockmenu.rar ~ 49KB 下载(372)

[代码] TabMenuActivity.java


       01package com.zhuozhuo;

       02

       03import android.app.Activity;

       04import android.os.Bundle;

       05import android.view.KeyEvent;

       06import android.widget.TextView;

       07

       08public class TabMenuActivity extends Activity {

       09/** Called when the activity is first created. */

       10

       11TabView dockView;

       12TextView tv;

       13

       14@Override

       15public void onCreate(Bundle savedInstanceState) {

       16super.onCreate(savedInstanceState);

       17setContentView(R.layout.main);

       18tv = (TextView) findViewById(R.id.tv);

       19dockView = new DockView(this);

       20}

       21

       22public boolean onKeyDown(int keyCode, KeyEvent event) {

       23if (keyCode == KeyEvent.KEYCODE_MENU) {//监听menu键

       24if(dockView.isOpen()) {

       25tv.setText("点击menu键打开dock");

       26

       27dockView.closeDock();//关闭dock

       28}

       29else {

       30tv.setText("再次点击menu键或者back键关闭dock");

       31dockView.openDock();//打开dock

       32}

       33return true;

       34}

       35if (keyCode == KeyEvent.KEYCODE_BACK) {//监听back键

       36if(dockView.isOpen()) {//当dock打开时，按back键关闭dock

       37dockView.closeDock();

       38return true;

       39}

       40}

       41return super.onKeyDown(keyCode, event);

       42}

       43

       44

       45}

[代码] TabView.java


       001package com.zhuozhuo;

       002

       003import android.app.Activity;

       004import android.content.Context;

       005import android.view.View;

       006import android.view.View.OnClickListener;

       007import android.view.animation.Animation;

       008import android.view.animation.Animation.AnimationListener;

       009import android.view.animation.AnimationUtils;

       010import android.widget.Toast;

       011

       012public class TabView {

       013

       014private static final int INTERVAL_TIME = 50;// 每个tab之间的动画时间间隔ms

       015

       016private View tab1;

       017private View tab2;

       018private View tab3;

       019private View tab4;

       020

       021private Activity context;

       022

       023private boolean isOpen;

       024

       025public TabView(Activity context) {

       026this.context = context;

       027tab1 = context.findViewById(R.id.tab1);

       028tab2 = context.findViewById(R.id.tab2);

       029tab3 = context.findViewById(R.id.tab3);

       030tab4 = context.findViewById(R.id.tab4);

       031setOnClickListener(tab1, 1);

       032setOnClickListener(tab2, 2);

       033setOnClickListener(tab3, 3);

       034setOnClickListener(tab4, 4);

       035}

       036

       037public void openDock() {//打开dock

       038tab(tab1, 0, true);

       039tab(tab2, INTERVAL_TIME * 1, true);

       040tab(tab3, INTERVAL_TIME * 2, true);

       041tab(tab4, INTERVAL_TIME * 3, true);

       042isOpen = true;

       043}

       044

       045private void setOnClickListener(View view, final int pos) {

       046view.setOnClickListener(new OnClickListener() {

       047

       048@Override

       049public void onClick(View v) {

       050Toast.makeText(context, "view" + pos + " click!", Toast.LENGTH_SHORT).show();//点击tab时显示toast

       051closeDock();

       052}

       053});

       054}

       055

       056private void tab(final View view,int delayTime,final boolean toOpen) {

       057view.postDelayed(new Runnable() {

       058

       059@Override

       060public void run() {

       061Animation animation;

       062

       063if(toOpen) {

       064view.setVisibility(View.VISIBLE);//动画开始前,设置view可见

       065animation = AnimationUtils.loadAnimation(context, R.anim.show_tab);

       066view.startAnimation(animation);

       067

       068}

       069else {

       070animation = AnimationUtils.loadAnimation(context, R.anim.close_tab);

       071animation.setAnimationListener(new AnimationListener() {

       072

       073@Override

       074public void onAnimationStart(Animation animation) {

       075

       076}

       077

       078@Override

       079public void onAnimationRepeat(Animation animation) {

       080

       081}

       082

       083@Override

       084public void onAnimationEnd(Animation animation) {

       085view.setVisibility(View.INVISIBLE);//动画结束时,view不可见

       086

       087}

       088});

       089view.startAnimation(animation);

       090

       091

       092}

       093

       094}

       095}, delayTime);

       096}

       097

       098public boolean isOpen() {

       099return isOpen;

       100}

       101

       102public void closeDock() {//关闭dock

       103tab(tab1, 0, false);

       104tab(tab2, INTERVAL_TIME * 1, false);

       105tab(tab3, INTERVAL_TIME * 2, false);

       106tab(tab4, INTERVAL_TIME * 3, false);

       107isOpen = false;

       108}

       109}
