[异常解决] Make nRF51 DFU Project Appear "fatal error: uECC.h: No such file or directory"

最新推荐文章于 2022-11-11 00:45:00 发布

weixin_30315723

最新推荐文章于 2022-11-11 00:45:00 发布

阅读量134

点赞数

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/zjutlitao/p/6265314.html

本文介绍了如何解决RF51设备固件升级（DFU）项目中出现的“nouECC.h”错误。通过安装开源的micro-ecc库，并确保其正确编译和配置到项目中，可以成功解决该问题。

What's the problem

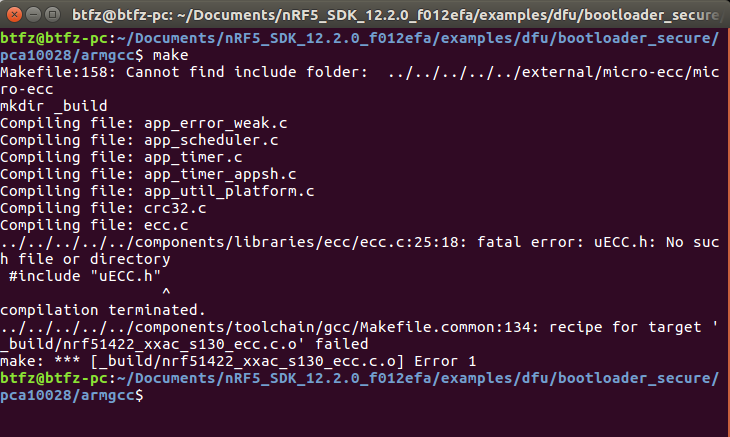

When I make the nRF51's DFU project appear "no uECC.h" error:

And then find that: The uECC library is an external library that is not a part of the SDK and it must be installed by the user.

Installing micro-ecc

micro-ecc is an open source library that is required to use the cryptography library. When using micro-ecc, you must ensure compliance with the license of the library as stated in the LICENSE.txt file that is included in micro-ecc.

The cryptography library expects to find the compiled micro-ecc library in InstallFolder\external\micro-ecc\micro-ecc.

To install micro-ecc, complete the following steps:

Install version 4.9-2015-q3-update of the GCC compiler toolchain for ARM. You can use ARM's Launchpad to find the toolchain for your operating system.
Make sure that make is installed (see, for example, MinGW, GNU Make, or Xcode).
Clone the micro-ecc GitHub repository into InstallFolder\external\micro-ecc\micro-ecc.
Enter the subdirectory for the SoC and the toolchain that you are using to build your application:
- InstallFolder\external\micro-ecc\nrf51_keil\armgcc
- InstallFolder\external\micro-ecc\nrf52_keil\armgcc
- InstallFolder\external\micro-ecc\nrf51_iar\armgcc
- InstallFolder\external\micro-ecc\nrf52_iar\armgcc
- InstallFolder\external\micro-ecc\nrf51_armgcc\armgcc
- InstallFolder\external\micro-ecc\nrf52_armgcc\armgcc
Run make to compile the micro-ecc library.

btfz@btfz-pc:~/Documents/nRF5_SDK_12.2.0_f012efa$ cd external/micro-ecc/
btfz@btfz-pc:~/Documents/nRF5_SDK_12.2.0_f012efa/external/micro-ecc$ git clone https://github.com/kmackay/micro-ecc
btfz@btfz-pc:~/Documents/nRF5_SDK_12.2.0_f012efa/external/micro-ecc/nrf51_armgcc/armgcc$ make
mkdir _build
Compiling file: uECC.c
Creating library: ../../nrf51_armgcc/armgcc/micro_ecc_lib_nrf51.a
/usr/bin/arm-none-eabi-ar: creating ../../nrf51_armgcc/armgcc/micro_ecc_lib_nrf51.a
Done

Another Problem

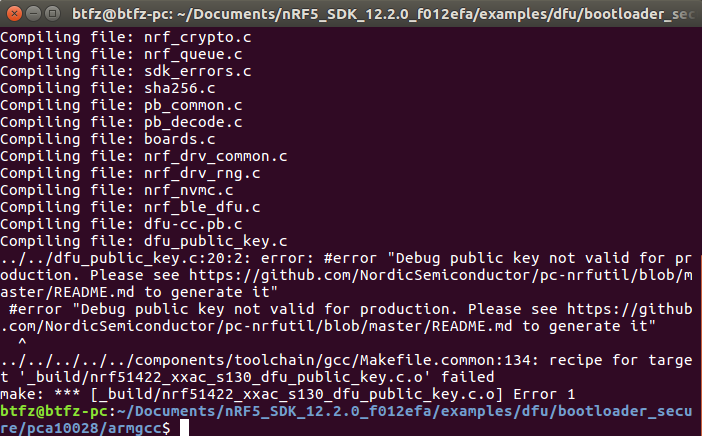

Now again make the DFU project will no this error,but show another error(we will talk about it in next blog):
