本文详细介绍了如何在CentOS7.0.1406上安装配置Zabbix3.2版本及其与MySQL5.6.37的集成过程。内容包括Zabbix和MySQL的安装步骤、数据库创建及数据导入、Zabbix服务配置、时区调整、Web界面配置等关键环节。

一、环境

OS:          CentOS7.0.1406
Zabbix版本:   Zabbix-3.2
下载地址:      http://repo.zabbix.com/zabbix/3.2/rhel/7/x86_64/zabbix-release-3.2-1.el7.noarch.rpm
MySQL版本:    5.6.37
MySQL:        http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm

二、安装

1. [root@zabbix ~]# rpm -ivh zabbix-release-3.2-1.el7.noarch.rpm
warning: zabbix-release-3.2-1.el7.noarch.rpm: Header V4 RSA/SHA512 Signature, key ID a14fe591: NOKEY
Preparing...                          ################################# [100%]
Updating / installing...
   1:zabbix-release-3.2-1.el7         ################################# [100%]

2. [root@zabbix ~]#  yum install zabbix-server-mysql zabbix-web-mysql zabbix-agent

3. 安装MySQL(Centos7默认数据库是mariadb)
[root@zabbix ~]# wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
[root@zabbix ~]# rpm -ivh mysql-community-release-el7-5.noarch.rpm
Preparing...                          ################################# [100%]
Updating / installing...
   1:mysql-community-release-el7-5    ################################# [100%]
[root@zabbix ~]# yum install mysql-community-server
[root@zabbix ~]# systemctl enable mysqld
[root@zabbix ~]# systemctl start mysqld
4. 设置密码
[root@zabbix ~]# mysqladmin -uroot password "newpasswd"

5. 创建数据库
mysql> create database zabbix character set utf8 collate utf8_bin;
Query OK, 1 row affected (0.00 sec)

mysql> grant all privileges on zabbix.* to zabbix@localhost identified by 'zabbix';
Query OK, 0 rows affected (0.00 sec)

6. 导入数据
[root@zabbix ~]# cd /usr/share/doc/zabbix-server-mysql-3.2.7
[root@zabbix zabbix-server-mysql-3.2.7]# zcat create.sql.gz | mysql -uroot -p zabbix
* Zabbix是数据库名,不是密码

7.配置zabbix-server
[root@zabbix zabbix-server-mysql-3.2.7]# vim /etc/zabbix/zabbix_server.conf
DBHost=localhost
DBName=zabbix
DBUser=zabbix
DBPassword=zabbix
[root@zabbix zabbix-server-mysql-3.2.7]# systemctl enable zabbix-server.service
Created symlink from /etc/systemd/system/multi-user.target.wants/zabbix-server.service to /usr/lib/systemd/system/zabbix-server.service.
[root@zabbix zabbix-server-mysql-3.2.7]# systemctl start zabbix-server.service

8. 修改时区
  vim /etc/httpd/conf.d/zabbix.conf
php_value date.timezone Asia/Shanghai

9. 启动httpd
[root@zabbix ~]# systemctl start httpd
[root@zabbix ~]# systemctl enable httpd

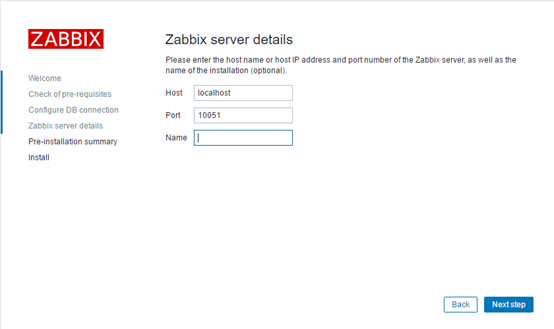

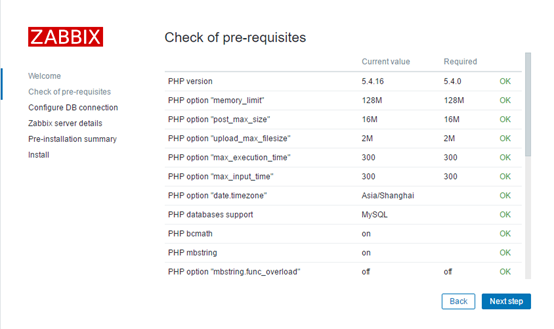

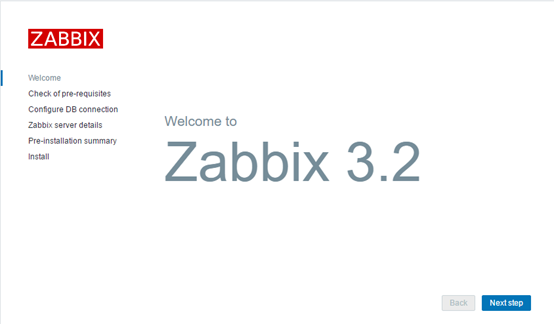

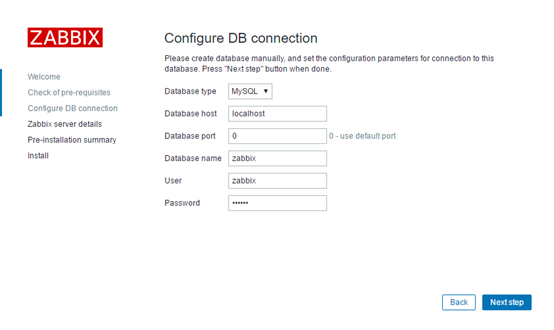

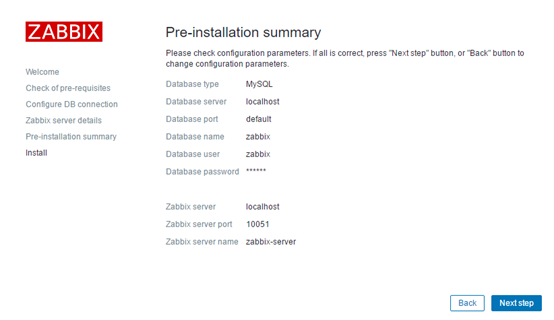

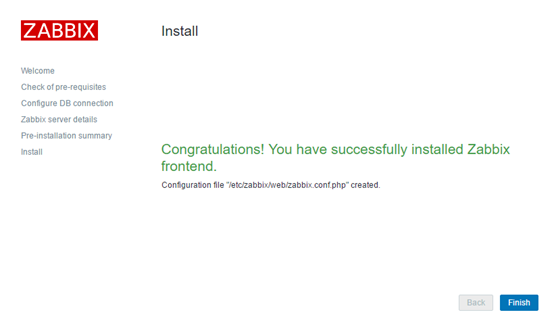

三、web界面配置

1. 访问: http://ip/zabbix

2. 登录

默认用户名密码: Admin/zabbix

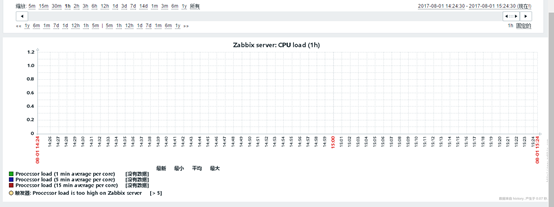

3. 问题: 中文乱码

解决方法:
Win+R打开运行，输入fonts，回车进入Windows字体目录，找到微软雅黑-常规字体，复制出来将文件名修改为msyh.ttf，然后上传到/usr/share/zabbix/fonts
上传到/usr/share/zabbix/fonts/,将graphfont.ttf备份
mv msyh.ttf graphfont.ttf
chmod 777 graphfont.ttf

4. 刷新页面
