Asp.net中DataGrid利用DataRelation显示主从表信息(可控制从表信息隐藏和显示).(DataGrid 嵌套)...

这是我这个菜鸟做的入门级的程序,与菜鸟们一起分享~~~~~基本效果图:

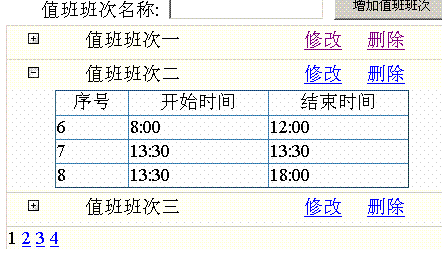

(程序主页面图(子表的信息可显示和隐藏))

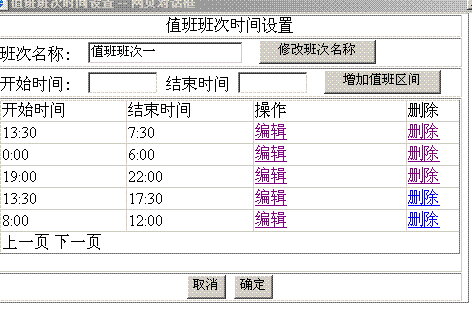

(showModalDialog弹出的修改子窗口,可根据情况刷新父窗口)

一.开发环境:
.net 版本:asp.net 1.1.4322.2032
工具:Visual Studio 2003
操作系统:Window Server 2003
数据库:SqlServer 2000

二.程序功能:

1.利用DataRelation在DataGrid中显示主从表信息,从表的信息可以显示/隐藏.

2.支持分页(系统默认分页),支持主表和从表的增加/更新/删除.

3.简要需求说明:
(1)班次(EPM_WorkTime表和班次的值班区间(EPM_WorkTimeChild表之间是一对多的关系.(也许这里没必要这样麻烦,但为了学习,所以如此做了.)

 CREATE TABLE [EPM_WorkTimeChild] (
  [id] [int] IDENTITY (1, 1) NOT NULL ,
  [parentid] [int] NOT NULL ,
  [timestart] [varchar] (20) COLLATE Chinese_PRC_CI_AS NULL ,
  [timeend] [varchar] (20) COLLATE Chinese_PRC_CI_AS NULL ,
  CONSTRAINT [PK_EPM_WorkTimeChild] PRIMARY KEY  CLUSTERED
  (
   [id]
  )  ON [PRIMARY]
 ) ON [PRIMARY]
 GO

 CREATE TABLE [EPM_WorkTime] (
  [id] [int] IDENTITY (1, 1) NOT NULL ,
  [name] [varchar] (100) COLLATE Chinese_PRC_CI_AS NULL
  CONSTRAINT [PK_EPM_WorkTime] PRIMARY KEY  CLUSTERED
  (
   [id]
  )  ON [PRIMARY]
 ) ON [PRIMARY]
 GO



(2)从表中使用了ViewState{"Id"]来保存Request.QueryString方式传递过来的parentid;因为多处用到它,所以使用了ViewStae而不是每次Request.ueryString来获得,不知这里是否合适.

(3)其中的一些JS脚本可以通过注册的方式后台添加,这里没有这样,大都写在ASPX文件中了.
   数据库访问没有使用Enterprise Library 等比较好的数据访问封装,对这些不太熟悉.而是拼凑了别人的数据访问类.
(4)子窗口中若选择了确定,则返回后刷新父窗口(因为内容更新了),若选择取消则不刷新父窗口.
(5)关键是下面的一行代码,比葫芦画瓢能用了,但不理解.

DataSource=' <% # ((System.Data.DataRowView)(Container.DataItem)).CreateChildView("WorkTime")  %> '

三.具体程序代码:
WorkTimeManage.aspx:

 1 <% @ Page language="c#" Codebehind="WorkTimeManage.aspx.cs" AutoEventWireup="false" Inherits="EPNew.WorkTimeManage"  SmartNavigation ="true" %>
 2 <! DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN"  >
 3 < HTML >
 4      < HEAD >
 5          < title > WorkTimeManage </ title >
 6          < meta  content ="Microsoft Visual Studio .NET 7.1"  name ="GENERATOR" >
 7          < meta  content ="C#"  name ="CODE_LANGUAGE" >
 8          < meta  content ="JavaScript"  name ="vs_defaultClientScript" >
 9          < meta  content ="http://schemas.microsoft.com/intellisense/ie5"  name ="vs_targetSchema" >
10          < SCRIPT  language ="JavaScript" >
11            <!--
12            //展开和关闭时候显示/隐藏子表信息
13            function showDiv(img,div)
14            {
15                var img = document.getElementById(img);
16                var div = document.getElementById(div);
17                var picName = img.src;
18                picName = picName.substring(picName.lastIndexOf("/")+1);
19                if (picName.toLowerCase() == "close.gif")
20                {
21                    div.style.display ="block";
22                    img.src = "images/open.gif";
23                }
24                else
25                {
26                    div.style.display ="none";
27                    img.src = "images/close.gif";
28                }
29            }
30
31
32            //-->
33         </ SCRIPT >
34      </ HEAD >
35      < body  MS_POSITIONING ="FlowLayout" >
36          < form  id ="Form1"  method ="post"  runat ="server" >
37              < TABLE  id ="Table1"  cellSpacing ="1"  cellPadding ="1"  width ="100%"  border ="0" >
38                  < TR  class ="Title" >
39                      < TD  align ="center" > 班次列表 </ TD >
40                  </ TR >
41                  < TR  class ="Title" >
42                      < TD  align ="left" > &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;  值班班次名称: &nbsp;
43                          < asp:textbox  id ="TxtName"  runat ="server" ></ asp:textbox > &nbsp;
44                          < asp:button  id ="BtnAdd"  runat ="server"  Text ="增加值班班次" ></ asp:button ></ TD >
45                  </ TR >
46                  < TR >
47                      < TD >< asp:datagrid  id ="DataGrid1"  runat ="server"  DataKeyField ="id"  Width ="100%"  AutoGenerateColumns ="False"
48                             ShowHeader ="False"  BackColor ="#fffff6"  AllowPaging ="True"  PageSize ="3" >
49                              < Columns >
50                                  < asp:TemplateColumn >
51                                      < ItemTemplate >
52                                          < TABLE  border ="0"  width ="100%" >
53                                              < TR >
54                                                  < TD  width ="70" >
55                                                      < asp:Label  ID ="LblId"  Runat ="server"  Visible ="False"  text ='<%#  DataBinder.Eval(Container.DataItem,"id")% > '>
56                                                      </ asp:Label >
57                                                      &nbsp;&nbsp;
58                                                      < asp:Image  ID ="ImgOpen"  Runat ="server"  open ="true"  style ="cursor:hand"  ImageUrl ="images/close.gif" ></ asp:Image ></ TD >
59                                                  < td >
60                                                      < asp:Label  ID  ="LblName"  Runat ="server"  Text  ='<%#  DataBinder.Eval(Container.DataItem,"Name")% > '>
61                                                      </ asp:Label >
62                                                  </ td >
63                                                  < td  width ="150" >
64                                                      < asp:LinkButton  ID ="LbtnEdit"  Runat ="server"  Text ="修改" ></ asp:LinkButton >
65                                                      &nbsp;&nbsp;
66                                                      < asp:LinkButton  ID ="LbtnDel"  Runat ="server"  Text ="删除"  CommandName ="Delete" ></ asp:LinkButton >
67                                                  </ td >
68                                              </ TR >
69                                              < TR >
70                                                  < TD  colspan ="3"  align ="center"  bgcolor ="#fefefe" >
71                                                      < asp:Panel  ID ="PnlContent"  Runat ="server"  style ="display:none"  Border ="0" >
72                                                          < asp:DataGrid  ID ="DgContent"  Runat ="server"  Width ="80%"  DataKeyField ="id"  AutoGenerateColumns = "False"  BorderColor ="#3677B1"  BackColor ="#fefefe"
73                                                         DataSource ='<%#  ((System.Data.DataRowView)(Container.DataItem)).CreateChildView("WorkTime") % > '>
74                                                              < Columns >
75                                                                  < asp:BoundColumn  DataField ="id"  HeaderText ="序号"  HeaderStyle-HorizontalAlign ="Center" ></ asp:BoundColumn >
76                                                                  < asp:BoundColumn  DataField ="TimeStart"  HeaderText ="开始时间"  HeaderStyle-HorizontalAlign ="Center" ></ asp:BoundColumn >
77                                                                  < asp:BoundColumn  DataField ="TimeEnd"  HeaderText ="结束时间"  HeaderStyle-HorizontalAlign ="Center" ></ asp:BoundColumn >
78                                                              </ Columns >
79                                                          </ asp:DataGrid >
80                                                      </ asp:Panel >
81                                                  </ TD >
82                                              </ TR >
83                                          </ TABLE >
84                                      </ ItemTemplate >
85                                  </ asp:TemplateColumn >
86                              </ Columns >
87                              < PagerStyle  Mode ="NumericPages" ></ PagerStyle >
88                          </ asp:datagrid ></ TD >
89                  </ TR >
90                  < TR >
91                      < TD ></ TD >
92                  </ TR >
93              </ TABLE >
94          </ form >
95      </ body >
96 </ HTML >
97

WorkTimeManage.aspx.cs

  1 using  System;
  2 using  System.Collections;
  3 using  System.ComponentModel;
  4 using  System.Data;
  5 using  System.Data.SqlClient;
  6 using  System.Drawing;
  7 using  System.Web;
  8 using  System.Web.SessionState;
  9 using  System.Web.UI;
 10 using  System.Web.UI.WebControls;
 11 using  System.Web.UI.HtmlControls;
 12
 13 namespace  EPNew
 14 {
 15    /**//// <summary>
 16    /// WorkTimeManage 的摘要说明。
 17    /// </summary>
 18    public class WorkTimeManage : System.Web.UI.Page
 19    {
 20        protected System.Web.UI.WebControls.DataGrid DataGrid1;
 21        protected System.Web.UI.WebControls.TextBox TxtName;
 22        protected System.Web.UI.WebControls.Button BtnAdd;
 23
 24        //数据访问实例
 25        protected ClassConn connE = new ClassConn();
 26
 27        private void Page_Load(object sender, System.EventArgs e)
 28        {
 29            // 在此处放置用户代码以初始化页面
 30            if(!IsPostBack)
 31            {
 32                //绑定数据
 33                InitData();
 34            }
 35        }
 36
 37        /**//// <summary>
 38        /// 初始化数据
 39        /// </summary>
 40        private void InitData()
 41        {
 42            string strSql = "select id,name from  EPM_WorkTime  order by id ;select * from EPM_WorkTimeChild ";
 43            DataSet ds = connE.getDs(strSql);
 44            ds.Tables[0].TableName = "farther";
 45            ds.Tables[1].TableName = "child";
 46            DataColumn dcFarther = ds.Tables["farther"].Columns["id"];
 47            DataColumn dcChild = ds.Tables["child"].Columns["parentid"];
 48            //主从表的关联
 49            DataRelation dRelation = new DataRelation("WorkTime",dcFarther,dcChild,true);
 50            ds.Relations.Add(dRelation);
 51            DataGrid1.DataSource = ds.Tables["farther"].DefaultView;
 52            DataGrid1.DataBind();
 53
 54        }
 55        Web 窗体设计器生成的代码#region Web 窗体设计器生成的代码
 56        override protected void OnInit(EventArgs e)
 57        {
 58            //
 59            // CODEGEN: 该调用是 ASP.NET Web 窗体设计器所必需的。
 60            //
 61            InitializeComponent();
 62            base.OnInit(e);
 63        }
 64
 65        /**//// <summary>
 66        /// 设计器支持所需的方法 - 不要使用代码编辑器修改
 67        /// 此方法的内容。
 68        /// </summary>
 69        private void InitializeComponent()
 70        {
 71            this.BtnAdd.Click += new System.EventHandler(this.BtnAdd_Click);
 72            this.DataGrid1.PageIndexChanged += new System.Web.UI.WebControls.DataGridPageChangedEventHandler(this.DataGrid1_PageIndexChanged);
 73            this.DataGrid1.DeleteCommand += new System.Web.UI.WebControls.DataGridCommandEventHandler(this.DataGrid1_DeleteCommand);
 74            this.DataGrid1.ItemDataBound += new System.Web.UI.WebControls.DataGridItemEventHandler(this.DataGrid1_ItemDataBound);
 75            this.Load += new System.EventHandler(this.Page_Load);
 76
 77        }
 78        #endregion
 79
 80
 81        /**//// <summary>
 82        /// 设置修改按钮打开窗口的JS事件
 83        /// 设置展开图片的JS事件.
 84        /// 设置删除确认的JS事件
 85        /// </summary>
 86        /// <param name="sender"></param>
 87        /// <param name="e"></param>
 88        private void DataGrid1_ItemDataBound(object sender, System.Web.UI.WebControls.DataGridItemEventArgs e)
 89        {
 90            Label lblName = (Label) e.Item.FindControl("LblName");
 91            LinkButton  lbtn = (LinkButton) e.Item.FindControl("LbtnEdit");
 92            Label lbl = (Label) (e.Item.FindControl("LblId"));
 93            System.Web.UI.WebControls.Image img  = (System.Web.UI.WebControls.Image)(e.Item.FindControl("ImgOpen"));
 94            Panel pnl = (Panel)(e.Item.FindControl("PnlContent"));
 95            LinkButton lbtnDel = (LinkButton) (e.Item.FindControl("LbtnDel"));
 96            if(img != null  && pnl != null && lbtn != null && lbl!= null && lbtnDel != null && lblName != null)
 97            {
 98                //修改按钮打开窗口的js事件
 99                lbtn.Attributes.Add("onclick","var obj = showModalDialog(\"WorkTimeChildManage.aspx?id="+lbl.Text+"&name="
100                        +Server.UrlEncode(lblName.Text)+"\",\"workchild\",\"dialogWidth:500px; dialogHeight:500px;help:0;"
101                        +"status:0;resizeable:1\");if(obj==\"true\") location.reload(); else  return false;");
102                //lbtn.Attributes.Add("onclick","var obj = window.open(\"EmployeeSetPower.aspx?id="+strId+"\");if(obj==false) return false;");
103                //展开图片的JS事件.
104                img.Attributes.Add("onclick","showDiv('"+img.ClientID+"','"+pnl.ClientID+"');return false;");
105                //删除确认
106                lbtnDel.Attributes.Add("onclick","return confirm('该班次的所有值班区间也将删除,确实要删除?');");
107            }
108
109        }
110
111        /**//// <summary>
112        /// 页码更改事件
113        /// </summary>
114        /// <param name="source"></param>
115        /// <param name="e"></param>
116        private void DataGrid1_PageIndexChanged(object source, System.Web.UI.WebControls.DataGridPageChangedEventArgs e)
117        {
118            DataGrid1.CurrentPageIndex = e.NewPageIndex;
119            //绑定数据
120            InitData();
121        }
122
123        /**//// <summary>
124        /// 删除值班班次,同时删除两个表的记录(EPM_WorkTime和EPM_WorkTimeChild).
125        /// </summary>
126        /// <param name="source"></param>
127        /// <param name="e"></param>
128        private void DataGrid1_DeleteCommand(object source, System.Web.UI.WebControls.DataGridCommandEventArgs e)
129        {
130            //程序级事务删除
131            string strId = DataGrid1.DataKeys[e.Item.ItemIndex].ToString();
132            connE.Open();
133            SqlTransaction trans = connE.conn.BeginTransaction();
134            SqlCommand cmd = new SqlCommand();
135            cmd.Connection = connE.conn;
136            cmd.Transaction = trans;
137            try
138            {
139                cmd.CommandText= "delete from EPM_WorkTimeChild where parentid ="+strId;
140                cmd.ExecuteNonQuery();
141                cmd.CommandText = "delete from EPM_WorkTime where id ="+strId;
142                cmd.ExecuteNonQuery();
143                trans.Commit();
144            }
145            catch(SqlException Ex1)
146            {
147                trans.Rollback();
148                Response.Write(Ex1.ToString());
149
150            }
151            finally
152            {
153                trans.Dispose();
154                connE.Close();
155            }
156            //为了防止某页数据只剩一条记录删除后发生的错误,要判断当前页的记录数和当前页码
157            if(DataGrid1.Items.Count ==1 && DataGrid1.CurrentPageIndex>0)
158            {
159                DataGrid1.CurrentPageIndex --;
160            }
161            //重新绑定数据
162            InitData();
163        }
164
165        /**//// <summary>
166        /// 增加一值班班次
167        /// </summary>
168        /// <param name="sender"></param>
169        /// <param name="e"></param>
170        private void BtnAdd_Click(object sender, System.EventArgs e)
171        {
172            connE.builder("select top 1 * from EPM_WorkTime");
173            connE.dr["name"] = this.TxtName.Text.Trim();
174            connE.builderClose();
175            DataGrid1.CurrentPageIndex = 0;
176            //重新绑定数据
177            InitData();
178        }
179    }
180}
181

四.备注:
本文参考了:
利用ASP.NET DataGrid显示主次关系的数据
http://dotnet.aspx.cc/ShowDetail.aspx?id=149E5DD7-3B32-461e-ACC6-51D1652E6746

转载于:https://www.cnblogs.com/adandelion/archive/2005/11/12/274505.html
