Can OBDSTAR X300M program mileage on 2014 Toyota Corolla

转载于 2019-05-19 14:00:00 发布 · 150 阅读

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/obd2tool/p/10889099.html

博客围绕丰田汽车里程表校正工具X300M展开，提到在2014款丰田卡罗拉上显示不支持，在2013款丰田凯美瑞上读数不正确。指出丰田卡罗拉仪表盘有不同制造商，VDO Siemens的可通过OBDII调整，Denso的需拆卸，Obdstar公司不会发布相关工具。

Question:2014 Toyota Corolla – Odometer Correction Tool X300M fail Display says Does not support
I tried reading with all the Toyota but all said the same thing
Yesterday I tried on a 2013 Toyota Camry it read the mileage but was not correct

Reply:

2013 Toyota Camry, cluster calibration, doesn’t support at present.

Fact:

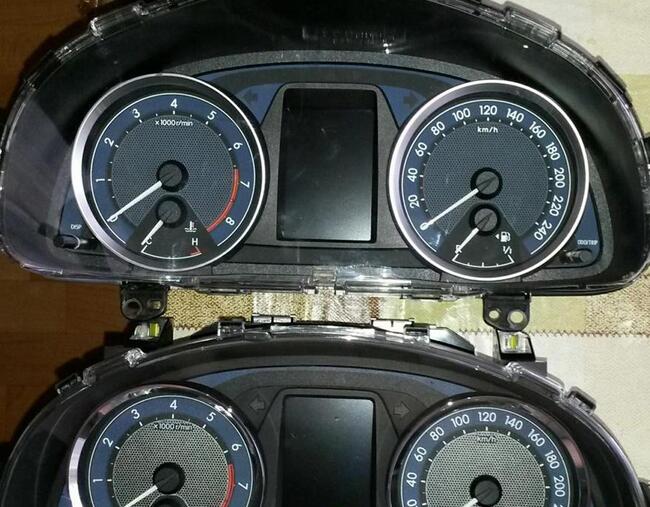

Actual Toyota Corolla clusters there are two options from different manufacturers.
Those released by VDO Siemens can be adjusted by OBDII.
And those that are released Denso, you must disassemble.

None of the instrument clusters, which was released by Denso, cannot be corrected by OBDII.

All instrument clusters that are installed on the all Camry model, are issued by OBDSTAR X300M.

So don’t wait for the cable solution. It’s impossible.

Only the new XV70 series is equipped with a Denso or VDO clusters.

You can only adjust some panels, without disassembling the instrument cluster, connecting to the Denso control points.

But the Obdstar company does not release such a tool and will never release it.
