Web Service

[References to http://www.w3school.com, http://www.w3.org/TR/wsdl]

What are Web Services?

• Web services are application components
• Web services communicate using open protocols
• Web services are self-contained and self-describing
• Web services can be discovered using UDDI
• Web services can be used by other applications
• XML is the basis for Web services

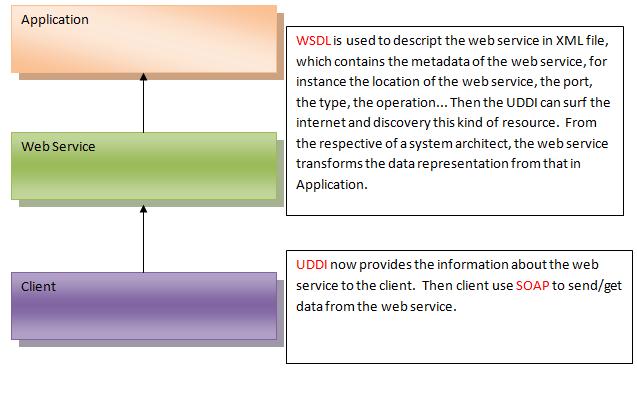

Web services platform elements

• SOAP (Simple Object Access Protocol)
• UDDI (Universal Description, Discovery and Integration)
• WSDL (Web Services Description Language)

The body of the http:

Example  1  SOAP  1.1  Request / Response via HTTP

<? xml version = " 1.0 " ?>
< definitions name = " StockQuote "

targetNamespace = " http://example.com/stockquote.wsdl "
          xmlns:tns = " http://example.com/stockquote.wsdl "
          xmlns:xsd1 = " http://example.com/stockquote.xsd "
          xmlns:soap = " http://schemas.xmlsoap.org/wsdl/soap/ "
          xmlns = " http://schemas.xmlsoap.org/wsdl/ " >

     < types >
        < schema targetNamespace = " http://example.com/stockquote.xsd "
              xmlns = " http://www.w3.org/2000/10/XMLSchema " >
            < element name = " TradePriceRequest " >
               < complexType >
                   < all >
                       < element name = " tickerSymbol "  type = " string " />
                   </ all >
               </ complexType >
            </ element >
            < element name = " TradePrice " >
               < complexType >
                   < all >
                       < element name = " price "  type = " float " />
                   </ all >
               </ complexType >
            </ element >
        </ schema >
     </ types >

     < message name = " GetLastTradePriceInput " >
         < part name = " body "  element = " xsd1:TradePriceRequest " />
     </ message >

     < message name = " GetLastTradePriceOutput " >
         < part name = " body "  element = " xsd1:TradePrice " />
     </ message >

     < portType name = " StockQuotePortType " >
         < operation name = " GetLastTradePrice " >
            < input message = " tns:GetLastTradePriceInput " />
            < output message = " tns:GetLastTradePriceOutput " />
         </ operation >
     </ portType >

     < binding name = " StockQuoteSoapBinding "  type = " tns:StockQuotePortType " >
         < soap:binding style = " document "  transport = " http://schemas.xmlsoap.org/soap/http " />
         < operation name = " GetLastTradePrice " >
            < soap:operation soapAction = " http://example.com/GetLastTradePrice " />
            < input >
                < soap:body use = " literal " />
            </ input >
            < output >
                < soap:body use = " literal " />
            </ output >
         </ operation >
     </ binding >

     < service name = " StockQuoteService " >
         < documentation > My first service </ documentation >
         < port name = " StockQuotePort "  binding = " tns:StockQuoteBinding " >
            < soap:address location = " http://example.com/stockquote " />
         </ port >
     </ service >

</ definitions >

WSDL:

A WSDL document  is  simply a  set  of definitions. There  is  a definitions element at the root, and definitions inside. The grammar  is   as  follows:

< wsdl:definitions name = " nmtoken " ?  targetNamespace = " uri " ?>

     < import  namespace = " uri "  location = " uri " />*

     < wsdl:documentation .  />   ?

     < wsdl:types >   ?
         < wsdl:documentation .  />?
         < xsd:schema .  />*
         <--  extensibility element  -->   *
     </ wsdl:types >

     < wsdl:message name = " nmtoken " >   *
         < wsdl:documentation .  />?
         < part name = " nmtoken "  element = " qname " ?  type = " qname " ?/>   *
     </ wsdl:message >

     < wsdl:portType name = " nmtoken " >*
         < wsdl:documentation .  />?
         < wsdl:operation name = " nmtoken " >*
            < wsdl:documentation .  />   ?
            < wsdl:input name = " nmtoken " ?  message = " qname " >?
                < wsdl:documentation .  />   ?
            </ wsdl:input >
            < wsdl:output name = " nmtoken " ?  message = " qname " >?
                < wsdl:documentation .  />   ?
            </ wsdl:output >
            < wsdl:fault name = " nmtoken "  message = " qname " >   *
                < wsdl:documentation .  />   ?
            </ wsdl:fault >
         </ wsdl:operation >
     </ wsdl:portType >

     < wsdl:binding name = " nmtoken "  type = " qname " >*
         < wsdl:documentation .  />?
         <--  extensibility element  -->   *
         < wsdl:operation name = " nmtoken " >*
            < wsdl:documentation .  />   ?
            <--  extensibility element  -->   *
            < wsdl:input >   ?
                < wsdl:documentation .  />   ?
                <--  extensibility element  -->
            </ wsdl:input >
            < wsdl:output >   ?
                < wsdl:documentation .  />   ?
                <--  extensibility element  -->   *
            </ wsdl:output >
            < wsdl:fault name = " nmtoken " >   *
                < wsdl:documentation .  />   ?
                <--  extensibility element  -->   *
            </ wsdl:fault >
         </ wsdl:operation >
     </ wsdl:binding >

     < wsdl:service name = " nmtoken " >   *
         < wsdl:documentation .  />?
         < wsdl:port name = " nmtoken "  binding = " qname " >   *
            < wsdl:documentation .  />   ?
            <--  extensibility element  -->
         </ wsdl:port >
         <--  extensibility element  -->
     </ wsdl:service >

     <--  extensibility element  -->   *

</ wsdl:definitions >

Services are defined using six major elements:

• types, which provides data type definitions used to describe the messages exchanged.
• message, which represents an abstract definition of the data being transmitted. A message consists of logical parts, each of which is associated with a definition within some type system.
• portType, which is a set of abstract operations. Each operation refers to an input message and output messages.
• binding, which specifies concrete protocol and data format specifications for the operations and messages defined by a particular portType.
• port, which specifies an address for a binding, thus defining a single communication endpoint.
• service, which is used to aggregate a set of related ports.

You can put the Web Service on your site.

< form target = " _blank "  action = ' http://www.w3schools.com
/ webservices / tempconvert.asmx / FahrenheitToCelsius '
method = " POST " >
< table >
     < tr >
         < td > Fahrenheit to Celsius: </ td >
         < td >< input  class = " frmInput "  type = " text "
        size = " 30 "  name = " Fahrenheit " ></ td >
     </ tr >
     < tr >
         < td ></ td >
         < td align = " right " >   < input type = " submit "
        value = " Submit "   class = " button " ></ td >
     </ tr >
</ table >
</ form >
