本文介绍一个Android自定义的图片剪裁控件

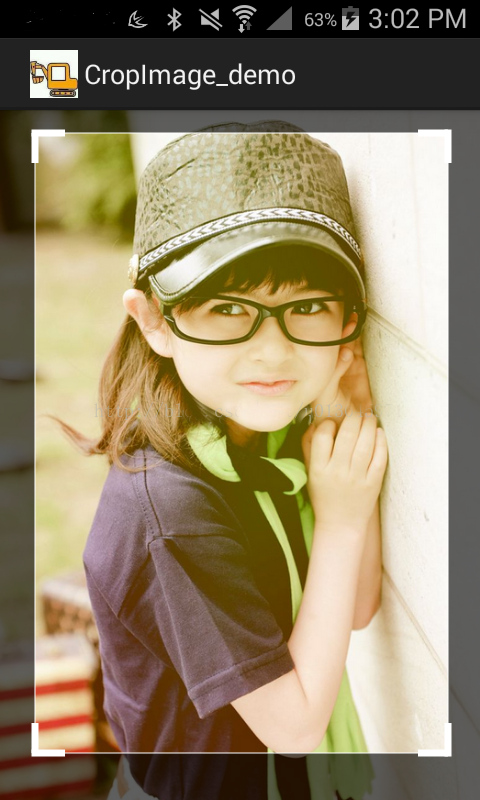

如图：



思路：在一个自定义View上绘制一张图片(参照前面提到的另一篇文章)，在该自定义View上绘制一个自定义的FloatDrawable，也就是图中的浮层。绘制图片和FloatDrawable的交集的补集部分灰色阴影(这个其实很简单，就一句话)。在自定义View的touch中去处理具体的拖动事件和FloatDrawable的变换。图片的绘制和FloatDrawable的绘制以及变换最终其实就是在操作各自的Rect而已，Rect就是一个有矩形，有四个坐标，图片和FloatDrawable就是按照坐标去绘制的。

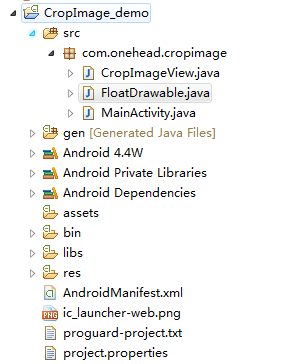

CropImageView.java

该类继承View

功能：在onDraw方法中画图片、浮层，处理touch事件，最后根据坐标对图片进行剪裁。

public class CropImageView extends View {

// 在touch重要用到的点，

private float mX_1 = 0;

private float mY_1 = 0;

// 触摸事件判断

private final int STATUS_SINGLE = 1;

private final int STATUS_MULTI_START = 2;

private final int STATUS_MULTI_TOUCHING = 3;

// 当前状态

private int mStatus = STATUS_SINGLE;

// 默认裁剪的宽高

private int cropWidth;

private int cropHeight;

// 浮层Drawable的四个点

private final int EDGE_LT = 1;

private final int EDGE_RT = 2;

private final int EDGE_LB = 3;

private final int EDGE_RB = 4;

private final int EDGE_MOVE_IN = 5;

private final int EDGE_MOVE_OUT = 6;

private final int EDGE_NONE = 7;

public int currentEdge = EDGE_NONE;

protected float oriRationWH = 0;

protected final float maxZoomOut = 5.0f;

protected final float minZoomIn = 0.333333f;

protected Drawable mDrawable;

protected FloatDrawable mFloatDrawable;

protected Rect mDrawableSrc = new Rect();// 图片Rect变换时的Rect

protected Rect mDrawableDst = new Rect();// 图片Rect

protected Rect mDrawableFloat = new Rect();// 浮层的Rect

protected boolean isFrist = true;

private boolean isTouchInSquare = true;

protected Context mContext;

public CropImageView(Context context) {

super(context);

init(context);

}

public CropImageView(Context context, AttributeSet attrs) {

super(context, attrs);

init(context);

}

public CropImageView(Context context, AttributeSet attrs, int defStyle) {

super(context, attrs, defStyle);

init(context);

}

@SuppressLint("NewApi")

private void init(Context context) {

this.mContext = context;

try {

if (android.os.Build.VERSION.SDK_INT >= 11) {

this.setLayerType(LAYER_TYPE_SOFTWARE, null);

}

} catch (Exception e) {

e.printStackTrace();

}

mFloatDrawable = new FloatDrawable(context);

}

public void setDrawable(Drawable mDrawable, int cropWidth, int cropHeight) {

this.mDrawable = mDrawable;

this.cropWidth = cropWidth;

this.cropHeight = cropHeight;

this.isFrist = true;

invalidate();

}

@SuppressLint("ClickableViewAccessibility")

@Override

public boolean onTouchEvent(MotionEvent event) {

if (event.getPointerCount() > 1) {

if (mStatus == STATUS_SINGLE) {

mStatus = STATUS_MULTI_START;

} else if (mStatus == STATUS_MULTI_START) {

mStatus = STATUS_MULTI_TOUCHING;

}

} else {

if (mStatus == STATUS_MULTI_START

|| mStatus == STATUS_MULTI_TOUCHING) {

mX_1 = event.getX();

mY_1 = event.getY();

}

mStatus = STATUS_SINGLE;

}

switch (event.getAction()) {

case MotionEvent.ACTION_DOWN:

mX_1 = event.getX();

mY_1 = event.getY();

currentEdge = getTouch((int) mX_1, (int) mY_1);

isTouchInSquare = mDrawableFloat.contains((int) event.getX(),

(int) event.getY());

break;

case MotionEvent.ACTION_UP:

checkBounds();

break;

case MotionEvent.ACTION_POINTER_UP:

currentEdge = EDGE_NONE;

break;

case MotionEvent.ACTION_MOVE:

if (mStatus == STATUS_MULTI_TOUCHING) {

} else if (mStatus == STATUS_SINGLE) {

int dx = (int) (event.getX() - mX_1);

int dy = (int) (event.getY() - mY_1);

mX_1 = event.getX();

mY_1 = event.getY();

// 根據得到的那一个角，并且变换Rect

if (!(dx == 0 && dy == 0)) {

switch (currentEdge) {

case EDGE_LT:

mDrawableFloat.set(mDrawableFloat.left + dx,

mDrawableFloat.top + dy, mDrawableFloat.right,

mDrawableFloat.bottom);

break;

case EDGE_RT:

mDrawableFloat.set(mDrawableFloat.left,

mDrawableFloat.top + dy, mDrawableFloat.right

+ dx, mDrawableFloat.bottom);

break;

case EDGE_LB:

mDrawableFloat.set(mDrawableFloat.left + dx,

mDrawableFloat.top, mDrawableFloat.right,

mDrawableFloat.bottom + dy);

break;

case EDGE_RB:

mDrawableFloat.set(mDrawableFloat.left,

mDrawableFloat.top, mDrawableFloat.right + dx,

mDrawableFloat.bottom + dy);

break;

case EDGE_MOVE_IN:

if (isTouchInSquare) {

mDrawableFloat.offset((int) dx, (int) dy);

}

break;

case EDGE_MOVE_OUT:

break;

}

mDrawableFloat.sort();

invalidate();

}

}

break;

}

return true;

}

// 根据初触摸点判断是触摸的Rect哪一个角

public int getTouch(int eventX, int eventY) {

if (mFloatDrawable.getBounds().left <= eventX

&& eventX < (mFloatDrawable.getBounds().left + mFloatDrawable

.getBorderWidth())

&& mFloatDrawable.getBounds().top <= eventY

&& eventY < (mFloatDrawable.getBounds().top + mFloatDrawable

.getBorderHeight())) {

return EDGE_LT;

} else if ((mFloatDrawable.getBounds().right - mFloatDrawable

.getBorderWidth()) <= eventX

&& eventX < mFloatDrawable.getBounds().right

&& mFloatDrawable.getBounds().top <= eventY

&& eventY < (mFloatDrawable.getBounds().top + mFloatDrawable

.getBorderHeight())) {

return EDGE_RT;

} else if (mFloatDrawable.getBounds().left <= eventX

&& eventX < (mFloatDrawable.getBounds().left + mFloatDrawable

.getBorderWidth())

&& (mFloatDrawable.getBounds().bottom - mFloatDrawable

.getBorderHeight()) <= eventY

&& eventY < mFloatDrawable.getBounds().bottom) {

return EDGE_LB;

} else if ((mFloatDrawable.getBounds().right - mFloatDrawable

.getBorderWidth()) <= eventX

&& eventX < mFloatDrawable.getBounds().right

&& (mFloatDrawable.getBounds().bottom - mFloatDrawable

.getBorderHeight()) <= eventY

&& eventY < mFloatDrawable.getBounds().bottom) {

return EDGE_RB;

} else if (mFloatDrawable.getBounds().contains(eventX, eventY)) {

return EDGE_MOVE_IN;

}

return EDGE_MOVE_OUT;

}

@Override

protected void onDraw(Canvas canvas) {

if (mDrawable == null) {

return;

}

if (mDrawable.getIntrinsicWidth() == 0

|| mDrawable.getIntrinsicHeight() == 0) {

return;

}

configureBounds();

// 在画布上花图片

mDrawable.draw(canvas);

canvas.save();

// 在画布上画浮层FloatDrawable,Region.Op.DIFFERENCE是表示Rect交集的补集

canvas.clipRect(mDrawableFloat, Region.Op.DIFFERENCE);

// 在交集的补集上画上灰色用来区分

canvas.drawColor(Color.parseColor("#a0000000"));

canvas.restore();

// 画浮层

mFloatDrawable.draw(canvas);

}

protected void configureBounds() {

// configureBounds在onDraw方法中调用

// isFirst的目的是下面对mDrawableSrc和mDrawableFloat只初始化一次，

// 之后的变化是根据touch事件来变化的，而不是每次执行重新对mDrawableSrc和mDrawableFloat进行设置

if (isFrist) {

oriRationWH = ((float) mDrawable.getIntrinsicWidth())

/ ((float) mDrawable.getIntrinsicHeight());

final float scale = mContext.getResources().getDisplayMetrics().density;

int w = Math.min(getWidth(), (int) (mDrawable.getIntrinsicWidth()

* scale + 0.5f));

int h = (int) (w / oriRationWH);

int left = (getWidth() - w) / 2;

int top = (getHeight() - h) / 2;

int right = left + w;

int bottom = top + h;

mDrawableSrc.set(left, top, right, bottom);

mDrawableDst.set(mDrawableSrc);

int floatWidth = dipTopx(mContext, cropWidth);

int floatHeight = dipTopx(mContext, cropHeight);

if (floatWidth > getWidth()) {

floatWidth = getWidth();

floatHeight = cropHeight * floatWidth / cropWidth;

}

if (floatHeight > getHeight()) {

floatHeight = getHeight();

floatWidth = cropWidth * floatHeight / cropHeight;

}

int floatLeft = (getWidth() - floatWidth) / 2;

int floatTop = (getHeight() - floatHeight) / 2;

mDrawableFloat.set(floatLeft, floatTop, floatLeft + floatWidth,

floatTop + floatHeight);

isFrist = false;

}

mDrawable.setBounds(mDrawableDst);

mFloatDrawable.setBounds(mDrawableFloat);

}

// 在up事件中调用了该方法，目的是检查是否把浮层拖出了屏幕

protected void checkBounds() {

int newLeft = mDrawableFloat.left;

int newTop = mDrawableFloat.top;

boolean isChange = false;

if (mDrawableFloat.left < getLeft()) {

newLeft = getLeft();

isChange = true;

}

if (mDrawableFloat.top < getTop()) {

newTop = getTop();

isChange = true;

}

if (mDrawableFloat.right > getRight()) {

newLeft = getRight() - mDrawableFloat.width();

isChange = true;

}

if (mDrawableFloat.bottom > getBottom()) {

newTop = getBottom() - mDrawableFloat.height();

isChange = true;

}

mDrawableFloat.offsetTo(newLeft, newTop);

if (isChange) {

invalidate();

}

}

// 进行图片的裁剪，所谓的裁剪就是根据Drawable的新的坐标在画布上创建一张新的图片

public Bitmap getCropImage() {

Bitmap tmpBitmap = Bitmap.createBitmap(getWidth(), getHeight(),

Config.RGB_565);

Canvas canvas = new Canvas(tmpBitmap);

mDrawable.draw(canvas);

Matrix matrix = new Matrix();

float scale = (float) (mDrawableSrc.width())

/ (float) (mDrawableDst.width());

matrix.postScale(scale, scale);

Bitmap ret = Bitmap.createBitmap(tmpBitmap, mDrawableFloat.left,

mDrawableFloat.top, mDrawableFloat.width(),

mDrawableFloat.height(), matrix, true);

tmpBitmap.recycle();

tmpBitmap = null;

return ret;

}

public int dipTopx(Context context, float dpValue) {

final float scale = context.getResources().getDisplayMetrics().density;

return (int) (dpValue * scale + 0.5f);

}

}

FloatDrawable.java

继承自Drawable

功能：图片上面的浮动框，通过拖动确定位置

public class FloatDrawable extends Drawable {

private Context mContext;

private int offset = 50;

private Paint mLinePaint = new Paint();

private Paint mLinePaint2 = new Paint();

{

mLinePaint.setARGB(200, 50, 50, 50);

mLinePaint.setStrokeWidth(1F);

mLinePaint.setStyle(Paint.Style.STROKE);

mLinePaint.setAntiAlias(true);

mLinePaint.setColor(Color.WHITE);

//

mLinePaint2.setARGB(200, 50, 50, 50);

mLinePaint2.setStrokeWidth(7F);

mLinePaint2.setStyle(Paint.Style.STROKE);

mLinePaint2.setAntiAlias(true);

mLinePaint2.setColor(Color.WHITE);

}

public FloatDrawable(Context context) {

super();

this.mContext = context;

}

public int getBorderWidth() {

return dipTopx(mContext, offset);//根据dip计算的像素值，做适配用的

}

public int getBorderHeight() {

return dipTopx(mContext, offset);

}

@Override

public void draw(Canvas canvas) {

int left = getBounds().left;

int top = getBounds().top;

int right = getBounds().right;

int bottom = getBounds().bottom;

Rect mRect = new Rect(left + dipTopx(mContext, offset) / 2, top

+ dipTopx(mContext, offset) / 2, right

- dipTopx(mContext, offset) / 2, bottom

- dipTopx(mContext, offset) / 2);

//画默认的选择框

canvas.drawRect(mRect, mLinePaint);

//画四个角的四个粗拐角、也就是八条粗线

canvas.drawLine((left + dipTopx(mContext, offset) / 2 - 3.5f), top

+ dipTopx(mContext, offset) / 2,

left + dipTopx(mContext, offset) - 8f,

top + dipTopx(mContext, offset) / 2, mLinePaint2);

canvas.drawLine(left + dipTopx(mContext, offset) / 2,

top + dipTopx(mContext, offset) / 2,

left + dipTopx(mContext, offset) / 2,

top + dipTopx(mContext, offset) / 2 + 30, mLinePaint2);

canvas.drawLine(right - dipTopx(mContext, offset) + 8f,

top + dipTopx(mContext, offset) / 2,

right - dipTopx(mContext, offset) / 2,

top + dipTopx(mContext, offset) / 2, mLinePaint2);

canvas.drawLine(right - dipTopx(mContext, offset) / 2,

top + dipTopx(mContext, offset) / 2 - 3.5f,

right - dipTopx(mContext, offset) / 2,

top + dipTopx(mContext, offset) / 2 + 30, mLinePaint2);

canvas.drawLine((left + dipTopx(mContext, offset) / 2 - 3.5f), bottom

- dipTopx(mContext, offset) / 2,

left + dipTopx(mContext, offset) - 8f,

bottom - dipTopx(mContext, offset) / 2, mLinePaint2);

canvas.drawLine((left + dipTopx(mContext, offset) / 2), bottom

- dipTopx(mContext, offset) / 2,

(left + dipTopx(mContext, offset) / 2),

bottom - dipTopx(mContext, offset) / 2 - 30f, mLinePaint2);

canvas.drawLine((right - dipTopx(mContext, offset) + 8f), bottom

- dipTopx(mContext, offset) / 2,

right - dipTopx(mContext, offset) / 2,

bottom - dipTopx(mContext, offset) / 2, mLinePaint2);

canvas.drawLine((right - dipTopx(mContext, offset) / 2), bottom

- dipTopx(mContext, offset) / 2 - 30f,

right - dipTopx(mContext, offset) / 2,

bottom - dipTopx(mContext, offset) / 2 + 3.5f, mLinePaint2);

}

@Override

public void setBounds(Rect bounds) {

super.setBounds(new Rect(bounds.left - dipTopx(mContext, offset) / 2,

bounds.top - dipTopx(mContext, offset) / 2, bounds.right

+ dipTopx(mContext, offset) / 2, bounds.bottom

+ dipTopx(mContext, offset) / 2));

}

@Override

public void setAlpha(int alpha) {

}

@Override

public void setColorFilter(ColorFilter cf) {

}

@Override

public int getOpacity() {

return 0;

}

public int dipTopx(Context context, float dpValue) {

final float scale = context.getResources().getDisplayMetrics().density;

return (int) (dpValue * scale + 0.5f);

}

}

使用

布局中：

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent" >

android:id="@+id/cropimage"

android:layout_width="match_parent"

android:layout_height="match_parent" />

Activity中：

public class MainActivity extends ActionBarActivity {

private CropImageView mView;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

mView = (CropImageView) findViewById(R.id.cropimage);

//设置资源和默认长宽

mView.setDrawable(getResources().getDrawable(R.drawable.test2), 300,

300);

//调用该方法得到剪裁好的图片

Bitmap mBitmap= mView.getCropImage();

}

}

64位Ubuntu 11.10下Android开发环境的搭建(JDK+Eclipse+ADT+Android SDK详细) http://www.linuxidc.com/Linux/2013-06/85303.htm


罗昌毕
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
