Automatic (recommended):

Install EPEL and nux Desktop repository rpms.

# rpm -ivh

https://dl.fedoraproject.org/pub/epel/7/x86_64/e/epel-release-7-8.noarch.rpm

# rpm -ivh

http://li.nux.ro/download/nux/dextop/el7/x86_64/nux-dextop-release-0-5.el7.nux.noarch.rpm

Installation: Issue the following command

to install xrdp

# yum -y install xrdp

tigervnc-server

You will get the following output, make sure you are getting

package from the newly created repository.

-->

Running transaction check

---> Package xrdp.x86_64

0:0.6.1-2.el7.nux will be installed

--> Finished Dependency

Resolution

Dependencies Resolved

================================================================================

Package

Arch

Version

Repository

Size

================================================================================

Installing:

xrdp

x86_64

0.6.1-2.el7.nux

xrdp

271 k

Transaction Summary

================================================================================

Install 1 Package

Total download size: 271 k

Installed size: 1.5 M

Is this ok [y/d/N]: y

Downloading packages:

xrdp-0.6.1-2.el7.nux.x86_64.rpm | 271 kB

00:05

Running transaction check

Running transaction test

Transaction test succeeded

Running transaction

Installing : xrdp-0.6.1-2.el7.nux.x86_64 1/1

Verifying :

xrdp-0.6.1-2.el7.nux.x86_64

1/1

Installed:

xrdp.x86_64 0:0.6.1-2.el7.nux

Install Japanese Keyboard

# cd /etc/xrdp

# wget

http://www.mail-archive.com/xrdp-devel@lists.sourceforge.net/msg00263/km-e0010411.ini

# cp km-e0010411.ini km-0411.ini

# cp km-e0010411.ini km-e0200411.ini

# cp km-e0010411.ini km-e0210411.ini

Once it is installed, lets start the xrdp

service.

# systemctl start

xrdp.service

xrdp will listen on 3389, lets confirm this by issuing

following command.

# netstat -antup

| grep xrdp

tcp 0

0 0.0.0.0:3389

0.0.0.0:*

LISTEN

1508/xrdp

tcp 0

0 127.0.0.1:3350

0.0.0.0:*

LISTEN

1507/xrdp-sesman

By default, services wont auto start after system reboot.

Issue the following command to enable the service at system start

up.

# systemctl enable

xrdp.service

lets start firewall enabled

# systemctl start

firewalld

By default, firewall wont auto start after system reboot.

Issue the following command to enable the firewall at system start

up.

# systemctl enable

firewalld

Next is to create iptables rule to allow rdp connection from

the external machines, following command will add the exception for

rdp port (3389).

# firewall-cmd --permanent

--zone=public --add-port=3389/tcp

# firewall-cmd --reload

Configure SELinux

# chcon --type=bin_t /usr/sbin/xrdp

# chcon --type=bin_t /usr/sbin/xrdp-sesman

Test:

Now take rdp from any windows machine using Remote Desktop

Connection, enter ip address of Linux server in computer field and

click on connect.

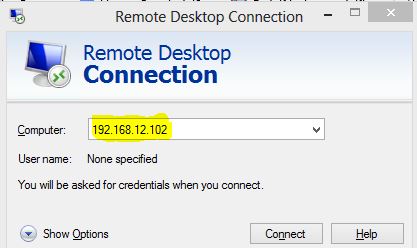

CentOS 7 – xrdp MSTSC

You would be asked to enter the user name and password, you

can either use root or any user that you have it on system. Make

sure you use module “sesman-Xvnc”.

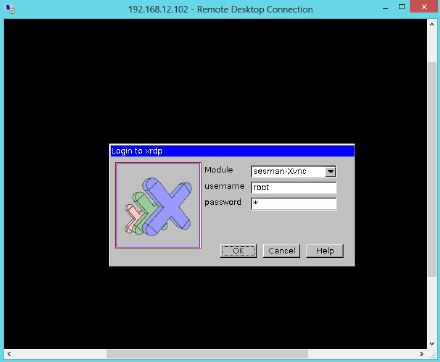

CentOS 7 – xrdp Login page

If you click ok, you will see the processing. In less than a

half min, you will get a desktop.

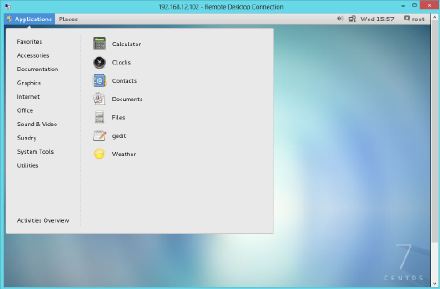

CentOS 7 – xrdp Desktop

That's All, you have successfully configured xRDP on CentOS 7 /

RHEL 7. We welcome your comments.

[Reference]

[Xrdp-devel] Keyboard issue and Japanese Keyboard Layout
