java springboot netty 史上最简单的网关转发程序 todo

最简单的网关转发程序

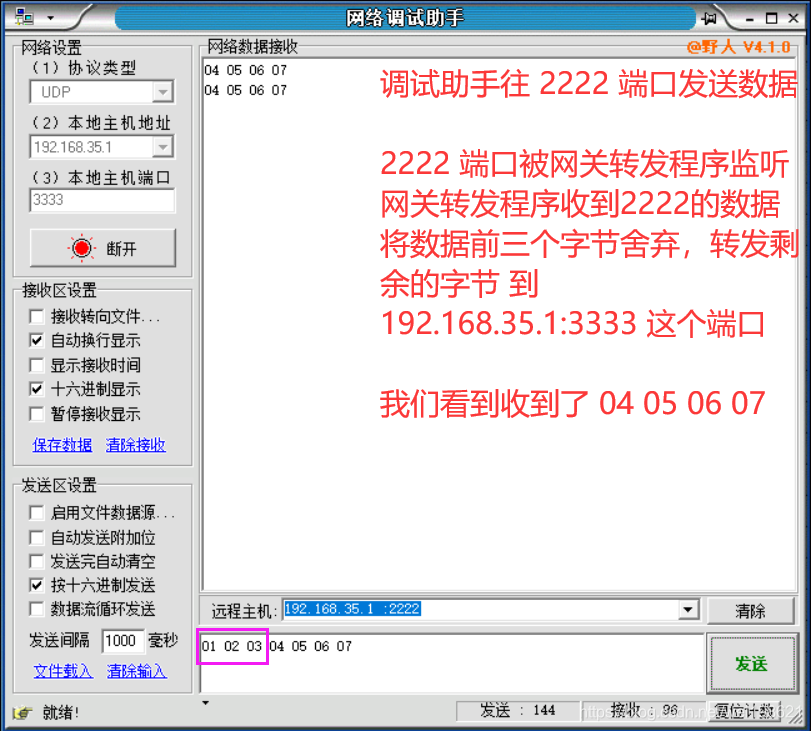

1. 监控端口2222，接收端口接到的数据
2. 将数据从第四位开始截取
3. 将数据转发到另外一台主机 本示例是 本机 192.168.35.1:3333
   盗用同事梁某版权，

使用技术： springboot netty

git hub 地址 ：
https://github.com/wei198621/GetwayForwardByNettyUdp

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.tiza.leo</groupId>
    <artifactId>UdpGetwayForwardByNetty</artifactId>
    <version>1.0-SNAPSHOT</version>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>


                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.tiza.leo.UdpGetwayForwardByNetty.Boot</mainClass>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.1.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.42.Final</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.11</version>
        </dependency>

    </dependencies>


</project>

spring:
  profiles:
    active: dev
gateway:
  inPort: 2222
  outIp: 192.168.35.1
  outPort: 3333

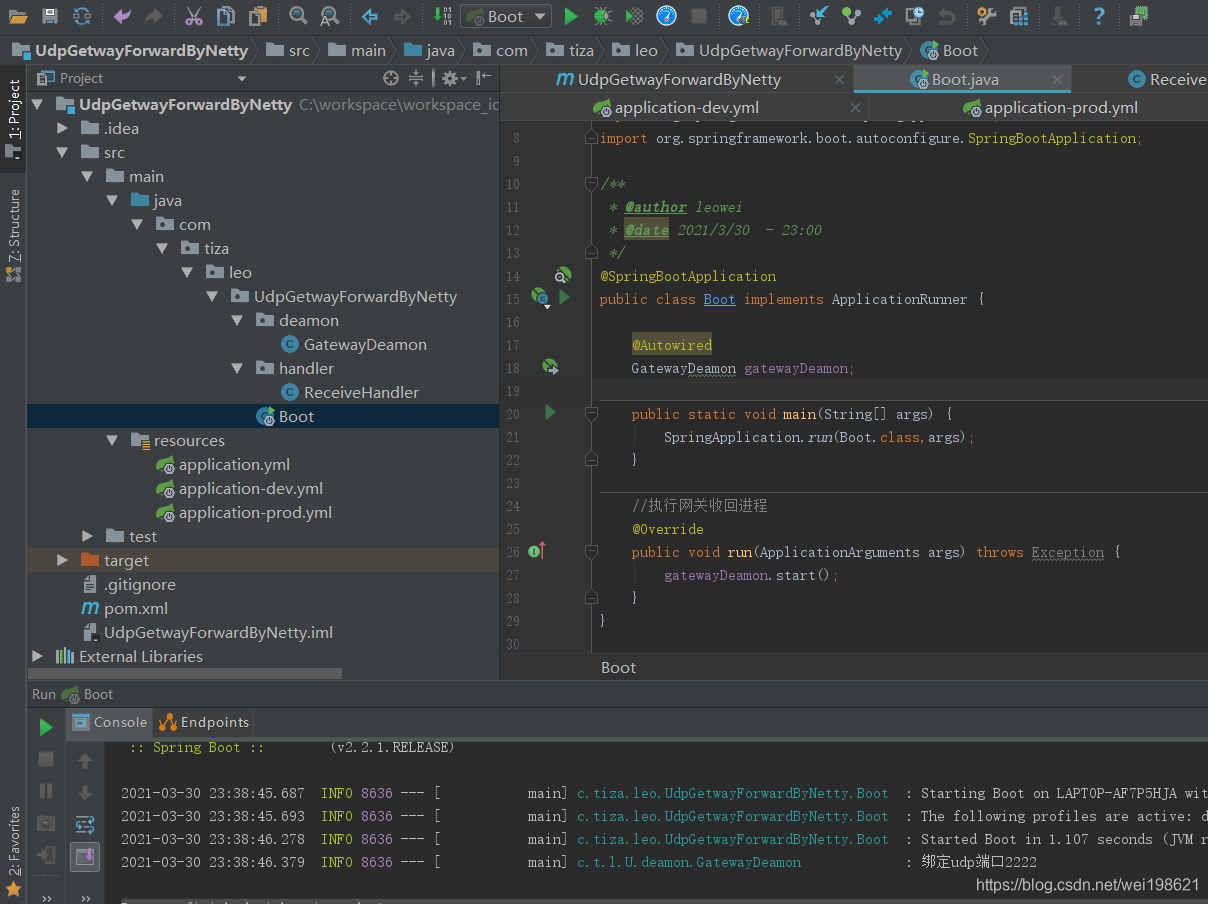

package com.tiza.leo.UdpGetwayForwardByNetty;

import com.tiza.leo.UdpGetwayForwardByNetty.deamon.GatewayDeamon;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author leowei
 * @date 2021/3/30  - 23:00
 */
@SpringBootApplication
public class Boot implements ApplicationRunner {

    @Autowired
    GatewayDeamon gatewayDeamon;

    public static void main(String[] args) {
        SpringApplication.run(Boot.class,args);
    }

    //执行网关收回进程
    @Override
    public void run(ApplicationArguments args) throws Exception {
        gatewayDeamon.start();
    }
}

package com.tiza.leo.UdpGetwayForwardByNetty.handler;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.channel.socket.DatagramPacket;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Component;

import java.net.InetSocketAddress;


/**
 * @author leowei
 * @date 2021/3/30  - 23:01
 */
@Slf4j
@ChannelHandler.Sharable
@Component
public class ReceiveHandler extends ChannelInboundHandlerAdapter {

    @Autowired
    private Environment env;

    /*
    1. 从 channel  中取到msg  转换为buf 后 截取前9位扔掉
    2. 将剩余的数据打包为一个DatagramPacket 发往 出口
     */

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        DatagramPacket datagramPacketIn =   (DatagramPacket) msg;
        ByteBuf buf = datagramPacketIn.copy().content();
        buf.skipBytes(3);
        InetSocketAddress address = new InetSocketAddress(env.getProperty("gateway.outIp"), Integer.parseInt(env.getProperty("gateway.outPort")));
        DatagramPacket datagramPacketOut = new DatagramPacket(buf, address);
        ctx.channel().writeAndFlush(datagramPacketOut).sync();
        datagramPacketIn.release();
        //super.channelRead(ctx, msg);
    }
}

package com.tiza.leo.UdpGetwayForwardByNetty.deamon;

import com.tiza.leo.UdpGetwayForwardByNetty.handler.ReceiveHandler;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioDatagramChannel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.couchbase.CouchbaseProperties;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Service;

/**
 * @author leowei
 * @date 2021/3/30  - 23:02
 */
@Slf4j
@Service
public class GatewayDeamon {
    @Autowired
    private Environment env;
    @Autowired
    private ReceiveHandler receiveHandler;

    public void start(){
        NioEventLoopGroup bossGroup = new NioEventLoopGroup();
        NioEventLoopGroup workGroup = new NioEventLoopGroup();
        Integer port = env.getRequiredProperty("gateway.inPort", Integer.class);
        log.info("绑定udp端口{}",port);
        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(bossGroup)
                    .channel(NioDatagramChannel.class)
                    .option(ChannelOption.SO_BROADCAST, true)
                    //设置了UDP socket读缓冲区为2M
                    .option(ChannelOption.SO_RCVBUF, 1024 * 2048)
                    .handler(new ChannelInitializer<NioDatagramChannel>() {
                        @Override
                        protected void initChannel(NioDatagramChannel channel) throws Exception {
                            ChannelPipeline pipeline = channel.pipeline();
                            pipeline.addLast("receive", receiveHandler);
                        }
                    });
            ChannelFuture future = null;
            future = bootstrap.bind(port).sync();
            future.channel().closeFuture().sync();
        } catch (Exception e) {
            log.error(e.getMessage(),e);
        }finally {
            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }


    }

}
