ensp三层交换机的DHCP设置简单案例

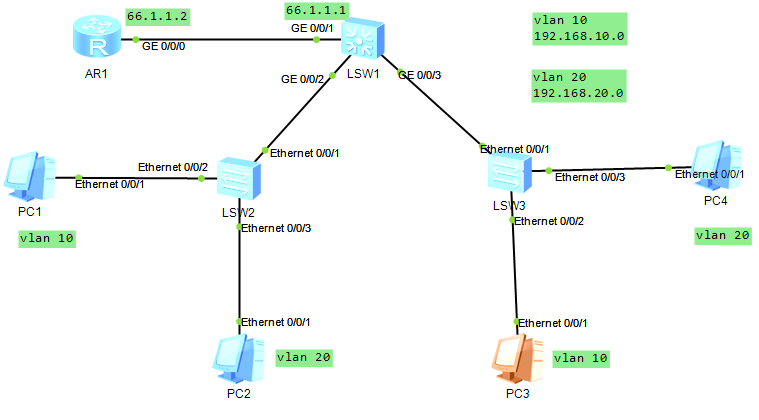

1，网络布局
在这里插入图片描述
2，三层交换机LSW1设置命令
[LSW1]int Vlanif 1
[LSW1-Vlanif1]ip address 66.1.1.1 24
[LSW1]ip route-static 0.0.0.0 0.0.0.0 66.1.1.2

[LSW1]vlan batch 10 20
[LSW1]int Vlanif 10
[LSW1-Vlanif10]ip address 192.168.10.254 24
[LSW1]int Vlanif 20
[LSW1-Vlanif20]ip address 192.168.20.254 24

[LSW1]dhcp enable
[LSW1]ip pool dhcp10
[LSW1-ip-pool-dhcp10]network 192.168.10.0 mask 24
[LSW1-ip-pool-dhcp10]gateway-list 192.168.10.254
[LSW1-ip-pool-dhcp10]dns-list 114.114.114.114
[LSW1-ip-pool-dhcp10]excluded-ip-address 192.168.10.250 192.168.10.253
[LSW1]int Vlanif 10
[LSW1-Vlanif10]dhcp select global

[LSW1]ip pool dhcp20
[LSW1-ip-pool-dhcp20]network 192.168.20.0 mask 24
[LSW1-ip-po
