金山树形控件创建

成员变量：KUIMulStatusTree m_ctlTree;

头文件： KuiRealTreeCtrl.h  CDSN代码中

1：在main.xml中设置：

  <tab title="test" width="full" height="full" class="tabpageblue">
       <dlg pos="0,0,-0,-0" crbg="FBEEFD" class="panel" >
      <realwnd id="101" ctrlid="101" pos="10,10,-10,-5" />    //控件ID为101
      </dlg>
  </tab>

2：在初始化对话框中：



//Tree树形控件

 if( !m_ctlTree.Create( GetViewHWND(), 101 ) )

    {
                        ::MessageBox(0,_T("无法创建树形控件"),_T("提示"),MB_OK | MB_ICONERROR);
                }

 else

     {
                        HTREEITEM hItem = m_ctlTree.InsertItem( _T("全选集"),                              NULL,NULL,KUIMulStatusTree::EM_TVIS_CHECK );

 m_ctlTree.InsertItem( _T("下属项目1"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目2"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目3"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目4"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目5"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );

                        hItem = m_ctlTree.InsertItem( _T("半选集"), NULL, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目1"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目2"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目3"), hItem, NULL, KUIMulStatusTree::EM_TVIS_CHECK );
                        m_ctlTree.InsertItem( _T("下属项目4"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目5"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );

                        hItem = m_ctlTree.InsertItem( _T("全非选集"), NULL, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目1"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目2"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目3"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目4"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                        m_ctlTree.InsertItem( _T("下属项目5"), hItem, NULL, KUIMulStatusTree::EM_TVIS_UNCHECK );
                }

注：

代码同时演示了项目的插入方法,最后的参数EM_TVIS_CHECK指示了使用选择框,一共可以有四种选择状态,分别如下:

EM_TVIS_NONE 没有选择框

EM_TVIS_UNCHECK 非选中

EM_TVIS_INDETERMINING 半选中,一般为父项目使用

EM_TVIS_CHECK  选中

对于树控件的具体使用方法可以参考MSDN.因为它就是一个实际的窗口控件,而非DirectUI控件



3：在bkwinres.rc2中：





DEFINE_BMP(IDB_BITMAP_TREECTRL_CHECK,                                  116,                 "res\\Treectrl_check.bmp")

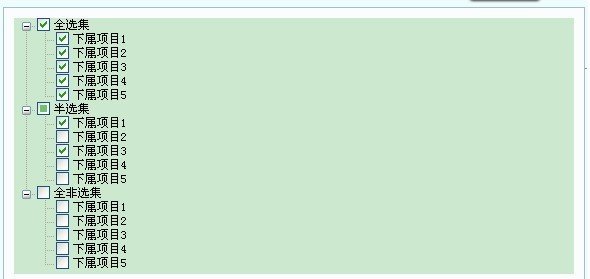

效果为：
