命令模式-实例使用

最新推荐文章于 2025-11-24 18:08:28 发布

原创最新推荐文章于 2025-11-24 18:08:28 发布 · 825 阅读

5 ·

CC 4.0 BY-SA版权

文章标签：

#命令模式

本文详细介绍了在UML设计中如何使用命令模式，创建了抽象的Command接口和具体实现类（如BarCommand,LabelCommand,QrCommand），并通过Invoker来调用这些命令，展示了如何通过CommandFactory工厂方法创建并执行不同类型的命令。

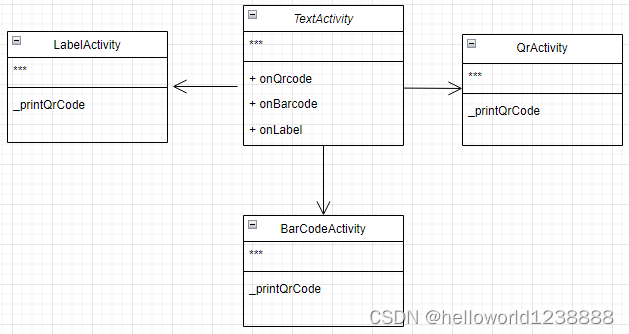

未使用命令模式的UML

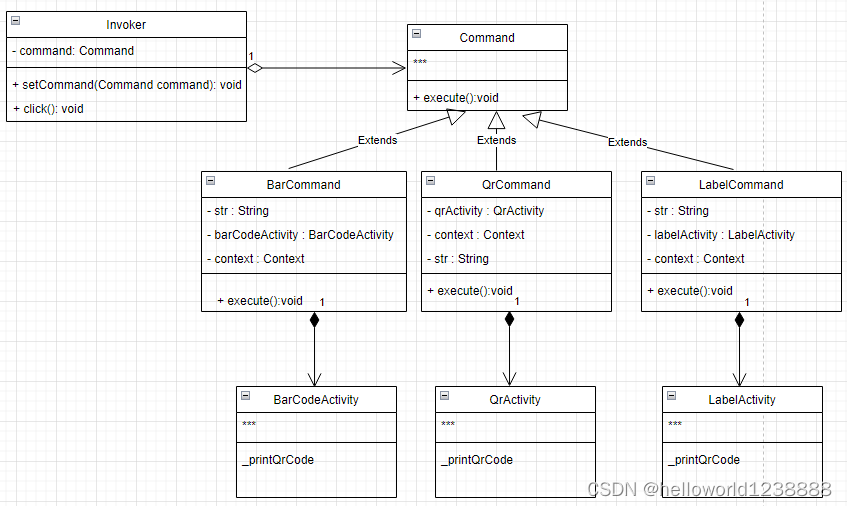

使用命令模式后的UML

public abstract class Command {
    public abstract void execute();
}

public class Invoker {
    private Command command;

    /**
     * 为功能键注入命令
     * @param command
     */
    public void setCommand(Command command) {
        this.command = command;
    }

    /**
     * 点击按钮事件
     */
    public void click() {
        System.out.print("点击按钮事件：");
        command.execute();
    }
}

public class BarCommand extends Command{

    final private BarCodeActivity barCodeActivity;
    final private Context context;
    final private String str;

    public BarCommand(Context context, String str){
        barCodeActivity = new BarCodeActivity();
         this.str = str;
         this.context = context;
    }
    @Override
    public void execute() {
        barCodeActivity.printBarCode(context,str);
    }
}
public class LabelCommand extends Command{

    final private LabelActivity labelActivity;
    final private Context context;
    final private String str;

    public LabelCommand(Context context, String str){
         labelActivity = new LabelActivity();
         this.str = str;
         this.context = context;
    }
    @Override
    public void execute() {
        labelActivity.printLabel(context,str);
    }
}
public class QrCommand extends Command{

    final private QrActivity qrActivity;
    final private Context context;
    final private String str;

    public QrCommand(Context context, String str){
         qrActivity = new QrActivity();
         this.str = str;
         this.context = context;
    }
    @Override
    public void execute() {
        qrActivity.printQrCode(context,str);
    }
}

public void onQrcode(View view){
        Logs.d(TAG,"");
        Command command = CommandFactory.createQrCommand(getApplicationContext(), mEditText.getText().toString());
        executeCommand(command);
    }
    public void onBarcode(View view){
        Command command = CommandFactory.createBarCommand(getApplicationContext(), mEditText.getText().toString());
        executeCommand(command);
    }
    public void onLabel(View view){
        Command command = CommandFactory.createLabelCommand(getApplicationContext(), mEditText.getText().toString());
        executeCommand(command);
    }

public class CommandFactory {

    public static Command createQrCommand(Context context, String data) {
        return new QrCommand(context, data);
    }

    public static Command createBarCommand(Context context, String data) {
        return new BarCommand(context, data);
    }

    public static Command createLabelCommand(Context context, String data) {
        return new LabelCommand(context, data);
    }
}
