RK3588 Android13长按电源键实现重启菜单

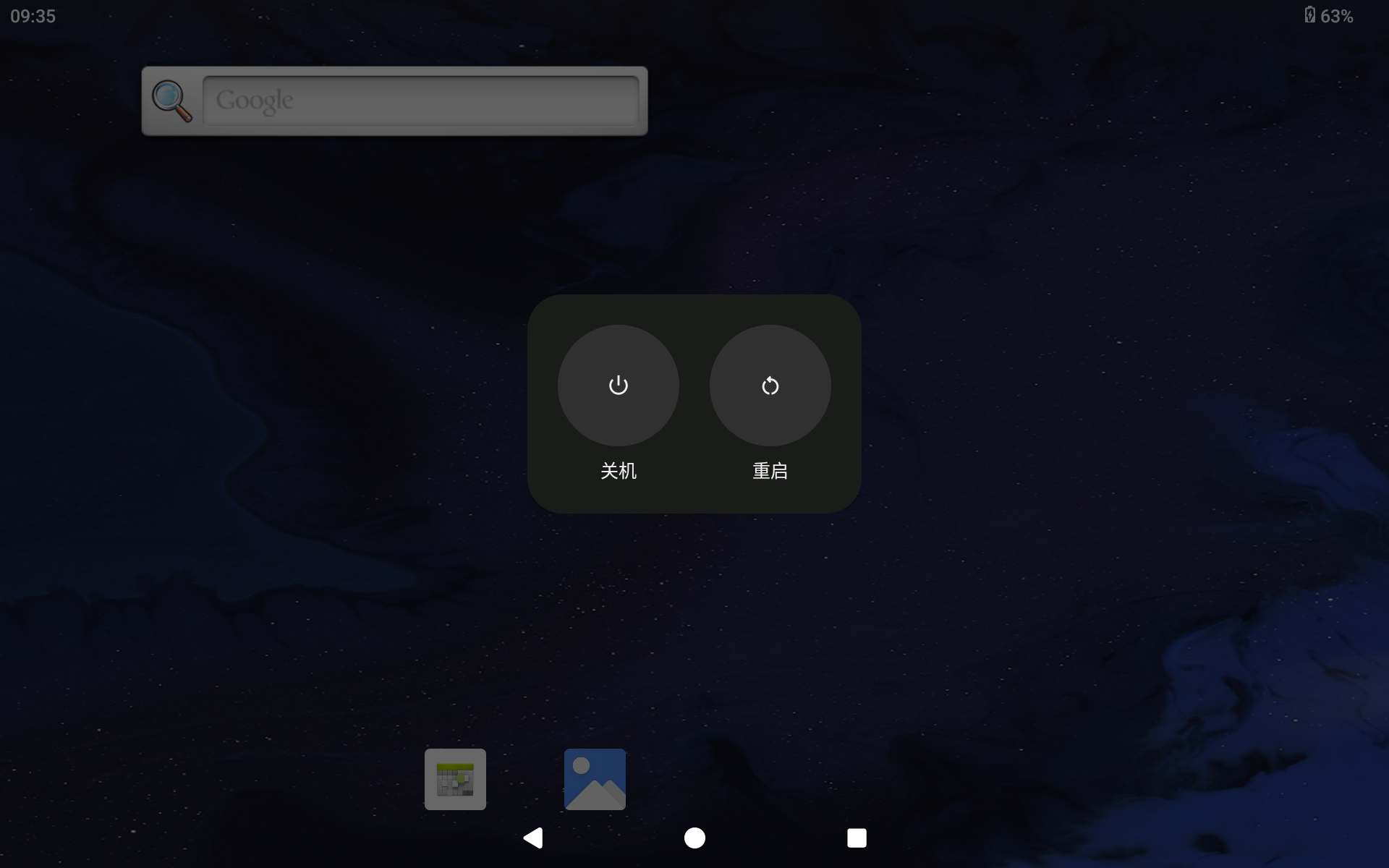

20250925让荣品RD-RK3588-MID开发板的Android13系统在长按关机的时候有重启按键
2025/9/25 15:24
缘起：PM需要在长按关机的时候有重启按键。因为竞品有！^_

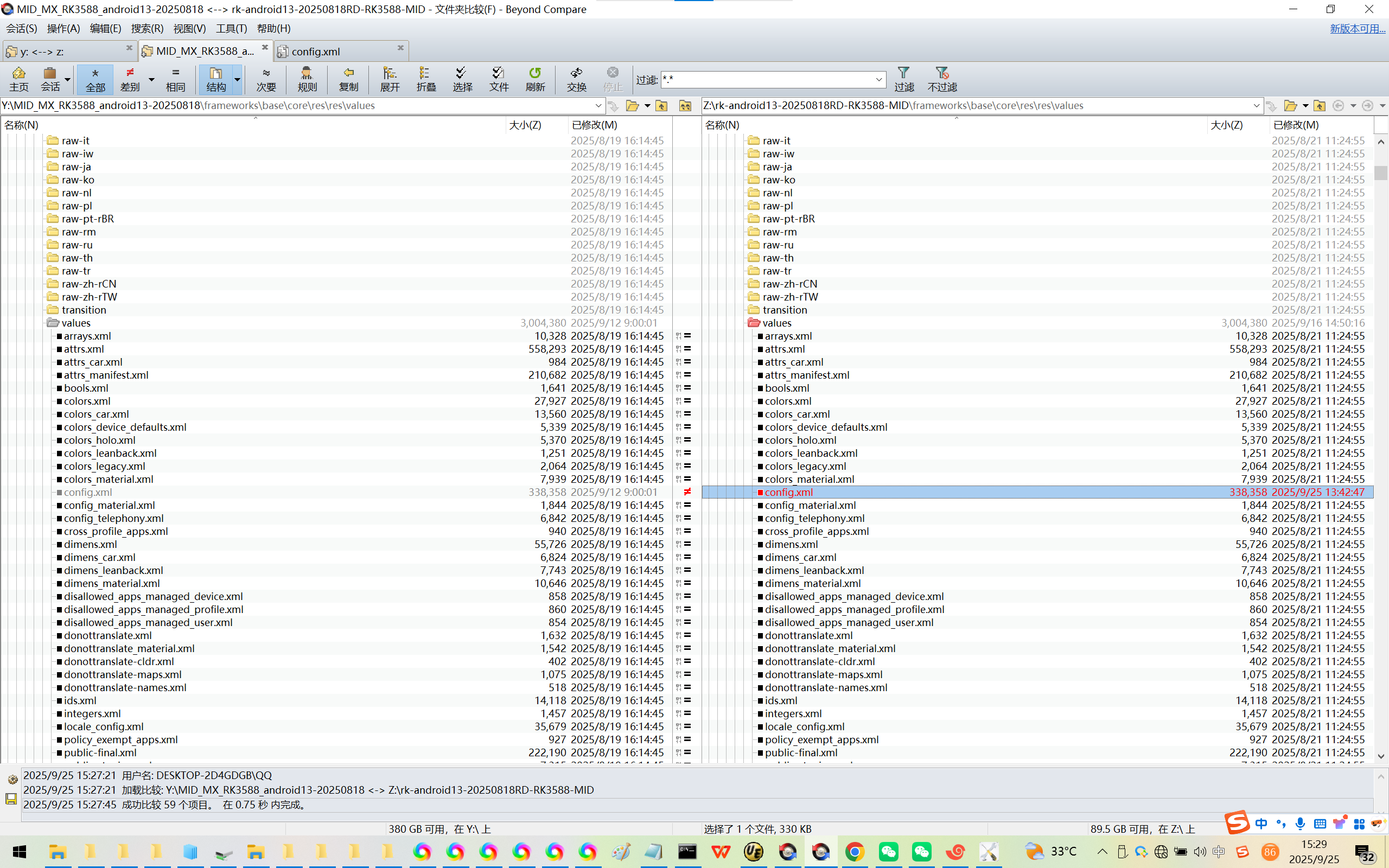

Y:\RK3588_android13-20250818\frameworks\base\core\res\res\values\config.xml
Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\core\res\res\values\config.xml
<!-- How long to show a warning message to user before the device goes to sleep after prolonged
user inactivity. -->
<integer name="config_attentiveWarningDuration">30000</integer>
<!-- Control the behavior when the user long presses the power button.
0 - Nothing
1 - Global actions menu
2 - Power off (with confirmation)
3 - Power off (without confirmation)
4 - Go to voice assist
5 - Go to assistant (Settings.Secure.ASSISTANT)
-->
<integer name="config_longPressOnPowerBehavior">2</integer>
<!-- The time in milliseconds after which a press on power button is considered "long". -->
<integer name="config_longPressOnPowerDurationMs">500</integer>

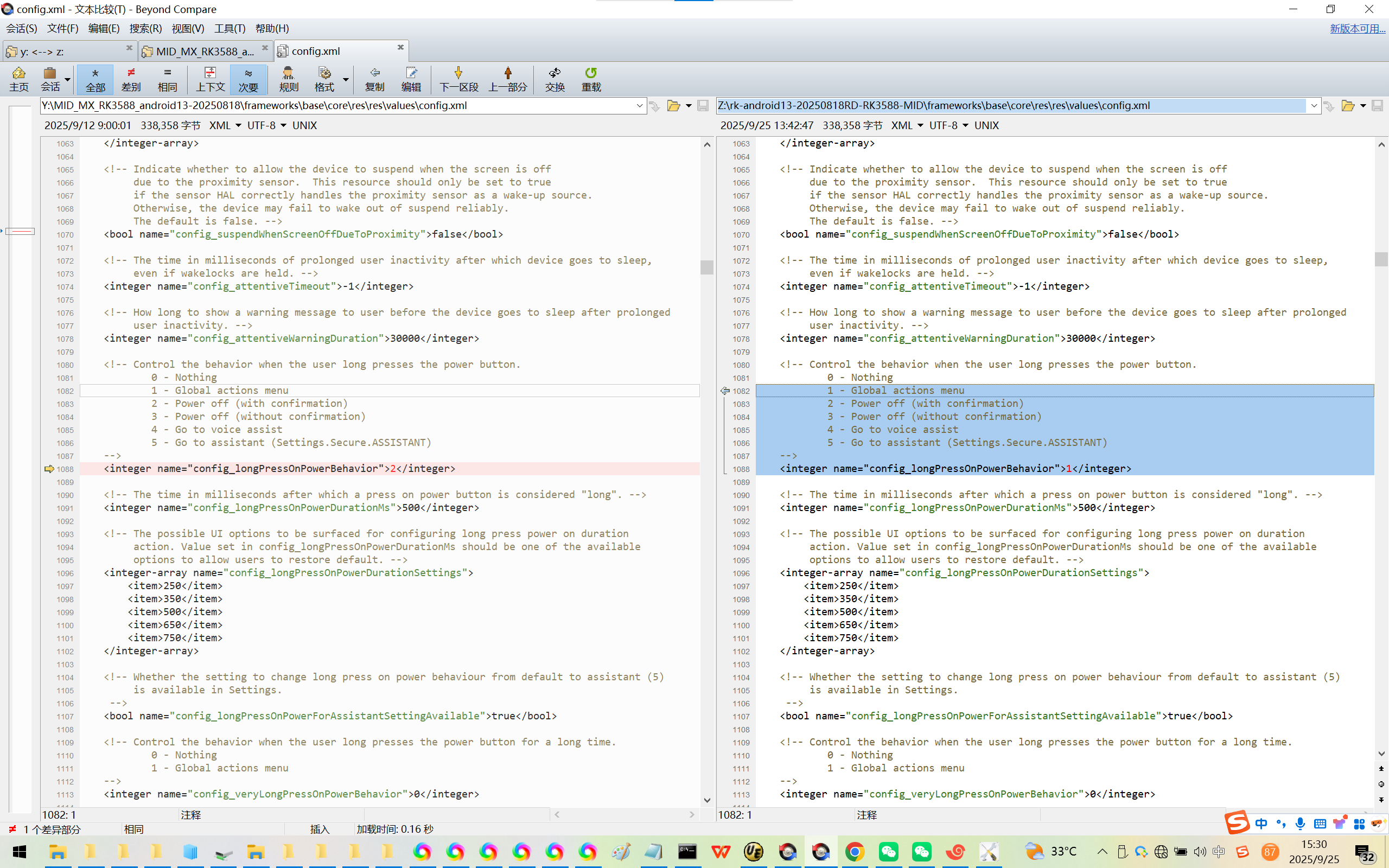

修改为：
<!-- How long to show a warning message to user before the device goes to sleep after prolonged
user inactivity. -->
<integer name="config_attentiveWarningDuration">30000</integer>
<!-- Control the behavior when the user long presses the power button.
0 - Nothing
1 - Global actions menu
2 - Power off (with confirmation)
3 - Power off (without confirmation)
4 - Go to voice assist
5 - Go to assistant (Settings.Secure.ASSISTANT)
-->
<integer name="config_longPressOnPowerBehavior">1</integer>
<!-- The time in milliseconds after which a press on power button is considered "long". -->
<integer name="config_longPressOnPowerDurationMs">500</integer>
百度：RK3588 长按POWER按键 关机
1、
https://blog.youkuaiyun.com/u011774634/article/details/130585756?spm=1001.2101.3001.6650.18&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-18-130585756-blog-115718749.235%5Ev43%5Epc_blog_bottom_relevance_base5&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-18-130585756-blog-115718749.235%5Ev43%5Epc_blog_bottom_relevance_base5&utm_relevant_index=22
RK3588S Android12修改PMIC（RK806）长按电源键强制关机的时长为10秒
https://blog.youkuaiyun.com/u011774634/article/details/130585756
--- a/kernel-5.10/drivers/mfd/rk806-core.c
+++ b/kernel-5.10/drivers/mfd/rk806-core.c
@@ -677,6 +677,8 @@ static int rk806_parse_dt(struct rk806 *rk806)
/* PWRON_ON_TIME: 0:500mS; 1:20mS */
if (device_property_read_bool(dev, "pwron-on-time-500ms"))
rk806_field_write(rk806, PWRON_ON_TIME, 0x00);
+
+ rk806_field_write(rk806,PWRON_LP_OFF_TIME,0x02);
return 0;
}
https://blog.youkuaiyun.com/weixin_43245753/article/details/127852443?ops_request_misc=%257B%2522request%255Fid%2522%253A%252250308455e3486e70b8b92799b873002b%2522%252C%2522scm%2522%253A%252220140713.130102334.pc%255Fall.%2522%257D&request_id=50308455e3486e70b8b92799b873002b&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~first_rank_ecpm_v1~rank_v31_ecpm-4-127852443-null-null.142^v102^pc_search_result_base6&utm_term=RK3566%20%E9%95%BF%E6%8C%89%E5%85%B3%E6%9C%BA&spm=1018.2226.3001.4187
RK3588长按power键强制关机的按键时间设置
https://blog.youkuaiyun.com/weixin_43245753/article/details/127852443
Z:\14TB\versions\RD-RK3588_Android13\kernel-5.10\drivers\mfd\rk806-core.c
static int rk806_parse_dt(struct rk806 *rk806)
{
struct rk806_platform_data *pdata;
struct device *dev = rk806->dev;
int rst_fun;
int ret;
pdata = rk806->pdata;
pdata->shutdown_voltage_threshold = 2700;
pdata->shutdown_temperture_threshold = 160;
pdata->hotdie_temperture_threshold = 115;
pdata->force_shutdown_enable = 1;
ret = device_property_read_u32(dev,
"low_voltage_threshold",
&pdata->low_voltage_threshold);
if (ret < 0) {
pdata->low_voltage_threshold = 0;
dev_info(dev, "low_voltage_threshold missing!\n");
} else {
if ((pdata->low_voltage_threshold > 3500) ||
(pdata->low_voltage_threshold < 2800)) {
dev_err(dev, "low_voltage_threshold out [2800 3500]!\n");
pdata->low_voltage_threshold = 2800;
}
}
ret = device_property_read_u32(dev,
"shutdown_voltage_threshold",
&pdata->shutdown_voltage_threshold);
if (ret < 0) {
pdata->force_shutdown_enable = 0;
dev_info(dev, "shutdown_voltage_threshold missing!\n");
}
if ((pdata->shutdown_voltage_threshold > 3400) ||
(pdata->shutdown_voltage_threshold < 2700)) {
dev_err(dev, "shutdown_voltage_threshold out [2700 3400]!\n");
pdata->shutdown_voltage_threshold = 2700;
}
ret = device_property_read_u32(dev,
"shutdown_temperture_threshold",
&pdata->shutdown_temperture_threshold);
if (ret < 0)
dev_info(dev, "shutdown_temperture_threshold missing!\n");
ret = device_property_read_u32(dev,
"hotdie_temperture_threshold",
&pdata->hotdie_temperture_threshold);
if (ret < 0)
dev_info(dev, "hotdie_temperture_threshold missing!\n");
ret = device_property_read_u32(dev, "pmic-reset-func", &rst_fun);
if (ret < 0) {
dev_info(dev, "pmic-reset-func missing!\n");
rk806_field_write(rk806, RST_FUN, 0x00);
} else
rk806_field_write(rk806, RST_FUN, rst_fun);
/* PWRON_ON_TIME: 0:500mS; 1:20mS */
if (device_property_read_bool(dev, "pwron-on-time-500ms"))
rk806_field_write(rk806, PWRON_ON_TIME, 0x00);
printk("**** wyb 2025/7/10 11:26 %s %s %d, PWRON_LP_OFF_TIME=0x%02x\n", __FILE__, __FUNCTION__, __LINE__, rk806_field_read(rk806, PWRON_LP_OFF_TIME));
rk806_field_write(rk806, PWRON_LP_OFF_TIME, 0x02);
printk("**** wyb 2025/7/10 11:26 %s %s %d, PWRON_LP_OFF_TIME=0x%02x\n", __FILE__, __FUNCTION__, __LINE__, rk806_field_read(rk806, PWRON_LP_OFF_TIME));
printk("---- wyb 2025/7/10 11:26 %s %s %d\n", __FILE__, __FUNCTION__, __LINE__);
return 0;
}
2、必须要改这里。不改这里，短按就会直接关机了！
https://blog.youkuaiyun.com/u011774634/article/details/130585356?spm=1001.2101.3001.6650.15&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-15-130585356-blog-145193344.235%5Ev43%5Epc_blog_bottom_relevance_base5&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-15-130585356-blog-145193344.235%5Ev43%5Epc_blog_bottom_relevance_base5&utm_relevant_index=20
RK3588S Android12修改长按电源按键可弹出关机重启等选项
https://blog.youkuaiyun.com/u011774634/article/details/130585356
--- a/frameworks/base/core/res/res/values/config.xml
+++ b/frameworks/base/core/res/res/values/config.xml
@@ -977,7 +977,7 @@
4 - Go to voice assist
5 - Go to assistant (Settings.Secure.ASSISTANT)
-->
- <integer name="config_longPressOnPowerBehavior">5</integer>
+ <integer name="config_longPressOnPowerBehavior">1</integer>
<!-- The time in milliseconds after which a press on power button is considered "long". -->
<integer name="config_longPressOnPowerDurationMs">500</integer>
Z:\14TB\versions\RD-RK3588_Android13\frameworks\base\core\res\res\values\config.xml
<!-- Control the behavior when the user long presses the power button.
0 - Nothing
1 - Global actions menu
2 - Power off (with confirmation)
3 - Power off (without confirmation)
4 - Go to voice assist
5 - Go to assistant (Settings.Secure.ASSISTANT)
-->
<integer name="config_longPressOnPowerBehavior">2</integer>
参考资料：
https://blog.youkuaiyun.com/cew333/article/details/126164529?ops_request_misc=%257B%2522request%255Fid%2522%253A%2522b60937af73edd0d79e5bfa32fc101100%2522%252C%2522scm%2522%253A%252220140713.130102334..%2522%257D&request_id=b60937af73edd0d79e5bfa32fc101100&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~sobaiduend~default-1-126164529-null-null.142^v102^pc_search_result_base6&utm_term=RK809%20%E9%95%BF%E6%8C%89%E5%85%B3%E6%9C%BA&spm=1018.2226.3001.4187
[RK3568 Android11] RK809开机短按时间设置和长按电源键设置
https://blog.youkuaiyun.com/cew333/article/details/126164529
https://blog.youkuaiyun.com/qq_37858386/article/details/125042486?ops_request_misc=%257B%2522request%255Fid%2522%253A%252250308455e3486e70b8b92799b873002b%2522%252C%2522scm%2522%253A%252220140713.130102334.pc%255Fall.%2522%257D&request_id=50308455e3486e70b8b92799b873002b&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~first_rank_ecpm_v1~rank_v31_ecpm-11-125042486-null-null.142^v102^pc_search_result_base6&utm_term=RK3566%20%E9%95%BF%E6%8C%89%E5%85%B3%E6%9C%BA&spm=1018.2226.3001.4187
2022-05-30 修改RK817 长按power键几秒后reboot
https://blog.youkuaiyun.com/qq_37858386/article/details/125042486
https://blog.youkuaiyun.com/weixin_49303682/article/details/145193344?spm=1001.2101.3001.6661.1&utm_medium=distribute.pc_relevant_t0.none-task-blog-2%7Edefault%7EOPENSEARCH%7EPaidSort-1-145193344-blog-127852443.235%5Ev43%5Epc_blog_bottom_relevance_base5&depth_1-utm_source=distribute.pc_relevant_t0.none-task-blog-2%7Edefault%7EOPENSEARCH%7EPaidSort-1-145193344-blog-127852443.235%5Ev43%5Epc_blog_bottom_relevance_base5&utm_relevant_index=1
RK3568平台（电源篇）RK806长按power键强制关机
https://blog.youkuaiyun.com/weixin_49303682/article/details/145193344
https://blog.youkuaiyun.com/morecrazylove/article/details/141095435?ops_request_misc=%257B%2522request%255Fid%2522%253A%252250308455e3486e70b8b92799b873002b%2522%252C%2522scm%2522%253A%252220140713.130102334.pc%255Fall.%2522%257D&request_id=50308455e3486e70b8b92799b873002b&biz_id=0&utm_medium=distribute.pc_search_result.none-task-blog-2~all~first_rank_ecpm_v1~rank_v31_ecpm-6-141095435-null-null.142^v102^pc_search_result_base6&utm_term=RK3566%20%E9%95%BF%E6%8C%89%E5%85%B3%E6%9C%BA&spm=1018.2226.3001.4187
基于RK3568 Android11 移除长按电源按键弹窗的对话框中的 [关机] 和 [紧急呼救] 选项（详细分析）
https://blog.youkuaiyun.com/morecrazylove/article/details/141095435
https://blog.youkuaiyun.com/wb4916/article/details/148382584?spm=1011.2415.3001.5331
20250602在荣品的PRO-RK3566开发板的Android13下打开关机对话框
