[智能AI摄像头]使用docker搭建RV1126开发环境

创建ubuntu docker

创建dockerfile

# 设置基础镜像为Ubuntu 18.04

FROM ubuntu:20.04

# 设置作者信息

MAINTAINER warren "2016426377@qq.com"

# 设置环境变量，用于非交互式安装

ENV DEBIAN_FRONTEND=noninteractive

# 备份源列表文件

RUN cp -a /etc/apt/sources.list /etc/apt/sources.list.bak

# 将源列表中的 http://.*ubuntu.com 替换为 http://repo.huaweicloud.com

RUN sed -i 's@http://.*ubuntu.com@http://repo.huaweicloud.com@g' /etc/apt/sources.list

# 更新包列表

RUN apt update

# 安装基本的编译工具和依赖

RUN apt install -y build-essential crossbuild-essential-arm64 \

bash-completion vim sudo locales time rsync bc python

# 安装其他依赖包，这里编译android11sdk需要的环境

RUN apt install -y device-tree-compiler git-core u-boot-tools mtools parted libudev-dev \

libusb-1.0-0-dev autoconf autotools-dev libsigsegv2 m4 intltool libdrm-dev \

curl sed make binutils build-essential gcc g++ bash patch gzip gawk bzip2 \

perl tar cpio python unzip rsync file bc wget libncurses5 libglib2.0-dev \

libgtk2.0-dev libglade2-dev cvs git mercurial openssh-client subversion \

asciidoc w3m dblatex graphviz  libssl-dev expect fakeroot cmake \

flex bison liblz4-tool libtool keychain net-tools adb lib32gcc-7-dev g++-7 \

libstdc++-7-dev libncurses5-dev libncursesw5-dev openssh-server

RUN apt install -y bear

# 再次更新包列表并安装任何未安装的依赖

RUN apt update && apt install -y -f

# 生成本地化语言支持

RUN locale-gen en_US.UTF-8

ENV LANG en_US.UTF-8

# 创建开发板用户

RUN useradd -c 'warren user' -m -d /home/warren -s /bin/bash warren

# sudo免密登录

RUN sed -i -e '/\%sudo/ c \%sudo ALL=(ALL) NOPASSWD: ALL' /etc/sudoers

RUN usermod -a -G sudo warren

USER warren

#设置docker工作目录为/home/lckfb

WORKDIR /home/warren

#容器使用这个内核方法

#docker run --privileged --mount

#type=bind,

#source=/home/LCKFB_RK3566/ROCKCHIP_ANDROID11.0_SDK_RELEASE/ROCKCHIP_ANDROID11.0_SDK_RELEASE,

#target=/home/lckfb/android11 --name="lckfb_android11_sdk" -h lckfb -it lckfb_android11_sdk_cmp



创建镜像

docker build -t rv1126_sdk .

创建容器

sudo docker run --privileged --mount type=bind, \
source=/home/warren/00-Learning/rv1126,target=/home/warren/ --name="rv1126_sdk" -h warren -it rv1126

解压sdk包

参考手册 Rockchip_Developer_Guide_Linux_Software_CN

.build.sh lunch 选择板级BoardConfig-38x38-spinand.mk

source envsetup.sh 选择rockchip_rv1126_rv1109_spi_nand

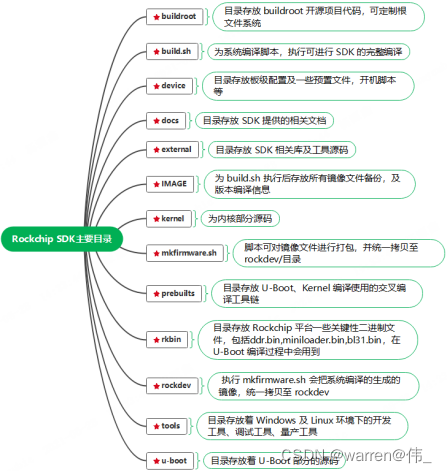

SDK结构

编译sdk

./build.sh 编译所有并打包

编译成功后在rockdev中生成打包的镜像update.img
