现在的技术发展还是很迅猛，子曰：“志于道，据于德，依于仁，游于艺”，既然当年弃工程力学转向软件这个行业，就需要“游”于各种技术之中，虽然年长了，但还是应该熟悉这些新兴的技术，“自古美女如良将，不许人家到白头”，技术人员及时走到管理岗位又怎么样，庞统一天治理一个县城，那是基本功，这些基本功怎么能因为你到了管理岗位就可以不学呢？
当年从北京回武汉，在公司接触了CMMI5，明白应该按照规范的流程做事情，因为那个是最佳实践的沉淀，接口文档用word写的很清楚，通讯协议、入参、出参、加密方式、签名方式、调用时序图都要写的很清楚，如果有改动怎添加修订记录，做的不好的情况，就是接口文档可能会比较滞后，不过那个时候还是ssm框架，不是前后端分离，冲突还不是那么明显，只有对外接口采用postman等调试一下，接口想对较少。
现在前端采用vue、react，后端采用springboot，前后端分离，开发工程师也分工了，这个时候矛盾就出来，这个时候yapi、metersphere等工具诞生了，不过这些还不够，还希望通过swagger在代码中就把接口文档写好，这样不是更好吗，再往后发展又诞生了springfox，就这个环节又简化了。

<springfox.version>3.0.0</springfox.version>
        <spring-plugin.version>2.0.0.RELEASE</spring-plugin.version>

 <dependency>
            <groupId>org.springframework.plugin</groupId>
            <artifactId>spring-plugin-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.plugin</groupId>
            <artifactId>spring-plugin-metadata</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-boot-starter</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.plugin</groupId>
                    <artifactId>spring-plugin-core</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.springframework.plugin</groupId>
                    <artifactId>spring-plugin-metadata</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

springfox-boot-starter默认引用的是1.2.0.RELEASE，启动的时候会提示下面的错误，故而需要调整为2.0.0.RELEASE

Caused by: java.lang.NoSuchMethodError: org.springframework.plugin.core.PluginRegistry.getPluginFor(Ljava/lang/Object;)Ljava/util/Optional;
	at springfox.documentation.schema.plugins.SchemaPluginsManager.viewProvider(SchemaPluginsManager.java:95)
	at springfox.documentation.spring.web.readers.operation.OperationModelsProvider.viewForReturn(OperationModelsProvider.java:116)
	at springfox.documentation.spring.web.readers.operation.OperationModelsProvider.collectFromReturnType(OperationModelsProvider.java:85)
	at springfox.documentation.spring.web.readers.operation.OperationModelsProvider.apply(OperationModelsProvider.java:58)
	at springfox.documentation.spring.web.plugins.DocumentationPluginsManager.modelContexts(DocumentationPluginsManager.java:160)
	at springfox.documentation.spring.web.scanners.ApiModelReader.read(ApiModelReader.java:87)
	at springfox.documentation.spring.web.scanners.ApiListingScanner.scan(ApiListingScanner.java:154)
	at springfox.documentation.spring.web.scanners.ApiDocumentationScanner.scan(ApiDocumentationScanner.java:67)
	at springfox.documentation.spring.web.plugins.AbstractDocumentationPluginsBootstrapper.scanDocumentation(AbstractDocumentationPluginsBootstrapper.java:96)
	at springfox.documentation.spring.web.plugins.AbstractDocumentationPluginsBootstrapper.bootstrapDocumentationPlugins(AbstractDocumentationPluginsBootstrapper.java:82)
	at springfox.documentation.spring.web.plugins.DocumentationPluginsBootstrapper.start(DocumentationPluginsBootstrapper.java:100)
	at org.springframework.context.support.DefaultLifecycleProcessor.doStart(DefaultLifecycleProcessor.java:181)
	... 19 common frames omitted

启动工程中，这里的使用@EnableOpenApi，它就找到对应的controller了。

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

import java.util.ArrayList;

@Configuration
@EnableOpenApi
public class SwaggerConfig {

    @Bean
    public Docket docket(){
        return new Docket(DocumentationType.OAS_30);
    }

    private ApiInfo apiInfo(){
        // 作者信息
        Contact contact = new Contact("dzm","","test@qq.com");
        return new ApiInfo("青丘的接口文档",
                "项目描述",
                "1.0",
                "",
                contact,
                "Apache 2.0",
                "http://www.apache.org/licenses/LICENSE-2.0",
                new ArrayList());
    }
}

这里还可以通过构造器模式创建信息。

private ApiInfo apiInfo(){
        // 作者信息
        Contact contact = new Contact("dzm","","test@qq.com");
        return new ApiInfoBuilder().title("青丘接口文档")
                    .description("青丘项目")
                    .contact(contact)
                    .version("1.0.0")
                    .build();
    }

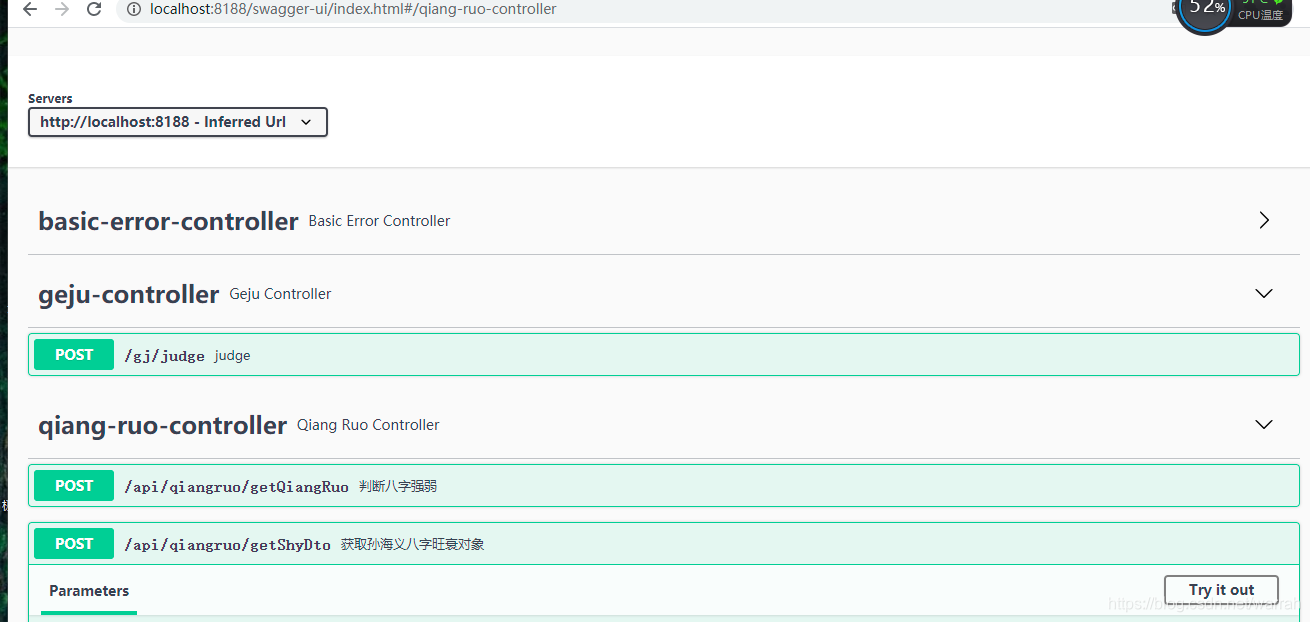

打开页面http://localhost:8188/swagger-ui/index.html，这个端口8188是根据系统的启动端口而定，你的可能是8080

上面的只要带@RestController或者@Controller，它都会把接口帮我们整理出来
controller的参数说明

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>3.0.0</version>
</dependency>

这里@Api 类名、@ApiOperation 方法名、@ApiParam 参数说明对controller进行描述

@Api("强弱管理")
@RequestMapping("api/qiangruo")
@RestController
public class QiangRuoController {
    private static Logger log = LoggerFactory.getLogger(QiangRuoController.class);
    @Autowired
    private QiangRuoService qiangRuoService;

    @ApiOperation("获取孙海义八字旺衰对象")
    @PostMapping("getShyDto")
    public ShyGenYinDto getShyDto(@ApiParam("八字") @RequestParam("bz") String bz){
        String[] zhus = bz.split(" ");
        BaZi bazi = new BaZi.Builder()
                .setYear(zhus[0]).setMonth(zhus[1]).setDay(zhus[2]).setHour(zhus[3])
                .build();
        return qiangRuoService.getShyDto(bazi);
    }

返回参数,这里有两个注解@ApiModel 实体类、@ApiModelProperty 实体类属性

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;


@Data
@ApiModel("孙海义根印")
public class ShyGenYinDto {

    /**
     * 年支
     */
    @ApiModelProperty("年支")
    private String yz;

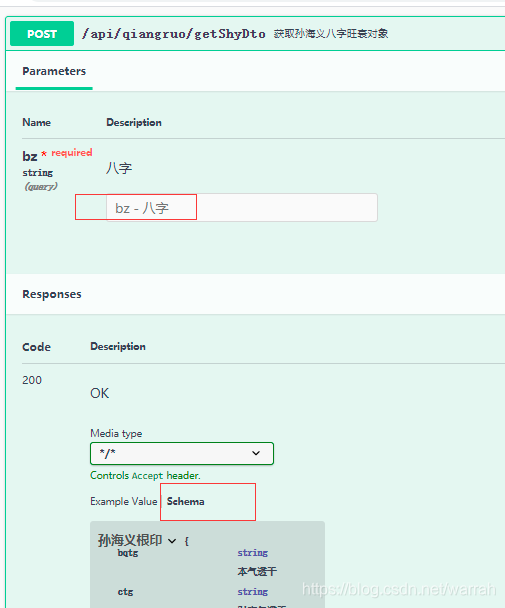

接着就可以看到中文的注释了。

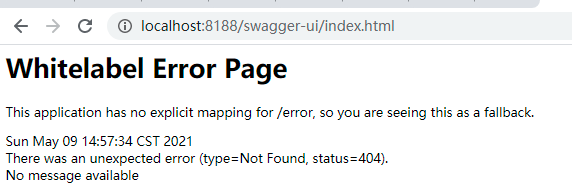

生产环境不想让别人看到接口文档，于是增加相应的配置

springfox:
  documentation:
    swagger-ui:
      enabled: false

这些还不够，可以通过设置账号、密码，这样还可以查看当前系统的接口版本。

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>

springboot1和springboot2是不一样的，因为我接触的时候已经是springboot2，哪些过去时学习也没啥意义了。
参考springboot + spring security + swagger 整合

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@EnableWebSecurity
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    /**
     * 静态资源配置
     * @param web
     * @throws Exception
     */
    @Override
    public void configure(WebSecurity web) throws Exception {
        //swagger2所需要用到的静态资源，允许访问
        web.ignoring().antMatchers("/v3/api-docs",
                "/swagger-resources/configuration/ui",
                "/swagger-resources",
                "/swagger-resources/configuration/security",
                "/swagger-ui.html");
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                //允许根路径url的访问
                .antMatchers("/").permitAll()
                //允许swagger-ui.html访问
                .antMatchers("/swagger-ui.html").permitAll()
                .anyRequest().authenticated()
                .and()
                .logout().permitAll()
                .and()
                .formLogin().permitAll();
    }
}

启动的时候，打印日志Using generated security password: 71c3ad59-a36c-46e0-be57-1445fb41dff8，这个是密码，用户名为user。
swagger-ui不友好，这里调整一下使用swagger-bootstrap-ui看看，依赖的是springfox-swagger2的2.9.2，并不是3.0.0,还是有兼容性问题

org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'swaggerBootstrapUiResourceExtController' defined in URL [jar:file:/D:/repository/com/github/xiaoymin/swagger-bootstrap-ui/1.9.6/swagger-bootstrap-ui-1.9.6.jar!/com/github/xiaoymin/swaggerbootstrapui/web/SwaggerBootstrapUiResourceExtController.class]: Unsatisfied dependency expressed through constructor parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'swaggerResourcesExtProvider' defined in URL [jar:file:/D:/repository/com/github/xiaoymin/swagger-bootstrap-ui/1.9.6/swagger-bootstrap-ui-1.9.6.jar!/com/github/xiaoymin/swaggerbootstrapui/service/SwaggerResourcesExtProvider.class]: Bean instantiation via constructor failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.github.xiaoymin.swaggerbootstrapui.service.SwaggerResourcesExtProvider]: Constructor threw exception; nested exception is java.lang.NoSuchMethodError: springfox.documentation.schema.ClassSupport.classByName(Ljava/lang/String;)Lcom/google/common/base/Optional;
	at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:729)
	at org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(ConstructorResolver.java:192)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireConstructor(AbstractAutowireCapableBeanFactory.java:1270)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1127)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:541)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:501)
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:317)
	at org.springframework.beans.factory.support.AbstractBeanFactory$$Lambda$144/146403516.getObject(Unknown Source)
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:228)
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:315)
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199)
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:760)
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:869)
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550)
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:140)
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:759)

后面作者改版了， knife4j，
添加,单体springboot引入下面这个就可以

<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>3.0.2</version>
</dependency>

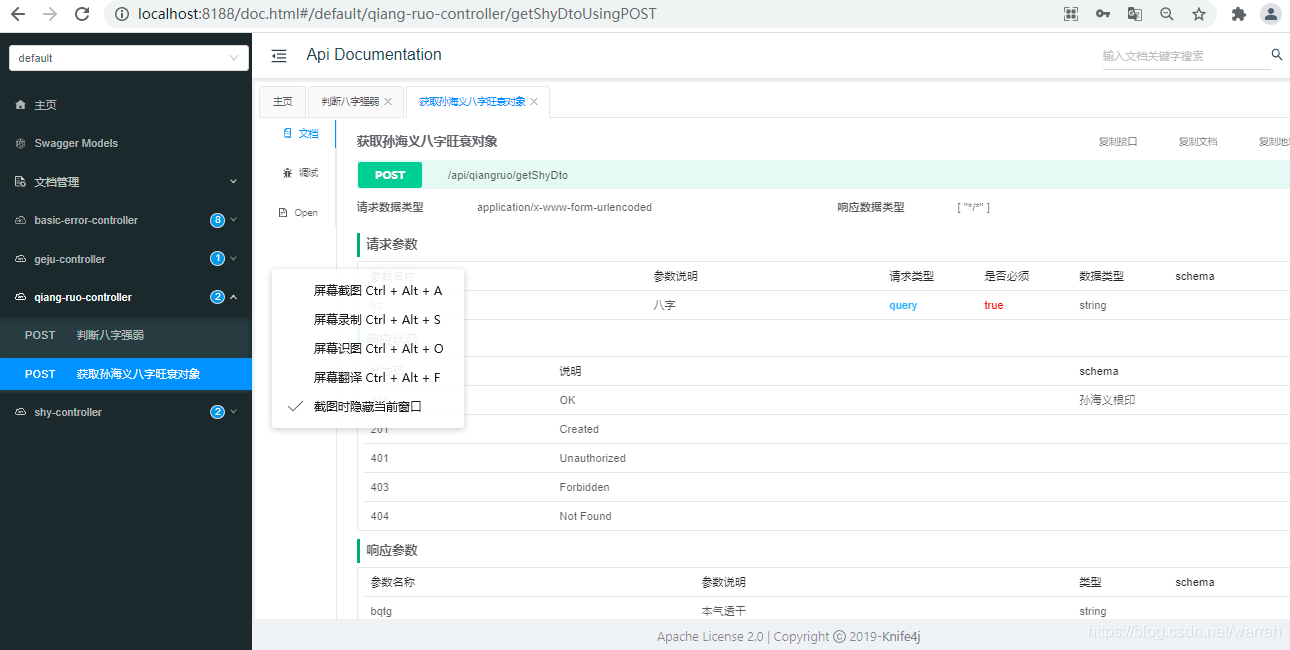

这个时候输入http://localhost:8188/doc.html，即可,这种模式就好多了

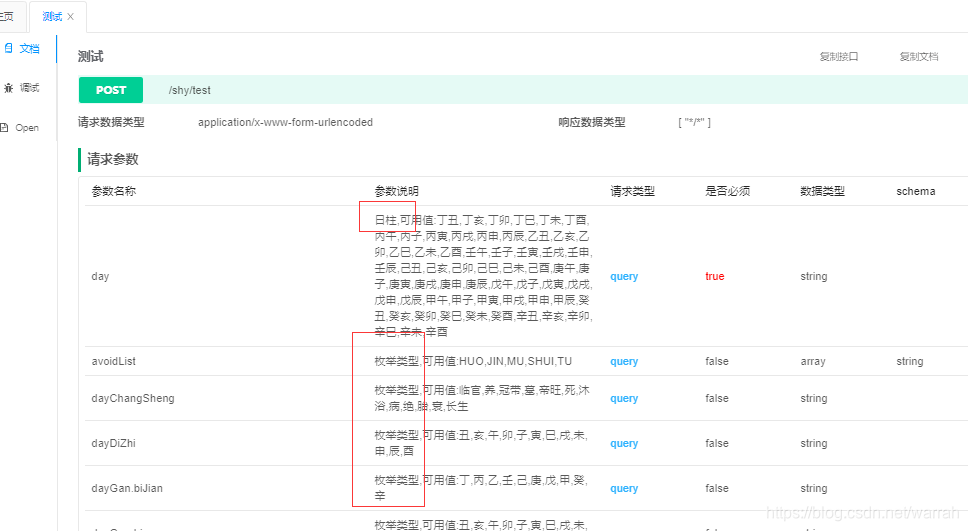

这里再做一下测验，看swagger还能做什么

@ApiOperation("测试")
    @ApiImplicitParams({
            @ApiImplicitParam(name = "day", value = "日柱",required=true)
    })
    @PostMapping("test")
    @ResponseBody
    public ResponseResult<ShyGenYinDto> test(BaZi bazi){
        ResponseResult<ShyGenYinDto> resp = new ResponseResult<ShyGenYinDto>(true);
        return resp;
    }

入参为列表的

import org.springframework.web.bind.annotation.RequestBody

@ApiOperation("批量新增期初明细")
    @PostMapping("addBatch")
    public ResponseResult addBatch(@ApiParam(name = "req",value = "期初明细") @RequestBody List<AccInitialSubjectReq> req){
        return null;
    }

升级到springboot2.7.6，与swagger3.0.0产生冲突，这个是需要增加下面的配置，即可

spring:
  #  autoconfigure:
  #    exclude: org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration
  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher
