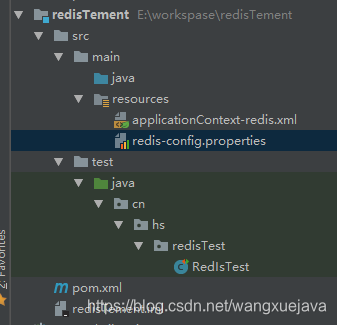

请看我做的测试架构图示：

这是个maven架构的项目，如下是测试需要的Maven依赖：

<!--测试的依赖-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <!--&lt;!&ndash;缓存&ndash;&gt;-->
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>2.9.0</version>
         </dependency>

        <dependency>
           <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.0</version>
        </dependency>


        <!--&lt;!&ndash; spring-redis &ndash;&gt;-->
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-redis</artifactId>
            <version>1.8.8.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>4.3.12.RELEASE</version>
        </dependency>

下面是配置文件：

配置文件一：applicationContext-redis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
             xmlns:context="http://www.springframework.org/schema/context"
             xmlns:mvc="http://www.springframework.org/schema/mvc"
            xmlns:cache="http://www.springframework.org/schema/cache"
             xsi:schemaLocation="http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd
            http://www.springframework.org/schema/context
            http://www.springframework.org/schema/context/spring-context.xsd
            http://www.springframework.org/schema/mvc
            http://www.springframework.org/schema/mvc/spring-mvc.xsd
            http://www.springframework.org/schema/cache
            http://www.springframework.org/schema/cache/spring-cache.xsd">


    <context:property-placeholder location="classpath*:redis-config.properties"/>

   <!-- redis 相关配置 -->
   <bean id="poolConfig" class="redis.clients.jedis.JedisPoolConfig">
     <property name="maxIdle" value="${redis.maxIdle}" />
     <property name="maxWaitMillis" value="${redis.maxWait}" />

   </bean>

   <bean id="JedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory"
       p:host-name="${redis.host}"
         p:port="${redis.port}"
         p:password="${redis.pass}"
         p:pool-config-ref="poolConfig"/>

   <bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">
    	<property name="connectionFactory" ref="JedisConnectionFactory"/>
   </bean>

</beans>

配置文件二：redis-config.properties

# Redis settings
# server IP
redis.host=127.0.0.1
# server port
redis.port=6379
# server pass
redis.pass=
# use dbIndex
redis.database=0
# \u63A7\u5236\u4E00\u4E2Apool\u6700\u591A\u6709\u591A\u5C11\u4E2A\u72B6\u6001\u4E3Aidle(\u7A7A\u95F2\u7684)\u7684jedis\u5B9E\u4F8B
redis.maxIdle=300
# \u8868\u793A\u5F53borrow(\u5F15\u5165)\u4E00\u4E2Ajedis\u5B9E\u4F8B\u65F6\uFF0C\u6700\u5927\u7684\u7B49\u5F85\u65F6\u95F4\uFF0C\u5982\u679C\u8D85\u8FC7\u7B49\u5F85\u65F6\u95F4(\u6BEB\u79D2)\uFF0C\u5219\u76F4\u63A5\u629B\u51FAJedisConnectionException\uFF1B
redis.maxWait=3000
# \u5728borrow\u4E00\u4E2Ajedis\u5B9E\u4F8B\u65F6\uFF0C\u662F\u5426\u63D0\u524D\u8FDB\u884Cvalidate\u64CD\u4F5C\uFF1B\u5982\u679C\u4E3Atrue\uFF0C\u5219\u5F97\u5230\u7684jedis\u5B9E\u4F8B\u5747\u662F\u53EF\u7528\u7684
redis.testOnBorrow=true

架构建设完成，下面一节将做测试，请关注，

若有不足，写错之处请指出，必定虚心接受。
