先上代码，后面再详细讲解

Duorenhuiqian.bpmn20.xml

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.flowable.org/processdef">
  <process id="countersign" name="Duorenhuiqian" isExecutable="true">
    <startEvent id="startEvent1" flowable:formFieldValidation="true"></startEvent>

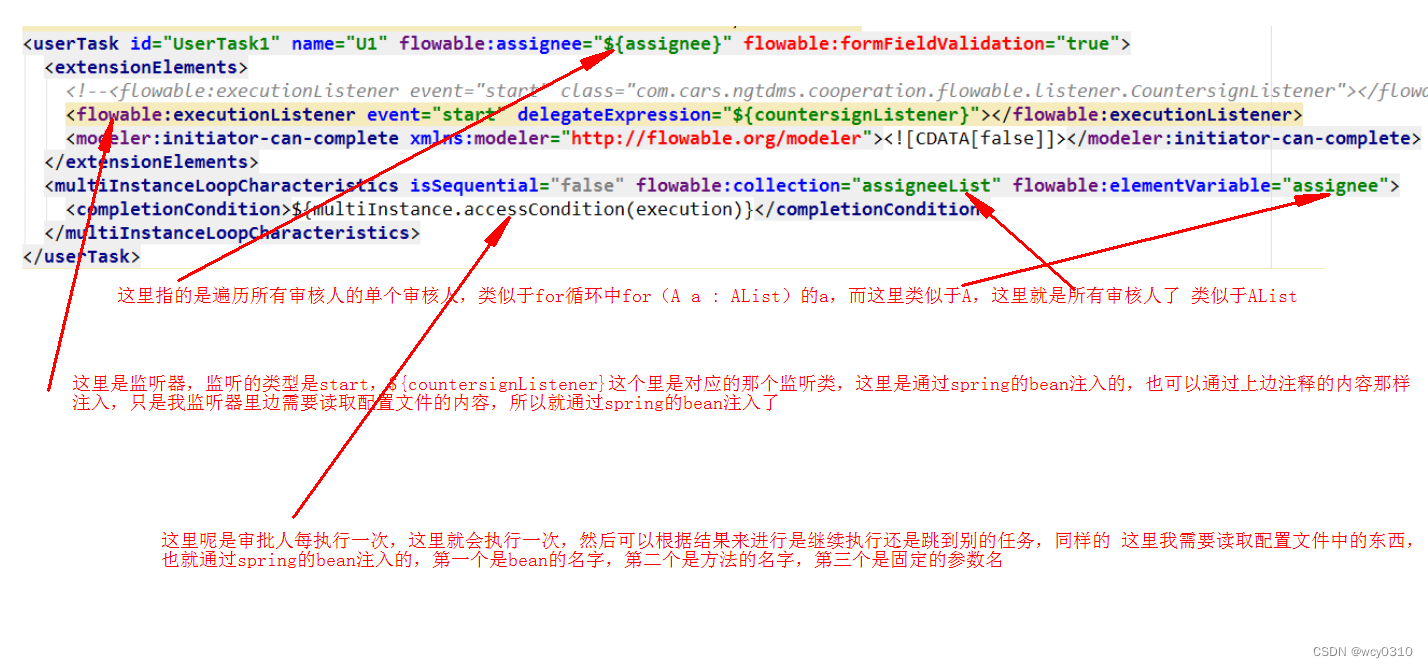

    <userTask id="UserTask1" name="U1" flowable:assignee="${assignee}" flowable:formFieldValidation="true">
      <extensionElements>
        <!--<flowable:executionListener event="start" class="com.cars.ngtdms.cooperation.flowable.listener.CountersignListener"></flowable:executionListener>-->
        <flowable:executionListener event="start" delegateExpression="${countersignListener}"></flowable:executionListener>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
      <multiInstanceLoopCharacteristics isSequential="false" flowable:collection="assigneeList" flowable:elementVariable="assignee">
        <completionCondition>${multiInstance.accessCondition(execution)}</completionCondition>
      </multiInstanceLoopCharacteristics>
    </userTask>
    <sequenceFlow id="sid-50622098-77B0-4413-A1D4-088B47DEC95F" sourceRef="startEvent1" targetRef="UserTask1"></sequenceFlow>
    <userTask id="UserTask2" name="U2" flowable:assignee="WXF" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <endEvent id="sid-814B8939-308D-4003-8B35-B750DC8F8A5C"></endEvent>
    <exclusiveGateway id="getWay" name="getWay"></exclusiveGateway>
    <userTask id="UserTask3" name="U3" flowable:assignee="PXY" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <endEvent id="sid-4C2BFAF2-08AC-4F89-A964-046EA583F0B5"></endEvent>
    <sequenceFlow id="sid-CE25CF8A-5BF2-4227-A747-98F6A053283E" sourceRef="UserTask3" targetRef="sid-4C2BFAF2-08AC-4F89-A964-046EA583F0B5"></sequenceFlow>
    <sequenceFlow id="sid-0F397F15-5685-4DF0-B7E0-75C3AB43F6D8" sourceRef="UserTask2" targetRef="sid-814B8939-308D-4003-8B35-B750DC8F8A5C"></sequenceFlow>
    <sequenceFlow id="sid-74E664CC-0FC9-49A6-A47C-BCFA1198F074" sourceRef="UserTask1" targetRef="getWay"></sequenceFlow>
    <sequenceFlow id="repply" name="通过" sourceRef="getWay" targetRef="UserTask2">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='通过'}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="reject" name="否决" sourceRef="getWay" targetRef="UserTask3">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='否决'}]]></conditionExpression>
    </sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_countersign">
    <bpm
