Java操作OpenTSDB实战
本文详细介绍使用Java与OpenTSDB交互的方法，包括如何插入数据和查询数据。提供了丰富的代码示例，涵盖构造函数、写入数据及不同查询方式，适用于时间序列数据的管理和分析。
Java 实现对 OpenTSDB插入数据，查询数据
2018年02月27日 17:20:00 杨鑫newlfe 阅读数：901更多
版权声明：学习交流为主，未经博主同意禁止转载，禁止用于商用。 https://blog.youkuaiyun.com/u012965373/article/details/79390933
OpenTSDBUtil
package com.xxx.util;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import org.opentsdb.client.ExpectResponse;
import org.opentsdb.client.HttpClient;
import org.opentsdb.client.HttpClientImpl;
import org.opentsdb.client.builder.MetricBuilder;
import org.opentsdb.client.request.Filter;
import org.opentsdb.client.request.Query;
import org.opentsdb.client.request.QueryBuilder;
import org.opentsdb.client.request.SubQueries;
import org.opentsdb.client.response.Response;
import org.opentsdb.client.response.SimpleHttpResponse;
import org.opentsdb.client.util.Aggregator;
import org.slf4j.LoggerFactory;
import org.slf4j.Logger;
import java.io.IOException;
import java.util.*;
/**
* @author yangxin-ryan
*/
public class OpenTSDBUtil {
private static Logger LOG = LoggerFactory.getLogger(OpenTSDBUtil.class);
private static String openTSDBUrl = "http://xxxxxxx:4242";
private HttpClient httpClient;
/**
* 构造函数
*/
public OpenTSDBUtil() {
this.httpClient = new HttpClientImpl(openTSDBUrl);
}
/**
* 写入数据
* @param metric 指标
* @param timestamp 时间点
* @param value
* @param tagMap
* @return
* @throws Exception
*/
public boolean putData (String metric, Date timestamp, Long value, Map<String, String> tagMap) throws Exception {
long timeSecs = timestamp.getTime() / 1000;
return this.putData(metric, timeSecs, value, tagMap);
}
/**
* 写入数据
* @param metric 指标
* @param timestamp 时间点
* @param value
* @param tagMap
* @return
* @throws Exception
*/
public boolean putData (String metric, Date timestamp, Double value, Map<String, String> tagMap) throws Exception {
long timeSecs = timestamp.getTime() / 1000;
return this.putData(metric, timeSecs, value, tagMap);
}
/**
* 写入数据
* @param metric 指标
* @param timestamp 转换为秒的时间点
* @param value
* @param tagMap
* @return
* @throws Exception
*/
public boolean putData (String metric, long timestamp, Long value, Map<String, String> tagMap) throws Exception {
MetricBuilder builder = MetricBuilder.getInstance();
builder.addMetric(metric).setDataPoint(timestamp, value).addTags(tagMap);
try{
LOG.debug("write quest: {}", builder.build());
Response response = httpClient.pushMetrics(builder, ExpectResponse.SUMMARY);
LOG.debug("response.statusCode: {}", response.getStatusCode());
return response.isSuccess();
} catch (Exception error){
LOG.error("put data to opentsdb error: " , error);
error.printStackTrace();
throw error;
}
}
/**
* 写入数据
* @param metric 指标
* @param timestamp 转化为秒的时间点
* @param value
* @param tagMap
* @return
* @throws Exception
*/
public boolean putData (String metric, long timestamp, Double value, Map<String, String> tagMap) throws Exception {
MetricBuilder builder = MetricBuilder.getInstance();
builder.addMetric(metric).setDataPoint(timestamp, value).addTags(tagMap);
try {
LOG.debug("write quest: {} ", builder.build());
Response response = httpClient.pushMetrics(builder, ExpectResponse.SUMMARY);
LOG.debug("response.statueCpde: {}", response.getStatusCode());
return response.isSuccess();
} catch (Exception error) {
LOG.error("put data to opentsdb error: ", error);
LOG.error(error.getMessage());
error.printStackTrace();
throw error;
}
}
/**
* 查询数据， 返回的数据为json格式，结构为：
* "[
" {
" metric: mysql.innodb.row_lock_time,
" tags: {
" host: web01,
" dc: beijing
" },
" aggregateTags: [],
" dps: {
" 1435716527: 1234,
" 1435716529: 2345
" }
" },
" {
" metric: mysql.innodb.row_lock_time,
" tags: {
" host: web02,
" dc: beijing
" },
" aggregateTags: [],
" dps: {
" 1435716627: 3456
" }
" }
"]";
* @param metric 要查询的指标
* @param tagk tagk
* @param tagvFtype tagv分过滤规则
* @param tagvFilter tagv的匹配规则
* @param aggregator 查询的聚合类型，如： OpentsdbClient.AGGREGATOR_AVG, OpentsdbClient.AGGREGATOR_SUM
* @param downsample 采样的时间粒度，如： 1s, 2m, 1h, 1d, 2d
* @param startTime 查询开始时间，时间格式为 yyyy-MM-dd HH:mm:ss
* @param endTime 查询结束时间，时间格式为 yyyy-MM-dd HH:mm:ss
* @return
* @throws IOException
*/
public String getData (String metric, String tagk, String tagvFtype, String tagvFilter, String aggregator, String downsample, String startTime, String endTime) throws IOException {
QueryBuilder queryBuilder = QueryBuilder.getInstance();
Query query = queryBuilder.getQuery();
query.setStart(DateTimeUtil.parse(startTime, "yyyy-MM-dd HH:mm:ss") / 1000);
query.setEnd(DateTimeUtil.parse(endTime, "yyyy-MM-dd HH:mm:ss") / 1000);
List<SubQueries> sqList = new ArrayList<>();
SubQueries sq = new SubQueries();
sq.setMetric(metric);
sq.setAggregator(aggregator);
List<Filter> filters = new ArrayList<>();
Filter filter = new Filter();
filter.setTagk(tagk);
filter.setType(tagvFtype);
filter.setFilter(tagvFilter);
filter.setGroupBy(Boolean.TRUE);
filters.add(filter);
sq.setFilters(filters);
sq.setDownsample(downsample + "-" + aggregator);
sqList.add(sq);
query.setQueries(sqList);
try{
LOG.debug("query rqeust: {}", queryBuilder.build()); // 查询校验
SimpleHttpResponse spHttpResponse = httpClient.pushQueries(queryBuilder, ExpectResponse.DETAIL);
LOG.debug("response.content: {}", spHttpResponse.getContent());
if (spHttpResponse.isSuccess()) {
return spHttpResponse.getContent();
}
return null;
} catch (IOException ioe) {
LOG.error("get data from opentsdb error: ", ioe);
throw ioe;
}
}
/**
* 查询数据，返回的数据为json格式
* @param metric 要查询的指标
* @param filter 查询过滤的条件，原来使用的tags在v2.2后已不适用
* filter.setType(): 设置过滤类型, 如: wildcard, regexp
* filter.setTagk(): 设置tag
* filter.setFilter(): 根据type设置tagv的过滤表达式, 如: hqdApp|hqdWechat
* filter.setGroupBy():设置成true, 不设置或设置成false会导致读超时
* @param aggregator 查询的聚合类型， 如： OpentsdbClient.AGGREGATOR_AVG, OpentsdbClient.AGGREGATOR_SUM
* @param downsample 采样的时间粒度， 如： 1s, 2m, 1h, 1d, 2d
* @param startTime 查询开始时间，时间格式为：yyyy-MM-dd HH:mm:ss
* @param endTime 查询结束时间，时间格式为: yyyy-MM-dd HH:mm:ss
* @return
* @throws IOException
*/
public String getData (String metric, Filter filter, String aggregator, String downsample, String startTime, String endTime) throws IOException{
QueryBuilder queryBuilder = QueryBuilder.getInstance();
Query query = queryBuilder.getQuery();
query.setStart(DateTimeUtil.parse(startTime, "yyyy-MM-dd HH:mm:ss") / 1000);
query.setEnd(DateTimeUtil.parse(endTime, "yyyy-MM-dd HH:mm:ss") / 1000);
List<SubQueries> sqList = new ArrayList<>();
SubQueries sq = new SubQueries();
sq.addMetric(metric);
sq.addAggregator(aggregator);
List<Filter> filters = new ArrayList<>();
filters.add(filter);
sq.setFilters(filters);
sq.setDownsample(downsample + "-" + aggregator);
sqList.add(sq);
query.setQueries(sqList);
try{
LOG.debug("query request: {}", queryBuilder.build());
SimpleHttpResponse spHttpResponse =httpClient.pushQueries(queryBuilder, ExpectResponse.DETAIL);
LOG.debug("response.content: {}", spHttpResponse.getContent());
if (spHttpResponse.isSuccess()){
return spHttpResponse.getContent();
}
return null;
} catch (IOException e){
LOG.error("get data from opentsdb error: ", e);
throw e;
}
}
/**
* 查询时间，返回tags与时序值的映射：Map<tags, Map<时间点，value>>
* @param metric 查询指标
* @param tagk tagk
* @param tagvFtype tagv的过滤规则
* @param tagvFilter tagv的匹配自字符
* @param aggregator 查询的聚合类型，如： OpentsdbClient.AGGREGATOR_AVG, OpentsdbClient.AGGREGATOR_SUM
* @param downsample 采样的时间粒度，如：1s, 2m, 1h, 1d, 2d
* @param startTime 查询开始时间，时间格式为yyyy-MM-dd HH:mm:ss
* @param endTime 查询结束时间，时间格式为yyyy-MM-dd HH:mm:ss
* @param retTimeFmt 返回的结果集中，时间点的格式，如：yyyy-MM-dd HH:mm:ss 或 yyyyMMddHH 等
* @return Map<tags, Map<时间点, value>>
* @throws IOException
*/
public Map<String, Map<String, Object>> getData(String metric, String tagk, String tagvFtype, String tagvFilter,
String aggregator, String downsample, String startTime,
String endTime, String retTimeFmt) throws IOException {
String resContent = this.getData(metric, tagk, tagvFtype, tagvFilter, aggregator, downsample, startTime, endTime);
return this.convertContentToMap(resContent, retTimeFmt);
}
/**
* 查询数据，返回tags与时序值的映射： Map<tags, Map<时间点，value>>
* @param metric 要查询的指标
* @param filter 查询过滤的条件，原来使用的tags在v2.2后已不适用
* filter.setType(): 设置过滤类型, 如: wildcard, regexp
* filter.setTagk(): 设置tag
* filter.setFilter(): 根据type设置tagv的过滤表达式, 如: hqdApp|hqdWechat
* filter.setGroupBy():设置成true, 不设置或设置成false会导致读超时
* @param aggregator 查询的聚合类型， 如： OpentsdbClient.AGGREGATOR_AVG, OpentsdbClient.AGGREGATOR_SUM
* @param downsample 采样的时间粒度， 如：1s, 2m, 1h, 1d, 2d
* @param startTime 查询开始时间，时间格式为：yyyy-MM-dd HH:mm:ss
* @param endTime 查询结束时间，时间格式为：yyyy-MM-dd HH:mm:ss
* @param retTimeFmt 返回的结果集中，时间点的格式，如：yyyy-MM-dd HH:mm:ss 或 yyyyMMddHH 等
* @return Map<String, Map<String, Object>>
* @throws IOException
*/
public Map<String, Map<String, Object>> getData(String metric, Filter filter, String aggregator, String downsample,
String startTime, String endTime, String retTimeFmt) throws IOException{
String resContent = this.getData(metric, filter, aggregator, downsample, startTime, endTime);
return this.convertContentToMap(resContent, retTimeFmt);
}
public Map<String, Map<String, Object>> convertContentToMap(String resContent, String retTimeFmt) {
Map<String, Map<String, Object>> tagsValuesMap = new HashMap<>();
if (resContent == null || "".equals(resContent.trim())) {
return tagsValuesMap;
}
JSONArray array = (JSONArray) JSONObject.parse(resContent);
if (array != null) {
for (int i = 0; i < array.size(); i++){
JSONObject obj = (JSONObject) array.get(i);
JSONObject tags = (JSONObject) obj.get("tags");
JSONObject dps = (JSONObject) obj.get("dps");
Map<String, Object> timeValueMap = new HashMap<>();
for (Iterator<String> it = dps.keySet().iterator(); it.hasNext();){
String timestamp = it.next();
Date datetime = new Date(Long.parseLong(timestamp) * 1000);
timeValueMap.put(DateTimeUtil.format(datetime, retTimeFmt), dps.get(timestamp));
}
tagsValuesMap.put(tags.toString(), timeValueMap);
}
}
return tagsValuesMap;
}
public static void main(String[] args) {
OpenTSDBUtil openTSDBUtil = new OpenTSDBUtil();
try{
// write
Map<String, String> tagMap = new HashMap<>();
tagMap.put("ch2", "ofo-App");
openTSDBUtil.putData("metric-yangxin", 1519698960307L, 210l, tagMap);
// read
Filter filter = new Filter();
filter.setType("regexp");
filter.setTagk("ch2");
filter.setFilter("ofo-App");
filter.setGroupBy(Boolean.TRUE);
String resContent = openTSDBUtil.getData("metric-yangxin", filter, Aggregator.avg.name(), "1h",
"2016-06-27 12:00:00", "2018-06-30 13:00:00");
System.out.println(resContent);
}catch (Exception e){
e.printStackTrace();
}
}
}
DateTimeUtil:(此处我忽略不规范的时间戳)：
package com.xxx.util;
import java.sql.Timestamp;
import java.text.SimpleDateFormat;
import java.util.Date;
/**
* @author yangxin-ryan
*/
public class DateTimeUtil {
public static Long parse(String startTime, String timeFormat){
System.out.println(startTime);
return Timestamp.valueOf(startTime).getTime();
}
public static String format(Date datetime, String retTimeFmt) {
SimpleDateFormat simpleDateFormat = new SimpleDateFormat(retTimeFmt);
String date = simpleDateFormat.format(datetime);
return Timestamp.valueOf(date).toString();
}
}

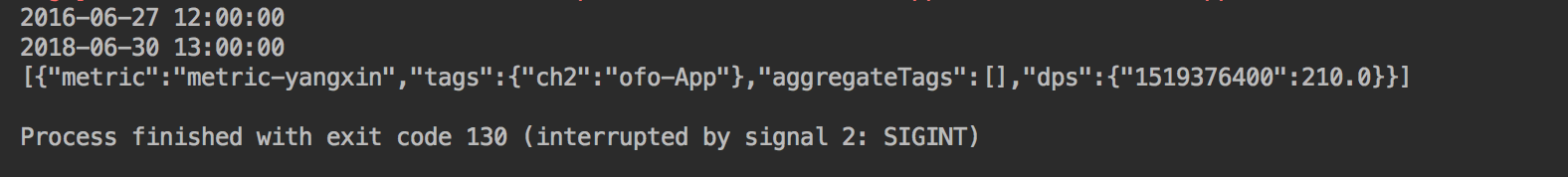

结果展示：
