本文详细介绍了如何在SpringBoot项目中集成SpringMVC和MyBatis，包括引入依赖、配置文件、启动类设置、数据访问层（DAO）以及模板引擎和数据源的配置，适合初学者快速上手。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

背景

springmvc+mybatis是当前非常主流且受欢迎的框架，他是springboot、SpringCloud学习的基础。本教程只为指导初学者完成框架搭建。

搭建步骤

1.引入依赖

在pom文件中引入依赖如下：

注意事项：

build节点中添加resources节点，将src/main/java中的xml文件一块编译打包，否则mapper文件无法找到对应的xml文件，无法完成关系映射。

<resources>
    <resource>
        <directory>src/main/java</directory>
        <includes>
            <include>**/*.xml</include>
        </includes>
    </resource>
    <resource>
        <directory>src/main/resources</directory>
    </resource>
</resources>

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.wwl</groupId>
    <artifactId>springmvc202402</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <java.version>17</java.version>
        <spring.version>6.0.0</spring.version>
        <pebble.version>3.2.0</pebble.version>
        <logback.version>1.4.4</logback.version>
        <tomcat.version>10.1.1</tomcat.version>
        <hikaricp.version>5.0.1</hikaricp.version>
        <mysql.version>8.0.30</mysql.version>
        <annotation.version>2.1.1</annotation.version>
        <maven.war.plugin.version>3.3.2</maven.war.plugin.version>
        <lombok.version>1.18.30</lombok.version>
        <mybatis.version>3.5.11</mybatis.version>
        <mybatis.spring.version>3.0.0</mybatis.spring.version>
    </properties>
    <dependencies>
        <!-- spring相关-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- 注解-->
        <dependency>
            <groupId>jakarta.annotation</groupId>
            <artifactId>jakarta.annotation-api</artifactId>
            <version>${annotation.version}</version>
        </dependency>

        <!-- 模板引擎-->
        <dependency>
            <groupId>io.pebbletemplates</groupId>
            <artifactId>pebble-spring6</artifactId>
            <version>${pebble.version}</version>
        </dependency>

        <!-- 日志相关-->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>${logback.version}</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>${logback.version}</version>
        </dependency>

        <!-- 数据源相关-->
        <dependency>
            <groupId>com.zaxxer</groupId>
            <artifactId>HikariCP</artifactId>
            <version>${hikaricp.version}</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
            <scope>runtime</scope>
        </dependency>
        <!-- 内嵌tomcat-->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-core</artifactId>
            <version>${tomcat.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <version>${tomcat.version}</version>
            <scope>provided</scope>
        </dependency>
        <!-- lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
        </dependency>
        <!-- mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
    </dependencies>
    <build>
        <finalName>spring-mvc-project-demo</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>${maven.war.plugin.version}</version>
            </plugin>
        </plugins>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
        </resources>
    </build>
</project>

2.启动类配置

配置主要包含springmvc配置、模板引擎pebble、数据源（datasource、mybaitis的sqlsessionfactorybean、事务）

注意事项：

1、添加mapper文件扫描路径注解：@MapperScan("com.wwl.learnjava.dao")

2、声明mybatis核心bean：SqlSessionFactory

package com.wwl.learnjava;

import com.zaxxer.hikari.HikariConfig;
import com.zaxxer.hikari.HikariDataSource;
import io.pebbletemplates.pebble.PebbleEngine;
import io.pebbletemplates.pebble.loader.Servlet5Loader;
import io.pebbletemplates.spring.servlet.PebbleViewResolver;
import jakarta.servlet.ServletContext;
import org.apache.catalina.Context;
import org.apache.catalina.WebResourceRoot;
import org.apache.catalina.startup.Tomcat;
import org.apache.catalina.webresources.DirResourceSet;
import org.apache.catalina.webresources.StandardRoot;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.PropertySource;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

import javax.sql.DataSource;
import java.io.File;

@Configuration
@ComponentScan
@EnableWebMvc
@EnableTransactionManagement
@MapperScan("com.wwl.learnjava.dao")
@PropertySource("classpath:/jdbc.properties")
public class AppConfig {
    public static void main(String[] args) throws Exception {
        Tomcat tomcat = new Tomcat();
        tomcat.setPort(Integer.getInteger("port", 8080));
        tomcat.getConnector();
        Context ctx = tomcat.addWebapp("", new File("src/main/webapp").getAbsolutePath());
        WebResourceRoot resources = new StandardRoot(ctx);
        resources.addPreResources(
                new DirResourceSet(resources, "/WEB-INF/classes", new File("target/classes").getAbsolutePath(), "/"));
        ctx.setResources(resources);
        tomcat.start();
        tomcat.getServer().await();
    }

    // ----------------------springmvc配置------------------------
    @Bean
    WebMvcConfigurer createWebMvcConfigurer() {
        return new WebMvcConfigurer() {
            @Override
            public void addResourceHandlers(ResourceHandlerRegistry registry) {
                registry.addResourceHandler("/static/**").addResourceLocations("/static/");
            }
        };
    }

    // ----------------------模板引擎------------------------
    @Bean
    ViewResolver createViewResolver(@Autowired ServletContext servletContext) {
        var engine = new PebbleEngine.Builder().autoEscaping(true)
                // cache:
                .cacheActive(false)
                // loader:
                .loader(new Servlet5Loader(servletContext))
                .build();
        var viewResolver = new PebbleViewResolver(engine);
        viewResolver.setPrefix("/WEB-INF/templates/");
        viewResolver.setSuffix("");
        return viewResolver;
    }

    // ---------------------------数据源----------------------------------
    @Value("${jdbc.url}")
    private String jdbcUrl;
    @Value("${jdbc.username}")
    private String username;
    @Value("${jdbc.password}")
    private String password;

    //    数据源
    @Bean
    DataSource createDataSource() {
        HikariConfig config = new HikariConfig();
        config.setJdbcUrl(jdbcUrl);
        config.setUsername(username);
        config.setPassword(password);
        config.addDataSourceProperty("autoCommit", "false");
        config.addDataSourceProperty("connectionTimeout", "5");
        config.addDataSourceProperty("idleTimeout", "60");
        return new HikariDataSource(config);
    }

    // mybatis配置
    @Bean
    SqlSessionFactoryBean createSqlSessionFactoryBean(@Autowired DataSource dataSource) {
        var sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSource);
        return sqlSessionFactoryBean;
    }

    // 事务
    @Bean
    PlatformTransactionManager createTxManager(@Autowired DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

}

3.数据访问层（dao）

注意事项：

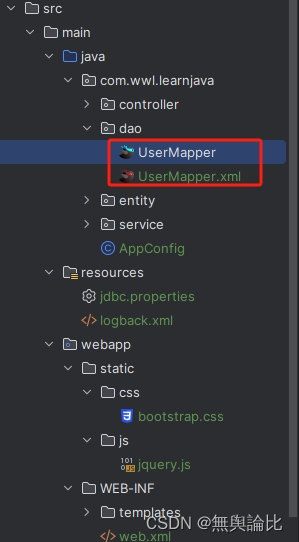

1、mapper和xml放到同一目录，且名字相同

2、mapper文件为接口，且无需添加注解，启动类中的mapper扫描注解会自动将这个类处理成spring容器中的bean。

package com.wwl.learnjava.dao;

import com.wwl.learnjava.entity.User;

import java.util.List;

public interface UserMapper {
    List<User> getUsers();
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wwl.learnjava.dao.UserMapper">
    <select id="getUsers" resultType="com.wwl.learnjava.entity.User">
        SELECT * FROM users
    </select>
</mapper>
