二三维切换基本思路：

创建两个视图器，二维视图器 MapView和三维视图器SceneView；
两个视图器共用一个div容易，两个视图器的container相同，每次只放入一个视图器；
二三维场景切换时要使用同一个viewpoint信息，确保切换后视点相同；

具体代码如下所示：

说明：底图可以选择自己喜欢的风格，具体地图风格可查看下边这篇文章https://blog.youkuaiyun.com/wangjianbo09/article/details/124606455?csdn_share_tail=%7B%22type%22%3A%22blog%22%2C%22rType%22%3A%22article%22%2C%22rId%22%3A%22124606455%22%2C%22source%22%3A%22wangjianbo09%22%7D&ctrtid=bDHUkhttps://blog.youkuaiyun.com/wangjianbo09/article/details/124606455?csdn_share_tail=%7B%22type%22%3A%22blog%22%2C%22rType%22%3A%22article%22%2C%22rId%22%3A%22124606455%22%2C%22source%22%3A%22wangjianbo09%22%7D&ctrtid=bDHUk


<html>
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="initial-scale=1,maximum-scale=1,user-scalable=no" />
    <title>二三维切换</title>

    <style>
      html,
      body,
      #viewDiv {
        padding: 0;
        margin: 0;
        height: 100%;
        width: 100%;
      }

      #infoDiv {
        position: absolute;
        top: 15px;
        left: 60px;
      }

      #infoDiv input {
        border: none;
        box-shadow: rgba(0, 0, 0, 0.3) 0px 1px 2px;
      }
    </style>

    <link rel="stylesheet" href="https://js.arcgis.com/4.23/esri/themes/light/main.css" />
    <script src="https://js.arcgis.com/4.23/"></script>

    <script>
      require(["esri/views/MapView", "esri/views/SceneView", "esri/WebMap","esri/Map", "esri/WebScene"], (
        MapView,
        SceneView,
        WebMap,
        WebScene,
        Map
      ) => {
        const switchButton = document.getElementById("switch-btn");
        const appConfig = {
          mapView: null,
          sceneView: null,
          activeView: null,
          container: "viewDiv" // 存放视图器的div容器id
        };

        //创建二维场景地图
        const map = new Map({
          basemap: "streets"
        });
        //创建三维场景地图 添加了ground 地形数据
        const scene = new WebScene({
          basemap: "satellite",
          ground: "world-topobathymetry"
        });
        //初始化地图层级和中心点 中心点在西安附近 div容器 就是 <div id="viewDiv"></div>
        const initialViewParams = {
          zoom: 3,
          center: [109, 39],
          container: appConfig.container
        };
        // 创建二维视图器，并设置为当前视图器
        appConfig.mapView = createView(initialViewParams, "2d");
        appConfig.mapView.map = map;
        appConfig.activeView = appConfig.mapView;

        // 创建三维视图器 但是不要初始化视图器的容器
        initialViewParams.container = null;
        initialViewParams.map = scene;
        appConfig.sceneView = createView(initialViewParams, "3d");

        // switch the view between 2D and 3D each time the button is clicked
        switchButton.addEventListener("click", () => {
          switchView();
        });

        // 切换二三维视图方法
        function switchView() {
          const is3D = appConfig.activeView.type === "3d";
          //首先克隆当前视图器的视点信息
          const activeViewpoint = appConfig.activeView.viewpoint.clone();

          // 把当前视图器的容易移除
          appConfig.activeView.container = null;

          if (is3D) {
            // if the input view is a SceneView, set the viewpoint on the
            // mapView instance. Set the container on the mapView and flag
            // it as the active view
            appConfig.mapView.viewpoint = activeViewpoint;
            appConfig.mapView.container = appConfig.container;
            appConfig.activeView = appConfig.mapView;
            switchButton.value = "3D";
          } else {
            appConfig.sceneView.viewpoint = activeViewpoint;
            appConfig.sceneView.container = appConfig.container;
            appConfig.activeView = appConfig.sceneView;
            switchButton.value = "2D";
          }
        }

        // 根据参数创建视图器
        function createView(params, type) {
          let view;
          if (type === "2d") {
            view = new MapView(params);
            return view;
          } else {
            view = new SceneView(params);
          }
          return view;
        }
      });
    </script>
  </head>
  <body>
    <div id="viewDiv"></div>
    <div id="infoDiv">
      <input
        type="button"
        id="switch-btn"
        value="3D"
      />
    </div>
  </body>
</html>

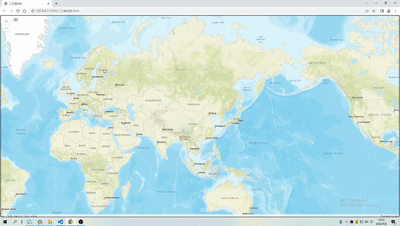

效果如下：
