检查一下：<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>添加地图小部件</title>
<link rel="stylesheet" href="https://js.
arcgis.com/3.45/esri/css/esri.css">
<script src="https://js.
arcgis.com/3.45/init.js"></script>
<style>
html, body, #mapDiv {
padding: 0;
margin: 0;
width: 100%;
height: 100%;
}
</style>
<script>
/*在
arcgis api for javascript中，提供了一个类叫做esri/toolbars/navigation，
通过这个类，用户可以实现对地图的基本操作。
*/
require
([
"esri/map",
"esri/layers/
ArcGISDynamicMapServiceLayer",
"esri/dijit/Scalebar",
"esri/symbols/SimpleMarkerSymbol",
"esri/toolbars/draw",
"esri/graphic",
"esri/layers/GraphicsLayer",
"esri/Color",
],
function
(Map,
ArcGISDynamicMapServiceLayer,
Scalebar,
SimpleMarkerSymbol,
Draw,
Graphic,
GraphicsLayer,
Color
) {
var map = new Map
("mapDiv", {
center: [-95.625,39.243],
zoom:2,
basemap: "hybrid" ,
isPan:false,//禁止平移
}
);
//调用动态地图
服务
var layer = new
ArcGISDynamicMapServiceLayer
(
"https://sample
server6.
arcgisonline.com/
arcgis/
rest/
services/USA/Map
Server",{
"opacity": 0.75
}
)
map.addLayer
(layer
) ;
//添加比例尺
var scalebar = new Scalebar
({
map: map,// 参考底图，必选项
attachTo: "bottom-left", // 指定比例尺在地图上的位置
scalebarStyle:"line",// 比例尺类型，比例尺以线性显示
scalebarUnit: "english",// 比例尺单位
}
);
// 声明一个draw工具条
var toolBar = new Draw
(map
);
// 绑定激活绘图工具的函数
function activate_tool
() {
// 根据class获取所有按钮
var btns = document.getElementsByClassName
('btn-info'
);
console.log
('btns',btns
)
for
(var i = 0; i < btns.length; ++ i
) {
var type = btns[i].getAttribute
('aria-label'
);
// 绘制点
if
(type === "POINT"
) {
btns[i].onclick = function
() {
toolBar.activate
(Draw.POINT
)
};
// 结束绘制
} else if
(type === "disabledraw"
) {
btns[i].onclick = function
() {
toolBar.deactivate
();
}
}
}};
// 调用函数
activate_tool
();
// 为声明的draw工具添加了一个draw-complete事件，绘图结束后将图形显示在地图上
toolBar.on
("draw-complete", drawEndEvent
)
function drawEndEvent
(evt
) {
var geometry=evt.geometry;
console.log
("geometry",geometry
)
var type=geometry.type;
console.log
("type",type
)
// 创建点符号
var pointSymbol = new SimpleMarkerSymbol
(
SimpleMarkerSymbol.STYLE_TRIANGLE,//点的形状
20,//点的大小
new SimpleLineSymbol
(SimpleLineSymbol.STYLE_SOLID,new Color
([255,0,0]
), 1
),//轮廓线的样式
new Color
([0,255,0,0.25]
)//点的颜色
);
// 添加图形到地图
if
(type === "point"
) {
var graphic=new Graphic
(geometry,pointSymbol
);
}
var graphicslayer=new GraphicsLayer
();
graphicslayer.add
(graphic
);
map.addLayer
(graphicslayer
);
}
}
);
</script>
</head>
<body>
<button class='btn-info' aria-label="POINT">点</button>
<button class='btn-info' aria-label="disabledraw">结束绘制</button>
<div id="mapDiv"></div>
</body>
</html>

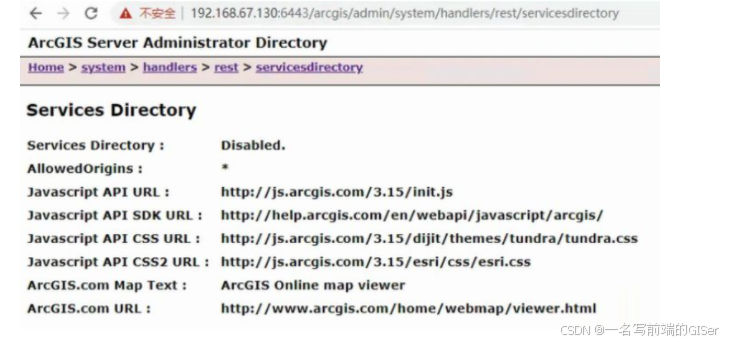

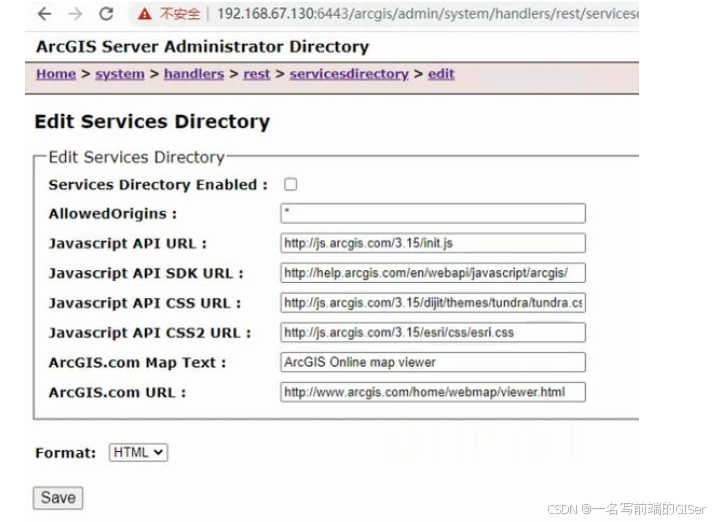

2. 通过单击system>handlers>rest>servicesdirectory>edit来访问服务目录设置
