加载的含义是从class文件字节流中提取类型信息。Hotspot的Classfile模块为jvm提供加载功能。

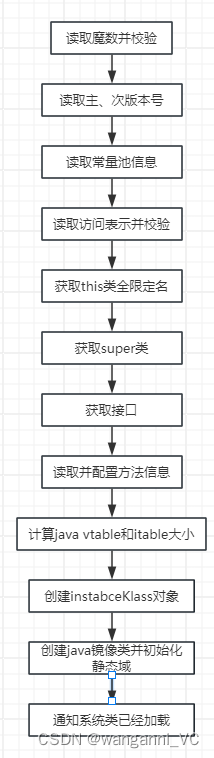

流程图
源码
加载实现基于虚拟机内部提供的类解析工具，叫做类解析器【ClassFileParser】。这一部分为C++实现，源码目录为hotspot/src/share/vm/classfile/classFileParser.cpp
instanceKlassHandle ClassFileParser::parseClassFile(Symbol* name,
ClassLoaderData* loader_data,
Handle protection_domain,
KlassHandle host_klass,
GrowableArray<Handle>* cp_patches,
TempNewSymbol& parsed_name,
bool verify,
TRAPS) {
// When a retransformable agent is attached, JVMTI caches the
// class bytes that existed before the first retransformation.
// If RedefineClasses() was used before the retransformable
// agent attached, then the cached class bytes may not be the
// original class bytes.
JvmtiCachedClassFileData *cached_class_file = NULL;
Handle class_loader(THREAD, loader_data->class_loader());
bool has_default_methods = false;
bool declares_default_methods = false;
// JDK-8252904:
// The stream (resource) attached to the instance klass may
// be reallocated by this method. When JFR is included the
// stream may need to survive beyond the end of the call. So,
// the caller is expected to declare the ResourceMark that
// determines the lifetime of resources allocated under this
// call.
ClassFileStream* cfs = stream();
// Timing
assert(THREAD->is_Java_thread(), "must be a JavaThread");
// increment counter
THREAD->statistical_info().incr_define_class_count();
JavaThread* jt = (JavaThread*) THREAD;
//用来统计性能
PerfClassTraceTime ctimer(ClassLoader::perf_class_parse_time(),
ClassLoader::perf_class_parse_selftime(),
NULL,
jt->get_thread_stat()->perf_recursion_counts_addr(),
jt->get_thread_stat()->perf_timers_addr(),
PerfClassTraceTime::PARSE_CLASS);
//初始化部分成员变量
init_parsed_class_attributes(loader_data);
//默认位false
if (JvmtiExport::should_post_class_file_load_hook()) {
// Get the cached class file bytes (if any) from the class that
// is being redefined or retransformed. We use jvmti_thread_state()
// instead of JvmtiThreadState::state_for(jt) so we don't allocate
// a JvmtiThreadState any earlier than necessary. This will help
// avoid the bug described by 7126851.
JvmtiThreadState *state = jt->jvmti_thread_state();
if (state != NULL) {
KlassHandle *h_class_being_redefined =
state->get_class_being_redefined();
if (h_class_being_redefined != NULL) {
instanceKlassHandle ikh_class_being_redefined =
instanceKlassHandle(THREAD, (*h_class_being_redefined)());
cached_class_file = ikh_class_being_redefined->get_cached_class_file();
}
}
unsigned char* ptr = cfs->buffer();
unsigned char* end_ptr = cfs->buffer() + cfs->length();
JvmtiExport::post_class_file_load_hook(name, class_loader(), protection_domain,
&ptr, &end_ptr, &cached_class_file);
if (ptr != cfs->buffer()) {
// JVMTI agent has modified class file data.
// Set new class file stream using JVMTI agent modified
// class file data.
cfs = new ClassFileStream(ptr, end_ptr - ptr, cfs->source());
set_stream(cfs);
}
}
//成员变量赋值
_host_klass = host_klass;
_cp_patches = cp_patches;
instanceKlassHandle nullHandle;
//DumpSharedSpaces 表示共享空间转储到文件，默认是不开启的，
// Figure out whether we can skip format checking (matching classic VM behavior)
if (DumpSharedSpaces) {
// verify == true means it's a 'remote' class (i.e., non-boot class)
// Verification decision is based on BytecodeVerificationRemote flag
// for those classes.
_need_verify = (verify) ? BytecodeVerificationRemote :
BytecodeVerificationLocal;
} else {
//找出是否可以跳过格式检查（匹配经典的虚拟机行为）
_need_verify = Verifier::should_verify_for(class_loader(), verify);
/*
如果设置了 -Xverify:all,则设置为
BytecodeVerificationLocal=true,BytecodeVerificationRemote=true
如果设置了 -Xverify:remote,则设置为
BytecodeVerificationLocal=false,BytecodeVerificationRemote=true
如果设置了 -Xverify:none,则设置为
BytecodeVerificationLocal=false,BytecodeVerificationRemote=false
未设置：BytecodeVerificationLocal = false，BytecodeVerificationRemote = true
*/
}
// Set the verify flag in stream
// 设置classFileStream的verify的标记
cfs->set_verify(_need_verify);
// Save the class file name for easier error message printing.
//保存更简洁的class_name
_class_name = (name != NULL) ? name : vmSymbols::unknown_class_name();
//校验是否能读去8个字节，magic:4 major:2 minor:2
cfs->guarantee_more(8, CHECK_(nullHandle)); // magic, major, minor
// 读取魔数并校验是否为0XCAFEBABE，get_u4_fast表示从当前位置开始读取4个字节数据，指针+4位
u4 magic = cfs->get_u4_fast();
guarantee_property(magic == JAVA_CLASSFILE_MAGIC,
"Incompatible magic value %u in class file %s",
magic, CHECK_(nullHandle));
// 读取文件的主，次版本号并验证。若版本不支持，则抛出java_lang_UnsupportedClassVersionError异常
u2 minor_version = cfs->get_u2_fast();
u2 major_version = cfs->get_u2_fast();
if (DumpSharedSpaces && major_version < JAVA_1_5_VERSION) {
ResourceMark rm;
warning("Pre JDK 1.5 class not supported by CDS: %u.%u %s",
major_version, minor_version, name->as_C_string());
Exceptions::fthrow(
THREAD_AND_LOCATION,
vmSymbols::java_lang_UnsupportedClassVersionError(),
"Unsupported major.minor version for dump time %u.%u",
major_version,
minor_version);
}
// Check version numbers - we check this even with verifier off
if (!is_supported_version(major_version, minor_version)) {
if (name == NULL) {
Exceptions::fthrow(
THREAD_AND_LOCATION,
vmSymbols::java_lang_UnsupportedClassVersionError(),
"Unsupported class file version %u.%u, "
"this version of the Java Runtime only recognizes class file versions up to %u.%u",
major_version,
minor_version,
JAVA_MAX_SUPPORTED_VERSION,
JAVA_MAX_SUPPORTED_MINOR_VERSION);
} else {
ResourceMark rm(THREAD);
Exceptions::fthrow(
THREAD_AND_LOCATION,
vmSymbols::java_lang_UnsupportedClassVersionError(),
"%s has been compiled by a more recent version of the Java Runtime (class file version %u.%u), "
"this version of the Java Runtime only recognizes class file versions up to %u.%u",
name->as_C_string(),
major_version,
minor_version,
JAVA_MAX_SUPPORTED_VERSION,
JAVA_MAX_SUPPORTED_MINOR_VERSION);
}
return nullHandle;
}
_major_version = major_version;
_minor_version = minor_version;
// Check if verification needs to be relaxed for this class file
// Do not restrict it to jdk1.0 or jdk1.1 to maintain backward compatibility (4982376)
_relax_verify = relax_format_check_for(_loader_data);
// 读取常量池，返回一个常量池句柄
constantPoolHandle cp = parse_constant_pool(CHECK_(nullHandle));
int cp_size = cp->length();
cfs->guarantee_more(8, CHECK_(nullHandle)); // flags, this_class, super_class, infs_len
//读取访问标识
AccessFlags access_flags;
jint flags = cfs->get_u2_fast() & JVM_RECOGNIZED_CLASS_MODIFIERS;
if ((flags & JVM_ACC_INTERFACE) && _major_version < JAVA_6_VERSION) {
// Set abstract bit for old class files for backward compatibility
flags |= JVM_ACC_ABSTRACT;
}
verify_legal_class_modifiers(flags, CHECK_(nullHandle));
access_flags.set_flags(flags);
// 当前类的索引值
_this_class_index = cfs->get_u2_fast();
check_property(
valid_cp_range(_this_class_index, cp_size) &&
cp->tag_at(_this_class_index).is_unresolved_klass(),
"Invalid this class index %u in constant pool in class file %s",
_this_class_index, CHECK_(nullHandle));
//将读取到的当前类的名称保存在_class_name属性中
Symbol* class_name = cp->unresolved_klass_at(_this_class_index);
assert(class_name != NULL, "class_name can't be null");
// It's important to set parsed_name *before* resolving the super class.
// (it's used for cleanup by the caller if parsing fails)
parsed_name = class_name;
// parsed_name is returned and can be used if there's an error, so add to
// its reference count. Caller will decrement the refcount.
parsed_name->increment_refcount();
// Update _class_name which could be null previously to be class_name
_class_name = class_name;
// Don't need to check whether this class name is legal or not.
// It has been checked when constant pool is parsed.
// However, make sure it is not an array type.
if (_need_verify) {
guarantee_property(class_name->byte_at(0) != JVM_SIGNATURE_ARRAY,
"Bad class name in class file %s",
CHECK_(nullHandle));
}
Klass* preserve_this_klass; // for storing result across HandleMark
// release all handles when parsing is done
{ HandleMark hm(THREAD);
// Checks if name in class file matches requested name
if (name != NULL && class_name != name) {
ResourceMark rm(THREAD);
Exceptions::fthrow(
THREAD_AND_LOCATION,
vmSymbols::java_lang_NoClassDefFoundError(),
"%s (wrong name: %s)",
name->as_C_string(),
class_name->as_C_string()
);
return nullHandle;
}
if (TraceClassLoadingPreorder) {
tty->print("[Loading %s", (name != NULL) ? name->as_klass_external_name() : "NoName");
if (cfs->source() != NULL) tty->print(" from %s", cfs->source());
tty->print_cr("]");
}
#if INCLUDE_CDS
if (DumpLoadedClassList != NULL && cfs->source() != NULL && classlist_file->is_open()) {
// Only dump the classes that can be stored into CDS archive
// unless AppCDS is enabled
if (_host_klass == NULL && SystemDictionaryShared::is_sharing_possible(loader_data)) {
if (name != NULL) {
ResourceMark rm(THREAD);
char *class_name = name->as_C_string();
// TODO Skip JFR-related classes in classlist file to avoid conflicts between appcds and jfr.
if ((class_name != NULL) && (strstr(class_name, "jfr") == NULL)) {
classlist_file->print_cr("%s", class_name);
classlist_file->flush();
}
}
}
}
#endif
//super类
u2 super_class_index = cfs->get_u2_fast();
instanceKlassHandle super_klass = parse_super_class(super_class_index,
CHECK_NULL);
//interfaces[]的长度
u2 itfs_len = cfs->get_u2_fast();
//接口表
Array<Klass*>* local_interfaces =
parse_interfaces(itfs_len, protection_domain, _class_name,
&has_default_methods, CHECK_(nullHandle));
//字段
u2 java_fields_count = 0;
// Fields (offsets are filled in later)
FieldAllocationCount fac;
Array<u2>* fields = parse_fields(class_name,
access_flags.is_interface(),
&fac, &java_fields_count,
CHECK_(nullHandle));
//方法
bool has_final_method = false;
AccessFlags promoted_flags;
promoted_flags.set_flags(0);
Array<Method*>* methods = parse_methods(access_flags.is_interface(),
&promoted_flags,
&has_final_method,
&declares_default_methods,
CHECK_(nullHandle));
if (declares_default_methods) {
has_default_methods = true;
}
// 方法属性
ClassAnnotationCollector parsed_annotations;
parse_classfile_attributes(&parsed_annotations, CHECK_(nullHandle));
// Finalize the Annotations metadata object,
// now that all annotation arrays have been created.
create_combined_annotations(CHECK_(nullHandle));
// Make sure this is the end of class file stream
guarantee_property(cfs->at_eos(), "Extra bytes at the end of class file %s", CHECK_(nullHandle));
if (_class_name == vmSymbols::java_lang_Object()) {
check_property(_local_interfaces == Universe::the_empty_klass_array(),
"java.lang.Object cannot implement an interface in class file %s",
CHECK_(nullHandle));
}
// We check super class after class file is parsed and format is checked
if (super_class_index > 0 && super_klass.is_null()) {
Symbol* sk = cp->klass_name_at(super_class_index);
if (access_flags.is_interface()) {
// Before attempting to resolve the superclass, check for class format
// errors not checked yet.
guarantee_property(sk == vmSymbols::java_lang_Object(),
"Interfaces must have java.lang.Object as superclass in class file %s",
CHECK_(nullHandle));
}
Klass* k = SystemDictionary::resolve_super_or_fail(class_name, sk,
class_loader,
protection_domain,
true,
CHECK_(nullHandle));
KlassHandle kh (THREAD, k);
super_klass = instanceKlassHandle(THREAD, kh());
}
if (super_klass.not_null()) {
if (super_klass->has_default_methods()) {
has_default_methods = true;
}
if (super_klass->is_interface()) {
ResourceMark rm(THREAD);
Exceptions::fthrow(
THREAD_AND_LOCATION,
vmSymbols::java_lang_IncompatibleClassChangeError(),
"class %s has interface %s as super class",
class_name->as_klass_external_name(),
super_klass->external_name()
);
return nullHandle;
}
// Make sure super class is not final
if (super_klass->is_final()) {
THROW_MSG_(vmSymbols::java_lang_VerifyError(), "Cannot inherit from final class", nullHandle);
}
}
// save super klass for error handling.
_super_klass = super_klass;
// Compute the transitive list of all unique interfaces implemented by this class
_transitive_interfaces =
compute_transitive_interfaces(super_klass, local_interfaces, CHECK_(nullHandle));
// sort methods
intArray* method_ordering = sort_methods(methods);
// promote flags from parse_methods() to the klass' flags
access_flags.add_promoted_flags(promoted_flags.as_int());
// Size of Java vtable (in words)
int vtable_size = 0;
int itable_size = 0;
int num_miranda_methods = 0;
GrowableArray<Method*> all_mirandas(20);
klassVtable::compute_vtable_size_and_num_mirandas(
&vtable_size, &num_miranda_methods, &all_mirandas, super_klass(), methods,
access_flags, class_loader, class_name, local_interfaces,
CHECK_(nullHandle));
// Size of Java itable (in words)
itable_size = access_flags.is_interface() ? 0 : klassItable::compute_itable_size(_transitive_interfaces);
FieldLayoutInfo info;
layout_fields(class_loader, &fac, &parsed_annotations, &info, CHECK_NULL);
int total_oop_map_size2 =
InstanceKlass::nonstatic_oop_map_size(info.total_oop_map_count);
// Compute reference type
ReferenceType rt;
if (super_klass() == NULL) {
rt = REF_NONE;
} else {
rt = super_klass->reference_type();
}
// We can now create the basic Klass* for this klass
_klass = InstanceKlass::allocate_instance_klass(loader_data,
vtable_size,
itable_size,
info.static_field_size,
total_oop_map_size2,
rt,
access_flags,
name,
super_klass(),
!host_klass.is_null(),
CHECK_(nullHandle));
instanceKlassHandle this_klass (THREAD, _klass);
assert(this_klass->static_field_size() == info.static_field_size, "sanity");
assert(this_klass->nonstatic_oop_map_count() == info.total_oop_map_count,
"sanity");
// Fill in information already parsed
this_klass->set_should_verify_class(verify);
jint lh = Klass::instance_layout_helper(info.instance_size, false);
this_klass->set_layout_helper(lh);
assert(this_klass->oop_is_instance(), "layout is correct");
assert(this_klass->size_helper() == info.instance_size, "correct size_helper");
// Not yet: supers are done below to support the new subtype-checking fields
//this_klass->set_super(super_klass());
this_klass->set_class_loader_data(loader_data);
this_klass->set_nonstatic_field_size(info.nonstatic_field_size);
this_klass->set_has_nonstatic_fields(info.has_nonstatic_fields);
this_klass->set_static_oop_field_count(fac.count[STATIC_OOP]);
apply_parsed_class_metadata(this_klass, java_fields_count, CHECK_NULL);
if (has_final_method) {
this_klass->set_has_final_method();
}
this_klass->copy_method_ordering(method_ordering, CHECK_NULL);
// The InstanceKlass::_methods_jmethod_ids cache
// is managed on the assumption that the initial cache
// size is equal to the number of methods in the class. If
// that changes, then InstanceKlass::idnum_can_increment()
// has to be changed accordingly.
this_klass->set_initial_method_idnum(methods->length());
this_klass->set_name(cp->klass_name_at(_this_class_index));
if (is_anonymous()) // I am well known to myself
cp->klass_at_put(_this_class_index, this_klass()); // eagerly resolve
this_klass->set_minor_version(minor_version);
this_klass->set_major_version(major_version);
this_klass->set_has_default_methods(has_default_methods);
this_klass->set_declares_default_methods(declares_default_methods);
if (!host_klass.is_null()) {
assert (this_klass->is_anonymous(), "should be the same");
this_klass->set_host_klass(host_klass());
}
// Set up Method*::intrinsic_id as soon as we know the names of methods.
// (We used to do this lazily, but now we query it in Rewriter,
// which is eagerly done for every method, so we might as well do it now,
// when everything is fresh in memory.)
if (Method::klass_id_for_intrinsics(this_klass()) != vmSymbols::NO_SID) {
for (int j = 0; j < methods->length(); j++) {
methods->at(j)->init_intrinsic_id();
}
}
if (cached_class_file != NULL) {
// JVMTI: we have an InstanceKlass now, tell it about the cached bytes
this_klass->set_cached_class_file(cached_class_file);
}
// Fill in field values obtained by parse_classfile_attributes
if (parsed_annotations.has_any_annotations())
parsed_annotations.apply_to(this_klass);
apply_parsed_class_attributes(this_klass);
// Miranda methods
if ((num_miranda_methods > 0) ||
// if this class introduced new miranda methods or
(super_klass.not_null() && (super_klass->has_miranda_methods()))
// super class exists and this class inherited miranda methods
) {
this_klass->set_has_miranda_methods(); // then set a flag
}
// Fill in information needed to compute superclasses.
this_klass->initialize_supers(super_klass(), CHECK_(nullHandle));
// Initialize itable offset tables
klassItable::setup_itable_offset_table(this_klass);
// Compute transitive closure of interfaces this class implements
// Do final class setup
fill_oop_maps(this_klass, info.nonstatic_oop_map_count, info.nonstatic_oop_offsets, info.nonstatic_oop_counts);
// Fill in has_finalizer, has_vanilla_constructor, and layout_helper
set_precomputed_flags(this_klass);
// reinitialize modifiers, using the InnerClasses attribute
int computed_modifiers = this_klass->compute_modifier_flags(CHECK_(nullHandle));
this_klass->set_modifier_flags(computed_modifiers);
// check if this class can access its super class
check_super_class_access(this_klass, CHECK_(nullHandle));
// check if this class can access its superinterfaces
check_super_interface_access(this_klass, CHECK_(nullHandle));
// check if this class overrides any final method
check_final_method_override(this_klass, CHECK_(nullHandle));
// check that if this class is an interface then it doesn't have static methods
if (this_klass->is_interface()) {
/* An interface in a JAVA 8 classfile can be static */
if (_major_version < JAVA_8_VERSION) {
check_illegal_static_method(this_klass, CHECK_(nullHandle));
}
}
// Allocate mirror and initialize static fields
java_lang_Class::create_mirror(this_klass, class_loader, protection_domain,
CHECK_(nullHandle));
// Generate any default methods - default methods are interface methods
// that have a default implementation. This is new with Lambda project.
if (has_default_methods ) {
DefaultMethods::generate_default_methods(
this_klass(), &all_mirandas, CHECK_(nullHandle));
}
ClassLoadingService::notify_class_loaded(InstanceKlass::cast(this_klass()),
false /* not shared class */);
if (TraceClassLoading) {
ResourceMark rm;
// print in a single call to reduce interleaving of output
const char* source = cfs->source();
if (source != NULL && PrintClassLoadingDetails) {
tty->date_stamp(true);
OSThread* osThread = THREAD->osthread();
if (osThread != NULL) {
tty->print("%d ", osThread->thread_id());
}
const char* loader_name = class_loader.is_null()
? "bootstrap"
: InstanceKlass::cast(class_loader->klass())->external_name();
const char* klass_name = this_klass->external_name();
tty->print(" [Loaded %s from %s by classloader %s]\n", klass_name,
source, loader_name);
if (PrintThreadStackOnLoadingClass != NULL && klass_name != NULL &&
strstr(klass_name, PrintThreadStackOnLoadingClass) && THREAD->is_Java_thread()) {
JavaThread* javaThread = ((JavaThread*) THREAD);
javaThread->print_on(tty);
javaThread->print_stack_on(tty);
}
} else if (source != NULL) {
tty->print("[Loaded %s from %s]\n", this_klass->external_name(),
source);
} else if (class_loader.is_null()) {
Klass* caller =
THREAD->is_Java_thread()
? ((JavaThread*)THREAD)->security_get_caller_class(1)
: NULL;
// caller can be NULL, for example, during a JVMTI VM_Init hook
if (caller != NULL) {
tty->print("[Loaded %s by instance of %s]\n",
this_klass->external_name(),
InstanceKlass::cast(caller)->external_name());
} else {
tty->print("[Loaded %s]\n", this_klass->external_name());
}
} else {
tty->print("[Loaded %s from %s]\n", this_klass->external_name(),
InstanceKlass::cast(class_loader->klass())->external_name());
}
}
if (TraceClassResolution) {
ResourceMark rm;
// print out the superclass.
const char * from = this_klass()->external_name();
if (this_klass->java_super() != NULL) {
tty->print("RESOLVE %s %s (super)\n", from, InstanceKlass::cast(this_klass->java_super())->external_name());
}
// print out each of the interface classes referred to by this class.
Array<Klass*>* local_interfaces = this_klass->local_interfaces();
if (local_interfaces != NULL) {
int length = local_interfaces->length();
for (int i = 0; i < length; i++) {
Klass* k = local_interfaces->at(i);
InstanceKlass* to_class = InstanceKlass::cast(k);
const char * to = to_class->external_name();
tty->print("RESOLVE %s %s (interface)\n", from, to);
}
}
}
// preserve result across HandleMark
preserve_this_klass = this_klass();
}
JFR_ONLY(INIT_ID(preserve_this_klass);)
// Create new handle outside HandleMark (might be needed for
// Extended Class Redefinition)
instanceKlassHandle this_klass (THREAD, preserve_this_klass);
debug_only(this_klass->verify();)
#if INCLUDE_CDS
if (DynamicDumpSharedSpaces && !SystemDictionary::is_builtin_loader(class_loader)) {
this_klass->set_shared_classpath_index(UNREGISTERED_INDEX);
SystemDictionaryShared::set_shared_class_misc_info(this_klass(), cfs);
}
#endif // INCLUDE_CDS
// Clear class if no error has occurred so destructor doesn't deallocate it
_klass = NULL;
return this_klass;
}
扫一扫
1007
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
