一、基础环境篇

1.新建Maven项目作为父工程（需要开启字符编码和注解激活生效）

1.pom.xml文件，导入依赖之前需要将<dependencyManagement></dependencyManagement>标签先去掉

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.cloud</groupId>
    <artifactId>com.cloud</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <!--统一管理jar包和版本-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <mysql.version>8.0.17</mysql.version>
        <druid.verison>1.1.16</druid.verison>
        <mybatis.spring.boot.verison>1.3.0</mybatis.spring.boot.verison>
    </properties>

    <!--子模块继承之后，提供作用：锁定版本+子module不用谢groupId和version-->
    <dependencyManagement>
        <dependencies>
            <!--spring boot 2.2.2-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.2.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud Hoxton.SR1-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud alibaba 2.1.0.RELEASE-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.2.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- MySql -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!-- Druid -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.verison}</version>
            </dependency>
            <!-- mybatis-springboot整合 -->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring.boot.verison}</version>
            </dependency>
            <!--lombok-->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>
            <!--junit-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <!-- log4j -->
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

说明：

<packaging>pom</packaging> pom方式表示此pom文件为父工程

<dependencyManagement> </dependencyManagement>标签是作为声明，不注入依赖，子模块继承后才提供作用，锁定版本子modlue，子版本不需要设置groudId和Version，继承父类的Id和版本.

<dependencies> </dependencies>指定版本号若不写gv时用父类的gv.若指定用自己的gv

二、支付模块

1.新建子模块（支付功能模块）

步骤如下：

新建Moudle（Maven模块）、改pom.xml、写Yml、新建主启动、业务类

a.支付模块构建上

Moudle模块名为

cloud-provider-payment8001

 修改pom.xml文件名

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>com.cloud</artifactId>
        <groupId>org.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>

    <dependencies>
        <!--包含了sleuth+zipkin
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>
        &lt;!&ndash;eureka-client&ndash;&gt;
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>-->
        <!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
        <!--
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

在application.yml文件中写配置文件内容

server:
  port: 8002

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource            # 当前数据源操作类型
    driver-class-name: com.mysql.jdbc.Driver            # mysql驱动包
    url: jdbc:mysql://localhost:3306/my?useUnicode=true&characterEncoding=UTF8&serverTimezone=UTC
    username: root
    password: 123456

mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: Main11.com.lun.springcloud.entities    # 所有Entity别名类所在包

新建启动类

在java下新建包下

@SpringBootApplication
public class PaymentMain001 {
    public static void main(String[] args) {
        System.out.println("hello");
        SpringApplication.run(PaymentMain001.class,args);
    }
}

b.支付模块构建中

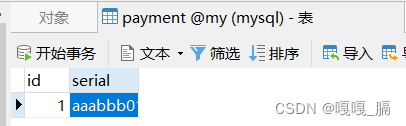

新建mysql表

新建数据库实体类

@Data   //相当于get、set、toString、equals和hashcode方法的合集
@NoArgsConstructor
@AllArgsConstructor
public class payment {
    private int id;
    private String serial;
}

 新建Json返回值实体类

@Data
@NoArgsConstructor
@AllArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message){
        this(code, message, null);
    }
}

Dao:

接口PaymentDao：

@Mapper
public interface PaymentDao {

    Long create(Payment payment);

    Payment getPaymentById(@Param(value = "id")int id);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="Main11.com.lun.springcloud.Dao.PaymentDao">

    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial)  values(#{serial})
    </insert>

    <resultMap id="BaseResultMap" type="Payment">
        <id property="id" column="id"></id>
        <id property="serial" column="serial"></id>
    </resultMap>

    <select id="getPaymentById" resultMap="BaseResultMap" parameterType="int">
        select * from payment where id=#{id}
    </select>
</mapper>

Service:

public interface PaymentService {
    Long create(Payment payment);

    Payment getPaymentById(int id);
}

@Service
public class PaymentServiceImpl implements PaymentService {
    @Autowired
    private PaymentDao paymentDao;

    @Override
    public Long create(Payment payment) {
        return paymentDao.create(payment);
    }

    @Override
    public Payment getPaymentById(int id) {
        return paymentDao.getPaymentById(id);
    }
}
@RestController
@Slf4j
public class PaymentController {
    @Autowired
    private PaymentService paymentService;

    @PostMapping("/payment/create")
    public CommonResult create(Payment payment){
        Long result = paymentService.create(payment);
        log.info("****插入结果" + result);
        if (result>0){
            return new CommonResult<Long>(200,"插入数据库成功" ,result);
        }else {
            return new CommonResult<Long>(444,"插入数据库失败",null);
        }
    }

    @GetMapping("/payment/get/{id}")  //主要用于读数据
    public CommonResult getPaymentById(@PathVariable(value = "id")Integer id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("****插入结果" + payment);
        System.out.println(payment);
        if (payment!=null){
            return new CommonResult(200,"查询成功" ,payment);
        }else {
            return new CommonResult(444,"查询失败",null);
        }
    }
}

 http://localhost:8002/payment/get/1http://localhost:8002/payment/create?serial=lun2http://localhost:8002/payment/get/1

三、热部署Devtools

1.在子工程pom.xml中引入

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

2.在父工程pom.xml中引入

 <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>

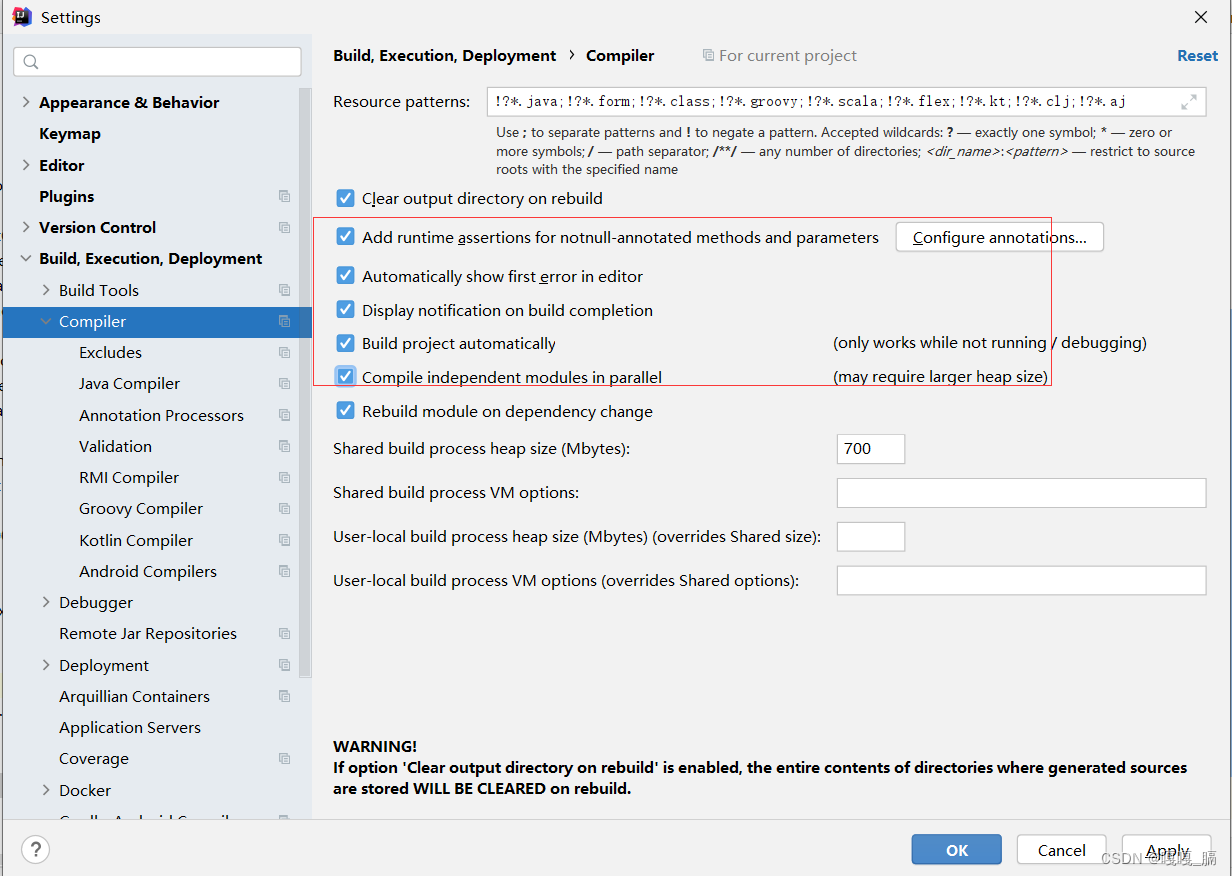

3.勾选如下选项

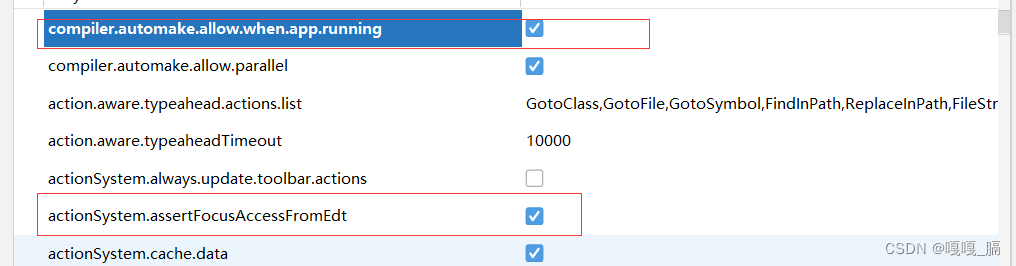

 4.键入Ctrl + Shift + Alt + / ，打开Registry，勾选

 5.重启idea

四、消费者订单模块

a.消费者订单模块上

1.创建名字为cloud-consumer-order80的模块

2.改pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>com.cloud</artifactId>
        <groupId>org.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-order80</artifactId>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.写yml文件

server:
  port: 80

 4.编写启动类

@SpringBootApplication
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class,args);
    }
}

5.编写业务类

a..新建实体类

@Data
@NoArgsConstructor
@AllArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message){
        this(code, message, null);
    }
}

@Data   //相当于get、set、toString、equals和hashcode方法的合集
@NoArgsConstructor
@AllArgsConstructor
public class Payment {
    private int id;
    private String serial;
}

b.新建配置类，用于引入RestTemplate

@Configuration
public class ApplicationContextConfig {

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

c.新建控制层

@RestController
public class OrderController {
    public static final String PAYMENT_URL = "http://localhost:8002";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/create")
    public CommonResult<Payment> create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL + "/payment/create",payment,CommonResult.class);
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable(value = "id")Integer id){
        return restTemplate.getForObject(PAYMENT_URL + "/payment/get/" + id,CommonResult.class);
    }

}

 post的方式不被识别，需要通过@RequestBody注解使之识别

@PostMapping("/payment/create")
    public CommonResult create(@RequestBody Payment payment){
        Long result = paymentService.create(payment);
        log.info("****插入结果" + result);
        System.out.println(result + "***************************************");
        if (result>0){
            return new CommonResult<Long>(200,"插入数据库成功" ,result);
        }else {
            return new CommonResult<Long>(444,"插入数据库失败",null);
        }
    }

RestTemplate

RestTemplate提供了多种便捷访问远程Http服务的方法，是一种简单便捷的访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具集，主要用于实现远程调用服务。

注：SpringBoot是容器类方式，需要用restTemplate需向Springboot容器中注入。

d.测试

运行两个工程

http://localhost/consumer/payment/get/2

http://localhost/consumer/payment/create?serial=lun4

 五、工程重构

1.新建名字为cloud-api-commons的模块

2.改Pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>com.cloud</artifactId>
        <groupId>org.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-api-commons</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.1.0</version>
        </dependency>
    </dependencies>

</project>

3.entities

将cloud-consumer-order80与cloud-provider-payment8001两工程的公有entities包移至cloud-api-commons工程下。

4.maven clean、install cloud-api-commons工程，以供给cloud-consumer-order80与cloud-provider-payment8001两工程调用。

5.订单80和支付8001分别改造

将cloud-consumer-order80与cloud-provider-payment8001两工程的公有entities包移除

引入cloud-api-commons依赖

a是模块名：

<dependency>
            <groupId>org.cloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

测试：

http://localhost/consumer/payment/get/5

嘎嘎_膈
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
