iOS简单组件化2

最新推荐文章于 2021-09-02 15:23:22 发布

原创最新推荐文章于 2021-09-02 15:23:22 发布 · 205 阅读

0 ·

CC 4.0 BY-SA版权

本文详细介绍了如何使用Xcode和lipo命令行工具构建iOS设备和模拟器通用的二进制框架，包括设置环境变量、构建目标、复制框架文件及创建通用二进制文件的全过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

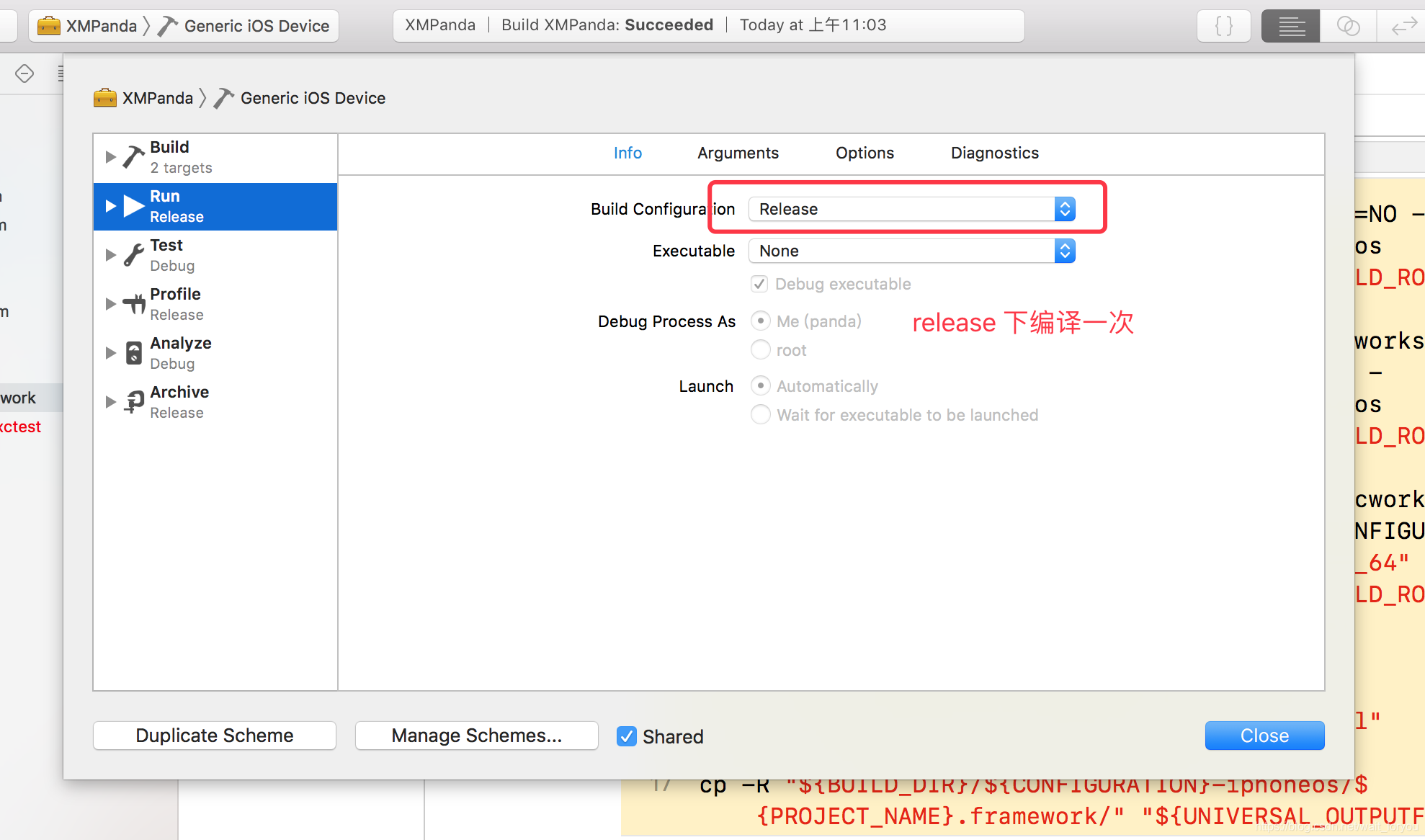

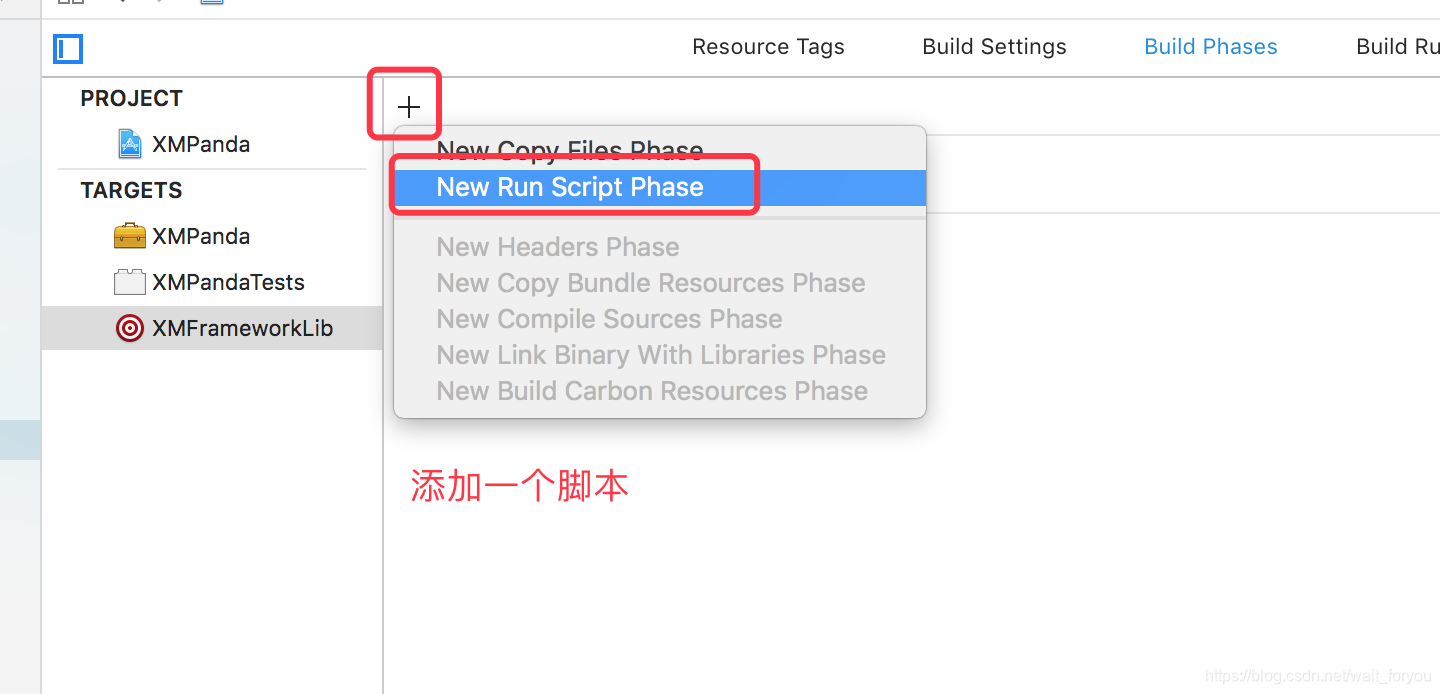

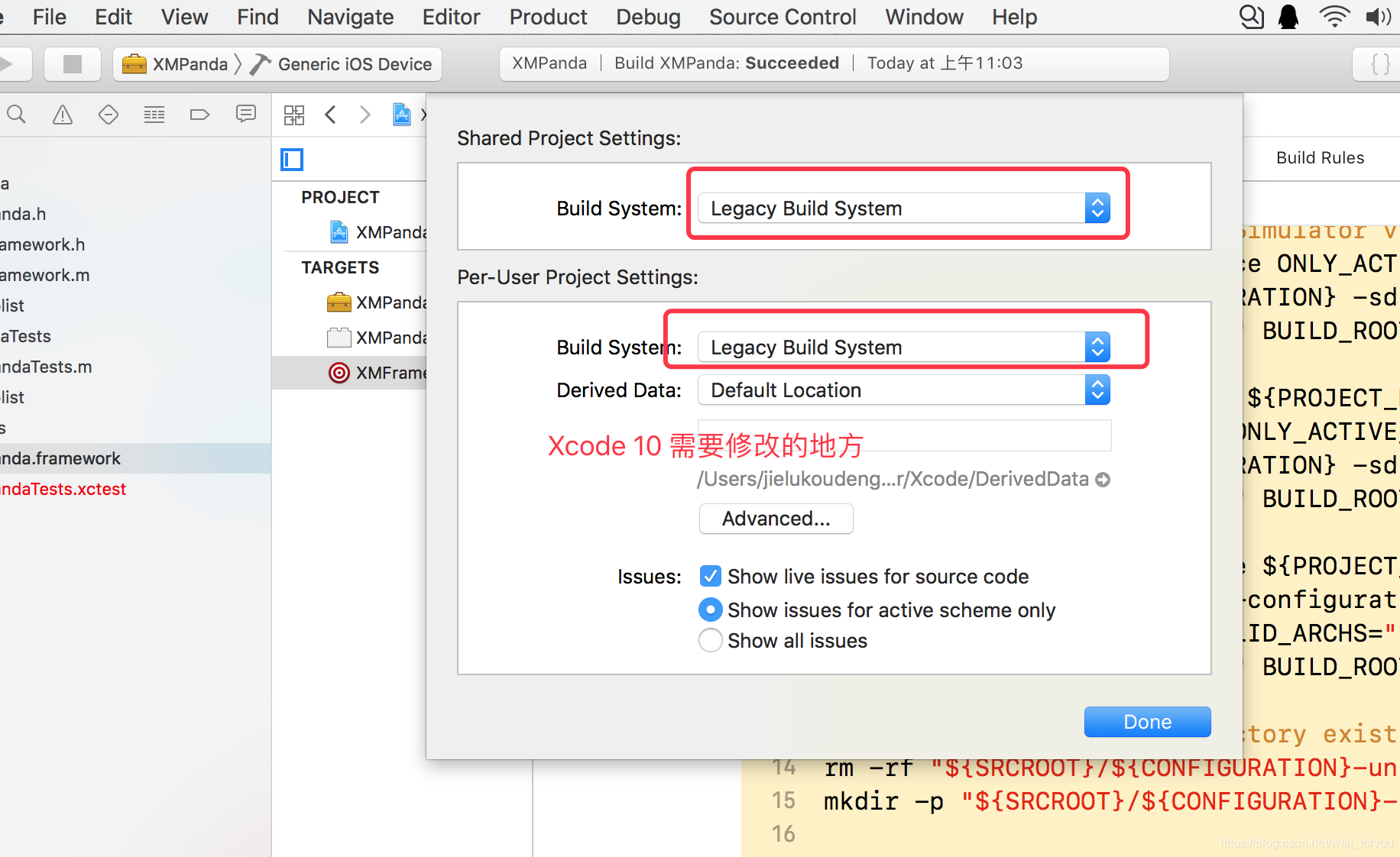

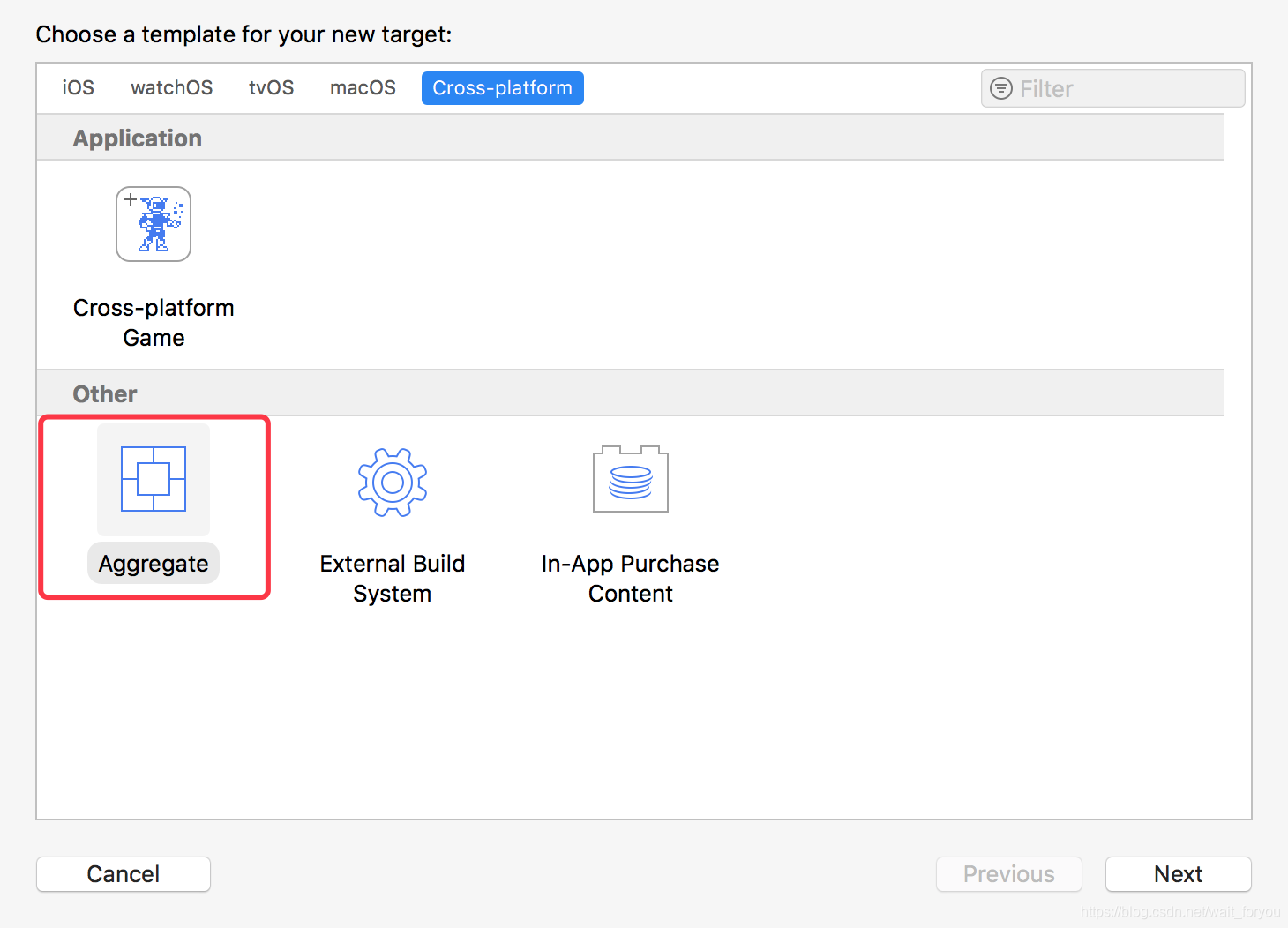

在这里插入图片描述

# define output folder environment variable
CONFIGURATION=Release
UNIVERSAL_OUTPUTFOLDER=${SRCROOT}/${CONFIGURATION}-universal/${PROJECT_NAME}.framework
cd "${SRCROOT}/.."
#build support native API
# Step 1. Build Device and Simulator versions
xcodebuild -target MYResource ONLY_ACTIVE_ARCH=NO -configuration ${CONFIGURATION} -sdk iphoneos  BUILD_DIR="${BUILD_DIR}" BUILD_ROOT="${BUILD_ROOT}"

xcodebuild build -workspace ${PROJECT_NAME}.xcworkspace -scheme ${PROJECT_NAME} ONLY_ACTIVE_ARCH=NO -configuration ${CONFIGURATION} -sdk iphoneos  BUILD_DIR="${BUILD_DIR}" BUILD_ROOT="${BUILD_ROOT}"

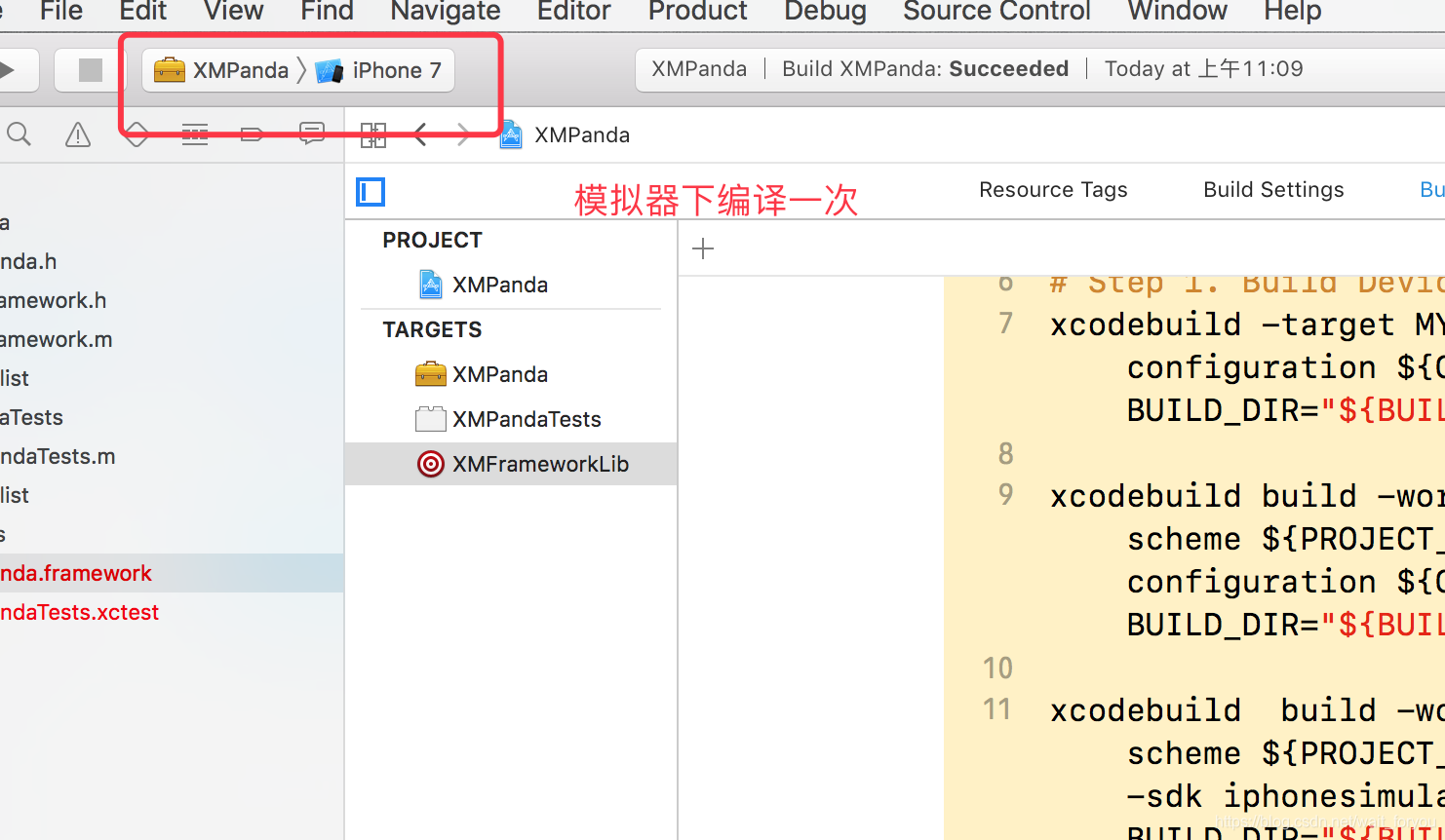

xcodebuild  build -workspace ${PROJECT_NAME}.xcworkspace -scheme ${PROJECT_NAME} -configuration ${CONFIGURATION} -sdk iphonesimulator VALID_ARCHS="i386 x86_64" BUILD_DIR="${BUILD_DIR}" BUILD_ROOT="${BUILD_ROOT}"

# make sure the output directory exists

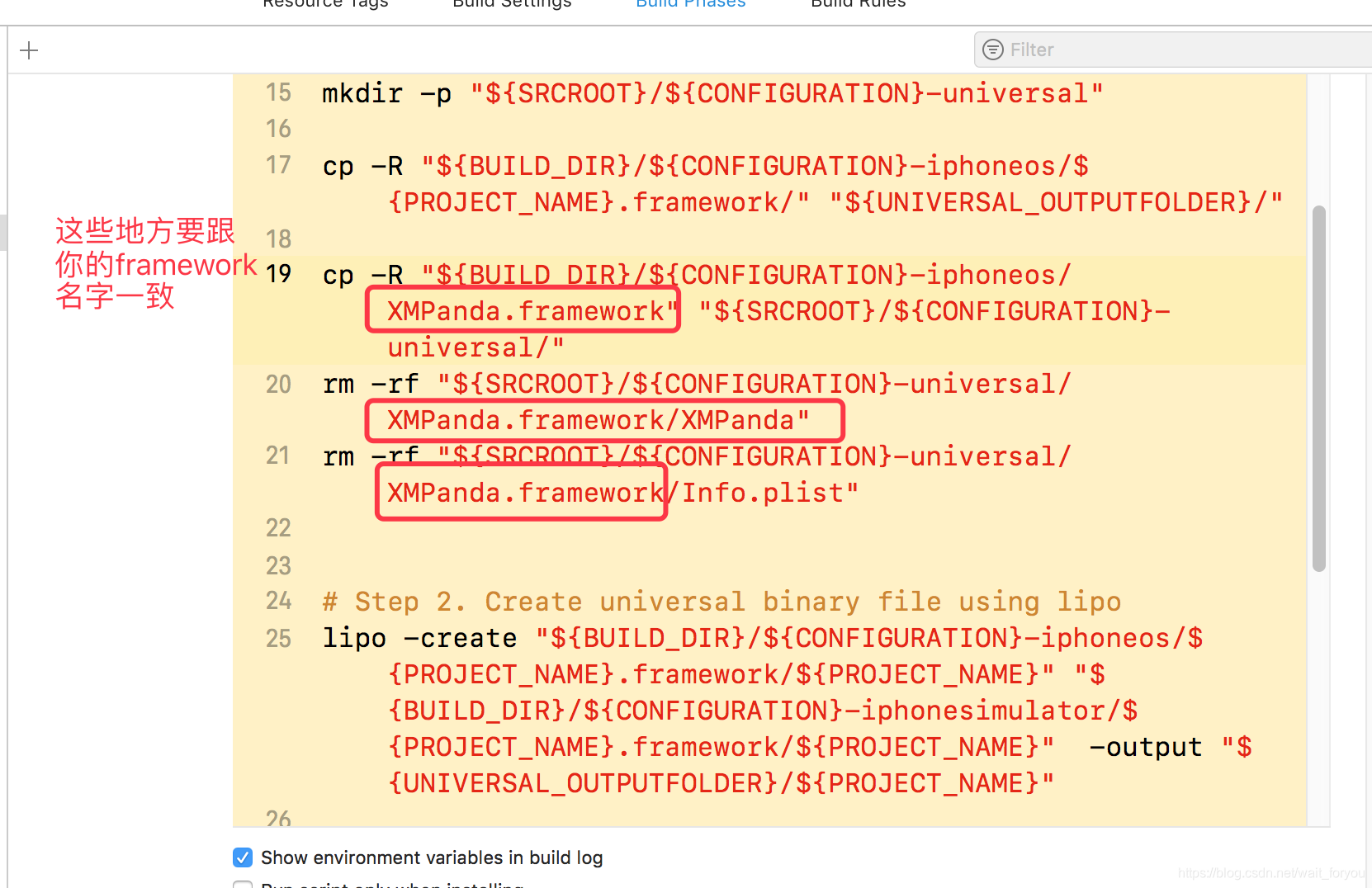

rm -rf "${SRCROOT}/${CONFIGURATION}-universal"
mkdir -p "${SRCROOT}/${CONFIGURATION}-universal"

cp -R "${BUILD_DIR}/${CONFIGURATION}-iphoneos/${PROJECT_NAME}.framework/" "${UNIVERSAL_OUTPUTFOLDER}/"

cp -R "${BUILD_DIR}/${CONFIGURATION}-iphoneos/XMPanda.framework" "${SRCROOT}/${CONFIGURATION}-universal/"
rm -rf "${SRCROOT}/${CONFIGURATION}-universal/XMPanda.framework/XMPanda"
rm -rf "${SRCROOT}/${CONFIGURATION}-universal/XMPanda.framework/Info.plist"


# Step 2. Create universal binary file using lipo
lipo -create "${BUILD_DIR}/${CONFIGURATION}-iphoneos/${PROJECT_NAME}.framework/${PROJECT_NAME}" "${BUILD_DIR}/${CONFIGURATION}-iphonesimulator/${PROJECT_NAME}.framework/${PROJECT_NAME}"  -output "${UNIVERSAL_OUTPUTFOLDER}/${PROJECT_NAME}"

open ${UNIVERSAL_OUTPUTFOLDER}

# Last touch. copy the header files. Just for convenience

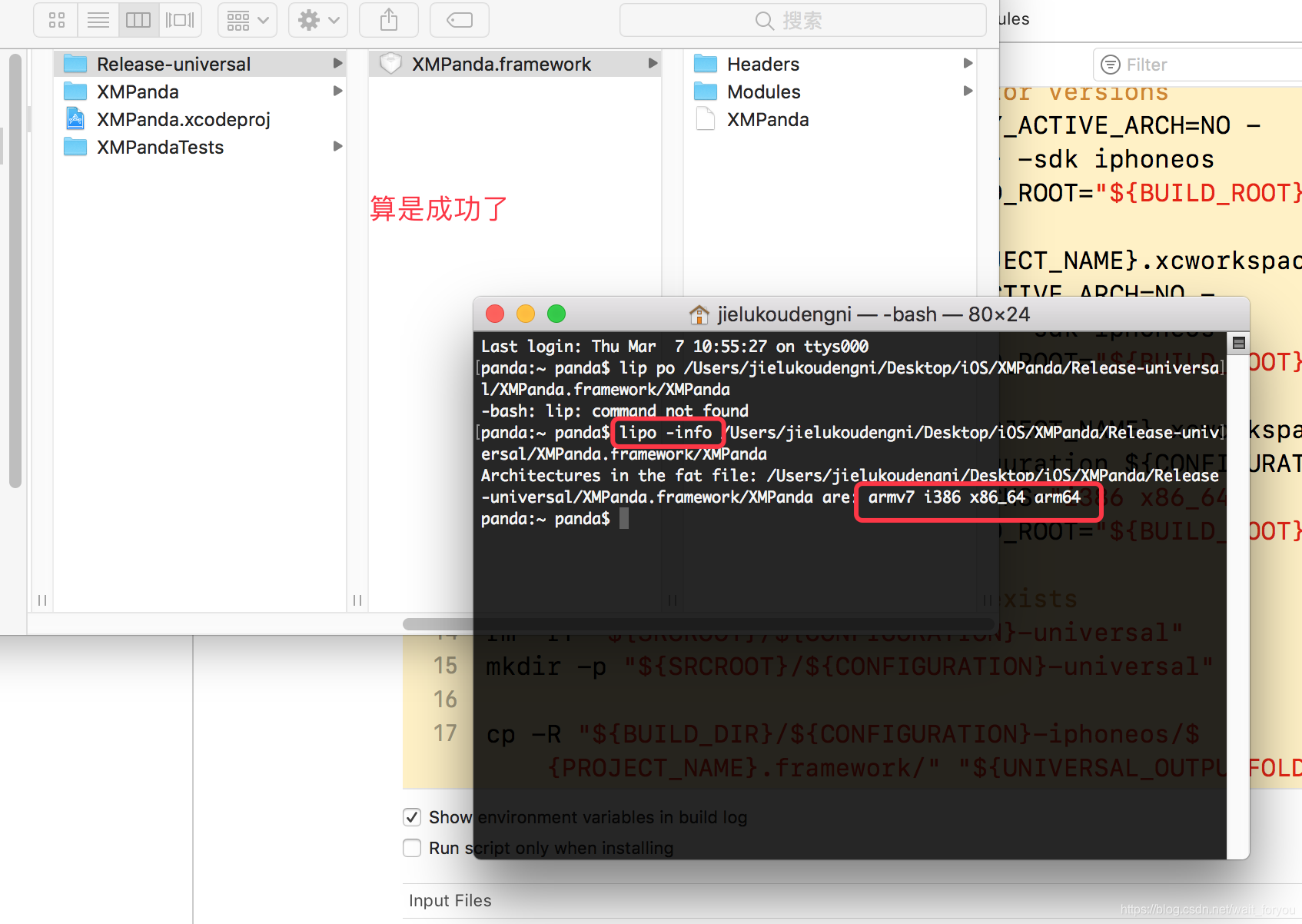

在这里插入图片描述
