这篇博客聚焦于CTS 9.0 Release 7中的一个问题，即在`AdaptiveIconMaskTest`测试用例中，`testDeviceConfig_iconMask_useRoundIcon`失败。内容指出当图标遮罩形状为圆形时，`mUseRoundIcon`应定义并设为true，否则不应定义或设为false。源码分析和注解解释了`mUseRoundIcon`的含义及其对桌面图标适配的影响。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

工具:CTS 9.0_R7
patch:2019-04-01

CtsGraphicsTestCases
android.graphics.drawable.cts.AdaptiveIconMaskTest#testDeviceConfig_iconMask_useRoundIcon

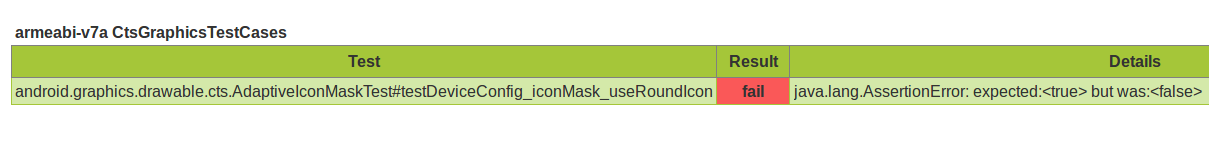

fail:java.lang.AssertionError: expected: rue but was: false

在这里插入图片描述
通过源码发现:

    @Test
    public void testDeviceConfig_iconMask_useRoundIcon() {
        assertNotNull(mMask);

        boolean circleMask = isCircle(mMask);
        // If mask shape is circle, then mUseRoundIcon should be defined and should be true.
        // If mask shape is not a circle
        //           mUseRoundIcon doesn't have to be defined.
        //           if mUseRoundIcon is defined, then should be false
        assertEquals(mUseRoundIcon, circleMask);
    }

If mask shape is circle, then mUseRoundIcon should be defined and should be true.
If mask shape is not a circle
mUseRoundIcon doesn’t have t
