版本声明
- 基于
rocketmq-all-4.3.1版本 - 如有发现分析不正确的地方欢迎指正，谢谢！
NameServer介绍
-
NameServer本身的高可用是通过部署多台NameServer服务。NameServer互相独立，彼此之间不会通信(即多台NameServer的数据并不是强一致的)，任意一台宕机并不会影响其他的NameServer -
作用
- 维护活跃的Broker地址列表，包括Master和Slave
- 维护所有
Topic和Topic对应队列的地址列表 - 维护所有
Broker的Filter列表
-
Broker与NameServer关系- 单个
Broker与所有NameServer保持长连接 Broker每隔30秒向所有NameServer发送心跳，心跳包含了自身的topic信息NameServer每隔10秒钟扫描所有存活的Broker连接，若2min内没有发送心跳信息，则断开连接Broker在启动后向所有NameServer注册，Producer在发送消息之前先从NameServer获取Broker服务器的地址列表,然后根据负载均衡算法从列表中选择一台Broker进行消息发送
- 单个
-
稳定性
- nameserver互相独立，无状态
- nameserver不会有频繁的读写，稳定性相对高
NameServer源码分析
KVConfigManager
-
内存级的KV存储，提供增删改查以及持久化数据的能力。本质就是一个HashMap
public class KVConfigManager { private final NamesrvController namesrvController; private final ReadWriteLock lock = new ReentrantReadWriteLock(); // private final HashMap<String/* Namespace */, HashMap<String/* Key */, String/* Value */>> configTable = new HashMap<String, HashMap<String, String>>(); public KVConfigManager(NamesrvController namesrvController) { this.namesrvController = namesrvController; } public void load() { String content = null; try { content = MixAll.file2String(this.namesrvController.getNamesrvConfig().getKvConfigPath()); } catch (IOException e) { log.warn("Load KV config table exception", e); } if (content != null) { KVConfigSerializeWrapper kvConfigSerializeWrapper = KVConfigSerializeWrapper.fromJson(content, KVConfigSerializeWrapper.class); if (null != kvConfigSerializeWrapper) { this.configTable.putAll(kvConfigSerializeWrapper.getConfigTable()); log.info("load KV config table OK"); } } } }
RouteInfoManager
-
路由信息即Broker向NameServer注册后保存的信息，

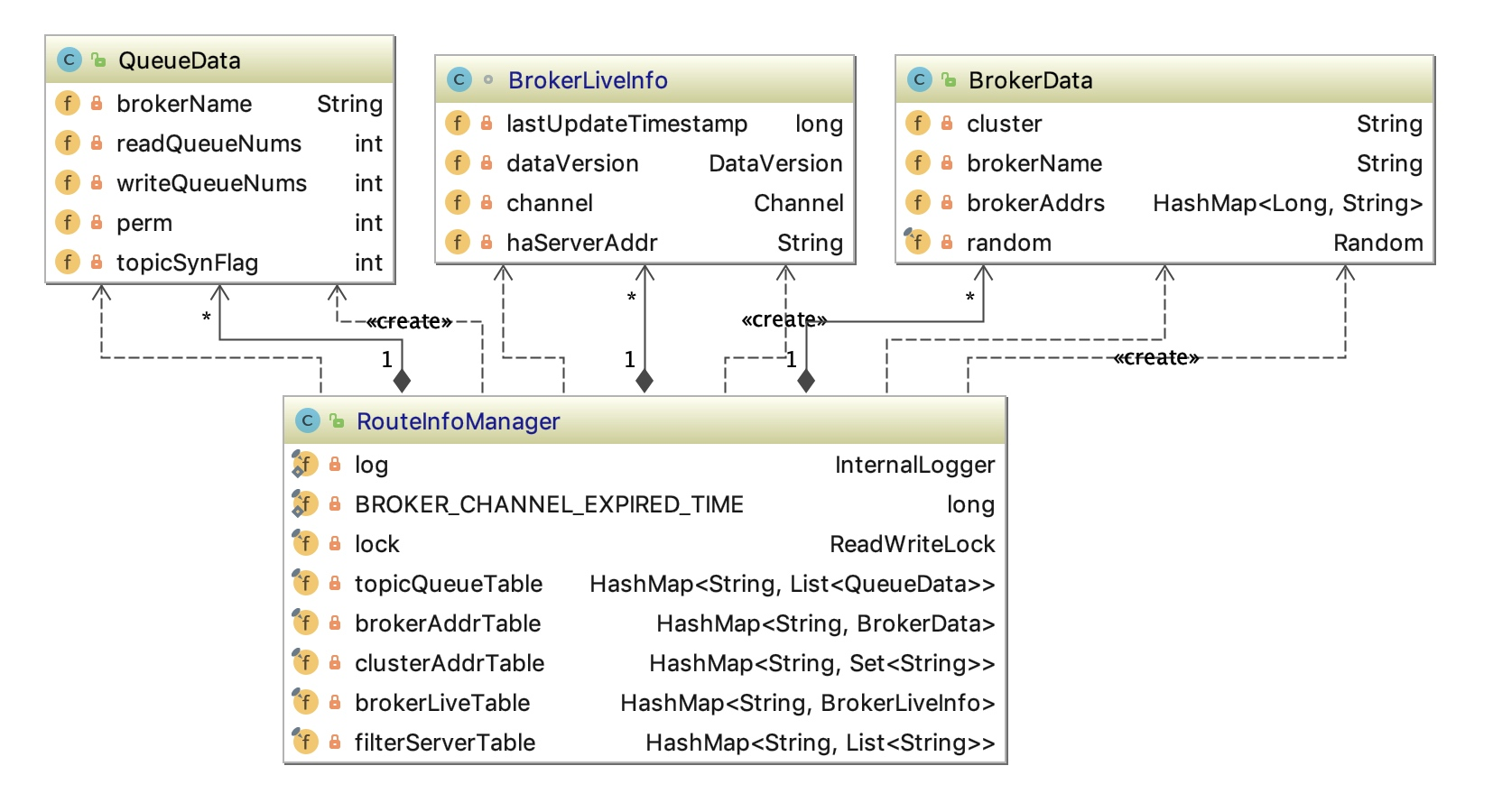

RouteInfoManager保存所有的Topic和Broker信息public class RouteInfoManager { private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME); private final static long BROKER_CHANNEL_EXPIRED_TIME = 1000 * 60 * 2; private final ReadWriteLock lock = new ReentrantReadWriteLock(); //topic列表对应的队列信息 private final HashMap<String/* topic */, List<QueueData>> topicQueueTable; //Broker地址信息 private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable; //broker集群信息 private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable; //Broker当前存活的Broker(非实时) private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable; //Broker过滤信息 private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable; public RouteInfoManager() { this.topicQueueTable = new HashMap<String, List<QueueData>>(1024); this.brokerAddrTable = new HashMap<String, BrokerData>(128); this.clusterAddrTable = new HashMap<String, Set<String>>(32); this.brokerLiveTable = new HashMap<String, BrokerLiveInfo>(256); this.filterServerTable = new HashMap<String, List<String>>(256); } ...省略... }
-
成员变量解析
- topicQueueTable：Topic消息队列路由信息，包括topic所在的broker名称，读队列数量，写队列数量，同步标记等信息，rocketmq根据topicQueueTable的信息进行负载均衡消息发送。
- brokerAddrTable：Broker节点信息，包括brokerName，所在集群名称，还有主备节点信息。
- clusterAddrTable：Broker集群信息，存储了集群中所有的BrokerName。
- brokerLiveTable：Broker状态信息，Nameserver每次收到Broker的心跳包就会更新该信息。
-
通过远程调试查看具体内容(双主双从，两个nameserver)
-
ip地址列表
- rocketmq-slave2 172.19.0.7
- rocketmq-slave1 172.19.0.6
- rocketmq-master2 172.19.0.5
- rocketmq-master1 172.19.0.4
- rocketmq-nameserver2 172.19.0.3
- rocketmq-nameserver1 172.19.0.2
-

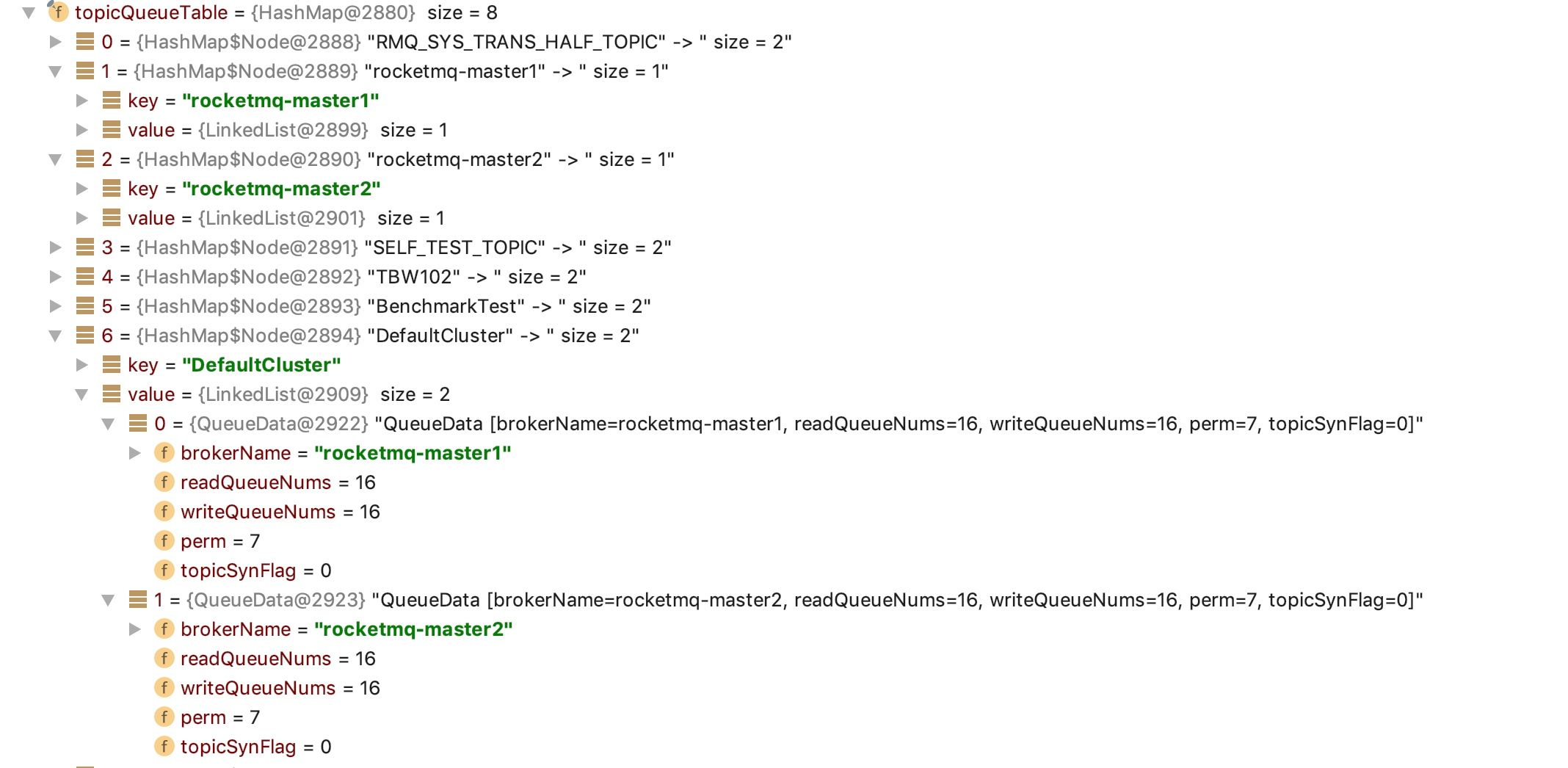

topicQueueTable内容如下
topicQueueTable信息 { "RMQ_SYS_TRANS_HALF_TOPIC": [ { "brokerName": "rocketmq-master1", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 }, { "brokerName": "rocketmq-master2", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 } ], "rocketmq-master1": [ { "brokerName": "rocketmq-master1", "perm": 7, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 } ], "rocketmq-master2": [ { "brokerName": "rocketmq-master2", "perm": 7, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 } ], "SELF_TEST_TOPIC": [ { "brokerName": "rocketmq-master1", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 }, { "brokerName": "rocketmq-master2", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 } ], "TBW102": [ { "brokerName": "rocketmq-master1", "perm": 7, "readQueueNums": 4, "topicSynFlag": 0, "writeQueueNums": 4 }, { "brokerName": "rocketmq-master2", "perm": 7, "readQueueNums": 4, "topicSynFlag": 0, "writeQueueNums": 4 } ], "testTopic": [ { "brokerName": "rocketmq-master1", "perm": 6, "readQueueNums": 16, "topicSynFlag": 0, "writeQueueNums": 16 }, { "brokerName": "rocketmq-master2", "perm": 6, "readQueueNums": 16, "topicSynFlag": 0, "writeQueueNums": 16 } ], "BenchmarkTest": [ { "brokerName": "rocketmq-master1", "perm": 6, "readQueueNums": 1024, "topicSynFlag": 0, "writeQueueNums": 1024 }, { "brokerName": "rocketmq-master2", "perm": 6, "readQueueNums": 1024, "topicSynFlag": 0, "writeQueueNums": 1024 } ], "DefaultCluster": [ { "brokerName": "rocketmq-master1", "perm": 7, "readQueueNums": 16, "topicSynFlag": 0, "writeQueueNums": 16 }, { "brokerName": "rocketmq-master2", "perm": 7, "readQueueNums": 16, "topicSynFlag": 0, "writeQueueNums": 16 } ], "OFFSET_MOVED_EVENT": [ { "brokerName": "rocketmq-master1", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 }, { "brokerName": "rocketmq-master2", "perm": 6, "readQueueNums": 1, "topicSynFlag": 0, "writeQueueNums": 1 } ] } -

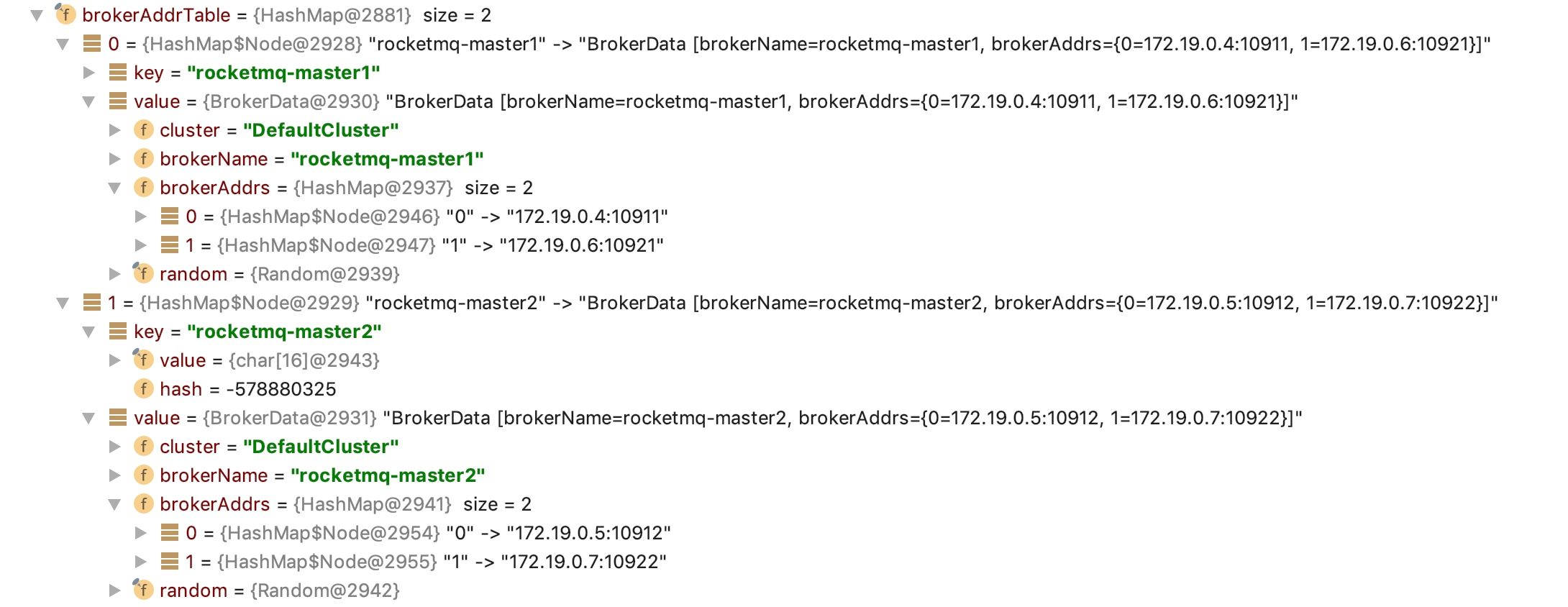

BrokerAddrTable内容如下
brokerAddrTable信息 { "rocketmq-master1": { "brokerAddrs": { 0: "172.19.0.4:10911", 1: "172.19.0.6:10921" }, "brokerName": "rocketmq-master1", "cluster": "DefaultCluster" }, "rocketmq-master2": { "brokerAddrs": { 0: "172.19.0.5:10912", 1: "172.19.0.7:10922" }, "brokerName": "rocketmq-master2", "cluster": "DefaultCluster" } } -

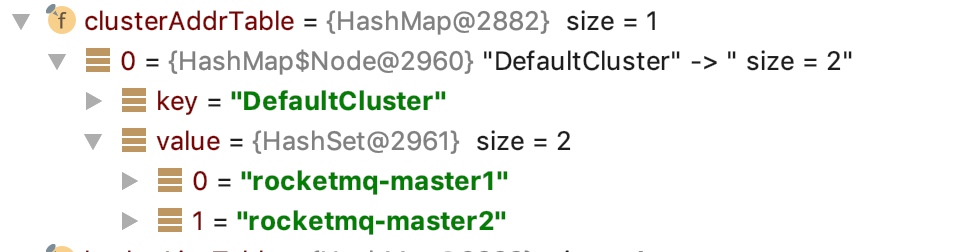

clusterAddrTable内容如下
clusterAddrTable 信息 { "DefaultCluster": [ "rocketmq-master1", "rocketmq-master2" ] } -

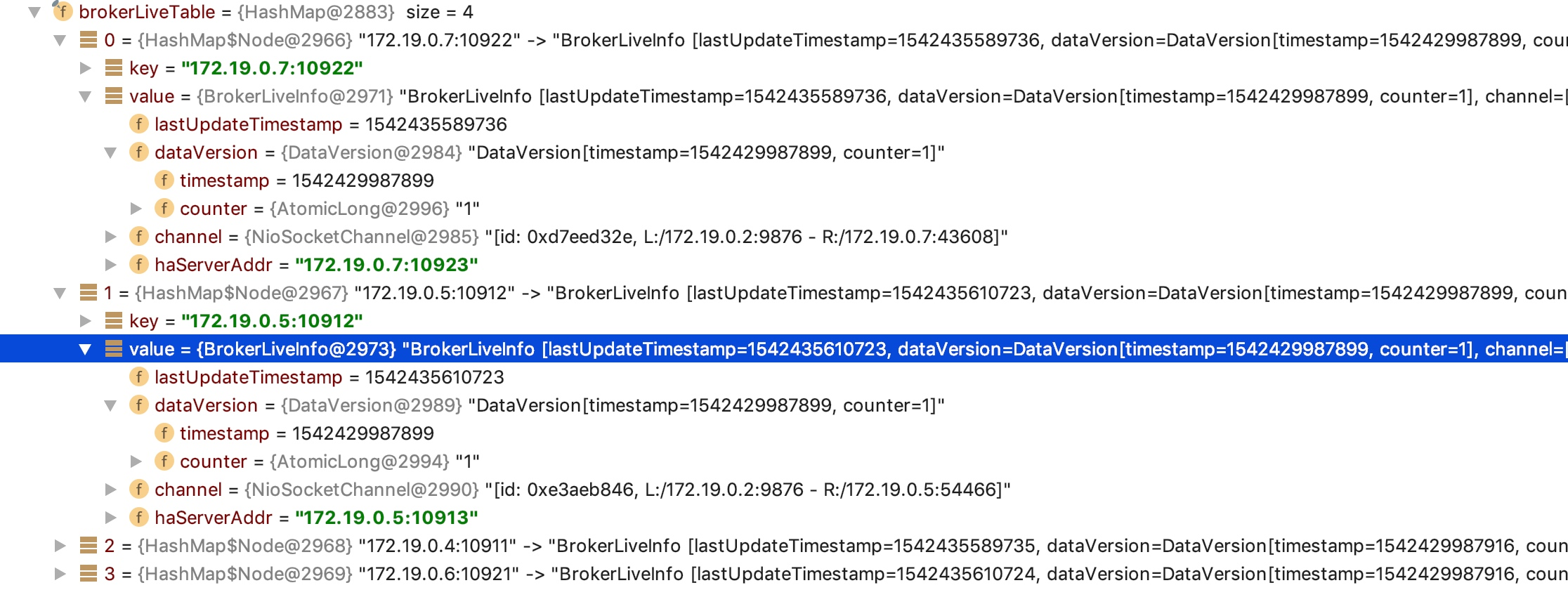

brokerLiveTable内容如下
brokerLiveTable信息 { "172.19.0.7:10922": { "channel": { "active": true, "inputShutdown": false, "open": true, "outputShutdown": false, "registered": true, "writable": true }, "dataVersion": { "counter": 3, "timestamp": 1562476312530 }, "haServerAddr": "172.19.0.7:10923", "lastUpdateTimestamp": 1562476361146 }, "172.19.0.5:10912": { "channel": { "active": true, "inputShutdown": false, "open": true, "outputShutdown": false, "registered": true, "writable": true }, "dataVersion": { "counter": 3, "timestamp": 1562476312530 }, "haServerAddr": "172.19.0.5:10913", "lastUpdateTimestamp": 1562476360402 }, "172.19.0.4:10911": { "channel": { "active": true, "inputShutdown": false, "open": true, "outputShutdown": false, "registered": true, "writable": true }, "dataVersion": { "counter": 3, "timestamp": 1562476312525 }, "haServerAddr": "172.19.0.4:10912", "lastUpdateTimestamp": 1562476359516 }, "172.19.0.6:10921": { "channel": { "active": true, "inputShutdown": false, "open": true, "outputShutdown": false, "registered": true, "writable": true }, "dataVersion": { "counter": 3, "timestamp": 1562476312525 }, "haServerAddr": "172.19.0.6:10922", "lastUpdateTimestamp": 1562476360541 } }
-
BrokerHouseKeepingService
-
BrokerHouseKeepingService:实现了ChannelEventListener接口，用于处理Broker状态事件，当Broker失效、异常或者关闭，则将Broker从RouteInfoManager中移除。public class BrokerHousekeepingService implements ChannelEventListener { private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME); private final NamesrvController namesrvController; public BrokerHousekeepingService(NamesrvController namesrvController) { this.namesrvController = namesrvController; } @Override public void onChannelConnect(String remoteAddr, Channel channel) { } @Override public void onChannelClose(String remoteAddr, Channel channel) { //通道关闭从RouteInfoManager中移除Broker this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel); } @Override public void onChannelException(String remoteAddr, Channel channel) { //通道发生异常从RouteInfoManager中移除Broker this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel); } @Override public void onChannelIdle(String remoteAddr, Channel channel) { //通道失效从RouteInfoManager中移除Broker this.namesrvController.getRouteInfoManager().onChannelDestroy(remoteAddr, channel); } }
DefaultRequestProcessor
-
DefaultRequestProcessor默认请求处理器,根据RequestCode执行相应的处理,核心处理方法processRequest()@Override public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request) throws RemotingCommandException { if (ctx != null) { log.debug("receive request, {} {} {}", request.getCode(), RemotingHelper.parseChannelRemoteAddr(ctx.channel()), request); } switch (request.getCode()) { //向NameServer追加KV配置 case RequestCode.PUT_KV_CONFIG: return this.putKVConfig(ctx, request); //从NameServer获取KV配置 case RequestCode.GET_KV_CONFIG: return this.getKVConfig(ctx, request); //从NameServer获取KV配置 case RequestCode.DELETE_KV_CONFIG: return this.deleteKVConfig(ctx, request); //获取版本信息 case RequestCode.QUERY_DATA_VERSION: return queryBrokerTopicConfig(ctx, request); //注册一个Broker，数据都是持久化的，如果存在则覆盖配置 case RequestCode.REGISTER_BROKER: Version brokerVersion = MQVersion.value2Version(request.getVersion()); if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) { return this.registerBrokerWithFilterServer(ctx, request); } else { return this.registerBroker(ctx, request); } //卸载一个Broker，数据都是持久化的 case RequestCode.UNREGISTER_BROKER: return this.unregisterBroker(ctx, request); //根据Topic获取Broker Name、topic配置信息 case RequestCode.GET_ROUTEINTO_BY_TOPIC: return this.getRouteInfoByTopic(ctx, request); //获取注册到Name Server的所有Broker集群信息 case RequestCode.GET_BROKER_CLUSTER_INFO: return this.getBrokerClusterInfo(ctx, request); //去掉BrokerName的写权限 case RequestCode.WIPE_WRITE_PERM_OF_BROKER: return this.wipeWritePermOfBroker(ctx, request); //从Name Server获取完整Topic列表 case RequestCode.GET_ALL_TOPIC_LIST_FROM_NAMESERVER: return getAllTopicListFromNameserver(ctx, request); //从Namesrv删除Topic配置 case RequestCode.DELETE_TOPIC_IN_NAMESRV: return deleteTopicInNamesrv(ctx, request); //通过Namespace获取所有的KV List case RequestCode.GET_KVLIST_BY_NAMESPACE: return this.getKVListByNamespace(ctx, request); //获取指定集群下的所有 topic case RequestCode.GET_TOPICS_BY_CLUSTER: return this.getTopicsByCluster(ctx, request); //获取所有系统内置 Topic 列表 case RequestCode.GET_SYSTEM_TOPIC_LIST_FROM_NS: return this.getSystemTopicListFromNs(ctx, request); //单元化相关 topic case RequestCode.GET_UNIT_TOPIC_LIST: return this.getUnitTopicList(ctx, request); //获取含有单元化订阅组的 Topic 列表 case RequestCode.GET_HAS_UNIT_SUB_TOPIC_LIST: return this.getHasUnitSubTopicList(ctx, request); //获取含有单元化订阅组的非单元化 case RequestCode.GET_HAS_UNIT_SUB_UNUNIT_TOPIC_LIST: return this.getHasUnitSubUnUnitTopicList(ctx, request); //更新Name Server配置 case RequestCode.UPDATE_NAMESRV_CONFIG: return this.updateConfig(ctx, request); case RequestCode.GET_NAMESRV_CONFIG: return this.getConfig(ctx, request); default: break; } return null; }
NamesrvStartup
-

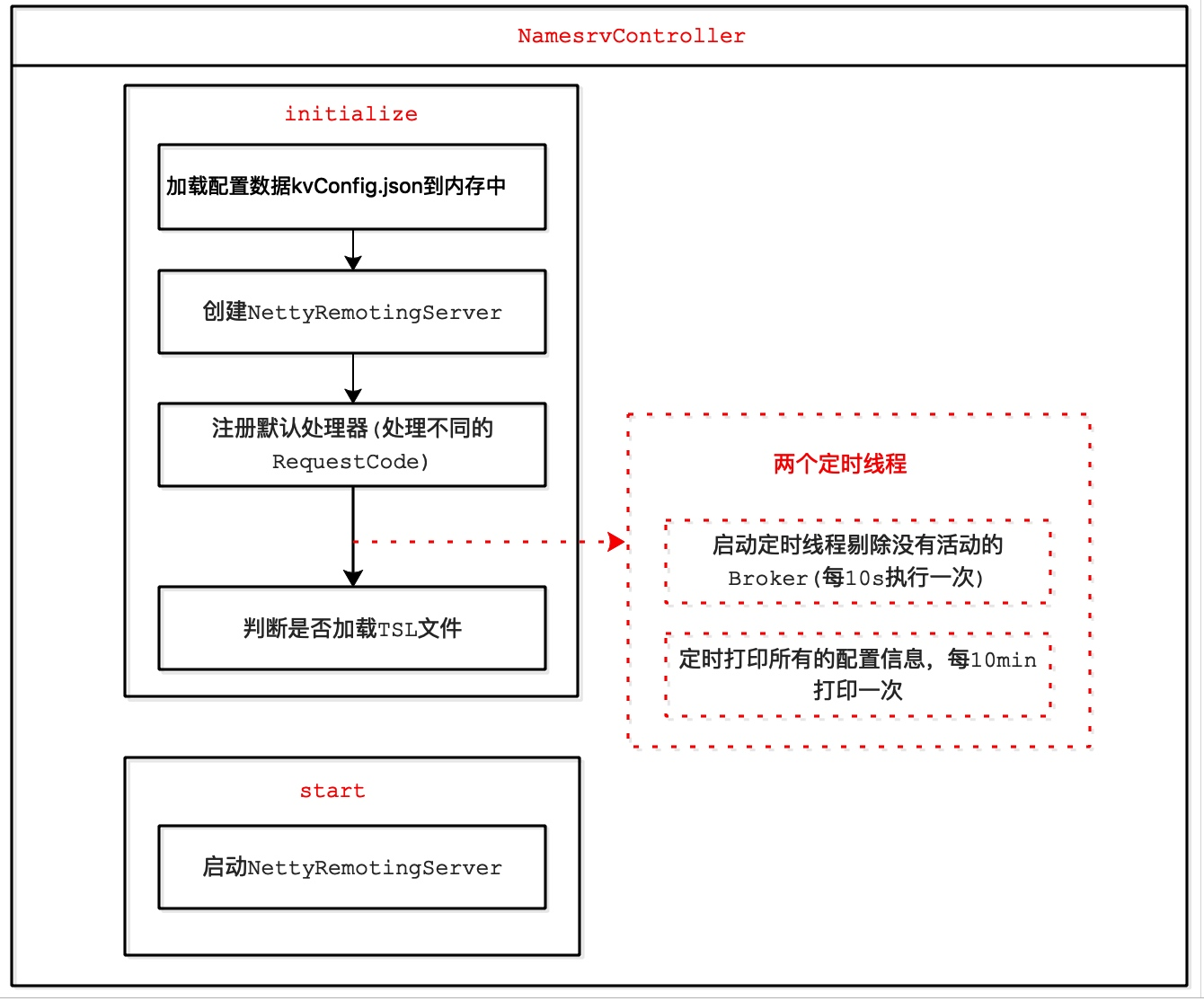

NamesrvStartup是NameServer的启动入口,启动的核心是调用NamesrvController的initialize()方法public boolean initialize() { //从文件中加载数据到内存中，默认从${user.home}/namesrv/kvConfig.json文件加载 this.kvConfigManager.load(); //创建服务Server，传入处理连接的ChannelEventListener this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService); //默认任务处理器的线程池，每一个RequestCode可以单独设置一个线程池，如果不设置就使用默认的线程池 this.remotingExecutor = Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_")); //注册默认处理器，根据requestCode执行相应的处理 this.registerProcessor(); //启动后延迟5秒开始执行，每隔10秒执行一次，对于两分钟没有活跃的broker，关闭连接 this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() { @Override public void run() { NamesrvController.this.routeInfoManager.scanNotActiveBroker(); } }, 5, 10, TimeUnit.SECONDS); //启动后延迟1min，每隔10分钟执行打印configTable this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() { @Override public void run() { NamesrvController.this.kvConfigManager.printAllPeriodically(); } }, 1, 10, TimeUnit.MINUTES); if (TlsSystemConfig.tlsMode != TlsMode.DISABLED) { // Register a listener to reload SslContext try { fileWatchService = new FileWatchService( new String[] { TlsSystemConfig.tlsServerCertPath, TlsSystemConfig.tlsServerKeyPath, TlsSystemConfig.tlsServerTrustCertPath }, new FileWatchService.Listener() { boolean certChanged, keyChanged = false; @Override public void onChanged(String path) { if (path.equals(TlsSystemConfig.tlsServerTrustCertPath)) { log.info("The trust certificate changed, reload the ssl context"); reloadServerSslContext(); } if (path.equals(TlsSystemConfig.tlsServerCertPath)) { certChanged = true; } if (path.equals(TlsSystemConfig.tlsServerKeyPath)) { keyChanged = true; } if (certChanged && keyChanged) { log.info("The certificate and private key changed, reload the ssl context"); certChanged = keyChanged = false; reloadServerSslContext(); } } private void reloadServerSslContext() { ((NettyRemotingServer) remotingServer).loadSslContext(); } }); } catch (Exception e) { log.warn("FileWatchService created error, can't load the certificate dynamically"); } } return true; }
