1.什么是asio?
Asio是一个用于网络底层I / O编程的跨平台C ++开发的网络编程库，支持同步与异步的网络开发。
2.asio有哪些优点?
简单易用、跨平台、可以用于大型项目中。
3.Asio的io_service作用?
io_service实例同底层操作系统的IO服务进行交互,是asio框架中的调度器，所有异步io事件都是通过它来分发处理的。Io_service提供了两个方法post和run，post向任务队列中投递任务，run是执行队列中的任务，直到全部执行完毕，并且run可以被N个线程调用。Io_service是完全线程安全的队列

4.以下asio常用的函数?
async_connect(endpoint)：//这个函数用异步的方式连接到一个地址。
async_accept(socket,accept_handler) //接收新客户端连接。
read(stream, buffer [, extra options])//同步读取方法。
async_read(stream, buffer [, extra options], handler)//异步读取方法。
write(stream, buffer [, extra options]) //同步发送。
async_write(stream, buffer [, extra options], handler) //异步发送。

Asio聊天室例子:
服务器端:

//chat_message.h
#ifndef CHAT_MESSAGE_HPP
#define CHAT_MESSAGE_HPP
#include "Header.h"
#include <iostream>
#include <cstdio>
#include <cstdlib>
#include <cstring>
#include <cassert>
#include "stdafx.h"

class chat_message {
public:
  enum { header_length = sizeof(Header) };
  enum { max_body_length = 512 };

chat_message(){}
  const char *data() const { return data_; }
  char *data() { return data_; }

  std::size_t length() const { return header_length + m_header.bodySize; }
  const char *body() const { return data_ + header_length; }
  char *body() { return data_ + header_length; }
  int type() const { return m_header.type; }

  std::size_t body_length() const { return m_header.bodySize; }
  void setMessage(int messageType, const void *buffer, size_t bufferSize) {
    assert(bufferSize <= max_body_length);
        m_header.bodySize = bufferSize;
        m_header.type = messageType;
        std::memcpy(body(), buffer, bufferSize);
        std::memcpy(data(), &m_header, sizeof(m_header));
  }
  void setMessage(int messageType, const std::string& buffer) {
        setMessage(messageType, buffer.data(), buffer.size());
  }

  bool decode_header() {
    std::memcpy(&m_header, data(), header_length);
    if (m_header.bodySize > max_body_length) {
      std::cout << "body size " << m_header.bodySize << " " << m_header.type
                << std::endl;
      return false;
        }
    return true;
  }
private:
  char data_[header_length + max_body_length];
    Header m_header;
};

#endif

//Header.h

#ifndef FND_STRUCT_HEADER_H
#define FND_STRUCT_HEADER_H
#include <string>
struct Header{
    int bodySize;
    int type;
};
enum MessageType
{
    MT_BIND_NAME = 1,
    MT_CHAT_INFO = 2,
    MT_ROOM_INFO = 3,

};
struct BindName{
    char name[32];
    int nameLen;
};
struct ChatInformation {
   char information[256];
   int infoLen;
};
struct RoomInformation {
    BindName name;
    ChatInformation chat;
};
bool parseMessage(const std::string &input, int *type, std::string &outbuffer);
#endif

//Header.cpp
#include "stdafx.h"
#include "Header.h"
#include <cstdlib>
#include <cstring>
#include <iostream>
bool parseMessage(const std::string &input, int *type, std::string &outbuffer) {
  auto pos = input.find_first_of(" ");
  if (pos == std::string::npos)
    return false;
  if (pos == 0)
    return false;
  auto command = input.substr(0, pos);
  if (command == "BindName") {
    std::string name = input.substr(pos + 1);
    if (name.size() > 32)
      return false;
    if (type)
      *type = MT_BIND_NAME;
    BindName bindInfo;
    bindInfo.nameLen = name.size();
    std::memcpy(&(bindInfo.name), name.data(), name.size());
    auto buffer = reinterpret_cast<const char *>(&bindInfo);
    outbuffer.assign(buffer, buffer + sizeof(bindInfo));
    return true;
  } else if (command == "Chat") {
    std::string chat = input.substr(pos + 1);
    if (chat.size() > 256)
      return false;
    ChatInformation info;
    info.infoLen = chat.size();
    std::memcpy(&(info.information), chat.data(), chat.size());
    auto buffer = reinterpret_cast<const char *>(&info);
    outbuffer.assign(buffer, buffer + sizeof(info));
    if (type)
      *type = MT_CHAT_INFO;
    return true;
  }
  return false;
}

//chat.cpp
#include "chat_message.h"
#include <asio.hpp>
#include <chrono>
#include <deque>
#include <iostream>
#include <list>
#include <memory>
#include <set>
#include <thread>
#include <utility>
#include <mutex>
#include <cstdlib>
#include "stdafx.h"

using boost::asio::ip::tcp;
typedef std::deque<chat_message> chat_message_queue;
std::chrono::system_clock::time_point base;
class chat_session;
typedef std::shared_ptr<chat_session> chat_session_ptr;
class chat_room {
public:
    chat_room(boost::asio::io_service& io_service) : m_strand(io_service) {}
public:
    void join(chat_session_ptr);
    void leave(chat_session_ptr);
    void deliver(const chat_message&);
private:
    boost::asio::io_service::strand m_strand;//strand提供串行执行, 能够保证线程安全, 同时被post或dispatch的方法, 不会被并发的执行.

    std::set<chat_session_ptr> participants_;
    enum { max_recent_msgs = 100 };
    chat_message_queue recent_msgs_;
};

class chat_session : public std::enable_shared_from_this<chat_session> {
public:
    chat_session(tcp::socket socket, chat_room &room)
        : socket_(std::move(socket)),room_(room),
          m_strand(socket_.get_io_service()){}

    void start() {
     room_.join(shared_from_this()); //加入房间
     do_read_header();//读取数据包头
    }
    void deliver(const chat_message &msg){
        m_strand.post([this,msg]{
            bool write_in_progress = !write_msgs_.empty();
            write_msgs_.push_back(msg);
            if (!write_in_progress)
            {
                do_write();
            }
        });
    }

private:
    void do_read_header(){
      auto self(shared_from_this());
      boost::asio::async_read(
          socket_,
          boost::asio::buffer(read_msg_.data(),chat_message::header_length), //读取头数据8个字节
          m_strand.wrap(
          [this,self](boost::system::error_code ec, std::size_t){
              if ( !ec && read_msg_.decode_header()){
                 do_read_body();//合法的头部的话，进行内容的读取。
              } else {
                  std::cout << "player leave the room\n";
                  room_.leave(shared_from_this());
              }
         }));
    }

    void do_read_body() {
        auto self(shared_from_this());
        boost::asio::async_read(
            socket_,
            boost::asio::buffer(read_msg_.body(), read_msg_.body_length()),//内容的读取，async_read相当于读取缓存数据，按长度一次读取大小多少，直到读取完成。
            m_strand.wrap(
            [this,self](boost::system::error_code ec, std::size_t) {
              if (!ec) {
                handleMessage();
                do_read_header();
              } else {
                  room_.leave(shared_from_this());
              }
            }));
    }

    void handleMessage() {
        auto n = std::chrono::system_clock::now() - base;
        std::cout << "i'm in " << std::this_thread::get_id() << " time "
            << std::chrono::duration_cast<std::chrono::milliseconds>(n).count() << std::endl;
        std::this_thread::sleep_for(std::chrono::milliseconds(3));
    if (read_msg_.type() == MT_BIND_NAME) {//设定昵称
            const BindName* bind = reinterpret_cast<const BindName*>(read_msg_.body());
            m_name.assign(bind->name, bind->name + bind->nameLen);

    } else if (read_msg_.type() == MT_CHAT_INFO) {
            const ChatInformation* chat = reinterpret_cast<const ChatInformation*>(read_msg_.body());
            m_chatInformation.assign(chat->information, chat->information + chat->infoLen);
            auto rinfo = buildRoomInfo();
            chat_message msg;
            msg.setMessage(MT_ROOM_INFO,&rinfo, sizeof(rinfo));
            room_.deliver(msg); //对当前房间发送消息

    } else {

    }
  }

    void do_write() { //发送数据
    auto self(shared_from_this());
    boost::asio::async_write(
        socket_, boost::asio::buffer(write_msgs_.front().data(),
                                     write_msgs_.front().length()),
                m_strand.wrap(
        [this, self](boost::system::error_code ec, std::size_t) {
          if (!ec) {
            write_msgs_.pop_front();
            if (!write_msgs_.empty()) {
              do_write();
            }
          } else {
            room_.leave(shared_from_this());
          }
        }));
  }

    tcp::socket socket_;
    chat_room &room_;
    chat_message read_msg_;
    chat_message_queue write_msgs_;
    std::string m_name;
    std::string m_chatInformation;
    boost::asio::io_service::strand m_strand;
    RoomInformation buildRoomInfo() const {
        RoomInformation info;
        info.name.nameLen = m_name.size();
        std::memcpy(info.name.name, m_name.data(), m_name.size());
        info.chat.infoLen = m_chatInformation.size();
        std::memcpy(info.chat.information, m_chatInformation.data(),
                m_chatInformation.size());
        return info;
    }
};

//加入房间
 void chat_room::join(chat_session_ptr participant) {
        m_strand.post([this, participant]{
                participants_.insert(participant);
                for (const auto& msg : recent_msgs_)
                participant->deliver(msg); //对所有端广播
                });
  }

 //离开房间
  void chat_room::leave(chat_session_ptr participant) {
        m_strand.post([this,participant]{
    participants_.erase(participant);});
  }

  void chat_room::deliver(const chat_message &msg) {
    m_strand.post([this, msg]{
    recent_msgs_.push_back(msg);
    while (recent_msgs_.size() > max_recent_msgs)
      recent_msgs_.pop_front();

    for (auto& participant : participants_)
      participant->deliver(msg);
        });
  }

 class chat_server {
public:
  chat_server(boost::asio::io_service &io_service,
              const tcp::endpoint &endpoint)
      : acceptor_(io_service, endpoint), socket_(io_service), room_(io_service) {
    do_accept();
  }

private:
  void do_accept() {
    acceptor_.async_accept(socket_, [this](boost::system::error_code ec) {
      if (!ec) {
        auto session =
            std::make_shared<chat_session>(std::move(socket_), room_);
        session->start();//新客户端开始接收数据包
      }

      do_accept(); //创建新连接进行等待
    });
  }

  tcp::acceptor acceptor_;
  tcp::socket socket_;
  chat_room room_;
};



int _tmain(int argc, char *argv[])
{
    try {

        base = std::chrono::system_clock::now();

        boost::asio::io_service io_service;
        std::list<chat_server> servers;
        tcp::endpoint endpoint(tcp::v4(), 9000);
        servers.emplace_back(io_service, endpoint);

        std::vector<std::thread> threadGroup;
        for(int i = 0; i < 5; ++i) {
            threadGroup.emplace_back([&io_service, i]{
                    std::cout << i << " name is " << std::this_thread::get_id() << std::endl;
                    io_service.run();});
        }
        io_service.run();
        for(auto& v : threadGroup) v.join();
  } catch (std::exception &e) {
        std::cout << "Exception: " << e.what();
  }
    return 0;
}

客户端：

//client.cpp

#include "chat_message.h"
#include <asio.hpp>
#include <chrono>
#include <deque>
#include <iostream>
#include <list>
#include <memory>
#include <set>
#include <thread>
#include <utility>
#include <mutex>
#include <cstdlib>
#include "stdafx.h"

using boost::asio::ip::tcp;
typedef std::deque<chat_message> chat_message_queue;
class chat_client {
public:
  chat_client(boost::asio::io_service &io_service,
              tcp::resolver::iterator endpoint_iterator)
      : io_service_(io_service), socket_(io_service) {
    do_connect(endpoint_iterator);
  }

  void write(const chat_message &msg) {
    io_service_.post([this, msg]() {
      bool write_in_progress = !write_msgs_.empty();
      write_msgs_.push_back(msg);
      if (!write_in_progress) {
        do_write();
      }
    });
  }
  void close() {
    io_service_.post([this]() { socket_.close(); });
  }

private:
  void do_connect(tcp::resolver::iterator endpoint_iterator) {
    boost::asio::async_connect(
        socket_, endpoint_iterator,
        [this](boost::system::error_code ec, tcp::resolver::iterator) {
          if (!ec) {
            do_read_header();
          }
        });
  }
  void do_read_header() {
    boost::asio::async_read(
        socket_,
        boost::asio::buffer(read_msg_.data(), chat_message::header_length),
        [this](boost::system::error_code ec, std::size_t /*length*/) {
          if (!ec && read_msg_.decode_header()) {
            do_read_body();
          } else {
            socket_.close();
          }
        });
  }

  void do_read_body() {
    boost::asio::async_read(
        socket_, boost::asio::buffer(read_msg_.body(), read_msg_.body_length()),
        [this](boost::system::error_code ec, std::size_t /*length*/) {
          if (!ec) {
            if (read_msg_.body_length() == sizeof(RoomInformation) &&
                            read_msg_.type() == MT_ROOM_INFO) {
              const RoomInformation *info =
                  reinterpret_cast<const RoomInformation *>(read_msg_.body());
              std::cout << "client: '";
                            assert(info->name.nameLen <= sizeof(info->name.name));
              std::cout.write(info->name.name, info->name.nameLen);
              std::cout << "' says '";
                            assert(info->chat.infoLen <= sizeof(info->chat.information));
              std::cout.write(info->chat.information, info->chat.infoLen);
              std::cout << "'\n";
            }
            do_read_header();
          } else {
            socket_.close();
          }
        });
  }

  void do_write() {
    boost::asio::async_write(
        socket_, boost::asio::buffer(write_msgs_.front().data(),
                                     write_msgs_.front().length()),
        [this](boost::system::error_code ec, std::size_t /*length*/) {
          if (!ec) {
            write_msgs_.pop_front();
            if (!write_msgs_.empty()) {
              do_write();
            }
          } else {
            socket_.close();
          }
        });
  }

private:
  boost::asio::io_service &io_service_;
  tcp::socket socket_;
  chat_message read_msg_;
  chat_message_queue write_msgs_;
};
int _tmain(int argc, char* argv[])
{
try {

    boost::asio::io_service io_service;
    tcp::resolver resolver(io_service);
    boost::asio::ip::tcp::resolver::query query("localhost", "9000");
    auto endpoint_iterator = resolver.resolve(query);
    chat_client c(io_service, endpoint_iterator);

    std::thread t([&io_service]() { io_service.run(); });

    char line[chat_message::max_body_length + 1];
        // ctrl-d
    while (std::cin.getline(line, chat_message::max_body_length + 1)) {
      chat_message msg;
            auto type = 0;
            std::string input(line, line + std::strlen(line));
            std::string output;
            if(parseMessage(input, &type, output)) {
                msg.setMessage(type, output.data(), output.size());
                c.write(msg);
                std::cout << "write message for server " << output.size() << std::endl;
            }
    }

    c.close();
    t.join();
  } catch (std::exception &e) {
    std::cerr << "Exception: " << e.what() << "\n";
  }
    return 0;
}

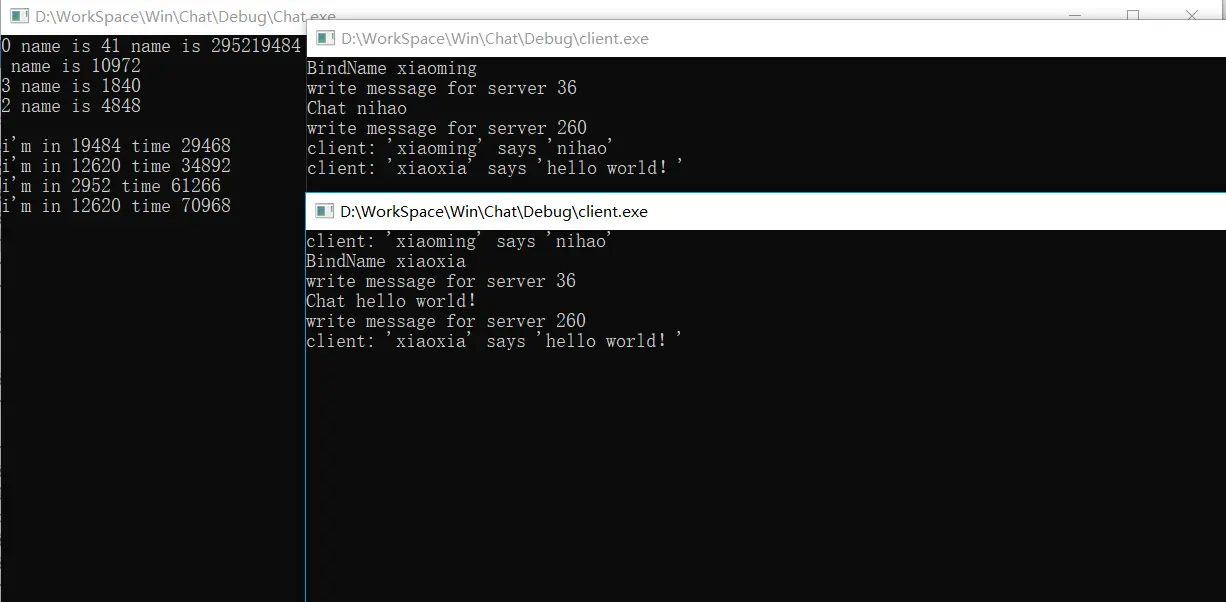

运行结果：
