第四章 装饰模式

1. 模式导言

• 前置条件
  咖啡市场的竞争十分激烈，新的咖啡豆和咖啡口感层出不穷
  假设，使用Beverage对咖啡进行抽象。我们考虑两个主要的参数，咖啡价格和咖啡描述

  class Beverage
  {
  public:
  float getcost(void){return cost}
  string getdesc(void){return desc}
  private:
  float cost;
  string desc;
  };


• 方案设计
  我们考虑，每增加一种咖啡豆和配料的组合，我们就增加一种Beverage的子类。
  如下图示，显而易见
  我们有4种咖啡类别，HouseBlend，DarkRoast，Espresso，Decaf。
  消费者可以选择基于以上4种咖啡进行调配，加Milk、加Suger或者是加Mocha（不加调味，加一种、两种或者三种调味）

  简单计算：消费者有多少种选择？
  4 + 4 * 3 + 4 * 3 + 4 = 32种

• 方案问题
  当咖啡调味或者咖啡类别变多，代码中的品类太多。维护起来会很困难。


2. 解决方案

2.1 存储方案

我们可以考虑把调味类型和主要咖啡类型写入配置文件或者数据库，
但是，这里有一个限制条件。
不要，永远不要把咖啡类别和调味的组合写入配置。排列组合的工作交给代码来做。

2.2 代码方案

代码解析配置文件或者数据库，分别根据不同的组合方案来计算价格和生成描述信息。
这，就是我们的装饰模式要做的。

3. 装饰模式

3.1 设计方案

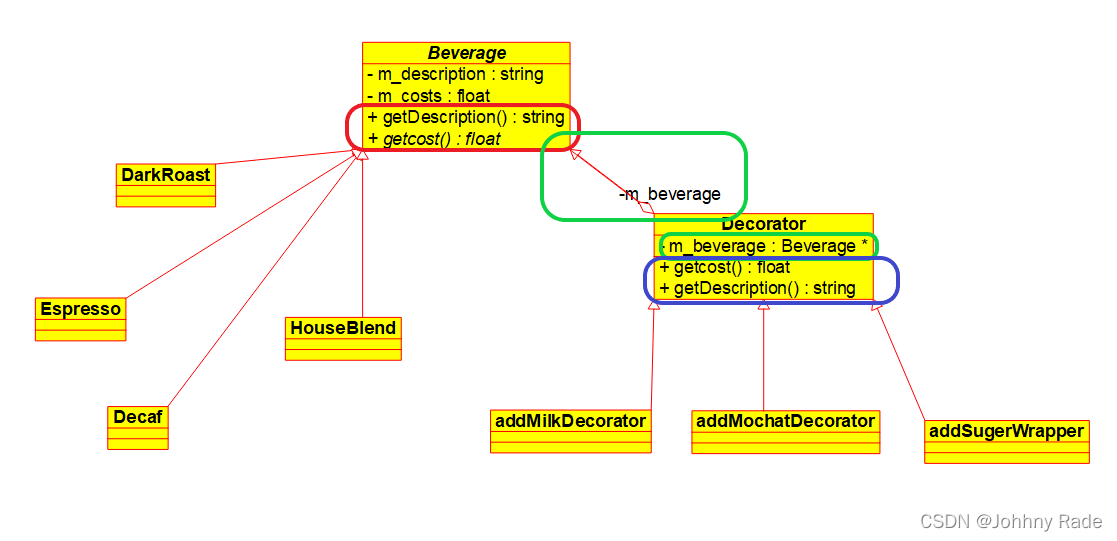

左侧代码描述的是基准咖啡类别，
右侧代码描述了基准咖啡类别上可以进行何种调味（装饰）。

其基本思想是，
Decorator 持有一个成员子对象，m_beverage.
Decorator 的工作是基于m_beverage做一个增量，这样逻辑上就符合了咖啡+调味。

当然，咖啡+牛奶后，还能够再加点糖吗？ 显然是需要的。
这就要求Decorator 和 在Decorator的基准上做一个增量，在代码中就会形成一种递归

• 红色的圈中，getDescription 和 getcost是不包含递归的
• 蓝色的圈中，getDescription 和getcost 计算m_beverage和自身增量的一个结果（存在递归）


3.2 设计代码

#include <iostream>
#include <string>
using namespace std;

class Beverage
{
public:
  Beverage (string desc = "Unknown Beverage", float cost = 0):m_cost (cost), m_description (desc)
  {
  }
  virtual ~ Beverage ()
  {
  }

  virtual string getDescription (void)
  {
    return m_description;
  }
  virtual float getcost (void)
  {
    return m_cost;
  }

  string m_description;
  float m_cost;
};

class Decaf:public Beverage
{
public:
Decaf (string desc = "Decaf", float cost = 1):Beverage (desc, cost)
  {
  }
private:
};

class DarkRoast:public Beverage
{
public:
DarkRoast (string desc = "DarkRoast", float cost = 2):Beverage (desc,
	    cost)
  {
  }

};


class Espresso:public Beverage
{
public:
Espresso (string desc = "Espresso", float cost = 3):Beverage (desc,
	    cost)
  {
  }

};

class HouseBlend:public Beverage
{
public:
HouseBlend (string desc = "HouseBlend", float cost = 4):Beverage (desc,
	    cost)
  {
  }
};



class Decorator:public Beverage
{
public:
Decorator (string descA = "Unknow Decorator", float costA = 0, Beverage * beverageBase = NULL):Beverage (descA,
	    costA),
    m_beverage (beverageBase)
  {
  }
  string getDescription (void)
  {
    return m_beverage->getDescription() + m_description;
  }
  float getcost (void)
  {
    return m_beverage->getcost() + m_cost;
  }
private:
  Beverage * m_beverage;
};

class addMilkDecorator:public Decorator
{
public:
addMilkDecorator (string concreteDescA = "Milk", float concreteCostA = 0.1, Beverage * beverage = NULL):Decorator (concreteDescA, concreteCostA,
	     beverage)
  {
  }

};

class addMochaDecorator:public Decorator
{
public:
addMochaDecorator (string concreteDescA = "Mocha", float concreteCostA = 0.2, Beverage * beverage = NULL):Decorator (concreteDescA, concreteCostA,
	     beverage)
  {
  }
};

class addSugerDecorator:public Decorator
{
public:
addSugerDecorator (string concreteDescA = "Suger", float concreteCostA = 0.3, Beverage * beverage = NULL):Decorator (concreteDescA, concreteCostA,
	     beverage)
  {
  }

};

int
main ()
{
 Decaf *decaf = new Decaf();
 DarkRoast *darkroast = new DarkRoast();
 Espresso *espresso = new Espresso();
 HouseBlend *houseblend = new HouseBlend();

 Beverage* decafwithMilk = new addMilkDecorator("+Milk", 0.1, decaf);
 cout << decafwithMilk->getDescription() << " " << decafwithMilk->getcost() << endl;


 Beverage* decafwithMilkandSuger = new addSugerDecorator("+Suger", 0.2,decafwithMilk);
 cout << decafwithMilkandSuger->getDescription() <<  " " << decafwithMilkandSuger->getcost() << endl;

 Beverage* darkroastwithMocha = new addMochaDecorator("+Mocha",0.3,darkroast);
 cout << darkroastwithMocha->getDescription() << " " << darkroastwithMocha->getcost() << endl;


 delete decaf;
 delete darkroast;
 delete espresso;
 delete houseblend;

 delete decafwithMilk;
 delete decafwithMilkandSuger;
 delete darkroastwithMocha;
  return 0;
}

代码输出
Decaf+Milk 1.1
Decaf+Milk+Suger 1.3
DarkRoast+Mocha 2.3
