第一章 数据抽象

---

前言

细数C++编程思想的数据关系

一、Has-a

事物之间具有显然的包含关系，使用”Has a“关系，Has a关系有两种，聚合（aggragation）以及组合（composition）
composition 当整体不存在时，整体的组成部分也应当被销毁
aggragation 当整体不存在时，整体的组成部分可以继续存在

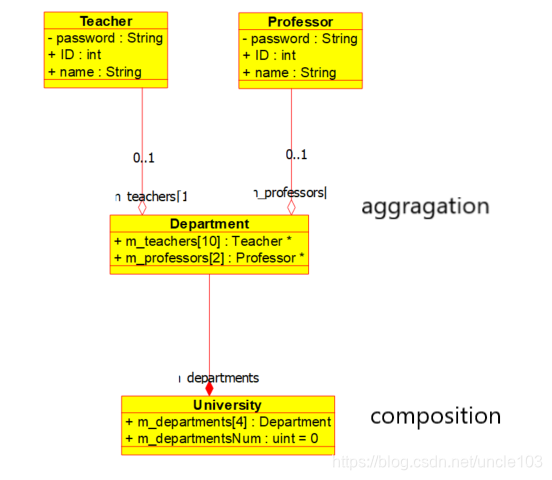

如下图示：
Unitversity 不存在的时候，部门就应当销毁（调用析构函数）
Department 不存在的时候，教师与教授仍然存在（不调用析构函数）

二、IS-a

inheritance /Generalization

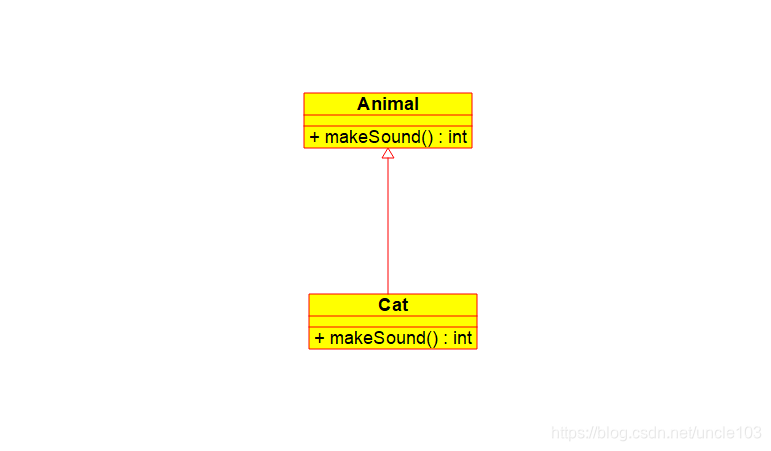

猫是动物，“cat is an animal”， 是isa 的关系：等价于C++中的继承

#include <iostream>
using namespace std;

class Animal
{
public:
	virtual int makeSound() {
		cout << "Animal is making sound" << endl;
		return 1;
	}
private:
	int ntimes;
};

class Cat : public Animal
{
	public:
		int makeSound() {
		cout << "a cat is making sound" << endl;
		return 1;
	}
};

int main()
{
	Cat *cat = new Cat();
	cat->makeSound();
	return 0;
}

三、Association

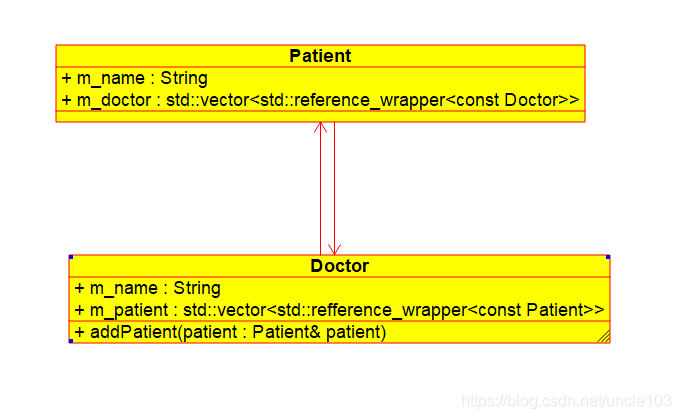

两个事物不具备包含关系，但具备关联关系时，使用"Association"，比如医生和病人间的关系/直接关联关系

#include <cstdint>
#include <functional> // reference_wrapper
#include <iostream>
#include <string>
#include <vector>

// Since Doctor and Patient have a circular dependency, we're going to forward declare Patient
class Patient;

class Doctor
{
private:
	std::string m_name{};
	std::vector<std::reference_wrapper<const Patient>> m_patient{};

public:
	Doctor(const std::string& name) :
		m_name{ name }
	{
	}

	void addPatient(Patient& patient);

	// We'll implement this function below Patient since we need Patient to be defined at that point
	friend std::ostream& operator<<(std::ostream &out, const Doctor &doctor);

	const std::string& getName() const { return m_name; }
};

class Patient
{
private:
	std::string m_name{};
	std::vector<std::reference_wrapper<const Doctor>> m_doctor{}; // so that we can use it here

	// We're going to make addDoctor private because we don't want the public to use it.
	// They should use Doctor::addPatient() instead, which is publicly exposed
	void addDoctor(const Doctor& doctor)
	{
		m_doctor.push_back(doctor);
	}

public:
	Patient(const std::string& name)
		: m_name{ name }
	{
	}

	// We'll implement this function below Doctor since we need Doctor to be defined at that point
	friend std::ostream& operator<<(std::ostream &out, const Patient &patient);

	const std::string& getName() const { return m_name; }

	// We'll friend Doctor::addPatient() so it can access the private function Patient::addDoctor()
	friend void Doctor::addPatient(Patient& patient);
};

void Doctor::addPatient(Patient& patient)
{
	// Our doctor will add this patient
	m_patient.push_back(patient);

	// and the patient will also add this doctor
	patient.addDoctor(*this);
}

std::ostream& operator<<(std::ostream &out, const Doctor &doctor)
{
	if (doctor.m_patient.empty())
	{
		out << doctor.m_name << " has no patients right now";
		return out;
	}

	out << doctor.m_name << " is seeing patients: ";
	for (const auto& patient : doctor.m_patient)
		out << patient.get().getName() << ' ';

	return out;
}

std::ostream& operator<<(std::ostream &out, const Patient &patient)
{
	if (patient.m_doctor.empty())
	{
		out << patient.getName() << " has no doctors right now";
		return out;
	}

	out << patient.m_name << " is seeing doctors: ";
	for (const auto& doctor : patient.m_doctor)
		out << doctor.get().getName() << ' ';

	return out;
}

int main()
{
	// Create a Patient outside the scope of the Doctor
	Patient dave{ "Dave" };
	Patient frank{ "Frank" };
	Patient betsy{ "Betsy" };

	Doctor james{ "James" };
	Doctor scott{ "Scott" };

	james.addPatient(dave);

	scott.addPatient(dave);
	scott.addPatient(betsy);

	std::cout << james << '\n';
	std::cout << scott << '\n';
	std::cout << dave << '\n';
	std::cout << frank << '\n';
	std::cout << betsy << '\n';

	return 0;
}
