本文详述了SSM（Spring、SpringMVC、MyBatis）框架的配置过程，包括在applicationContext.xml中配置数据源、SqlSessionFactory、事务管理器，以及在spring-mvc.xml中配置扫描路径、映射处理和适配器。同时，提到了web.xml的配置，日志配置以及项目目录结构。还给出User类作为领域模型的示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1.配置applicationContext.xml
.在db.properties定义数据库连接所需变量：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&useJDBCCompliantTimezoneShift=true&serverTimezone=UTC&characterEncoding=utf8
jdbc.username=root
jdbc.password=123456

2.在aaplicationContext.xml中配置数据源：
定义时需要1所定义的变量的值，所以要引入该文件的路径：

<!-- 1.配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:db.properties"/>

配置数据源：

 <!-- 2.配置数据源 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="2"/>
    </bean>

配置SqlSessionFactory:
需要引入数据源，配置扫描的bean所在包，以及mapper文件

<!--配置SqlSessionFactory,需要引入dataSource数据源作为属性-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--注入数据源-->
        <property name="dataSource" ref="dataSource"/>
        <!--使用别名，扫描bean的包-->
        <property name="typeAliasesPackage" value="com.Orz.domain"/>
        <!--配置所需加载的映射文件,mapper的路径,文件夹为空时报错-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

配置扫描dao接口，注入sqlSessionFactory

<!-- 自动生成dao,mapper-->
    <!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.Orz.dao"/>
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

配置spring mvc扫描路径

<!--spring 配置自动扫描-->
    <context:component-scan base-package="com.Orz"/>

配置事务管理器

<!-- 配置事务-->
    <!-- 5.配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

开启事务

 <!-- 6.开启事务注解-->
    <tx:annotation-driven></tx:annotation-driven>

完整applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.3.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">

    <!-- 1.配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:db.properties"/>

    <!-- 2.配置数据源 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="2"/>
    </bean>

  <!--配置SqlSessionFactory,需要引入dataSource数据源作为属性-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--注入数据源-->
        <property name="dataSource" ref="dataSource"/>
        <!--使用别名，扫描bean的包-->
        <property name="typeAliasesPackage" value="com.Orz.domain"/>
        <!--配置所需加载的映射文件,mapper的路径,文件夹为空时报错-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 自动生成dao,mapper-->
    <!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.Orz.dao"/>
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <!--spring 配置自动扫描-->
    <context:component-scan base-package="com.Orz"/>

    <!-- 配置事务-->
    <!-- 5.配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 6.开启事务注解-->
    <tx:annotation-driven></tx:annotation-driven>

</beans>

2.配置mapper列子
打算写一篇详细的，这里暂时给一个demo

UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="main.com.wxz.dao.UserDao" >

<select id="findAllUser" resultType="main.com.wxz.domain.User" >
    select *from user
</select>

</mapper>

3.配置spring mvc
配置扫描位置

 <!-- 1.注解扫描位置-->
    <context:component-scan base-package="com.Orz.controller"/>

.配置映射处理和适配器

 <!-- 2.配置映射处理和适配器-->
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"/>
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter"/>

配置视图解析器

<!-- 3.视图的解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!--静态资源路径前缀classpath：后面开始-->
        <property name="prefix" value="/static/pages/"/>
        <!--静态资源页面后缀-->
        <property name="suffix" value=".jsp"/>
    </bean>

完整spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
      http://www.springframework.org/schema/mvc
      http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context-4.3.xsd
      http://www.springframework.org/schema/aop
      http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
      http://www.springframework.org/schema/tx
      http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">

    <!-- 1.注解扫描位置-->
    <context:component-scan base-package="com.Orz.controller"/>

    <!-- 2.配置映射处理和适配器-->
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"/>
    <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter"/>


    <!-- 3.视图的解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!--静态资源路径前缀classpath：后面开始-->
        <property name="prefix" value="/static/pages/"/>
        <!--静态资源页面后缀-->
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

配置web.xml
配置加载类路径的配置文件appliccationContext.xml

 <!-- 配置加载类路径的配置文件 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath*:applicationContext.xml</param-value>
  </context-param>

监听器过滤器

 <!-- 配置监听器 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
    <listener>
      <listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
    </listener>

    <!-- 解决中文乱码过滤器 -->
    <filter>
      <filter-name>characterEncodingFilter</filter-name>
      <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
      <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF-8</param-value>
      </init-param>
    </filter>
    <filter-mapping>
      <filter-name>characterEncodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
    </filter-mapping>

前端控制器

 <servlet>
      <servlet-name>dispatcherServlet</servlet-name>
      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
      <!-- 配置初始化参数，创建完DispatcherServlet对象，加载springmvc.xml配置文件 -->
      <init-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-mvc.xml</param-value>
      </init-param>
      <!-- 服务器启动的时候，让DispatcherServlet对象创建 -->
      <load-on-startup>1</load-on-startup>
    </servlet>
     <servlet-mapping>
      <servlet-name>dispatcherServlet</servlet-name>
      <url-pattern>*.do</url-pattern>
    </servlet-mapping>

完整的web.xml

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

  <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xmlns="http://xmlns.jcp.org/xml/ns/javaee"
           xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
           version="3.1">

  <display-name>Archetype Created Web Application</display-name>

  <!-- 配置加载类路径的配置文件 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath*:applicationContext.xml</param-value>
  </context-param>


    <!-- 配置监听器 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
    <listener>
      <listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
    </listener>

    <!-- 解决中文乱码过滤器 -->
    <filter>
      <filter-name>characterEncodingFilter</filter-name>
      <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
      <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF-8</param-value>
      </init-param>
    </filter>
    <filter-mapping>
      <filter-name>characterEncodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 前端控制器（加载classpath:spring-mvc.xml 服务器启动创建servlet） -->
    <servlet>
      <servlet-name>dispatcherServlet</servlet-name>
      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
      <!-- 配置初始化参数，创建完DispatcherServlet对象，加载springmvc.xml配置文件 -->
      <init-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-mvc.xml</param-value>
      </init-param>
      <!-- 服务器启动的时候，让DispatcherServlet对象创建 -->
      <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
      <servlet-name>dispatcherServlet</servlet-name>
      <url-pattern>*.do</url-pattern>
    </servlet-mapping>


</web-app>

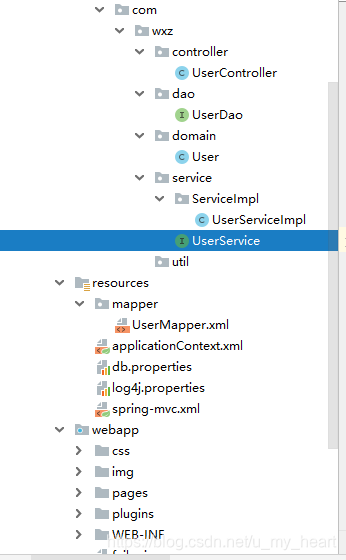

项目目录：
resources和Java同级(通过mark修改)
在这里插入图片描述
myabtis日志log4j配置：
引入log4j的依赖
在log4j.properties进行配置

# Global logging configuration
log4j.rootLogger=ERROR, stdout
# MyBatis logging configuration...
log4j.logger.org.mybatis.example.BlogMapper=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

添加以上配置后，Log4J 就会记录 org.mybatis.example.BlogMapper 的详细执行操作，且仅记录应用中其它类的错误信息（若有）。

项目其他代码

package main.com.wxz.controller;

import main.com.wxz.domain.User;
import main.com.wxz.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import java.util.List;

/**
 * @author Wangxingze
 * @date 2019-06-27 15:16
 */
@Controller
@RequestMapping(value = "/user")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("/findAllUser.do")
    public ModelAndView findAllUser(){
        List<User> userList = userService.findAllUser();
        ModelAndView modelAndView=new ModelAndView();
        modelAndView.addObject("userList",userList);
        modelAndView.setViewName("user-list");
        return modelAndView;
    }
}

package main.com.wxz.dao;

import main.com.wxz.domain.User;

import java.util.List;

public interface UserDao {
    List<User> findAllUser();
}

package main.com.wxz.domain;

/**

@author Wangxingze
@date 2019-06-27 11:20
*/
public class User {
private int id;

private String name;

private String password;

public User() {
}

public User(int id, String name, String password) {
this.id = id;
this.name = name;
this.password = password;
}

@Override
public String toString() {
return “User{” +
“id=” + id +
“, name=’” + name + ‘’’ +
“, password=’” + password + ‘’’ +
‘}’;
}

public int getId() {
return id;
}

public void setId(int id) {
this.id = id;
}

public String getName() {
return name;
}

public void setName(String name) {
this.name = name;
}

public String getPassword() {
return password;
}

public void setPassword(String password) {
this.password = password;
}
}

package main.com.wxz.service;

import main.com.wxz.domain.User;

import java.util.List;

public interface UserService {
    List<User> findAllUser();
}

package main.com.wxz.service.ServiceImpl;

import main.com.wxz.dao.UserDao;
import main.com.wxz.domain.User;
import main.com.wxz.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @author Wangxingze
 * @date 2019-06-27 14:25
 */
@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    @Override
    public List<User> findAllUser() {
        return userDao.findAllUser();
    }
}
