TestStand中，ProcessSetup中的fileGlobal没有传递到MainSequence中

解决ProcessSetup变量未传递问题
最新推荐文章于 2023-10-25 16:09:03 发布
原创 最新推荐文章于 2023-10-25 16:09:03 发布 · 817 阅读 · 1 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。

发现在ProcessSetup中的初始化的句柄和其他变量没有传递到MainSequence当中，这是由于一项配置没有设置：

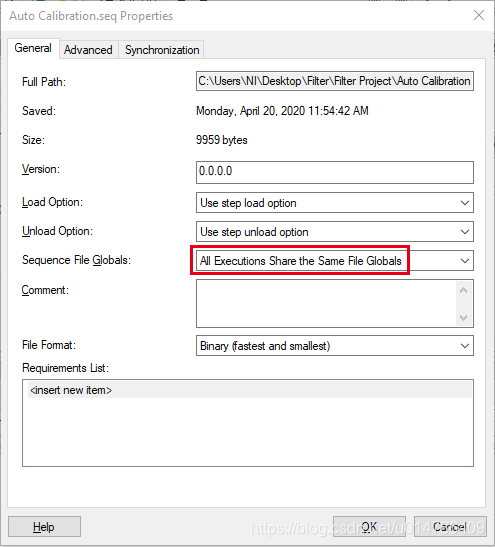

Sequecne -> Edit -> Sequence File Properties -> General / Sequence File Globals /All Executions Share the Same File Globals.
Sequence Properties
