本文介绍了如何在Excel VBA中使用Aspen插件进行过程数据的获取，包括当前值、历史趋势、批次信息和子批次信息。详细讲解了设置References、读取数据的方法，并给出了时间计算函数和查找特定字符串的示例。
Excel Addin 'Aspen process data '
获取当前值Current process data (single value)
References
打开VBA编辑器，找到References勾选需要的插件
需要额外勾选的插件有：
AspenProcessDataAddin
Aspen DataSource Locator
Aspen Process Data

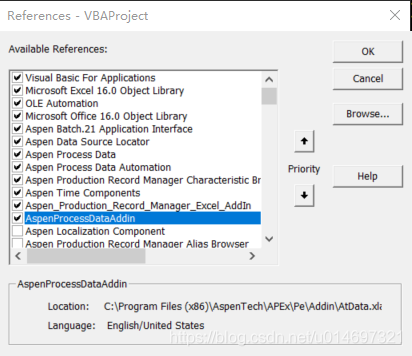

如下图所示
读取当前值
'create a new IP21 DataSource object
Private IP21DataSources As New AtProcessData.DataSources
Public Const VAR_Server As String = "IP21-XXXXXXXX"'IP21 server name
Public Const ATTR_IP_INPUT_VALUE As String = "IP_INPUT_VALUE"
'attribute name of 'Current Value' in IP21 server
Public Function ReadTagValue(sTag As String, sAttribut As String) As Variant
' Read a tag for a given attribute
' return "" if nothing found or error
Dim resu As Variant 'Variant for output
Dim oAtDataSource As AtProcessData.DataSource
Dim oAtTag As AtProcessData.Tag
Dim oAtAttr As AtProcessData.Attribute
resu = ""
Set oAtDataSource = IP21DataSources.Item(VAR_Server)
'Set DataSource
Set oAtTag = oAtDataSource.Tags.Add(sTag)
'Set Tag Name
Set oAtAttr = oAtTag.Attributes.Add(sAttribut)
'Set Attribute Name
oAtTag.Attributes.Query.UseCurrentTime = True
'Set Time as current time
oAtTag.Attributes.Read False
'Enable to read attribute value
If (oAtAttr.Valid = True) Then
If oAtAttr.Value = "" Then
'If failed to fetch current value, return ''
ReadTagValue = resu
Exit Function
Else
'Get current value
resu = (oAtAttr.Value)
End If
Else
'If failed to recognize the attribute name, return ''
ReadTagValue = resu
Exit Function
End If
oAtDataSource.Tags.RemoveAll
Set oAtDataSource = Nothing
Set oAtAttr = Nothing
Set oAtTag = Nothing
ReadTagValue = resu
'return Output value
End Function
Sub test()
Cells(1, 1).Value = ReadTagValue("XXXXXXXXX", ATTR_IP_INPUT_VALUE)
End Sub
Note:
1、获取当前时间值
oAtTag.Attributes.Query.UseCurrentTime = True
2、获取某时间点的值
oAtTag.Attributes.Query.Time = Format(“2021/07/01 00:00:00”, “yyyy/MM/DD HH:mm:ss”)
获取历史趋势Historic process data list
References
打开VBA编辑器，找到References勾选需要的插件
需要额外勾选的插件有：
AspenProcessDataAddin
Aspen DataSource Locator
Aspen Process Data
如下图所示
获取历史值列表
'create a new IP21 DataSource object
Private IP21DataSources As New AtProcessData.DataSources
Public Const VAR_Server As String = "IP21-XXXXXXX" 'IP21 server name
Public Const ATTR_IP_INPUT_VALUE As String = "IP_INPUT_VALUE" ''attribute name of 'Current Value' in IP21 server
Public Const ValueList_MaxNum As Integer = 500 ' maximum capacity of history value list
Public Const IntervalPeriod As Integer = 2 'interval period between each history data
Dim HistoryCap As Variant 'real capacity of history value list
Sub ReadTagHistory(sTag As String, sAttribut As String, sStartTime As Date, sEndTime As Date, HistoryOutput() As Double)
' Read a list of historic tag value for a given attribute
' Output to an externally defined list variable
' return "" if nothing found or error
Dim i As Integer
Dim oAtDataSource As AtProcessData.DataSource
Dim oAtTag As AtProcessData.Tag
Dim oAtAttr As AtProcessData.Attribute
Dim oHistory As AtProcessData.History
'Set DataSource
Set oAtDataSource = IP21DataSources.Item(VAR_Server)
'Set Tag Name
Set oAtTag = oAtDataSource.Tags.Add(sTag)
'Set Attribute Name
Set oAtAttr = oAtTag.Attributes.Add(sAttribut)
'Set History list object
Set oHistory = oAtTag.History
'Settings of history data filtter
oHistory.Query.BeginTime = sStartTime
oHistory.Query.EndTime = sEndTime
oHistory.Query.Extrapolate = False
oHistory.Query.DetermineInterpolationStart = False
oHistory.Query.Period = IntervalPeriod 'interval period between each history data
oHistory.Query.PeriodUnits = apdHour ' unit of interval period time
oHistory.Query.Method = apdValue
oHistory.Query.Start = apdStartTime
oHistory.Query.Stepped = False
oHistory.Query.MaxPoints = ValueList_MaxNum
oHistory.Query.Type = apdInterpolated
'Get history value
oHistory.Read False
oAtTag.Attributes.Read False
'Fill the history value list
HistoryCap = 0
If oHistory.Samples.Count = 0 Then
If oAtAttr.Value = "" Then
End If
Else
For i = 1 To oHistory.Samples.Count
If oHistory.Samples(i).Value = "" Then
Else ' If value is not NULL
HistoryCap = HistoryCap + 1 'add the capacity of history value list
HistoryOutput(HistoryCap) = oHistory.Samples(i) 'save the value in the list
End If
Next
End If
oAtDataSource.Tags.RemoveAll
Set oAtDataSource = Nothing
Set oAtAttr = Nothing
Set oAtTag = Nothing
Set oHistory = Nothing
End Sub
Public Function AddHour(ByVal sTime As String, sAddNum As Integer) As String
'Add X hours to a Time string
Dim dt As Date
dt = CDate(sTime)
dt = DateAdd("h", sAddNum, dt)
AddHour = Format(dt, "YYYY/MM/DD hh:mm:ss")
End Function
Sub test()
Dim ValueList(ValueList_MaxNum) As Double
Dim index As Integer
Dim Start_Time As Date, End_Time As Date
Start_Time = Format("2021/07/01 00:00:00", "YYYY/MM/DD hh:mm:ss")
End_Time = Format("2021/07/02 00:00:00", "YYYY/MM/DD hh:mm:ss")
Call ReadTagHistory("XXXXXXXXX", ATTR_IP_INPUT_VALUE, Start_Time, End_Time, ValueList)
Cells(1, 2) = "XXXXXXXXX"
For index = 1 To HistoryCap - 1 'print result except value at End Time
Cells(index + 1, 1) = AddHour(Start_Time, (index - 1) * IntervalPeriod)
Cells(index + 1, 2) = ValueList(index)
Next
End Sub
获取历史值列表运行结果
Note
时间计算函数——小时增加
输入时间字符串和增加的小时数，输出一个计算后的时间字符串
Public Function AddHour(ByVal sTime As String, sAddNum As Integer) As String
'Add X hours to a Time string
Dim dt As Date
dt = CDate(sTime)
dt = DateAdd("h", sAddNum, dt)
AddHour = Format(dt, "YYYY/MM/DD hh:mm:ss")
End Function
获取批次信息Batch information
Reference

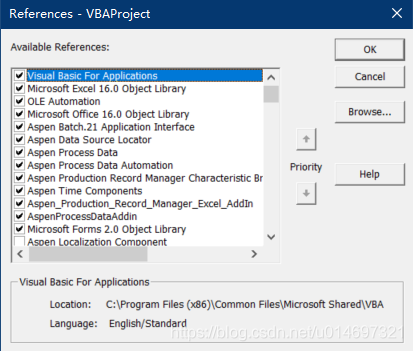

打开VBA编辑器，找到References勾选需要的插件
需要额外勾选的插件有：
Aspen Batch.21 Application Interface
Aspen Data Source Locator
Aspen Process Data
Aspen Process Data Automation
Aspen Production Record Manager Characteristic Browser
Aspen Time Components
Aspen_Production_Record_Manager_Excel_AddIn
AspenProcessDataAddin
如下图所示
读取Batch信息
读取一段时间内批次号（Batch ID）, 批次名（Batch handle）, 批次开始时间（Batch start time）, 及批次结束时间（Batch end time）等Batch的属性值(Attribute)
Public Const VAR_Server As String = "XXXXXXXX" 'PIMS Server name
Public Const VAR_Area As String = "XXXXXX" 'Area name
Public Const MaxBatchNum As Integer = 500 'Max length of Batch list to fetch
Public Const Row_Offset As Integer = 4 'First row of report data equals to (1+Row_Offset)
Public Const Col_length As Integer = 7 'In convenience to clear the report before generate a new one
Public Const CARA_START_TIME As String = "START_TIME" 'Characteristic name of start time in batch
Private BatchDataSources As New AtBatch21ApplicationInterface.BatchDataSources
Function iGetBatchList(iStartTime As Date, iEndTime As Date, iMaxBatchNum As Integer) As AtBatch21ApplicationInterface.BatchList
' return a list of batches during iStartTime and iEndTime,
' the max length of the list will be 'iMaxBatchNum'
Dim oArea As AtBatch21ApplicationInterface.Area
Dim oBatchQuery As AtBatch21ApplicationInterface.BatchQuery
Dim oBatchList As AtBatch21ApplicationInterface.BatchList
' Setting the Data source and Define Time peirod of "oBatchQuery" to fetch
Set oArea = BatchDataSources(VAR_Server).Areas(VAR_Area)
Set oBatchQuery = oArea.BatchQuery
oBatchQuery.Clear
oBatchQuery.TimeRange.Start = iStartTime
oBatchQuery.TimeRange.End = iEndTime
oBatchQuery.MostRecentBatches = iMaxBatchNum
' run query to fetch data from server
Set oBatchList = oBatchQuery.Get
Set iGetBatchList = oBatchList
End Function
Function iGetBatchAttribute(oBatch As AtBatch21ApplicationInterface.Batch, oAttribute As String) As String
' return the Attribute value of one specific batch
' The Enum list of Attribute can be found at
' Aspen Production Record Manager Characteristic Browser - Procedure - Characteristics
Dim resu As String
resu = ""
On Error GoTo Error_handle 'If meet any error, run codes under Error_handle
If Not (oBatch Is Nothing) Then
resu = CStr(oBatch.Characteristics.Item(oAttribute))
End If
iGetBatchAttribute = resu
Exit Function
Error_handle:
iGetBatchAttribute = "" 'In case the Attribute does not exist, return a Null value
End Function
Sub ClearLastReport()
'Clear the report data before generate a new one
Dim row_length As Integer
row_length = 1 + Row_Offset
While Cells(row_length, 1) <> ""
row_length = row_length + 1
Wend
Range(Cells(1 + Row_Offset, 1), Cells(row_length, Col_length)).ClearContents
End Sub
Sub ReportFiller()
Dim BatchNum As Integer 'Used for the index of "FOR Loop"
Dim Batch_Pinner As AtBatch21ApplicationInterface.Batch 'Used for indicating the specific Batch in "FOR Loop"
Dim iBatchList As AtBatch21ApplicationInterface.BatchList 'Store the return result of batch list
Dim BatchIDList(1 To MaxBatchNum) As String 'Store the return result of Batch ID list
Dim BatchLineList(1 To MaxBatchNum) As String 'Store the return result of Line list
Dim BatchRecipeList(1 To MaxBatchNum) As String 'Store the return result of Recipe list
Dim BatchStTimeList(1 To MaxBatchNum) As String 'Store the return result of Batch Start time list
Dim BatchEdTimeList(1 To MaxBatchNum) As String 'Store the return result of Batch End time list
Dim BatchSpanList(1 To MaxBatchNum) As String 'Store the result of Batch Span list
'Fill the list of Batch Handle
Dim Report_TimeStart As Date, Report_TimeEnd As Date
Report_TimeStart = Format("2020/06/01 00:00:00", "YYYY/MM/DD hh:mm:ss")
Report_TimeEnd = Format("2020/07/01 00:00:00", "YYYY/MM/DD hh:mm:ss")
Set iBatchList = iGetBatchList(Report_TimeStart, Report_TimeEnd, MaxBatchNum)
'Fill the list of Batch ID
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchIDList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "BATCH_ID")
If BatchIDList(BatchNum) = "" Then
Exit For
End If
Next
'Fill the list of Batch Line
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchLineList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "AREA")
Next
'Fill the list of Batch Recipe
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchRecipeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "PRODUCT_NAME")
Next
'Fill the list of Batch Start time
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchStTimeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "START_TIME")
Next
'Fill the list of Batch End time
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchEdTimeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "END_TIME")
'Fill the list of Batch Span
If BatchStTimeList(BatchNum) <> "" And BatchEdTimeList(BatchNum) <> "" Then
BatchSpanList(BatchNum) = _
(CDate(BatchEdTimeList(BatchNum)) - CDate(BatchStTimeList(BatchNum))) * 24
End If
Next
'Fill the Cells within the data from lists
For BatchNum = 1 To iBatchList.Count
Cells(BatchNum + Row_Offset, 1) = VAR_Server & "." & iBatchList.Item(BatchNum)
Cells(BatchNum + Row_Offset, 2).Value = Format(BatchIDList(BatchNum), "0.000000")
Cells(BatchNum + Row_Offset, 3).Value = BatchLineList(BatchNum)
Cells(BatchNum + Row_Offset, 4).Value = BatchRecipeList(BatchNum)
Cells(BatchNum + Row_Offset, 5).Value = BatchStTimeList(BatchNum)
Cells(BatchNum + Row_Offset, 6).Value = BatchEdTimeList(BatchNum)
Cells(BatchNum + Row_Offset, 7).Value = BatchSpanList(BatchNum)
Next
End Sub
Sub iGetResentBatchList_Test()
' clear last report
ClearLastReport
' Stop screen update, which can decrease runtime of macro
Application.ScreenUpdating = False
' Fetch and Fill the Report
ReportFiller
' Restore screen update
Application.ScreenUpdating = True
End Sub
Note
特征浏览器（Characteristic Browser）
打开特征浏览器（Characteristic Browser）

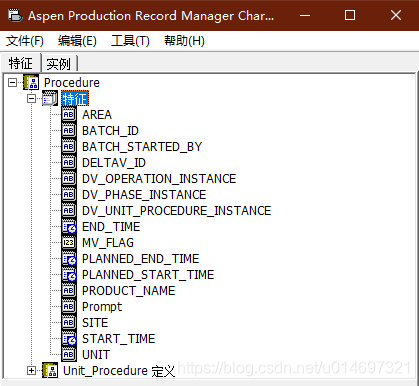

找到特征（Characteristic），即可查看特征名称
清空上次结果（Clear Last Report）
Public Const Row_Offset As Integer = 4 'First row of report data equals to (1+Row_Offset)
Public Const Col_length As Integer = 7 'In convenience to clear the report before generate a new one
Sub ClearLastReport()
'Clear the report data before generate a new one
Dim row_length As Integer
row_length = 1 + Row_Offset
While Cells(row_length, 1) <> ""
row_length = row_length + 1
Wend
Range(Cells(1 + Row_Offset, 1), Cells(row_length, Col_length)).ClearContents
End Sub
获取子批次（流程）信息Subbatch information
Reference
打开VBA编辑器，找到References勾选需要的插件
需要额外勾选的插件有：
Aspen Batch.21 Application Interface
Aspen Data Source Locator
Aspen Process Data
Aspen Process Data Automation
Aspen Production Record Manager Characteristic Browser
Aspen Time Components
Aspen Production Record Manager Excel AddIn
AspenProcessDataAddin
如下图所示
读取SubBatch信息
Public Const VAR_Server As String = "XXXXXXXX" 'PIMS Server name
Public Const VAR_Area As String = "PRO-LINE1" 'Area
Public Const MaxBatchNum As Integer = 500 'Max length of Batch list to fetch
Public Const Row_Offset As Integer = 2 'First row of report data equals to (1+Row_Offset)
Public Const Col_length As Integer = 11 'In convenience to clear the report before generate a new one
Public TimeRng_Start As Date'Start time of SubBatch information to fetch
Public TimeRng_End As Date'End time of SubBatch information to fetch
Type MatchLineSubbatch 'Datatype to discribe the relationship between Line name and subbatch handle
LineGroup1 As String
LineGroup2 As String
LineGroup3 As String
Subbatch1 As String
Subbatch2 As String
Subbatch3 As String
End Type
Type SubbatchCharac 'Characteristic name of subbatch
Start_Time As MatchLineSubbatch
End_Time As MatchLineSubbatch
End Type
Type LineSubbatch 'name of unit procedure
Reactor As SubbatchCharac
Stripper As SubbatchCharac
End Type
Public L2S As LineSubbatch'Create the object
Public Const CARA_START_TIME As String = "START_TIME" 'characteristic name of batch
Private BatchDataSources As New AtBatch21ApplicationInterface.BatchDataSources
Public BatchLineList(1 To MaxBatchNum) As String 'Store the return result of Line list
'Public variable list for Attribute Key Word of Reaction Time, Stripping Time
Public AttKW_ReactorSt(1 To MaxBatchNum) As String
Public AttKW_ReactorEt(1 To MaxBatchNum) As String
Public AttKW_StripperSt(1 To MaxBatchNum) As String
Public AttKW_StripperEt(1 To MaxBatchNum) As String
'Public variable list for storing Attribute Value of Reaction Time, Stripping Time
Public AttVal_ReactorSt(1 To MaxBatchNum) As String
Public AttVal_ReactorEt(1 To MaxBatchNum) As String
Public AttVal_StripperSt(1 To MaxBatchNum) As String
Public AttVal_StripperEt(1 To MaxBatchNum) As String
Public Sub ParamInitialize()'Load parameter from the sheet
TimeRng_Start = Format("2020/06/01 00:00:00", "YYYY/MM/DD hh:mm:ss")
TimeRng_End = Format("2020/07/01 00:00:00", "YYYY/MM/DD hh:mm:ss")
L2S.Reactor.Start_Time.LineGroup1 = Range("Sht_RST_LineName_a").Value
L2S.Reactor.Start_Time.LineGroup2 = Range("Sht_RST_LineName_b").Value
L2S.Reactor.Start_Time.Subbatch1 = Range("Sht_RST_SubbatchName_a").Value
L2S.Reactor.Start_Time.Subbatch2 = Range("Sht_RST_SubbatchName_b").Value
L2S.Reactor.Start_Time.Subbatch3 = Range("Sht_RST_SubbatchName_c").Value
L2S.Reactor.End_Time.LineGroup1 = Range("Sht_RET_LineName_a").Value
L2S.Reactor.End_Time.Subbatch1 = Range("Sht_RET_SubbatchName_a").Value
L2S.Reactor.End_Time.Subbatch2 = Range("Sht_RET_SubbatchName_b").Value
L2S.Stripper.Start_Time.LineGroup1 = Range("Sht_SST_LineName_a").Value
L2S.Stripper.Start_Time.Subbatch1 = Range("Sht_SST_SubbatchName_a").Value
L2S.Stripper.Start_Time.Subbatch2 = Range("Sht_SST_SubbatchName_b").Value
L2S.Stripper.End_Time.LineGroup1 = Range("Sht_SET_LineName_a").Value
L2S.Stripper.End_Time.Subbatch1 = Range("Sht_SET_SubbatchName_a").Value
L2S.Stripper.End_Time.Subbatch2 = Range("Sht_SET_SubbatchName_b").Value
End Sub
Function iGetBatchList(iStartTime As Date, iEndTime As Date, iMaxBatchNum As Integer) As AtBatch21ApplicationInterface.BatchList
' return a list of batches during iStartTime and iEndTime,
' the max length of the list will be iMaxBatchNum
Dim oArea As AtBatch21ApplicationInterface.Area
Dim oBatchQuery As AtBatch21ApplicationInterface.BatchQuery
Dim oBatchList As AtBatch21ApplicationInterface.BatchList
' Setting the Data source and Specific Time peirod of "oBatchQuery"
Set oArea = BatchDataSources(VAR_Server).Areas(VAR_Area)
Set oBatchQuery = oArea.BatchQuery
oBatchQuery.Clear
oBatchQuery.TimeRange.Start = iStartTime
oBatchQuery.TimeRange.End = iEndTime
oBatchQuery.MostRecentBatches = iMaxBatchNum
' run query to fetch data from server
Set oBatchList = oBatchQuery.Get
Set iGetBatchList = oBatchList
End Function
Function iGetBatchAttribute(oBatch As AtBatch21ApplicationInterface.Batch, oAttribute As String) As String
' return the Attribute value of one specific batch
' The Enum list of Attribute can be found at
' Aspen Production Record Manager Characteristic Browser - Procedure - Characteristics
Dim resu As String
resu = ""
On Error GoTo Error_handle
If Not (oBatch Is Nothing) Then
resu = CStr(oBatch.Characteristics.Item(oAttribute))
End If
iGetBatchAttribute = resu
Exit Function
Error_handle:
iGetBatchAttribute = "" 'In case the Attribute does not exist, return a Null value
End Function
Function iGetBatchUnitAttribute(oBatch As AtBatch21ApplicationInterface.Batch, oSubbatch As String, oAttribute As String) As String
' return the Attribute value of one specific batch
' The Enum list of Attribute can be found at
' Aspen Production Record Manager Characteristic Browser - Procedure - Characteristics
Dim resu As String
resu = ""
Dim i As Integer
On Error GoTo Error_handle
If Not (oBatch Is Nothing) Then
'MsgBox (oBatch.Subbatches.Item(oAttribute).Characteristics.Item("START_TIME"))
resu = CStr(oBatch.Subbatches.Item(oSubbatch).Characteristics.Item(oAttribute))
End If
iGetBatchUnitAttribute = resu
Exit Function
Error_handle:
iGetBatchUnitAttribute = "" 'In case the Attribute does not exist, return a Null value
End Function
Function iGetKeyWordOfRS(oKeyWordNum As Integer)
'Get Attribute Key Word of Reaction Time, Stripping Time
Dim index As Integer
For index = 1 To oKeyWordNum
'Reactor Start_Time
If FindStringInCells(BatchLineList(index), L2S.Reactor.Start_Time.LineGroup1) Then
AttKW_ReactorSt(index) = L2S.Reactor.Start_Time.Subbatch1
ElseIf FindStringInCells(BatchLineList(index), L2S.Reactor.Start_Time.LineGroup2) Then
AttKW_ReactorSt(index) = L2S.Reactor.Start_Time.Subbatch2
Else
AttKW_ReactorSt(index) = L2S.Reactor.Start_Time.Subbatch3
End If
'Reactor End_Time
If FindStringInCells(BatchLineList(index), L2S.Reactor.End_Time.LineGroup1) Then
AttKW_ReactorEt(index) = L2S.Reactor.End_Time.Subbatch1
Else: AttKW_ReactorEt(index) = L2S.Reactor.End_Time.Subbatch2
End If
'Stripper Start_Time
If FindStringInCells(BatchLineList(index), L2S.Stripper.Start_Time.LineGroup1) Then
AttKW_StripperSt(index) = L2S.Stripper.Start_Time.Subbatch1
Else: AttKW_StripperSt(index) = L2S.Stripper.Start_Time.Subbatch2
End If
'Stripper End_Time
If FindStringInCells(BatchLineList(index), L2S.Stripper.End_Time.LineGroup1) Then
AttKW_StripperEt(index) = L2S.Stripper.End_Time.Subbatch1
Else: AttKW_StripperEt(index) = L2S.Stripper.End_Time.Subbatch2
End If
Next
End Function
Public Function CalMaxRowNum()
'get the row number of a sheet
Dim row_length As Integer
row_length = 1 + Row_Offset
While Cells(row_length, 1) <> ""
row_length = row_length + 1
Wend
CalMaxRowNum = row_length
End Function
Sub ClearLastReport()
'Clear the report data before generate a new one
Range(Cells(1 + Row_Offset, 1), Cells(CalMaxRowNum, Col_length)).Borders.LineStyle = None
Range(Cells(1 + Row_Offset, 1), Cells(CalMaxRowNum, Col_length)).ClearContents
End Sub
Sub ReportFiller()
'Fetch data from the batch server to local list varients
'And Fill Data into the sheet
Dim BatchNum As Integer 'Used for the index of "FOR Loop"
Dim Batch_Pinner As AtBatch21ApplicationInterface.Batch 'Used for indicating the specific Batch in "FOR Loop"
Dim iBatchList As AtBatch21ApplicationInterface.BatchList 'Store the return result of batch list
Dim BatchIDList(1 To MaxBatchNum) As String 'Store the return result of Batch ID list
Dim BatchRecipeList(1 To MaxBatchNum) As String 'Store the return result of Recipe list
Dim BatchStTimeList(1 To MaxBatchNum) As String 'Store the return result of Batch Start time list
Dim BatchEdTimeList(1 To MaxBatchNum) As String 'Store the return result of Batch End time list
Dim BatchSpanList(1 To MaxBatchNum) As String 'Store the result of Batch Span list
Dim BatchReactionList(1 To MaxBatchNum) As String 'Store the result of Batch Reaction list
Dim BatchStripList(1 To MaxBatchNum) As String 'Store the result of Batch Stripping list
'Fill the list of Batch Handle
Dim Report_TimeStart As Date, Report_TimeEnd As Date
Report_TimeStart = TimeRng_Start
Report_TimeEnd = TimeRng_End
Set iBatchList = iGetBatchList(Report_TimeStart, Report_TimeEnd, MaxBatchNum)
'Fill the list of Batch ID
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchIDList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "BATCH_ID")
If BatchIDList(BatchNum) = "" Then
Exit For
End If
Next
'Fill the list of Batch Line
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchLineList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "AREA")
Next
'Fill the list of Batch Recipe
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchRecipeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "PRODUCT_NAME")
Next
'Fill the list of Batch Start time
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchStTimeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "START_TIME")
Next
'Fill the list of Batch End time
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
BatchEdTimeList(BatchNum) = iGetBatchAttribute(Batch_Pinner, "END_TIME")
'Fill the list of Batch Span
If BatchStTimeList(BatchNum) <> "" Then
If BatchEdTimeList(BatchNum) <> "" Then
BatchSpanList(BatchNum) = _
(CDate(BatchEdTimeList(BatchNum)) - CDate(BatchStTimeList(BatchNum))) * 24
Else: BatchSpanList(BatchNum) = 0
End If
End If
Next
iGetKeyWordOfRSFA (iBatchList.Count)
For BatchNum = 1 To iBatchList.Count
Set Batch_Pinner = iBatchList.Item((BatchNum))
AttVal_ReactorSt(BatchNum) = _
iGetBatchUnitAttribute(Batch_Pinner, AttKW_ReactorSt(BatchNum), "START_TIME")
AttVal_ReactorEt(BatchNum) = _
iGetBatchUnitAttribute(Batch_Pinner, AttKW_ReactorEt(BatchNum), "END_TIME")
AttVal_StripperSt(BatchNum) = _
iGetBatchUnitAttribute(Batch_Pinner, AttKW_StripperSt(BatchNum), "END_TIME")
AttVal_StripperEt(BatchNum) = _
iGetBatchUnitAttribute(Batch_Pinner, AttKW_StripperEt(BatchNum), "END_TIME")
'Fill the list of Batch Reactor
If AttVal_ReactorSt(BatchNum) <> "" Then
If AttVal_ReactorEt(BatchNum) <> "" Then
BatchReactionList(BatchNum) = _
(CDate(AttVal_ReactorEt(BatchNum)) - CDate(AttVal_ReactorSt(BatchNum))) * 24
Else: BatchReactionList(BatchNum) = 0
End If
End If
'Fill the list of Batch Stripper
If AttVal_StripperSt(BatchNum) <> "" Then
If AttVal_StripperEt(BatchNum) <> "" Then
BatchStripList(BatchNum) = _
(CDate(AttVal_StripperEt(BatchNum)) - CDate(AttVal_StripperSt(BatchNum))) * 24
Else: BatchStripList(BatchNum) = 0
End If
End If
Next
'Fill the Cells within the data from lists
For BatchNum = 1 To iBatchList.Count
Cells(BatchNum + Row_Offset, 1) = VAR_Server & "." & iBatchList.Item(BatchNum)
Cells(BatchNum + Row_Offset, 2).Value = Format(BatchIDList(BatchNum), "0.000000")
Cells(BatchNum + Row_Offset, 3).Value = BatchLineList(BatchNum)
Cells(BatchNum + Row_Offset, 4).Value = BatchRecipeList(BatchNum)
Cells(BatchNum + Row_Offset, 5).Value = BatchStTimeList(BatchNum)
Cells(BatchNum + Row_Offset, 6).Value = BatchEdTimeList(BatchNum)
Cells(BatchNum + Row_Offset, 7).Value = BatchSpanList(BatchNum)
Cells(BatchNum + Row_Offset, 8).Value = BatchReactionList(BatchNum)
Cells(BatchNum + Row_Offset, 9).Value = BatchStripList(BatchNum)
Next
End Sub
Function FindStringInCells(Str As String, SearchFrom As String) As Boolean
'Match Keywords in a Cell
Dim resc As String
resc = Chr(10) & Str & Chr(10)
If InStr(1, SearchFrom, resc) Then
FindStringInCells = True
Else
FindStringInCells = False
End If
End Function
Sub iGetResentBatchList_Test()
ParamInitialize' Load parameters from the sheet
Sheets("BatchCycleTimeQuery").Activate 'the sheet to fill data
ClearLastReport 'clear last report
Application.ScreenUpdating = False ' Stop screen update, which can decrease runtime of macro
ReportFiller ' Fetch and Fill the Report
Application.ScreenUpdating = True ' Restore screen update
End Sub
说明
SubBatch的批次名（Unit Procedure Name)是根据Batch的生产线名称与其的对照表，通过查询得到的。（多个生产线名称会对应到一个SubBatch上）
对照表如图：
Note
自定义结构体
Type MatchLineSubbatch 'Define a Datatype
LineGroup1 As String 'Item name and its Datatype
LineGroup2 As String
LineGroup3 As String
Subbatch1 As String
Subbatch2 As String
Subbatch3 As String
End Type
Type SubbatchCharac
'You can Define a new Datatype with self-defined Datatype
Start_Time As MatchLineSubbatch
End_Time As MatchLineSubbatch
End Type
Dim Matcher as SubbatchCharac 'Define a varient within self-defined Datatype
Sub Test()
Matcher.LineGroup1.Start_Time = "XXXXXX"
Matcher.Subbatch1.End_Time = "XXXXXX"
End Sub
查找单元格中是否存在某个字符串
Function FindStringInCells(Str As String, SearchFrom As String) As Boolean
'Match Keywords in a Cell
Dim resc As String
resc = Chr(10) & Str & Chr(10)'Chr(10) = Alt+Enter
If InStr(1, SearchFrom, resc) Then
FindStringInCells = True
Else
FindStringInCells = False
End If
End Function
扫一扫
1023
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
