Oracle12c实例启动和pdb开启过程(含pdb随实例自动启动)

描述：

       由于Oracle12c体系结构和Oracle11g有着很大的不同，尤其在Oracle12c引入数据库容器CDB和可插入数据库PDB之后，因此数据库的启动有着明显的不同。当CDB实例关闭重新开启后，PDB均处于mounted状态，因此要通过特定的命令去开启和关闭。以及相应的PDB随实例CDB自动开启设置。

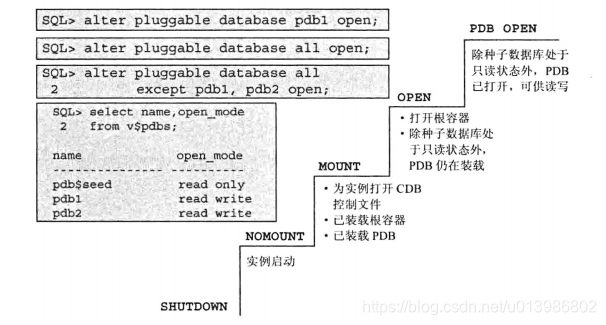

图解:



操作如下：

SQL> select con_id ,name,open_mode from v$pdbs;

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        READ WRITE
         5 PDBCLOUD                       READ WRITE

SQL> shutdown immediate
数据库已经关闭。
已经卸载数据库。
ORACLE 例程已经关闭。
SQL> startup mount
ORACLE 例程已经启动。

Total System Global Area  859832320 bytes
Fixed Size                  3051424 bytes
Variable Size             603979872 bytes
Database Buffers          247463936 bytes
Redo Buffers                5337088 bytes
数据库装载完毕。
SQL> select con_id ,name,open_mode from v$pdbs;          --实例为mounted，pdb也为mounted

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       MOUNTED
         3 PDBSKY                         MOUNTED
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> alter database open;

数据库已更改。

SQL> select con_id ,name,open_mode from v$pdbs;          --实例开启后，pdb均为mounted

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         MOUNTED
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> alter pluggable database pdbcloud open;            --开启可插入数据库pdbcloud

插接式数据库已变更。

SQL> select con_id ,name,open_mode from v$pdbs;         --pdbcloud为READ WRITE状态

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> alter pluggable database all open;                --将所有可插入数据库开启

插接式数据库已变更。

SQL> select con_id ,name,open_mode from v$pdbs;        --剩余的两个pdb也被开启

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        READ WRITE
         5 PDBCLOUD                       READ WRITE

SQL> alter pluggable database all except pdbsky close;    --将除了pdbsky之外的pdb全部关闭

插接式数据库已变更。

SQL> select con_id ,name,open_mode from v$pdbs;           --pdbtest和pdbcloud关闭

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> select count(*) from cdb_triggers;

  COUNT(*)
----------
      2372

SQL> select count(*) from dba_triggers;

  COUNT(*)
----------
       593

SQL> create trigger open_pdbsky after startup on database --创建触发器:指定pdb和实例同时开启
  2  begin
  3  execute immediate 'alter pluggable database pdbsky open';
  4  end;
  5  /

触发器已创建

SQL> shutdown immediate;
数据库已经关闭。
已经卸载数据库。
ORACLE 例程已经关闭。
SQL> startup
ORACLE 例程已经启动。

Total System Global Area  859832320 bytes
Fixed Size                  3051424 bytes
Variable Size             603979872 bytes
Database Buffers          247463936 bytes
Redo Buffers                5337088 bytes
数据库装载完毕。
数据库已经打开。
SQL> select con_id ,name,open_mode from v$pdbs;          --CDB实例开启，pdbsky也同时开启

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> alter pluggable database all except pdbsky open;

插接式数据库已变更。

SQL> select con_id ,name,open_mode from v$pdbs;

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        READ WRITE
         5 PDBCLOUD                       READ WRITE

SQL>
SQL> shutdown immediate
数据库已经关闭。
已经卸载数据库。
ORACLE 例程已经关闭。
SQL> startup
ORACLE 例程已经启动。

Total System Global Area  859832320 bytes
Fixed Size                  3051424 bytes
Variable Size             603979872 bytes
Database Buffers          247463936 bytes
Redo Buffers                5337088 bytes
数据库装载完毕。
数据库已经打开。
SQL> select con_id ,name,open_mode from v$pdbs;

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        MOUNTED
         5 PDBCLOUD                       MOUNTED

SQL> alter session set container=pdbtest;                --切换容器到pdbtest

会话已更改。

SQL> startup                                             --在特定容器下开启pdb自身
插接式数据库已打开。
SQL> select con_id ,name,open_mode from v$pdbs;

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         4 PDBTEST                        READ WRITE

SQL> conn / as sysdba
已连接。
SQL> select con_id ,name,open_mode from v$pdbs;

    CON_ID NAME                           OPEN_MODE
---------- ------------------------------ ----------
         2 PDB$SEED                       READ ONLY
         3 PDBSKY                         READ WRITE
         4 PDBTEST                        READ WRITE
         5 PDBCLOUD                       MOUNTED

SQL>
