NTL安装与使用

NTL是一个数论库，可以方便地实现各种密码，官网。

相关资源

已上传到资源

环境

• ubuntu
• clion

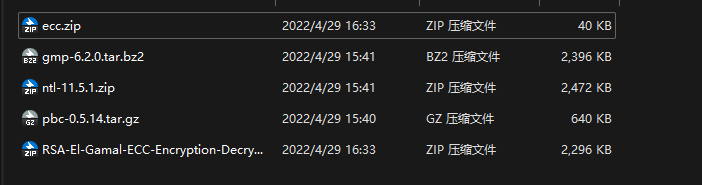

准备

1. 下载ntl-11.5.1.tar.gz，解压

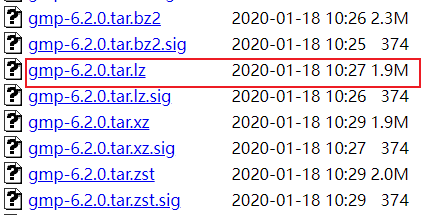

2. 下载gmp6.2.0

3. 下载pbc-0.5.14

安装

先安装pbc，再安装gmp，最后安装ntl。

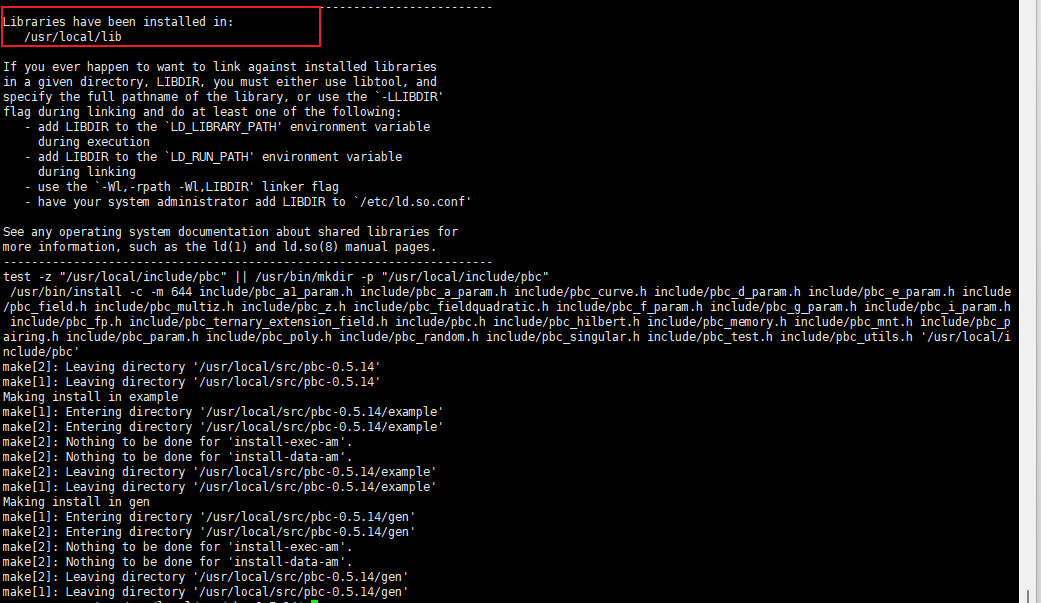

1. 安装pbc-0.5.14

   tar -xvf pbc-0.5.14.tar.gz
   sudo cp pbc-0.5.14 /usr/local/src/ -r
   cd /usr/local/src/pbc-0.5.14/
   sudo ./configure
   sudo make
   sudo make install

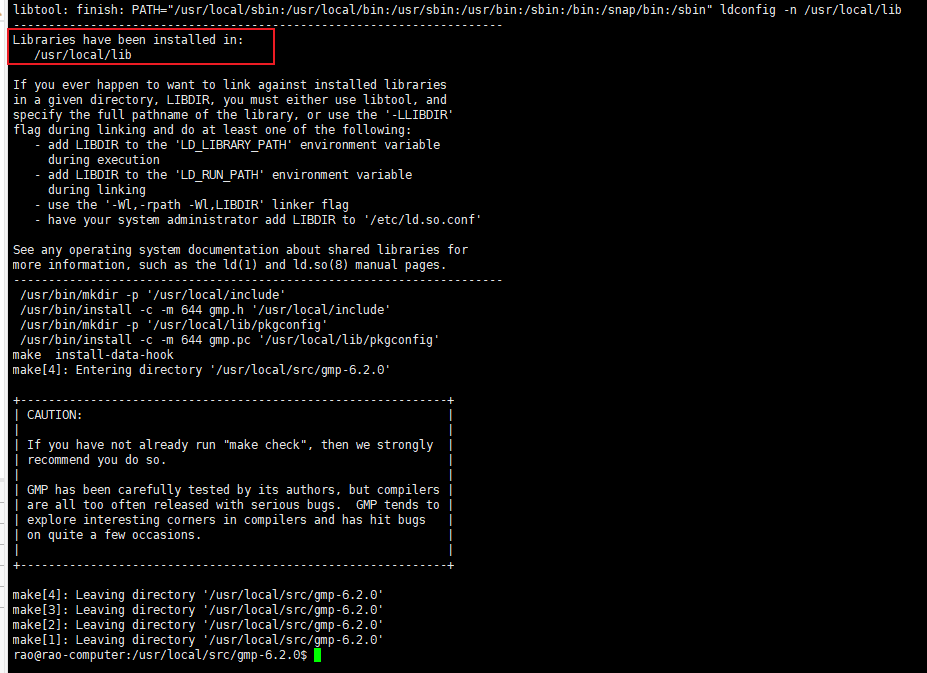

2. 安装gmp-6.2.0

   tar -xvf gmp-6.2.0.tar.bz2
   sudo cp gmp-6.2.0 /usr/local/src/ -r
   cd /usr/local/src/gmp-6.2.0/
   sudo ./configure
   sudo make
   sudo make install

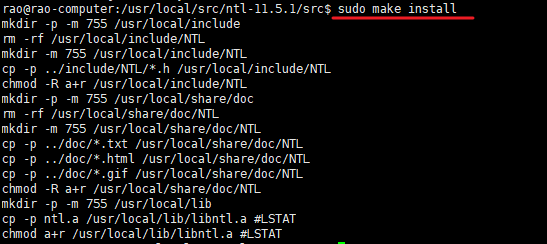

   3. 安装ntl-11.5.1

      unzip ntl-11.5.1.zip
      sudo cp ntl-11.5.1 /usr/local/src/ -r
      cd /usr/local/src/ntl-11.5.1/src
      sudo ./configure
      sudo make
      sudo make install




测试

github

下载基于NTL的密码实践代码，

测试RSA

#include<iostream>
#include<NTL/ZZ.h>
using namespace NTL;

int main(){
    ZZ p, q, n, phi_of_n, public_key, private_key, message;
    int no_of_bits;

    std::cout<<"Enter no of bits : ";
    std::cin>>no_of_bits;

    // generating p and q prime numbers
    p = GenPrime_ZZ(no_of_bits, 80);
    q = GenPrime_ZZ(no_of_bits, 80);
    n = p * q;
    phi_of_n = (p-1)*(q-1);

    ZZ i = (ZZ)1;
    long bits_of_n = 0;
	for( ; i <= n; i *= 10) {
        bits_of_n++;
    }

    public_key = GenPrime_ZZ(bits_of_n/2, 80);
	private_key = InvMod(public_key, phi_of_n);

    std::cout<<"\nEnter Message to decrypt : ";
    std::cin>>message;

    // Encryption of message using public key
    ZZ encrypted_message = PowerMod(message, public_key, n);
    ZZ decrypted_message = PowerMod(encrypted_message, private_key, n);

    std::cout<<"\np = "<<p<<"\n";
    std::cout<<"\nq = "<<q<<"\n";
    std::cout<<"\nn = "<<n<<"\n";
    std::cout<<"\nphi of n = "<<phi_of_n<<"\n";
    std::cout<<"\npublic key = "<<public_key<<"\n";
    std::cout<<"\nprivate key = "<<private_key<<"\n";
    std::cout<<"\nprivate key * public key (mod phi_of_n)= "<<MulMod(public_key, private_key, phi_of_n)<<"\n";
    std::cout<<"\nEncrypted Message = "<<encrypted_message<<"\n";
    std::cout<<"\nDecrypted Message = "<<decrypted_message<<"\n";
    return 0;
}

CLion配置，添加远程执行环境

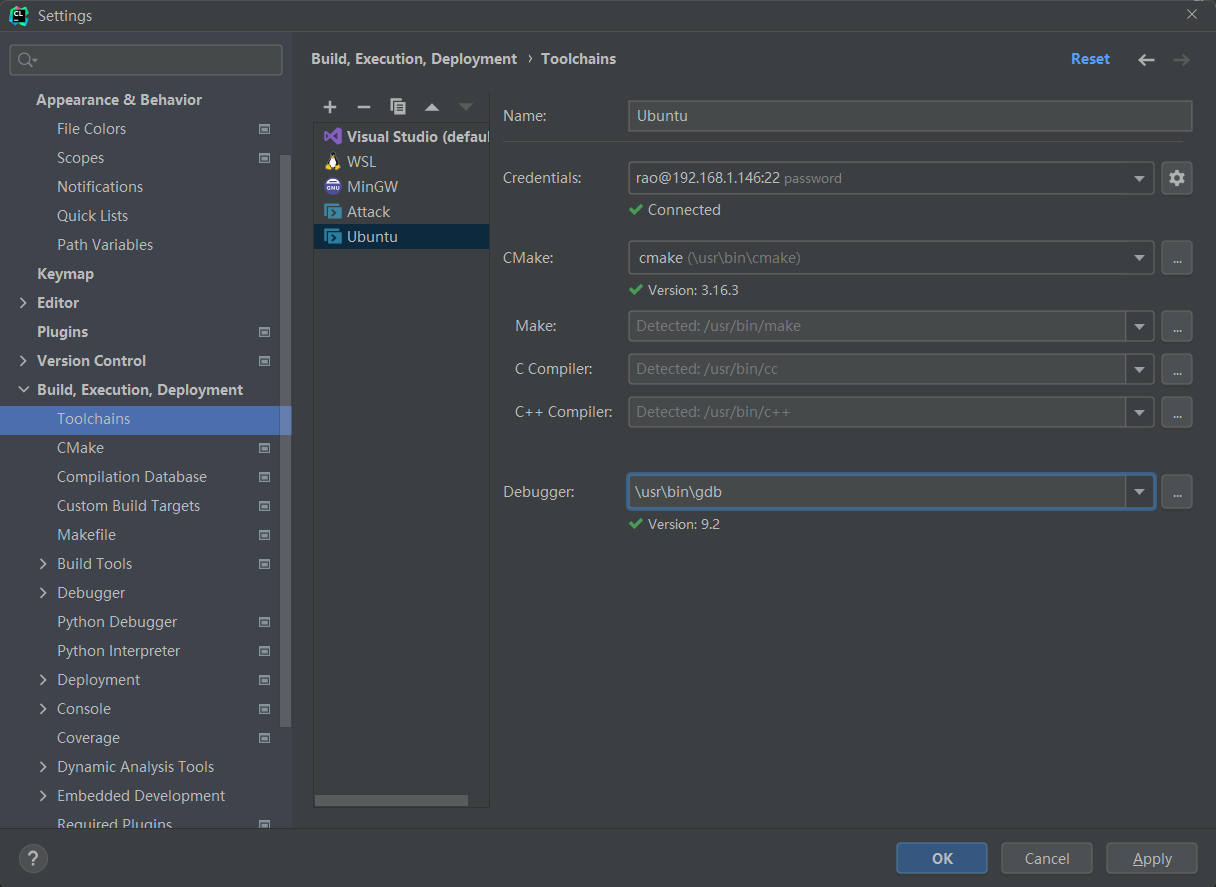

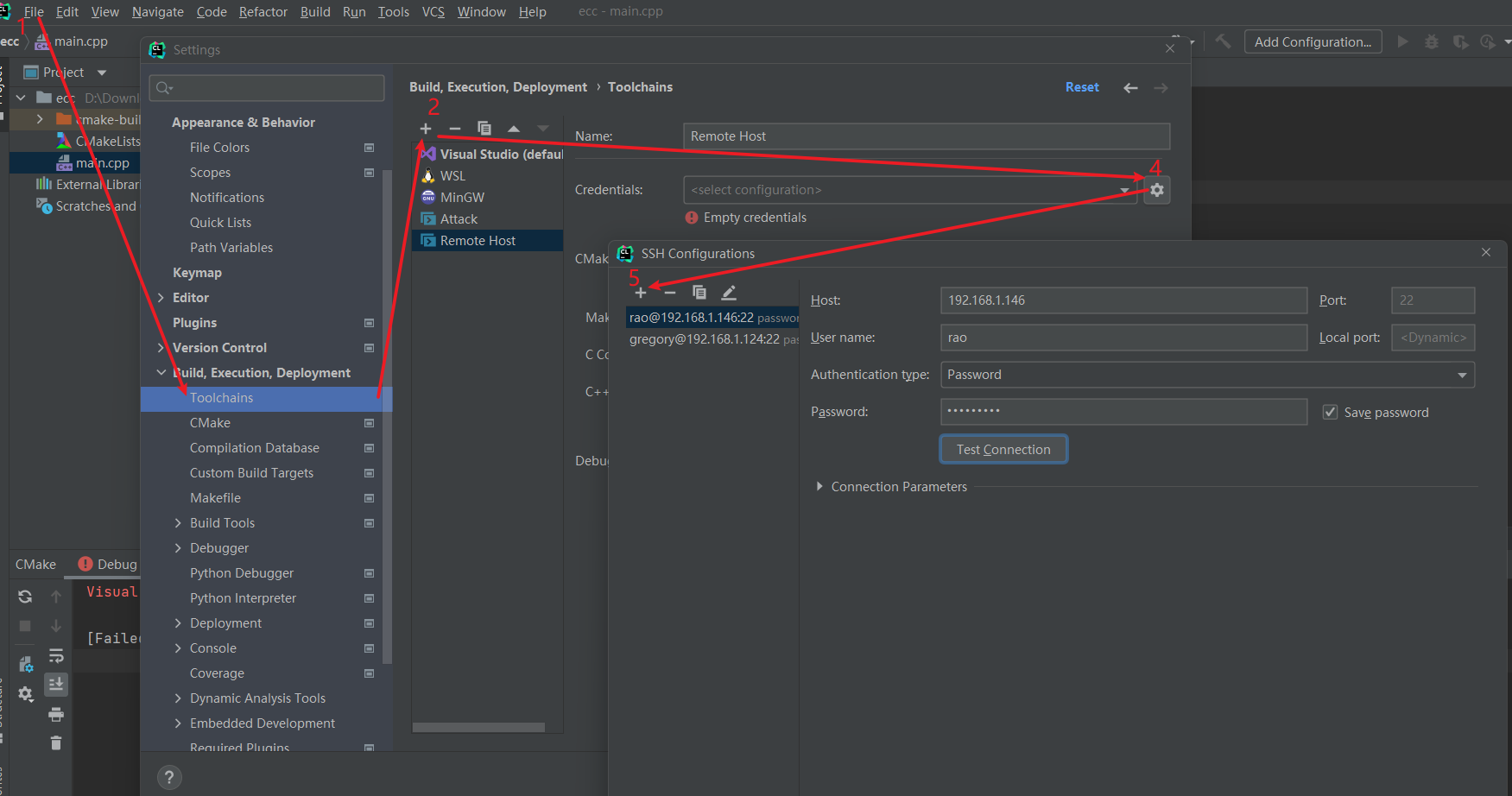

1. 添加toolchain

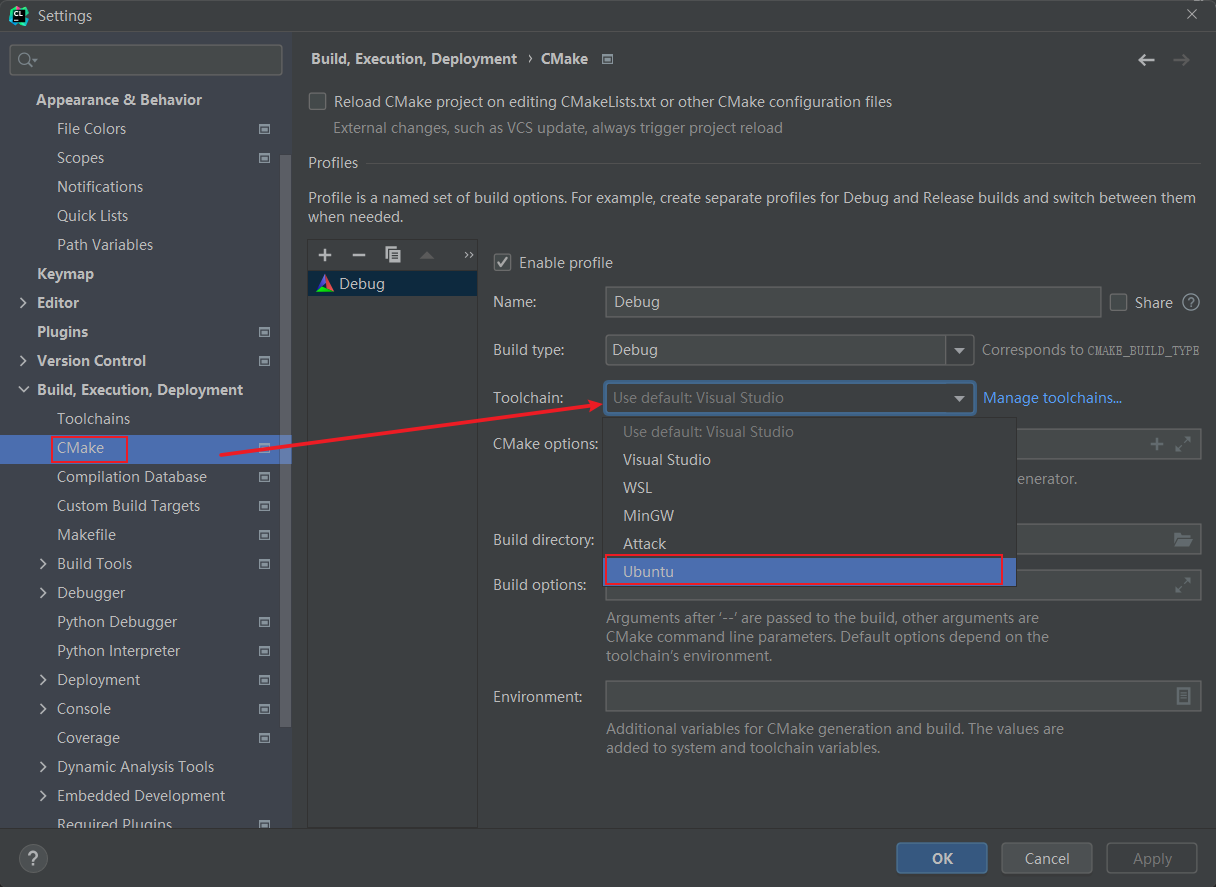

2. cmake配置

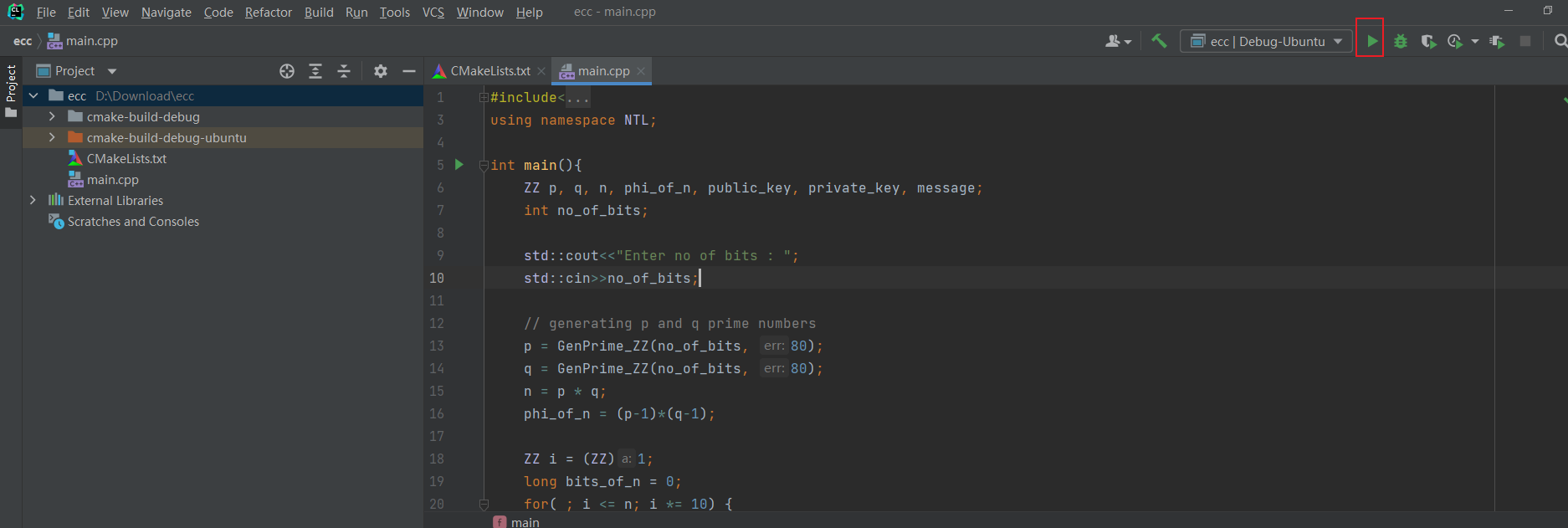

3. 运行

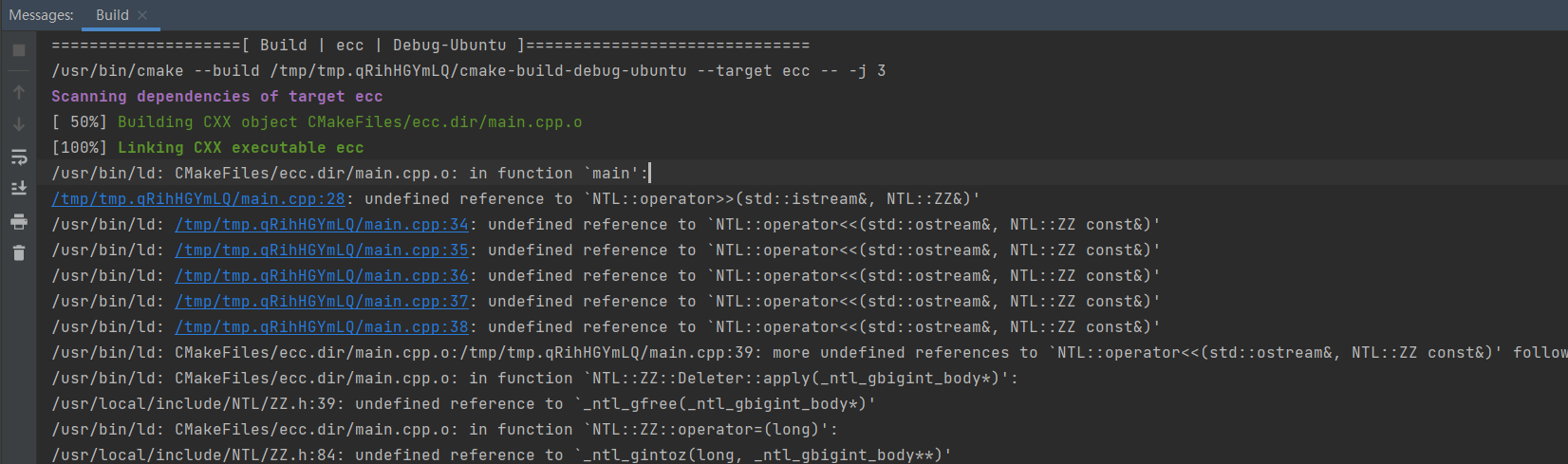

4. 运行出错



5. 添加库位置，修改CMakeLists.txt

   cmake_minimum_required(VERSION 3.0)
   project(ecc)

   # 声明位置
   LINK_DIRECTORIES(/usr/local/lib)

   link_libraries(/usr/local/lib/libntl.a)
   #被链接的库相对路径
   link_directories(/usr/local/lib /lib)
   #被链接库的头文件相对路径
   include_directories(/usr/local/include)
   add_executable(ecc main.cpp)
   target_link_libraries(ecc -lm -lgmp -lntl -lpthread)

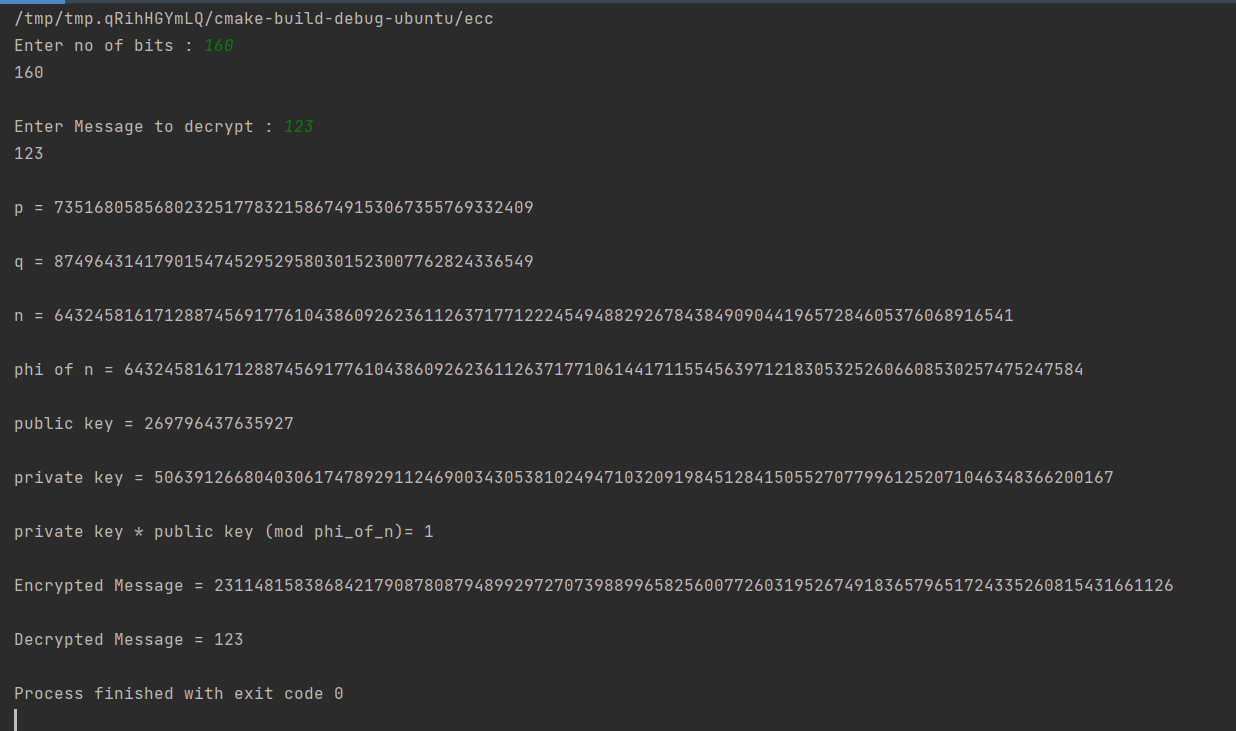

6. 再次运行
