日常通用开发架构。Spring Cloud技术栈

作为分布式项目的底层，会对项目模块进行规划和划分，因此，我需要对项目重构的功能模块进行整理。

1.为什么要进行重构?

在项目1.0版本时，在qa环境中并不能跟踪到服务的异常，经常出现服务不可用时，测试人员以为代码问题就提出bug。但当你去排查时，很难或者无法重现之前“bug”时的现场，因此，要对项目的框架进行一次升级。

2.新框架的好处?

• 监控服务的状态
• 升级注册中心，因eureka的停更，将切换成nacos作为注册发现
• 加入校验注解，使数据校验可以简单配置
• 加入docker 一键部署
• 使用mybatis-plus代码生成

3.新框架的应用场景？

• 想快速搭建一套分布式框架
• 项目中没有监控服务的项目，可以用来升级

4.开撸！！！

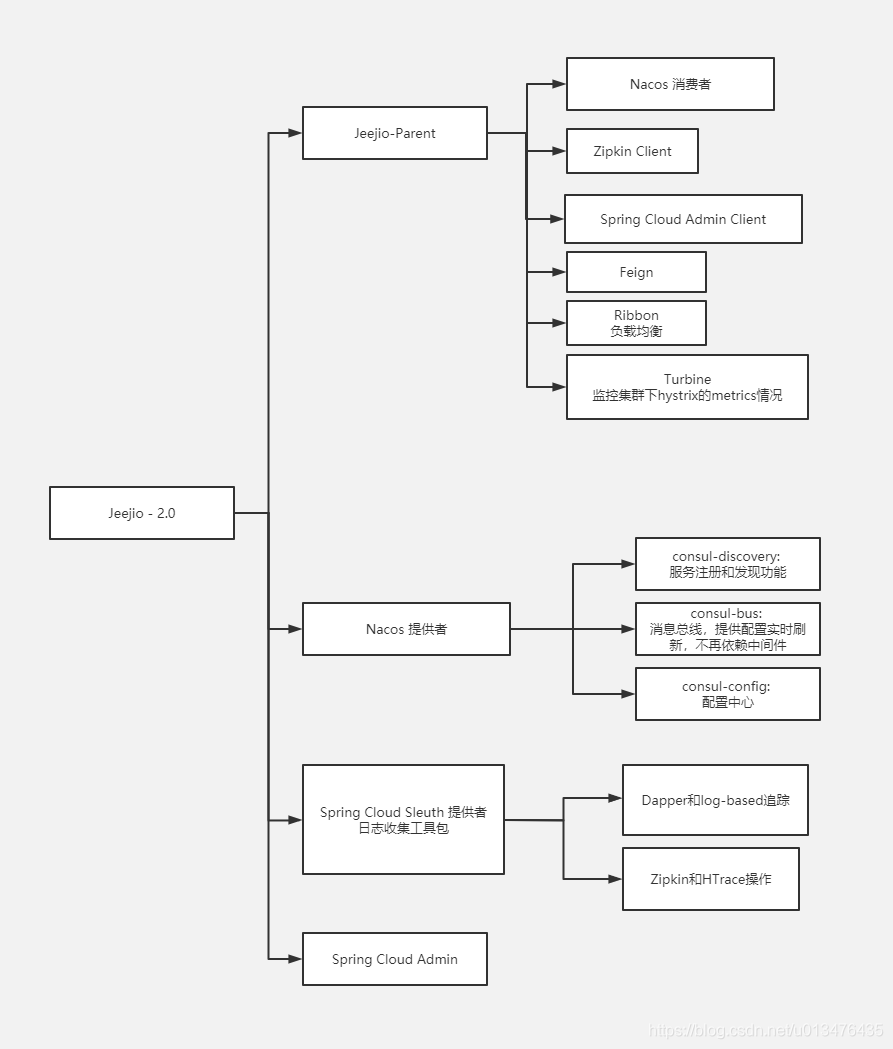

• 对项目进行分析后，架构进行梳理画出大致草图



• 项目业务划分
  • 计划将Parent项目作为所有项目的总依赖。其子项目common作为所有扩展依赖包。
  • 为便于开发，将写一个规范项目，让所有项目在开发前，都使用样例项目进行开发

因此对项目结构进行如下规范

├─sc2-parent
│  └─sc2-common
├─sc2-web-deploy
│  ├─deploy-api
│  ├─deploy-core




• parent项目主要规范项目的版本，以及私服地址等
  • 项目微服务版本选型为 cloud-Hoxton.SR3，boot-2.2.5.RELEASE

    <!--加入spring-boot版本-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.5.RELEASE</version>
    </parent>
    <!--加入spring-cloud版本-->
    <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR3</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

    </dependencies>

• 加入google 代码检查

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-checkstyle-plugin</artifactId>
                    <version>3.1.1</version>
                    <configuration>
                        <configLocation>config/checkStyle/google_checks.xml</configLocation>
                        <suppressionsLocation>config/checkStyle/suppressions.xml</suppressionsLocation>
                        <encoding>UTF-8</encoding>
                        <consoleOutput>true</consoleOutput>
                        <detail>false</detail>
                        <failsOnError>true</failsOnError>
                        <linkXRef>false</linkXRef>
                    </configuration>
                    <executions>
                        <execution>
                            <id>validate</id>
                            <phase>validate</phase>
                            <configuration>
                                <failOnViolation>true</failOnViolation>
                                <failsOnError>true</failsOnError>
                            </configuration>
                        </execution>
                    </executions>
                </plugin>

• google_checks.xml 配置检查规则

<?xml version="1.0"?>
<!DOCTYPE module PUBLIC
          "-//Puppy Crawl//DTD Check Configuration 1.3//EN"
          "http://checkstyle.sourceforge.net/dtds/configuration_1_3.dtd">
<!--
    Checkstyle configuration that checks the Google coding conventions from Google Java Style
    that can be found at https://google.github.io/styleguide/javaguide.html.

    Checkstyle is very configurable. Be sure to read the documentation at
    http://checkstyle.sf.net (or in your downloaded distribution).

    To completely disable a check, just comment it out or delete it from the file.

    Authors: Max Vetrenko, Ruslan Diachenko, Roman Ivanov.
 -->

<module name = "Checker">
    <property name="charset" value="UTF-8"/>

    <property name="severity" value="warning"/>

    <property name="fileExtensions" value="java, properties, xml"/>
    <!-- Checks for whitespace                               -->
    <!-- See http://checkstyle.sf.net/config_whitespace.html -->
	<module name="FileTabCharacter">
		<property name="eachLine" value="true"/>
	</module>

    <module name="TreeWalker">
        <module name="OuterTypeFilename"/>
        <module name="IllegalTokenText">
            <property name="tokens" value="STRING_LITERAL, CHAR_LITERAL"/>
            <property name="format" value="\\u00(09|0(a|A)|0(c|C)|0(d|D)|22|27|5(C|c))|\\(0(10|11|12|14|15|42|47)|134)"/>
            <property name="message" value="Consider using special escape sequence instead of octal value or Unicode escaped value."/>
        </module>
        <module name="AvoidEscapedUnicodeCharacters">
            <property name="allowEscapesForControlCharacters" value="true"/>
            <property name="allowByTailComment" value="true"/>
            <property name="allowNonPrintableEscapes" value="true"/>
        </module>
<!--         <module name="LineLength">
            <property name="max" value="100"/>
            <property name="ignorePattern" value="^package.*|^import.*|a href|href|http://|https://|ftp://"/>
        </module> -->
        <module name="AvoidStarImport"/>
        <module name="OneTopLevelClass"/>
        <module name="NoLineWrap"/>
        <module name="EmptyBlock">
            <property name="option" value="TEXT"/>
            <property name="tokens" value="LITERAL_TRY, LITERAL_FINALLY, LITERAL_IF, LITERAL_ELSE, LITERAL_SWITCH"/>
        </module>
        <module name="NeedBraces"/>
        <module name="LeftCurly"/>
        <module name="RightCurly">
            <property name="id" value="RightCurlySame"/>
            <property name="tokens" value="LITERAL_TRY, LITERAL_CATCH, LITERAL_FINALLY, LITERAL_IF, LITERAL_ELSE, LITERAL_DO"/>
        </module>
        <module name="RightCurly">
            <property name="id" value="RightCurlyAlone"/>
            <property name="option" value="alone"/>
            <property name="tokens" value="CLASS_DEF, METHOD_DEF, CTOR_DEF, LITERAL_FOR, LITERAL_WHILE, STATIC_INIT, INSTANCE_INIT"/>
        </module>
        <module name="WhitespaceAround">
            <property name="allowEmptyConstructors" value="true"/>
            <property name="allowEmptyMethods" value="true"/>
            <property name="allowEmptyTypes" value="true"/>
            <property name="allowEmptyLoops" value="true"/>
            <message key="ws.notFollowed"
             value="WhitespaceAround: ''{0}'' is not followed by whitespace. Empty blocks may only be represented as '{}' when not part of a multi-block statement (4.1.3)"/>
             <message key="ws.notPreceded"
             value="WhitespaceAround: ''{0}'' is not preceded with whitespace."/>
        </module>
        <module name="OneStatementPerLine"/>
        <module name="MultipleVariableDeclarations"/>
        <module name="ArrayTypeStyle"/>
        <module name="MissingSwitchDefault"/>
        <module name="FallThrough"/>
        <module name="UpperEll"/>
        <module name="ModifierOrder"/>
        <module name="EmptyLineSeparator">
            <property name="allowNoEmptyLineBetweenFields" value="true"/>
        </module>
        <module name="SeparatorWrap">
            <property name="id" value="SeparatorWrapDot"/>
            <property name="tokens" value="DOT"/>
            <property name="option" value="nl"/>
        </module>
        <module name="SeparatorWrap">
            <property name="id" value="SeparatorWrapComma"/>
            <property name="tokens" value="COMMA"/>
            <property name="option" value="EOL"/>
        </module>
        <module name="SeparatorWrap">
            <!-- ELLIPSIS is EOL until https://github.com/google/styleguide/issues/258 -->
            <property name="id" value="SeparatorWrapEllipsis"/>
            <property name="tokens" value="ELLIPSIS"/>
            <property name="option" value="EOL"/>
        </module>
        <module name="SeparatorWrap">
            <!-- ARRAY_DECLARATOR is EOL until https://github.com/google/styleguide/issues/259 -->
            <property name="id" value="SeparatorWrapArrayDeclarator"/>
            <property name="tokens" value="ARRAY_DECLARATOR"/>
            <property name="option" value="EOL"/>
        </module>
        <module name="SeparatorWrap">
            <property name="id" value="SeparatorWrapMethodRef"/>
            <property name="tokens" value="METHOD_REF"/>
            <property name="option" value="nl"/>
        </module>
        <module name="PackageName">
            <property name="format" value="^[a-z]+(\.[a-z][a-z0-9]*)*$"/>
            <message key="name.invalidPattern"
             value="Package name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="TypeName">
            <message key="name.invalidPattern"
             value="Type name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="MemberName">
            <property name="format" value="^[a-z][a-z0-9][a-zA-Z0-9]*$"/>
            <message key="name.invalidPattern"
             value="Member name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="ParameterName">
            <property name="format" value="^[a-z]([a-z0-9][a-zA-Z0-9]*)?$"/>
            <message key="name.invalidPattern"
             value="Parameter name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="CatchParameterName">
            <property name="format" value="^[a-z]([a-z0-9][a-zA-Z0-9]*)?$"/>
            <message key="name.invalidPattern"
             value="Catch parameter name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="LocalVariableName">
            <property name="tokens" value="VARIABLE_DEF"/>
            <property name="format" value="^[a-z]([a-z0-9][a-zA-Z0-9]*)?$"/>
            <message key="name.invalidPattern"
             value="Local variable name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="ClassTypeParameterName">
            <property name="format" value="(^[A-Z][0-9]?)$|([A-Z][a-zA-Z0-9]*[T]$)"/>
            <message key="name.invalidPattern"
             value="Class type name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="MethodTypeParameterName">
            <property name="format" value="(^[A-Z][0-9]?)$|([A-Z][a-zA-Z0-9]*[T]$)"/>
            <message key="name.invalidPattern"
             value="Method type name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="InterfaceTypeParameterName">
            <property name="format" value="(^[A-Z][0-9]?)$|([A-Z][a-zA-Z0-9]*[T]$)"/>
            <message key="name.invalidPattern"
             value="Interface type name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="NoFinalizer"/>
        <module name="GenericWhitespace">
            <message key="ws.followed"
             value="GenericWhitespace ''{0}'' is followed by whitespace."/>
             <message key="ws.preceded"
             value="GenericWhitespace ''{0}'' is preceded with whitespace."/>
             <message key="ws.illegalFollow"
             value="GenericWhitespace ''{0}'' should followed by whitespace."/>
             <message key="ws.notPreceded"
             value="GenericWhitespace ''{0}'' is not preceded with whitespace."/>
        </module>
        <module name="Indentation">
            <property name="basicOffset" value="4"/>
            <property name="braceAdjustment" value="0"/>
            <property name="caseIndent" value="2"/>
            <property name="throwsIndent" value="4"/>
            <property name="lineWrappingIndentation" value="4"/>
            <property name="arrayInitIndent" value="2"/>
        </module>
        <module name="AbbreviationAsWordInName">
            <property name="ignoreFinal" value="false"/>
            <property name="allowedAbbreviationLength" value="1"/>
        </module>
        <module name="OverloadMethodsDeclarationOrder"/>
        <module name="VariableDeclarationUsageDistance"/>
        <module name="CustomImportOrder">
            <property name="sortImportsInGroupAlphabetically" value="true"/>
            <property name="separateLineBetweenGroups" value="true"/>
            <property name="customImportOrderRules" value="STATIC###THIRD_PARTY_PACKAGE"/>
        </module>
        <module name="MethodParamPad"/>
        <module name="NoWhitespaceBefore">
          <property name="tokens" value="COMMA, SEMI, POST_INC, POST_DEC, DOT, ELLIPSIS, METHOD_REF"/>
            <property name="allowLineBreaks" value="true"/>
        </module>
        <module name="ParenPad"/>
        <module name="OperatorWrap">
            <property name="option" value="NL"/>
            <property name="tokens" value="BAND, BOR, BSR, BXOR, DIV, EQUAL, GE, GT, LAND, LE, LITERAL_INSTANCEOF, LOR, LT, MINUS, MOD, NOT_EQUAL, PLUS, QUESTION, SL, SR, STAR, METHOD_REF "/>
        </module>
        <module name="AnnotationLocation">
            <property name="id" value="AnnotationLocationMostCases"/>
            <property name="tokens" value="CLASS_DEF, INTERFACE_DEF, ENUM_DEF, METHOD_DEF, CTOR_DEF"/>
        </module>
        <module name="AnnotationLocation">
            <property name="id" value="AnnotationLocationVariables"/>
            <property name="tokens" value="VARIABLE_DEF"/>
            <property name="allowSamelineMultipleAnnotations" value="true"/>
        </module>
        <module name="NonEmptyAtclauseDescription"/>
        <module name="JavadocTagContinuationIndentation"/>
        <module name="SummaryJavadoc">
            <property name="forbiddenSummaryFragments" value="^@return the *|^This method returns |^A [{]@code [a-zA-Z0-9]+[}]( is a )"/>
        </module>
        <module name="JavadocParagraph"/>
        <module name="AtclauseOrder">
            <property name="tagOrder" value="@param, @return, @throws, @deprecated"/>
            <property name="target" value="CLASS_DEF, INTERFACE_DEF, ENUM_DEF, METHOD_DEF, CTOR_DEF, VARIABLE_DEF"/>
        </module>
        <module name="JavadocMethod">
            <property name="scope" value="public"/>
            <property name="allowMissingParamTags" value="true"/>
            <!-- <property name="allowMissingThrowsTags" value="true"/> -->
            <property name="allowMissingReturnTag" value="true"/>
            <!-- <property name="minLineCount" value="2"/> -->
            <property name="allowedAnnotations" value="Override, Test"/>
            <!-- <property name="allowThrowsTagsForSubclasses" value="true"/> -->
        </module>
        <module name="MethodName">
            <property name="format" value="^[a-z][a-z0-9][a-zA-Z0-9_]*$"/>
            <message key="name.invalidPattern"
             value="Method name ''{0}'' must match pattern ''{1}''."/>
        </module>
        <module name="SingleLineJavadoc">
            <property name="ignoreInlineTags" value="false"/>
        </module>
        <module name="EmptyCatchBlock">
            <property name="exceptionVariableName" value="expected"/>
        </module>
        <module name="CommentsIndentation"/>
    </module>
</module>

• 并制定docker的插件

    <plugin>
                    <groupId>io.fabric8</groupId>
                    <artifactId>docker-maven-plugin</artifactId>
                    <version>${docker.plugin.version}</version>
                    <configuration>
                        <dockerHost>${docker.host}</dockerHost>
                        <registry>${docker.registry}</registry>
                        <authConfig>
                            <push>
                                <username>${docker.username}</username>
                                <password>${docker.password}</password>
                            </push>
                        </authConfig>
                        <images>
                            <image>
                                <name>${docker.registry}/${docker.namespace}/${project.name}:${project.version}</name>
                                <build>
                                    <dockerFile>${project.basedir}/Dockerfile</dockerFile>
                                </build>
                            </image>
                        </images>
                    </configuration>
                </plugin>

• 为了能够在 application.yaml 文件中通过 @xxx@ 引到 pom.xml的属性，因此需要加上这个

        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>

• 加入hibernate 验证框架

      <!--hibernate valid-->
        <dependency>
            <groupId>org.hibernate.validator</groupId>
            <artifactId>hibernate-validator</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
        </dependency>

• 加入Turbine - 监控集群下hystrix的metrics情况框架

 <!--Turbine - 监控集群下hystrix的metrics情况-->
        <!--actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->

        <!--hystrix-dashboard-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
        </dependency>
        <!--turbine-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-turbine</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
            <exclusions>
                <exclusion>
                    <groupId>com.netflix.eureka</groupId>
                    <artifactId>eureka-client</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

• 加入 actuator

        <!--actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>



• 完整的parent-pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.bobycloud</groupId>
    <artifactId>sc2-parent</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>${project.artifactId}</name>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <mybatis-spring-boot-starter-version>2.1.1</mybatis-spring-boot-starter-version>
        <spring-boot-version>2.2.5.RELEASE</spring-boot-version>
        <spring-cloud-version>Hoxton.SR3</spring-cloud-version>
        <spring-cloud-hystrix-version>1.4.7.RELEASE</spring-cloud-hystrix-version>
        <spring-context-support-version>1.0.2</spring-context-support-version>
        <nacos-version>0.9.0.RELEASE</nacos-version>
        <fastjson-version>1.2.67</fastjson-version>
        <log4j-version>1.2.14</log4j-version>
        <spring-boot-admin-version>2.2.3</spring-boot-admin-version>
        <guava-version>28.2-jre</guava-version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <maven-compiler-plugin-version>3.1</maven-compiler-plugin-version>
        <swagger2.version>2.7.0</swagger2.version>
        <swagger2-annotations.version>1.5.22</swagger2-annotations.version>
        <commons-beanutils-version>1.9.4</commons-beanutils-version>
        <commons-fileupload-version>1.3.3</commons-fileupload-version>
        <UserAgentUtils.version>1.21</UserAgentUtils.version>
        <feign-form-version>3.0.3</feign-form-version>
        <commons-lang3-version>3.7</commons-lang3-version>
        <commons-codec-version>1.13</commons-codec-version>
        <tomcat-jdbc-version>9.0.10</tomcat-jdbc-version>

        <!--******************  docker  ******************-->
        <docker.registry>172.16.30.184</docker.registry>
        <docker.host>http://172.16.30.184:2375</docker.host>
        <docker.namespace>library</docker.namespace>
        <docker.username></docker.username>
        <docker.password></docker.password>
        <docker.plugin.version>0.32.0</docker.plugin.version>

    </properties>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.5.RELEASE</version>
    </parent>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR3</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>com.google.guava</groupId>
                <artifactId>guava</artifactId>
                <version>${guava-version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <finalName>${project.name}</finalName>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <version>${spring-boot-version}</version>
                </plugin>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>${maven-compiler-plugin-version}</version>
                    <configuration>
                        <target>${maven.compiler.target}</target>
                        <source>${maven.compiler.source}</source>
                    </configuration>
                </plugin>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-checkstyle-plugin</artifactId>
                    <version>3.1.1</version>
                    <configuration>
                        <configLocation>config/checkStyle/google_checks.xml</configLocation>
                        <suppressionsLocation>config/checkStyle/suppressions.xml</suppressionsLocation>
                        <encoding>UTF-8</encoding>
                        <consoleOutput>true</consoleOutput>
                        <detail>false</detail>
                        <failsOnError>true</failsOnError>
                        <linkXRef>false</linkXRef>
                    </configuration>
                    <executions>
                        <execution>
                            <id>validate</id>
                            <phase>validate</phase>
                            <configuration>
                                <failOnViolation>true</failOnViolation>
                                <failsOnError>true</failsOnError>
                            </configuration>
                        </execution>
                    </executions>
                </plugin>
                <plugin>
                    <groupId>io.fabric8</groupId>
                    <artifactId>docker-maven-plugin</artifactId>
                    <version>${docker.plugin.version}</version>
                    <configuration>
                        <dockerHost>${docker.host}</dockerHost>
                        <registry>${docker.registry}</registry>
                        <authConfig>
                            <push>
                                <username>${docker.username}</username>
                                <password>${docker.password}</password>
                            </push>
                        </authConfig>
                        <images>
                            <image>
                                <name>${docker.registry}/${docker.namespace}/${project.name}:${project.version}</name>
                                <build>
                                    <dockerFile>${project.basedir}/Dockerfile</dockerFile>
                                </build>
                            </image>
                        </images>
                    </configuration>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>

    <reporting>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-checkstyle-plugin</artifactId>
            </plugin>
        </plugins>
    </reporting>
    <distributionManagement>
        <repository>
            <id>nexus-releases</id>
            <name>Nexus Release Repository</name>
            <!--        <url>http://172.16.10.1:8081/repository/maven-releases/</url>-->
            <url>http://10.10.11.95/repository/maven-releases/</url>
        </repository>
        <snapshotRepository>
            <id>nexus-snapshots</id>
            <name>Nexus Snapshot Repository</name>
            <!--        <url>http://172.16.10.1:8081/repository/maven-snapshots/</url>-->
            <url>http://10.10.11.95/repository/maven-snapshots/</url>
        </snapshotRepository>
    </distributionManagement>
    <profiles>
        <profile>
            <id>dev</id>
            <properties>
                <!--dev环境配置-->
                <profiles.active>dev</profiles.active>
            </properties>
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <profile>
            <id>test</id>
            <properties>
                <profiles.active>test</profiles.active>
            </properties>
        </profile>
        <profile>
            <id>prod</id>
            <properties>
                <profiles.active>prod</profiles.active>
            </properties>
        </profile>
    </profiles>
    <modules>
        <module>sc2-common</module>
    </modules>
</project>

• 完整的common的pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <artifactId>sc2-common</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <dependencies>
        <!--language-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
        </dependency>

        <!--hibernate valid-->
        <dependency>
            <groupId>org.hibernate.validator</groupId>
            <artifactId>hibernate-validator</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
        </dependency>

        <!--spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <dependency>
            <groupId>io.github.openfeign</groupId>
            <artifactId>feign-core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <!--Turbine - 监控集群下hystrix的metrics情况-->
        <!--actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->

        <!--hystrix-dashboard-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
        </dependency>
        <!--turbine-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-turbine</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
            <exclusions>
                <exclusion>
                    <groupId>com.netflix.eureka</groupId>
                    <artifactId>eureka-client</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-ribbon -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-ribbon</artifactId>
            <version>${spring-cloud-hystrix-version}</version>
        </dependency>

        <!--Zipkin Client-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-context</artifactId>
        </dependency>
        <!--actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- Alibaba Spring Context extension -->
        <dependency>
            <groupId>com.alibaba.spring</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring-context-support-version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <version>${nacos-version}</version>
        </dependency>

        <!--database-->
        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat</groupId>
            <artifactId>tomcat-jdbc</artifactId>
            <version>${tomcat-jdbc-version}</version>
        </dependency>
        <!--            mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>${mybatis-spring-boot-starter-version}</version>
        </dependency>

        <!--utils-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
        <!--json-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson-version}</version>
        </dependency>
        <!--log4j-->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j-version}</version>
        </dependency>

        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger2.version}</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger2.version}</version>
        </dependency>
        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>${swagger2-annotations.version}</version>
        </dependency>

        <!--apache utils-->
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <version>${commons-beanutils-version}</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>${commons-fileupload-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>${commons-lang3-version}</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>${commons-codec-version}</version>
        </dependency>


        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--test-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <parent>
        <groupId>com.bobycloud</groupId>
        <artifactId>sc2-parent</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

</project>



• deploy-api只需要简单配置即可

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <artifactId>deploy-api</artifactId>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

    <dependencies>
        <dependency>
            <groupId>com.bobycloud</groupId>
            <artifactId>sc2-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>

    <parent>
        <groupId>com.bobycloud.webdeploy</groupId>
        <artifactId>sc2-web-deploy</artifactId>
        <version>${revision}</version>
    </parent>
</project>



• deploy-core需要引入deploy-api

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <artifactId>deploy-core</artifactId>
    <packaging>war</packaging>
    <!--引入代码检查  以及maven版本依赖-->
    <build>
        <!-- 应与application.properties(或application.yml)中context-path保持一致 -->
        <finalName>deploy</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-checkstyle-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
            </plugin>
        </plugins>
        <!--重要 如果不设置resource 会导致application.yaml中的@@找不到pom文件中的配置-->
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
        <!--重要 如果不设置resource 会导致application.yaml中的@@找不到pom文件中的配置-->
    </build>
    <dependencies>

        <!--引入api-->
        <dependency>
            <groupId>com.bobycloud.webdeploy</groupId>
            <artifactId>deploy-api</artifactId>
            <version>${project.version}</version>
        </dependency>


    </dependencies>
    <parent>
        <groupId>com.bobycloud.webdeploy</groupId>
        <artifactId>sc2-web-deploy</artifactId>
        <version>${revision}</version>
    </parent>
</project>

• 项目启动类将配置相关启动

/**
 * @ClassName: CoreApplication
 * @Description: 启动类
 * @author 作者<xxx>
 * @date 2019年9月24日 下午5:58:01
 */
@Import({SwaggerConfiguration.class, IDSnowflakeCreate.class, IDRedisCreate.class, ExceptionResolver.class})
@MapperScan(basePackages = "com.bobycloud.deploy.service.dao.*")
@EnableDiscoveryClient
@EnableFeignClients
@EnableTurbine
@EnableHystrixDashboard
@EnableCircuitBreaker
@Configuration
@RefreshScope
@SpringBootApplication
public class CoreApplication {
    public static void main(String[] args) {
        SpringApplication.run(CoreApplication.class, args);
    }
}

• 配置样例的启动文件 application.yaml

server:
  port: 9090
  servlet:
    context-path: /${spring.application.name}
spring:
  application:
    name: deploy
    admin:
      enabled: true
  profiles:
    active: dev
  cloud:
    nacos:
      discovery:
        server-addr: ${NACOS-HOST:172.16.30.184}:${NACOS-PORT:8858}
        metadata:
          management.context-path: /${spring.application.name}/actuator
      config:
        server-addr: ${spring.cloud.nacos.discovery.server-addr}
        file-extension: yml
        shared-configs:
          - ${spring.application.name}-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}
  redis:
    #内网
    host: 172.16.30.184
    port: 6379  #可不配，因为底层默认值为6379
  datasource:
    type: org.apache.tomcat.jdbc.pool.DataSource
    driver-class-name: org.postgresql.Driver
    url: jdbc:postgresql://172.16.30.184:5432/qa_theach
    username: qa_theach
    password: 'qa_theach'
    tomcat:
      testWhileIdle: true
      testOnBorrow: true
      testOnReturn: false
      validationInterval: 30000
      timeBetweenEvictionRunsMillis: 30000
      maxActive: 100
      minIdle: 10
      maxWait: 10000
      initialSize: 10
      removeAbandonedTimeout: 60
      removeAbandoned: true
      logAbandoned: true
      minEvictableIdleTimeMillis: 30000
      jmxEnabled: true
  boot:
    admin:
      client:
        url: "http://localhost:8080"
  mail:
    host: smtp.126.com
    username:
    password:
  zipkin:
    service:
      name: /${spring.application.name}
    base-url: http://172.16.30.184:9411
management:
  endpoints:
    web:
      exposure:
        include: "*"
  endpoint:
    health:
      show-details: ALWAYS
swagger:
  servletPath: /${spring.application.name}
  basePackage: 'com.bobycloud.deploy'
  title: 'deploy项目API'
  desc: '最终解释权归研发部（软件组）所有'
  version: '1.0'
  serviceTermsUrl: '服务条款对应的网址'
  contactName: '研发部-软件组'
  contactEmail: 'tt@foundgroup.com'
  contactUrl: '作者网址'
  license: '许可'
  licenseUrl: '许可对应的网址'
#id
ids:
  snowflake:
    datacenterId: 1
    workerId: 1
  redis:
    step: 3
feign:
  hystrix:
    enabled: true
#hystrix的超时时间
hystrix:
  command:
    default:
      execution:
        timeout:
          enabled: true
        isolation:
          thread:
            timeoutInMilliseconds: 9000
#ribbon的超时时间
ribbon:
  ReadTimeout: 3000
  ConnectTimeout: 3000
turbine:
  app-config: ${spring.application.name}
  cluster-name-expression: metadata['cluster']
  aggregator:
    clusterConfig: CLOUD-SIMPLE-SERVICE  #turbine监控的服务名称，可以多个
