文章详细阐述了Flink中数据的流转过程，包括Flink如何在操作符间传递数据，使用NetworkBufferPool管理内存，以及数据在Task间的交换。同时，讨论了Flink如何通过Credit机制处理背压问题，确保数据流的稳定和高效。

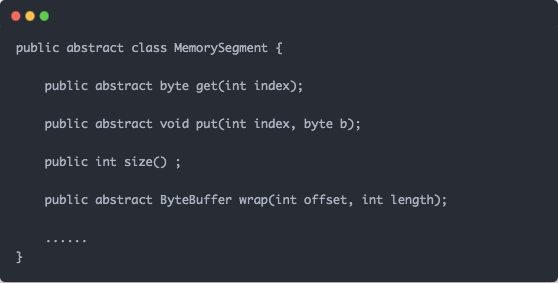

一、数据流转——Flink的数据抽象及数据交换过程
本部分讲一下flink底层是如何定义和在操作符之间传递数据的。

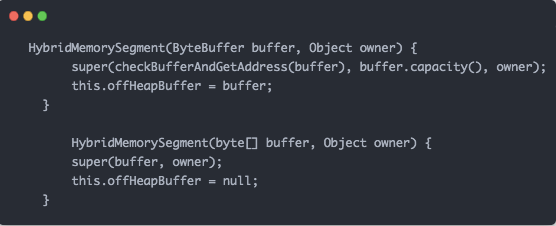

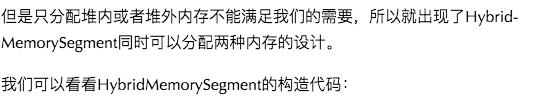

其中，第一个构造函数的checkBufferAndGetAddress()方法能够得到direct buffer的内存地址，因此可以操作堆外内存。
1.2 ByteBuffer与NetworkBufferPool

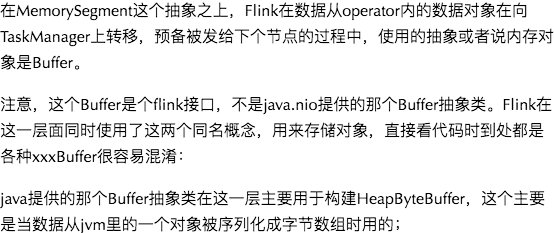

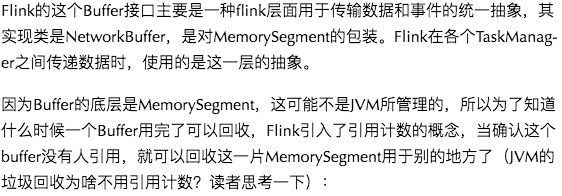

public abstract class AbstractReferenceCountedByteBuf extends AbstractByteBuf {
private volatile int refCnt = 1;
......
}

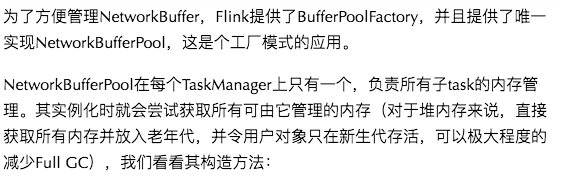

public NetworkBufferPool(int numberOfSegmentsToAllocate, int segmentSize) {
......
try {
this.availableMemorySegments = new ArrayBlockingQueue<>(numberOfSegmentsToAllocate);
}
catch (OutOfMemoryError err) {
throw new OutOfMemoryError("Could not allocate buffer queue of length "
+ numberOfSegmentsToAllocate + " - " + err.getMessage());
}
try {
for (int i = 0; i < numberOfSegmentsToAllocate; i++) {
ByteBuffer memory = ByteBuffer.allocateDirect(segmentSize);
availableMemorySegments.add(MemorySegmentFactory.wrapPooledOffHeapMemory(memory, null));
}
}
......
long allocatedMb = (sizeInLong * availableMemorySegments.size()) >> 20;
LOG.info("Allocated {} MB for network buffer pool (number of memory segments: {}, bytes per segment: {}).",
allocatedMb, availableMemorySegments.size(), segmentSize);
}

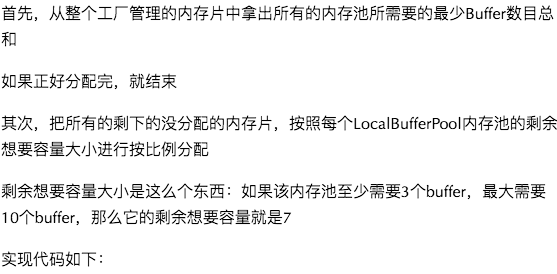

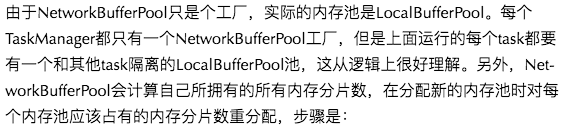

private void redistributeBuffers() throws IOException {
assert Thread.holdsLock(factoryLock);
// All buffers, which are not among the required ones
final int numAvailableMemorySegment = totalNumberOfMemorySegments - numTotalRequiredBuffers;
if (numAvailableMemorySegment == 0) {
// in this case, we need to redistribute buffers so that every pool gets its minimum
for (LocalBufferPool bufferPool : allBufferPools) {
bufferPool.setNumBuffers(bufferPool.getNumberOfRequiredMemorySegments());
}
return;
}
long totalCapacity = 0; // long to avoid int overflow
for (LocalBufferPool bufferPool : allBufferPools) {
int excessMax = bufferPool.getMaxNumberOfMemorySegments() -
bufferPool.getNumberOfRequiredMemorySegments();
totalCapacity += Math.min(numAvailableMemorySegment, excessMax);
}
// no capacity to receive additional buffers?
if (totalCapacity == 0) {
return; // necessary to avoid div by zero when nothing to re-distribute
}
final int memorySegmentsToDistribute = MathUtils.checkedDownCast(
Math.min(numAvailableMemorySegment, totalCapacity));
long totalPartsUsed = 0; // of totalCapacity
int numDistributedMemorySegment = 0;
for (LocalBufferPool bufferPool : allBufferPools) {
int excessMax = bufferPool.getMaxNumberOfMemorySegments() -
bufferPool.getNumberOfRequiredMemorySegments();
// shortcut
if (excessMax == 0) {
continue;
}
totalPartsUsed += Math.min(numAvailableMemorySegment, excessMax);
final int mySize = MathUtils.checkedDownCast(
memorySegmentsToDistribute * totalPartsUsed / totalCapacity - numDistributedMemorySegment);
numDistributedMemorySegment += mySize;
bufferPool.setNumBuffers(bufferPool.getNumberOfRequiredMemorySegments() + mySize);
}
assert (totalPartsUsed == totalCapacity);
assert (numDistributedMemorySegment == memorySegmentsToDistribute);
}
/** 该内存池需要的最少内存片数目*/
private final int numberOfRequiredMemorySegments;
/**
* 当前已经获得的内存片中，还没有写入数据的空白内存片
*/
private final ArrayDeque<MemorySegment> availableMemorySegments = new ArrayDeque<MemorySegment>();
/**
* 注册的所有监控buffer可用性的监听器
*/
private final ArrayDeque<BufferListener> registeredListeners = new ArrayDeque<>();
/** 能给内存池分配的最大分片数*/
private final int maxNumberOfMemorySegments;
/** 当前内存池大小 */
private int currentPoolSize;
/**
* 所有经由NetworkBufferPool分配的，被本内存池引用到的（非直接获得的）分片数
*/
private int numberOfRequestedMemorySegments;
public void setNumBuffers(int numBuffers) throws IOException {
synchronized (availableMemorySegments) {
checkArgument(numBuffers >= numberOfRequiredMemorySegments,
"Buffer pool needs at least %s buffers, but tried to set to %s",
numberOfRequiredMemorySegments, numBuffers);
if (numBuffers > maxNumberOfMemorySegments) {
currentPoolSize = maxNumberOfMemorySegments;
} else {
currentPoolSize = numBuffers;
}
returnExcessMemorySegments();
// If there is a registered owner and we have still requested more buffers than our
// size, trigger a recycle via the owner.
if (owner != null && numberOfRequestedMemorySegments > currentPoolSize) {
owner.releaseMemory(numberOfRequestedMemorySegments - numBuffers);
}
}
}

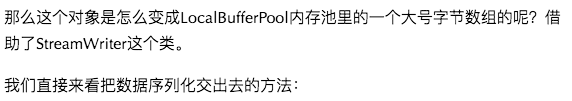

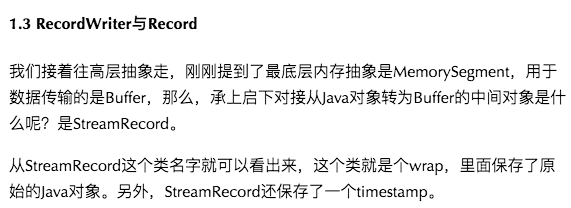

private void sendToTarget(T record, int targetChannel) throws IOException, InterruptedException {
RecordSerializer<T> serializer = serializers[targetChannel];
SerializationResult result = serializer.addRecord(record);
while (result.isFullBuffer()) {
if (tryFinishCurrentBufferBuilder(targetChannel, serializer)) {
// If this was a full record, we are done. Not breaking
// out of the loop at this point will lead to another
// buffer request before breaking out (that would not be
// a problem per se, but it can lead to stalls in the
// pipeline).
if (result.isFullRecord()) {
break;
}
}
BufferBuilder bufferBuilder = requestNewBufferBuilder(targetChannel);
result = serializer.continueWritingWithNextBufferBuilder(bufferBuilder);
}
checkState(!serializer.hasSerializedData(), "All data should be written at once");
if (flushAlways) {
targetPartition.flush(targetChannel);
}
}

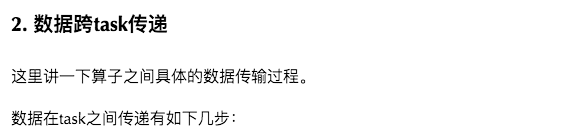

二、数据流转过程
上段讲了各层数据的抽象，这段讲讲数据在各个task之间exchange的过程。

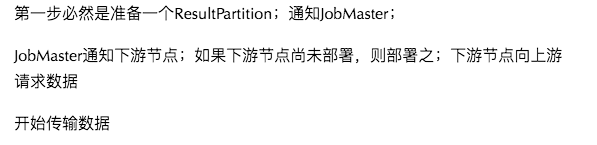

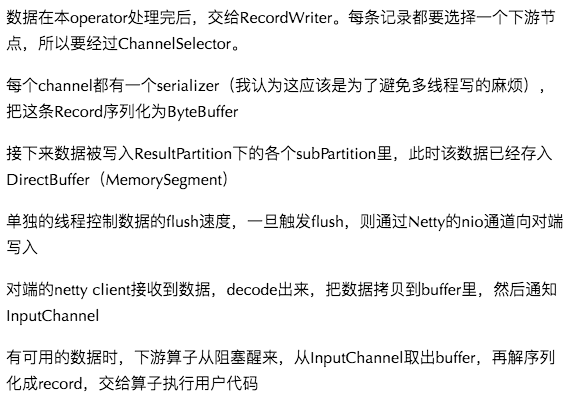

1. 整体过程

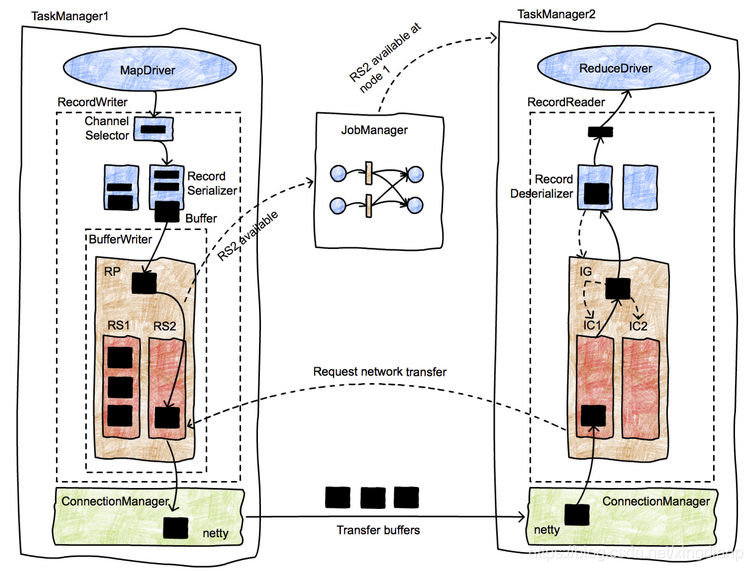

看这张图：

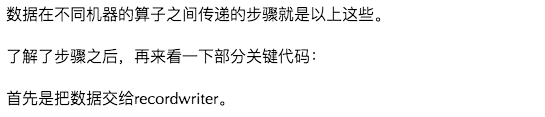

//RecordWriterOutput.java
@Override
public void collect(StreamRecord<OUT> record) {
if (this.outputTag != null) {
// we are only responsible for emitting to the main input
return;
}
//这里可以看到把记录交给了recordwriter
pushToRecordWriter(record);
}然后recordwriter把数据发送到对应的通道。
//RecordWriter.java
public void emit(T record) throws IOException, InterruptedException {
//channelselector登场了
for (int targetChannel : channelSelector.selectChannels(record, numChannels)) {
sendToTarget(record, targetChannel);
}
}
private void sendToTarget(T record, int targetChannel) throws IOException, InterruptedException {
//选择序列化器并序列化数据
RecordSerializer<T> serializer = serializers[targetChannel];
SerializationResult result = serializer.addRecord(record);
while (result.isFullBuffer()) {
if (tryFinishCurrentBufferBuilder(targetChannel, serializer)) {
// If this was a full record, we are done. Not breaking
// out of the loop at this point will lead to another
// buffer request before breaking out (that would not be
// a problem per se, but it can lead to stalls in the
// pipeline).
if (result.isFullRecord()) {
break;
}
}
BufferBuilder bufferBuilder = requestNewBufferBuilder(targetChannel);
//写入channel
result = serializer.continueWritingWithNextBufferBuilder(bufferBuilder);
}
checkState(!serializer.hasSerializedData(), "All data should be written at once");

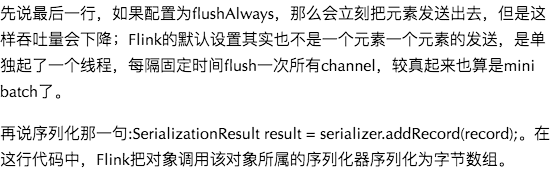

if (flushAlways) {
targetPartition.flush(targetChannel);
}
}接下来是把数据推给底层设施（netty）的过程：
//ResultPartition.java
@Override
public void flushAll() {
for (ResultSubpartition subpartition : subpartitions) {
subpartition.flush();
}
}
//PartitionRequestQueue.java
void notifyReaderNonEmpty(final NetworkSequenceViewReader reader) {
//这里交给了netty server线程去推
ctx.executor().execute(new Runnable() {
@Override
public void run() {
ctx.pipeline().fireUserEventTriggered(reader);
}
});
}netty相关的部分：
//AbstractChannelHandlerContext.java
public ChannelHandlerContext fireUserEventTriggered(final Object event) {
if (event == null) {
throw new NullPointerException("event");
} else {
final AbstractChannelHandlerContext next = this.findContextInbound();
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeUserEventTriggered(event);
} else {
executor.execute(new OneTimeTask() {
public void run() {
next.invokeUserEventTriggered(event);
}
});
}
return this;
}
}最后真实的写入：
//PartittionRequesetQueue.java
private void enqueueAvailableReader(final NetworkSequenceViewReader reader) throws Exception {
if (reader.isRegisteredAsAvailable() || !reader.isAvailable()) {
return;
}
// Queue an available reader for consumption. If the queue is empty,
// we try trigger the actual write. Otherwise this will be handled by
// the writeAndFlushNextMessageIfPossible calls.
boolean triggerWrite = availableReaders.isEmpty();
registerAvailableReader(reader);
if (triggerWrite) {
writeAndFlushNextMessageIfPossible(ctx.channel());
}
}
private void writeAndFlushNextMessageIfPossible(final Channel channel) throws IOException {
......
next = reader.getNextBuffer();
if (next == null) {
if (!reader.isReleased()) {
continue;
}
markAsReleased(reader.getReceiverId());
Throwable cause = reader.getFailureCause();
if (cause != null) {
ErrorResponse msg = new ErrorResponse(
new ProducerFailedException(cause),
reader.getReceiverId());
ctx.writeAndFlush(msg);
}
} else {
// This channel was now removed from the available reader queue.
// We re-add it into the queue if it is still available
if (next.moreAvailable()) {
registerAvailableReader(reader);
}
BufferResponse msg = new BufferResponse(
next.buffer(),
reader.getSequenceNumber(),
reader.getReceiverId(),
next.buffersInBacklog());
if (isEndOfPartitionEvent(next.buffer())) {
reader.notifySubpartitionConsumed();
reader.releaseAllResources();
markAsReleased(reader.getReceiverId());
}
// Write and flush and wait until this is done before
// trying to continue with the next buffer.
channel.writeAndFlush(msg).addListener(writeListener);
return;
}
......
}

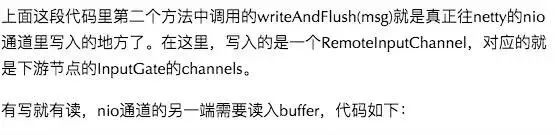

//CreditBasedPartitionRequestClientHandler.java
private void decodeMsg(Object msg) throws Throwable {
final Class<?> msgClazz = msg.getClass();
// ---- Buffer --------------------------------------------------------
if (msgClazz == NettyMessage.BufferResponse.class) {
NettyMessage.BufferResponse bufferOrEvent = (NettyMessage.BufferResponse) msg;
RemoteInputChannel inputChannel = inputChannels.get(bufferOrEvent.receiverId);
if (inputChannel == null) {
bufferOrEvent.releaseBuffer();
cancelRequestFor(bufferOrEvent.receiverId);
return;
}
decodeBufferOrEvent(inputChannel, bufferOrEvent);
}
......
}

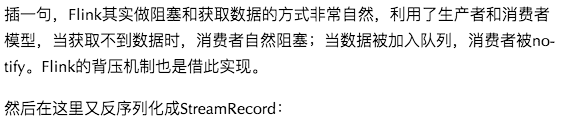

//StreamElementSerializer.java
public StreamElement deserialize(DataInputView source) throws IOException {
int tag = source.readByte();
if (tag == TAG_REC_WITH_TIMESTAMP) {
long timestamp = source.readLong();
return new StreamRecord<T>(typeSerializer.deserialize(source), timestamp);
}
else if (tag == TAG_REC_WITHOUT_TIMESTAMP) {
return new StreamRecord<T>(typeSerializer.deserialize(source));
}
else if (tag == TAG_WATERMARK) {
return new Watermark(source.readLong());
}
else if (tag == TAG_STREAM_STATUS) {
return new StreamStatus(source.readInt());
}
else if (tag == TAG_LATENCY_MARKER) {
return new LatencyMarker(source.readLong(), new OperatorID(source.readLong(), source.readLong()), source.readInt());
}
else {
throw new IOException("Corrupt stream, found tag: " + tag);
}
}然后再次在StreamInputProcessor.processInput()循环中得到处理。
至此，数据在跨jvm的节点之间的流转过程就讲完了。
三、Credit漫谈

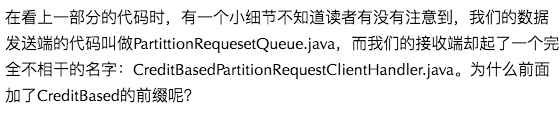

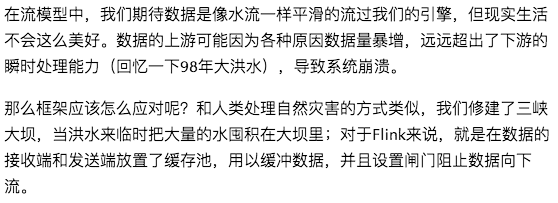

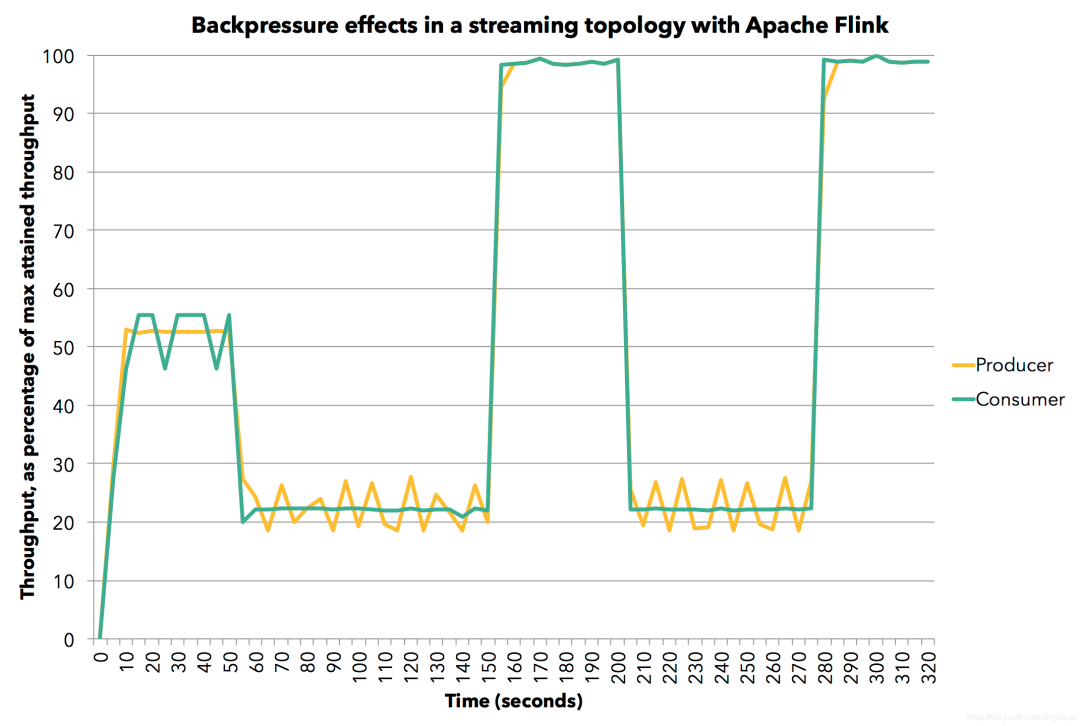

1. 背压问题

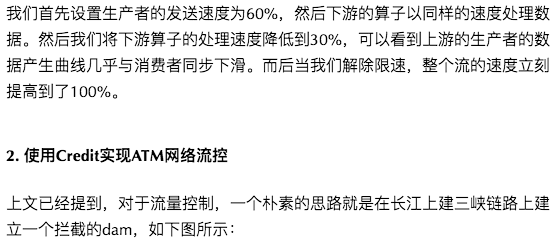

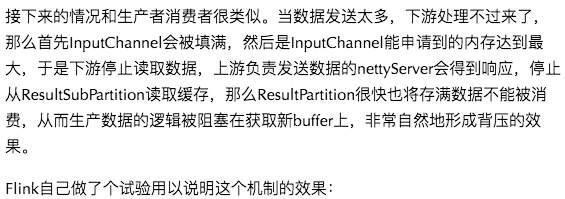

那么Flink又是如何处理背压的呢？答案也是靠这些缓冲池。

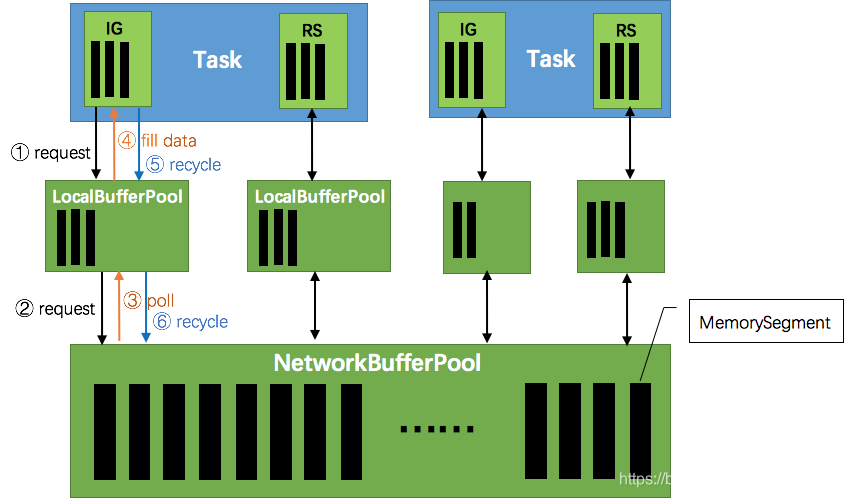

这张图说明了Flink在生产和消费数据时的大致情况。ResultPartition和InputGate在输出和输入数据时，都要向NetworkBufferPool申请一块MemorySegment作为缓存池。

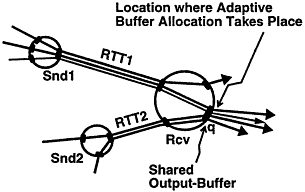

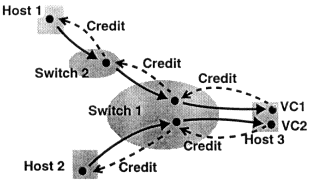

基于Credit的流控就是这样一种建立在信用（消费数据的能力)上的，面向每个虚链路（而非端到端的）流模型，如下图所示：

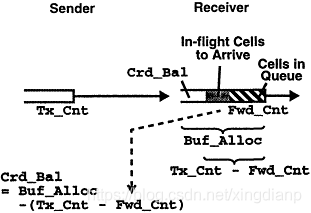

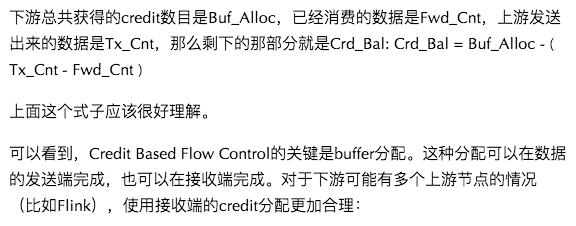

首先，下游会向上游发送一条credit message，用以通知其目前的信用（可联想信用卡的可用额度），然后上游会根据这个信用消息来决定向下游发送多少数据。当上游把数据发送给下游时，它就从下游的信用卡上划走相应的额度（credit balance）：

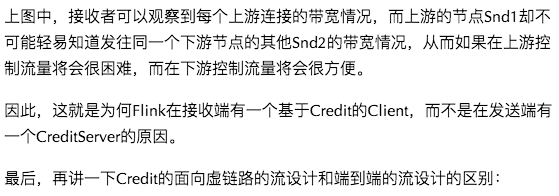

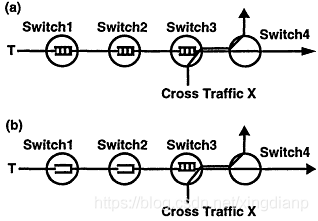

如上图所示，a是面向连接的流设计，b是端到端的流设计。其中，a的设计使得当下游节点3因某些情况必须缓存数据暂缓处理时，每个上游节点（1和2）都可以利用其缓存保存数据；而端到端的设计b里，只有节点3的缓存才可以用于保存数据（读者可以从如何实现上想想为什么）。
