Spring Boot 项目基本框架

今天不太想写代码，于是整理了一个简单入门项目的基本结构，希望给想刚入门的人一些帮助

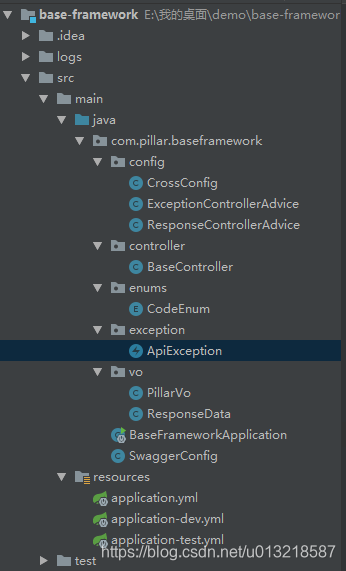

话不多说，先看项目依赖和项目结构

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>2.0.1</version>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.2.6.RELEASE</version>
            </plugin>
        </plugins>
    </build>

一、项目依赖

该项目创建方式是，使用start.aliyun.com基础模版创建，阿里刚开放的spring cloud生态，里面有非常多的组件，本工程简单，我就没有引用，大家感兴趣可以去了解学习下。

二、项目配置了统一参数校验

/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 14:55
 */
@ApiModel("测试返回对象")
@Data
@ToString
public class PillarVo implements Serializable {
    @Range(min = 6,max = 30,message = "年龄范围6-30")
    @ApiModelProperty(value = "年龄",required = true,name = "age")
    private int age;
    @ApiModelProperty(value = "密码",required = true,name = "password")
    @Size(min = 8,max = 24,message = "密码在长度8-24")
    @Pattern(regexp = "^(?=.*[a-z])(?=.*[A-Z])(?=.*\\d)[a-zA-Z\\d]{8,24}$",message = "至8至24个字符，至少1个大写字母，1个小写字母和1个数字")
    private String password;
    @NotNull(message = "姓名不能为空")
    @ApiModelProperty(value = "姓名",required = true,name = "name")
    private String name;
    @ApiModelProperty("附加属性")
    private String head;
}

/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 14:14
 */
@RestController
@Api(tags = "测试")
@AllArgsConstructor
@Slf4j
public class BaseController {

    private final ObjectMapper objectMapper;

    @ApiOperation("新增用户信息")
    @PostMapping("save")
    public PillarVo save(@RequestBody @Valid PillarVo pillarVo) throws JsonProcessingException {
        log.info("pillar json=[]",objectMapper.writeValueAsString(pillarVo));
        log.info("pillar=[]",pillarVo);
        return pillarVo;
    }

}

 @ExceptionHandler(MethodArgumentNotValidException.class)
    public ResponseData<String> methodArgumentNotValidExceptionHandler(MethodArgumentNotValidException e) {
        return new ResponseData<>(CodeEnum.PARAM_ERROR.getCode(),e.getBindingResult().getAllErrors().get(0).getDefaultMessage());
    }

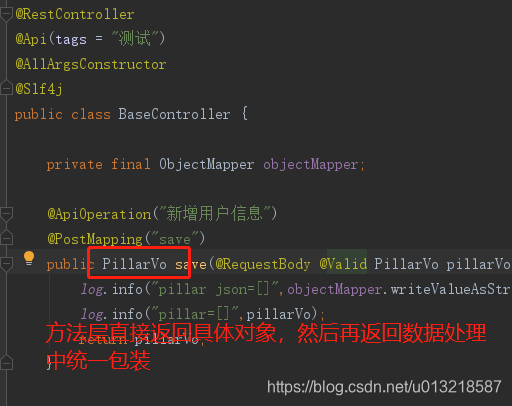

三、统一返回数据处理



/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 14:14
 */
@RestControllerAdvice(basePackages = {"com.pillar.baseframework.controller"})
public class ResponseControllerAdvice implements ResponseBodyAdvice<Object> {

    @Autowired
    private ObjectMapper objectMapper;

    @Override
    public boolean supports(MethodParameter returnType, Class<? extends HttpMessageConverter<?>> aClass) {
        return !returnType.getParameterType().equals(ResponseData.class);
    }

    @Override
    public Object beforeBodyWrite(Object data, MethodParameter returnType, MediaType mediaType, Class<? extends HttpMessageConverter<?>> aClass, ServerHttpRequest request, ServerHttpResponse response) {

        return new ResponseData<>(data);
    }
}



四、自定义异常处理

自定义ApiException，规范了返回数据格式的一致性

/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 15:13
 */
@Getter
public class ApiException extends RuntimeException {

    private int code;
    private String message;

    public ApiException(int code, String message) {
        this.code = code;
        this.message = message;
    }

    public ApiException(String message) {
        this.code = 500;
        this.message = message;
    }

    public ApiException(CodeEnum codeEnum) {
        this.code = codeEnum.getCode();
        this.message = codeEnum.getMessage();
    }
}

 @ExceptionHandler(ApiException.class)
    public ResponseData apiExceptionHandler(ApiException e) {
        return new ResponseData(e.getCode(),e.getMessage());
    }

五、跨域问题处理

/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 14:14
 */
@Configuration
public class CrossConfig {
    private CorsConfiguration buildConfig() {
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        corsConfiguration.addAllowedOrigin("*");
        corsConfiguration.addAllowedHeader("*");
        corsConfiguration.addAllowedMethod("*");
        return corsConfiguration;
    }

    @Bean
    public CorsFilter corsFilter() {
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", buildConfig());
        return new CorsFilter(source);
    }
}

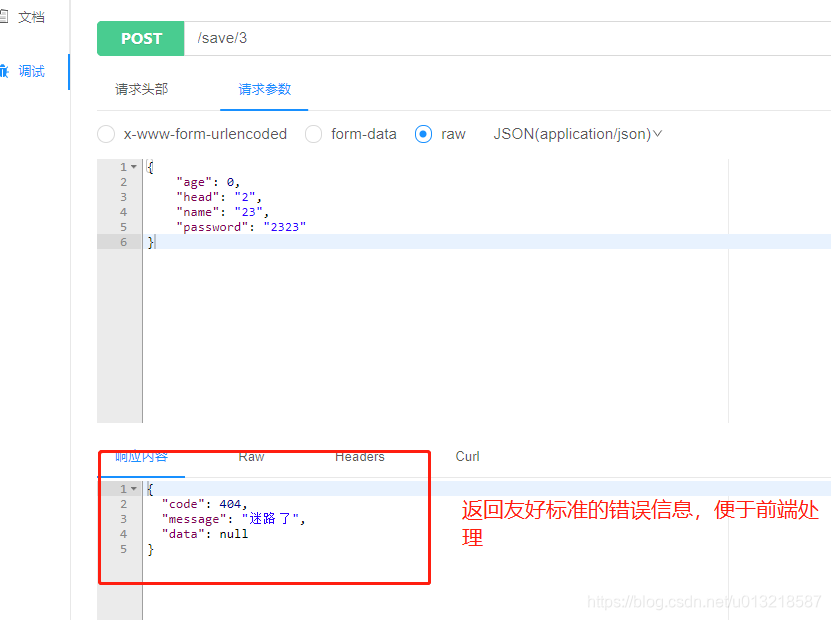

六、404访问处理

/**
 * @author pillar
 * @desc
 * @email: 347637454@qq.com
 * @createDate 2020/04/17 14:14
 */
@Controller
public class NotFound404 implements ErrorController {

    @Override
    public String getErrorPath() {
        return "/error";
    }

    @RequestMapping(value = {"/error"})
    @ResponseBody
    public ResponseData<String> error() {
      return new ResponseData<>(404,"迷路了");
    }
}

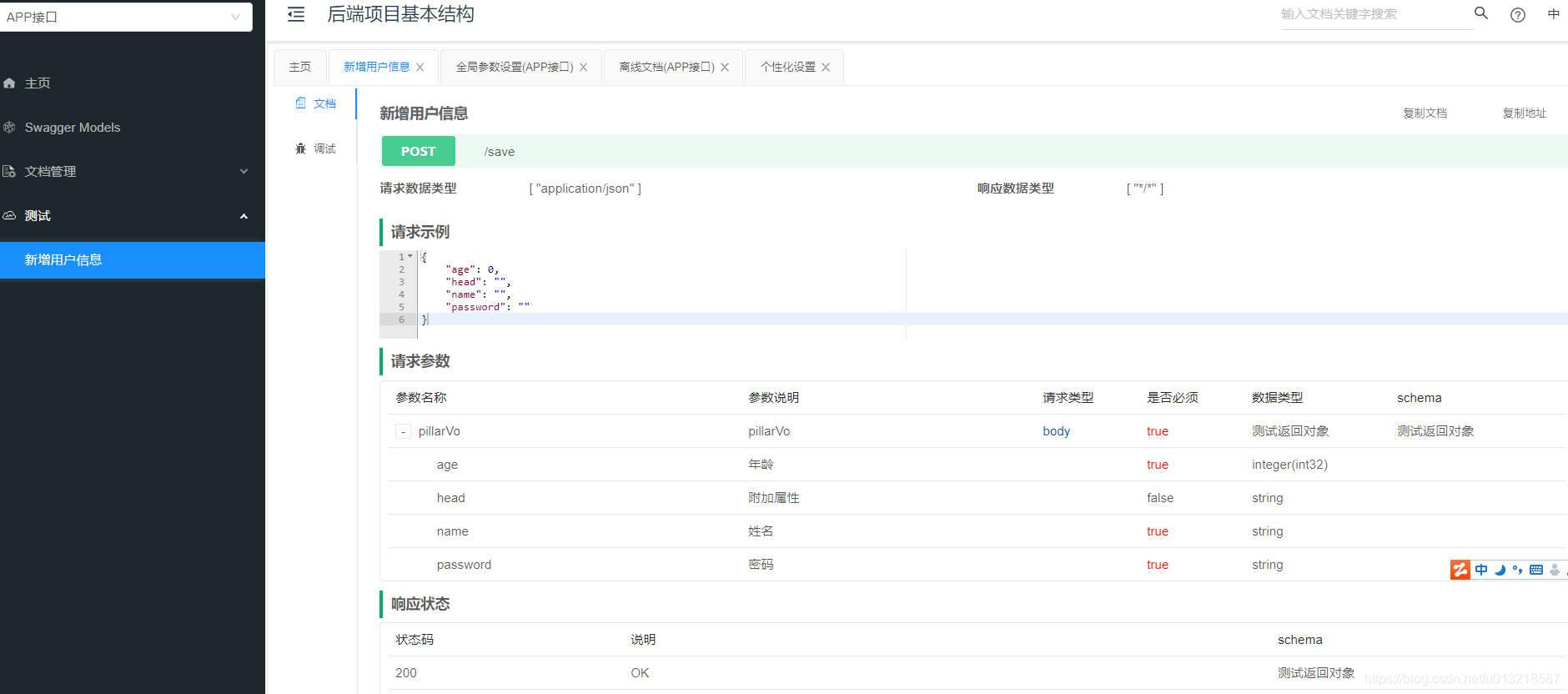

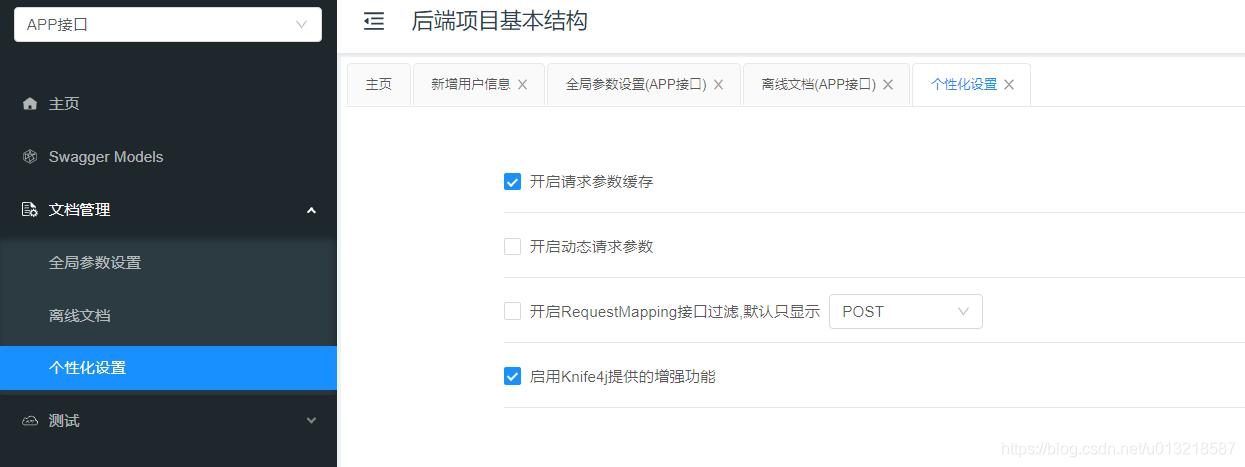

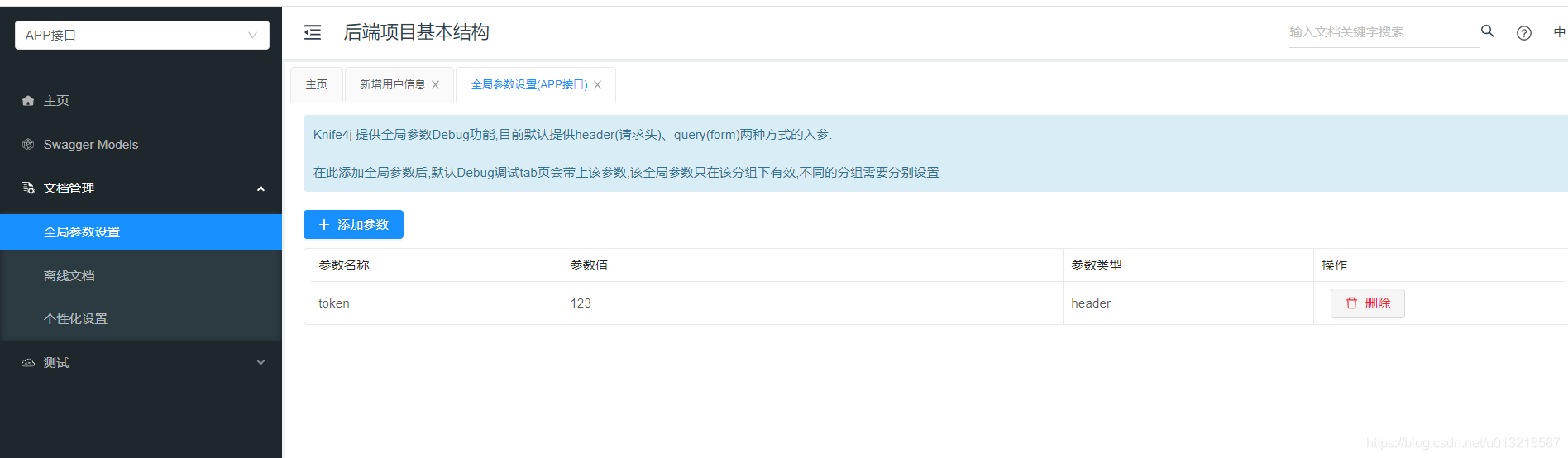

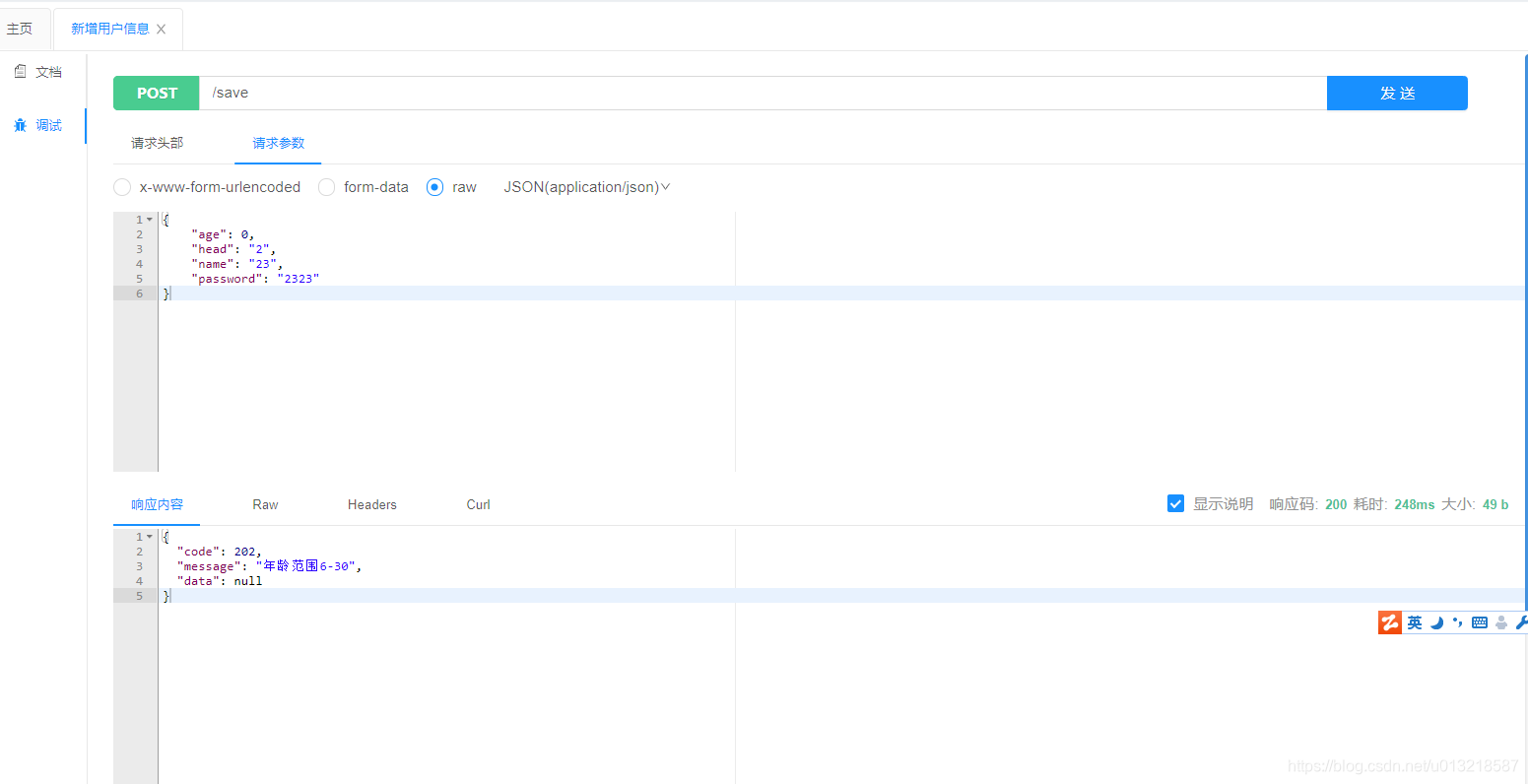

七、knife4j的使用

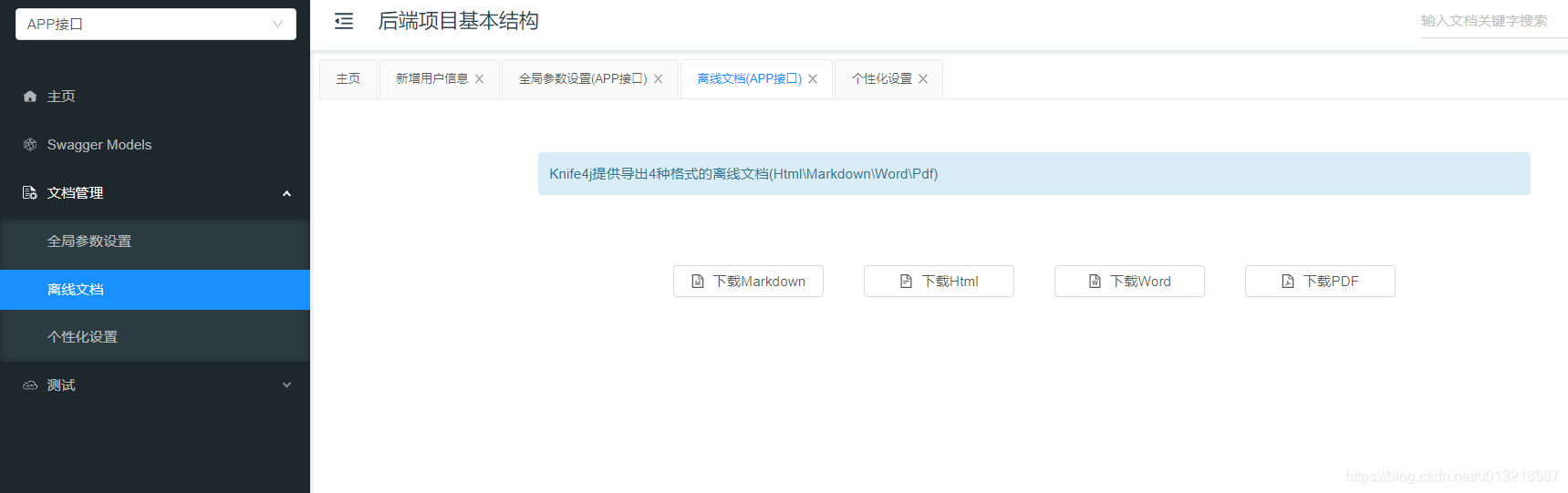

knife4j完全兼容swagger,在swagger基础上，开发出来一套更美丽的皮肤，以及其他高级功能，比如直接导出文档到html，pdf，markdown等等，非常好用

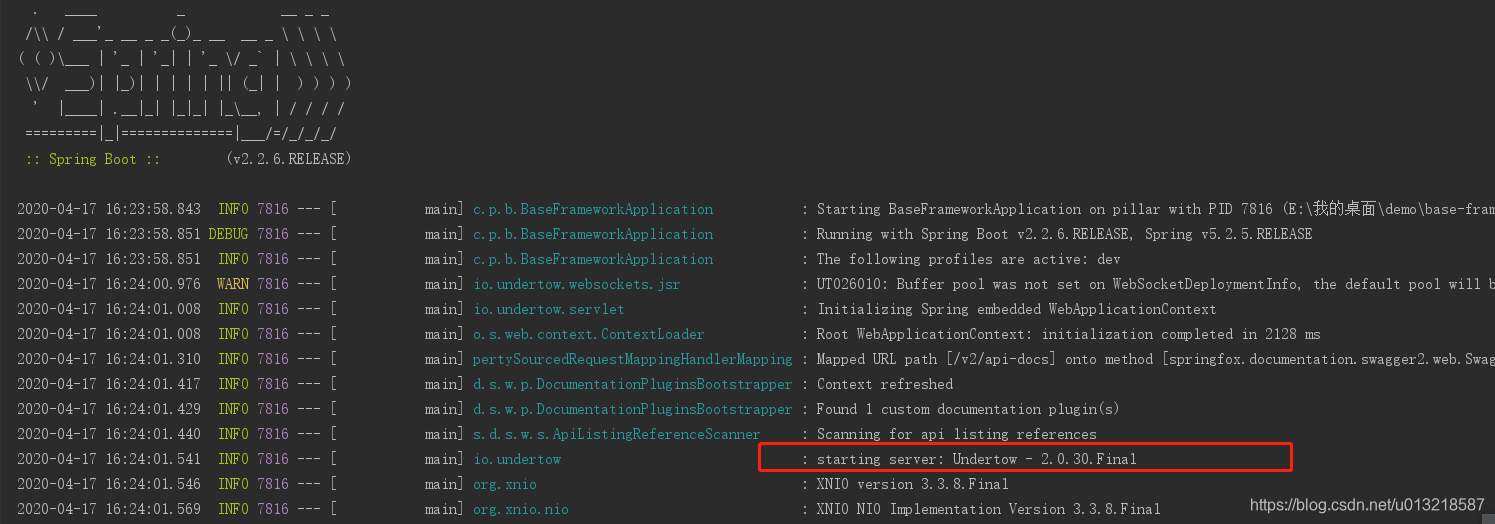

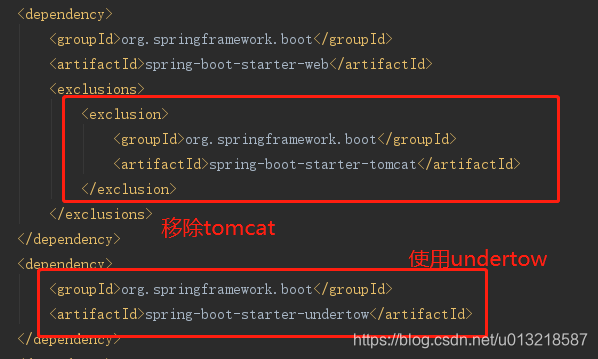

八、弃用tomcat容器，使用更高性能的undertown或者netty

对于刚入门的你，如果对你有所帮助，希望来个小爱心，谢谢

demo地址https://gitee.com/yaochengzhu/base-framework.git
