Spark CacheManager原理与源码分析

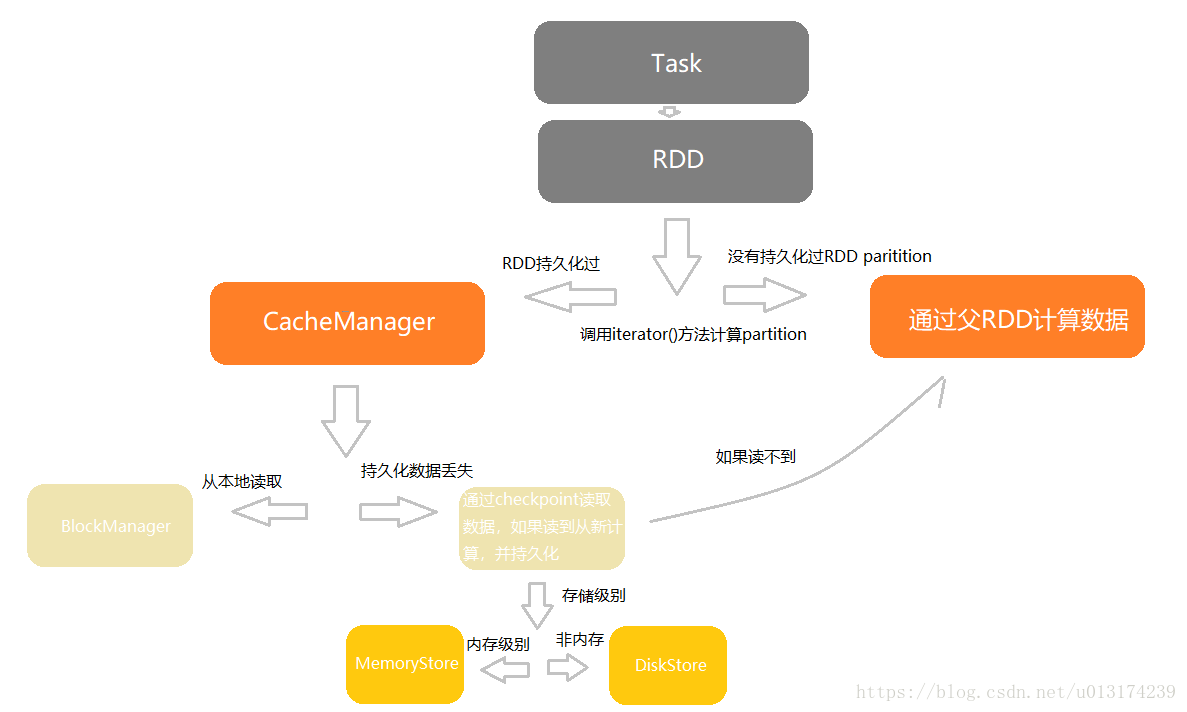

1、CacheManager在计算中位置与原理示意图

2、源码解析

RDD.scala

  final def iterator(split: Partition, context: TaskContext): Iterator[T] = {
    // storageLevel 不等于 NONE， 说明之前的RDD持久化过
    if (storageLevel != StorageLevel.NONE) {
      // 使用cacheManager尝试获取数据
      SparkEnv.get.cacheManager.getOrCompute(this, split, context, storageLevel)
    } else {
      computeOrReadCheckpoint(split, context)
    }
  }

  private[spark] def computeOrReadCheckpoint(split: Partition, context: TaskContext): Iterator[T] =
  {
    if (isCheckpointedAndMaterialized) {
      firstParent[T].iterator(split, context)
    } else {
      compute(split, context)
    }
  }

CacheManager.scala

 def getOrCompute[T](
      rdd: RDD[T],
      partition: Partition,
      context: TaskContext,
      storageLevel: StorageLevel): Iterator[T] = {

    val key = RDDBlockId(rdd.id, partition.index)
    logDebug(s"Looking for partition $key")

    // 使用BlockManager获取数据
    blockManager.get(key) match {

        // 如果获取到了，直接返回
      case Some(blockResult) =>
        // Partition is already materialized, so just return its values
        val existingMetrics = context.taskMetrics
          .getInputMetricsForReadMethod(blockResult.readMethod)
        existingMetrics.incBytesRead(blockResult.bytes)

        val iter = blockResult.data.asInstanceOf[Iterator[T]]
        new InterruptibleIterator[T](context, iter) {
          override def next(): T = {
            existingMetrics.incRecordsRead(1)
            delegate.next()
          }
        }

        // 虽然rdd持久化过，但是获取不到数据
      case None =>
        // Acquire a lock for loading this partition
        // If another thread already holds the lock, wait for it to finish return its results
        // 在调一次BlockManager的方法，获取数据
        val storedValues = acquireLockForPartition[T](key)
        if (storedValues.isDefined) {
          return new InterruptibleIterator[T](context, storedValues.get)
        }

        // Otherwise, we have to load the partition ourselves
        try {
          logInfo(s"Partition $key not found, computing it")
          // 上面代码还是没有获取到数据，如果rdd checkpoint过，就去checkpoint目录获取
          // 如果没有设置过checkpoint或者checkpoint没有获取到数据，就得父rdd计算
          val computedValues = rdd.computeOrReadCheckpoint(partition, context)

          // If the task is running locally, do not persist the result
          if (context.isRunningLocally) {
            return computedValues
          }

          // Otherwise, cache the values and keep track of any updates in block statuses
          val updatedBlocks = new ArrayBuffer[(BlockId, BlockStatus)]

          // 代码走到这里，说明rdd设置过持久化级别的
          // 由于某些原因，数据丢失，将从checkpoint或者重新计算的数据，持久化一份
          val cachedValues = putInBlockManager(key, computedValues, storageLevel, updatedBlocks)
          val metrics = context.taskMetrics
          val lastUpdatedBlocks = metrics.updatedBlocks.getOrElse(Seq[(BlockId, BlockStatus)]())
          metrics.updatedBlocks = Some(lastUpdatedBlocks ++ updatedBlocks.toSeq)
          new InterruptibleIterator(context, cachedValues)

        } finally {
          loading.synchronized {
            loading.remove(key)
            loading.notifyAll()
          }
        }
    }
  }

 private def putInBlockManager[T](
      key: BlockId,
      values: Iterator[T],
      level: StorageLevel,
      updatedBlocks: ArrayBuffer[(BlockId, BlockStatus)],
      effectiveStorageLevel: Option[StorageLevel] = None): Iterator[T] = {

    val putLevel = effectiveStorageLevel.getOrElse(level)

    // 持久化级别，没有指定内存
    if (!putLevel.useMemory) {
      /*
       * This RDD is not to be cached in memory, so we can just pass the computed values as an
       * iterator directly to the BlockManager rather than first fully unrolling it in memory.
       */
      updatedBlocks ++= updatedBlocks

      // 调用BlockManager将数据持久化到磁盘
        blockManager.putIterator(key, values, level, tellMaster = true, effectiveStorageLevel)
      blockManager.get(key) match {
        case Some(v) => v.data.asInstanceOf[Iterator[T]]
        case None =>
          logInfo(s"Failure to store $key")
          throw new BlockException(key, s"Block manager failed to return cached value for $key!")
      }
    } else {
      /*
       * This RDD is to be cached in memory. In this case we cannot pass the computed values
       * to the BlockManager as an iterator and expect to read it back later. This is because
       * we may end up dropping a partition from memory store before getting it back.
       *
       * In addition, we must be careful to not unroll the entire partition in memory at once.
       * Otherwise, we may cause an OOM exception if the JVM does not have enough space for this
       * single partition. Instead, we unroll the values cautiously, potentially aborting and
       * dropping the partition to disk if applicable.
       */

      // 持久化级别，指定为内存级别
      // 尝试将数据写入内存
      blockManager.memoryStore.unrollSafely(key, values, updatedBlocks) match {
        case Left(arr) =>
          // We have successfully unrolled the entire partition, so cache it in memory
          updatedBlocks ++=
            blockManager.putArray(key, arr, level, tellMaster = true, effectiveStorageLevel)
          arr.iterator.asInstanceOf[Iterator[T]]
        case Right(it) =>
          // There is not enough space to cache this partition in memory
          val returnValues = it.asInstanceOf[Iterator[T]]

          // 如果某些数据，无法写入磁盘，判断存储级别
          // 如果有磁盘级别，就将数写入磁盘
          if (putLevel.useDisk) {
            logWarning(s"Persisting partition $key to disk instead.")
            val diskOnlyLevel = StorageLevel(useDisk = true, useMemory = false,
              useOffHeap = false, deserialized = false, putLevel.replication)
            putInBlockManager[T](key, returnValues, level, updatedBlocks, Some(diskOnlyLevel))
          } else {
            returnValues
          }
      }
    }
  }

BlockManager.scala

 def get(blockId: BlockId): Option[BlockResult] = {

    // 优先从本地获取
    val local = getLocal(blockId)
    if (local.isDefined) {
      logInfo(s"Found block $blockId locally")
      return local
    }

    // 然后，再从远程获取
    val remote = getRemote(blockId)
    if (remote.isDefined) {
      logInfo(s"Found block $blockId remotely")
      return remote
    }
    None
  }

MemoryStore.scala

def unrollSafely(
      blockId: BlockId,
      values: Iterator[Any],
      droppedBlocks: ArrayBuffer[(BlockId, BlockStatus)])
    : Either[Array[Any], Iterator[Any]] = {

    // Number of elements unrolled so far
    var elementsUnrolled = 0
    // Whether there is still enough memory for us to continue unrolling this block
    var keepUnrolling = true
    // Initial per-task memory to request for unrolling blocks (bytes). Exposed for testing.
    val initialMemoryThreshold = unrollMemoryThreshold
    // How often to check whether we need to request more memory
    val memoryCheckPeriod = 16
    // Memory currently reserved by this task for this particular unrolling operation
    var memoryThreshold = initialMemoryThreshold
    // Memory to request as a multiple of current vector size
    val memoryGrowthFactor = 1.5
    // Previous unroll memory held by this task, for releasing later (only at the very end)
    val previousMemoryReserved = currentUnrollMemoryForThisTask
    // Underlying vector for unrolling the block
    var vector = new SizeTrackingVector[Any]

    // Request enough memory to begin unrolling
    keepUnrolling = reserveUnrollMemoryForThisTask(blockId, initialMemoryThreshold, droppedBlocks)

    if (!keepUnrolling) {
      logWarning(s"Failed to reserve initial memory threshold of " +
        s"${Utils.bytesToString(initialMemoryThreshold)} for computing block $blockId in memory.")
    }

    // Unroll this block safely, checking whether we have exceeded our threshold periodically
    try {

      // 反复判断是否还有数据需要写入内存
      while (values.hasNext && keepUnrolling) {
        vector += values.next()
        if (elementsUnrolled % memoryCheckPeriod == 0) {
          // If our vector's size has exceeded the threshold, request more memory
          val currentSize = vector.estimateSize()
          // 判断内存空间大小，如果不够，就清理内存
          if (currentSize >= memoryThreshold) {
            val amountToRequest = (currentSize * memoryGrowthFactor - memoryThreshold).toLong
            keepUnrolling = reserveUnrollMemoryForThisTask(
              blockId, amountToRequest, droppedBlocks)
            // New threshold is currentSize * memoryGrowthFactor
            memoryThreshold += amountToRequest
          }
        }
        elementsUnrolled += 1
      }

      if (keepUnrolling) {
        // We successfully unrolled the entirety of this block
        Left(vector.toArray)
      } else {
        // We ran out of space while unrolling the values for this block
        logUnrollFailureMessage(blockId, vector.estimateSize())
        Right(vector.iterator ++ values)
      }

    } finally {
      // If we return an array, the values returned here will be cached in `tryToPut` later.
      // In this case, we should release the memory only after we cache the block there.
      if (keepUnrolling) {
        val taskAttemptId = currentTaskAttemptId()
        memoryManager.synchronized {
          // Since we continue to hold onto the array until we actually cache it, we cannot
          // release the unroll memory yet. Instead, we transfer it to pending unroll memory
          // so `tryToPut` can further transfer it to normal storage memory later.
          // TODO: we can probably express this without pending unroll memory (SPARK-10907)
          val amountToTransferToPending = currentUnrollMemoryForThisTask - previousMemoryReserved
          unrollMemoryMap(taskAttemptId) -= amountToTransferToPending
          pendingUnrollMemoryMap(taskAttemptId) =
            pendingUnrollMemoryMap.getOrElse(taskAttemptId, 0L) + amountToTransferToPending
        }
      } else {
        // Otherwise, if we return an iterator, we can only release the unroll memory when
        // the task finishes since we don't know when the iterator will be consumed.
      }
    }
  }
