记录一个小bug

  cuda教程里有一个Julia图像生成案例，自己用cuda和opencv模仿写了一下，发现结构体cuComplex的一处写法错了。

    原文写法是：

struct cuComplex

{

float r;

float i;

cuComplex(float a, float b)：r(a), i(b) {}





};

    现在正确写法是：

struct cuComplex

{

float r;

float i;

__device__ cuComplex(float a, float b) {

r = a;

i = b;

}



};

    不同之处在于初始化方法前要加__device__，指明是要在显卡上运行的，然后要用改进后方法来进行初始化。

    此外，bitmap自己改为opencv的Mat来代替，并添加了随机数，实时生成不同效果。这里不建议使用cuda的随机数生成器，太麻烦了。自己投了懒，在cpu上生成随机数后，送到gpu里进行处理。

    完整代码如下：

#include "cuda_runtime.h"

#include "device_launch_parameters.h"



#include <opencv2/opencv.hpp>



#include <cstdlib>

#include <ctime>



#define DIM 512



struct cuComplex

{

float r;

float i;

__device__ cuComplex(float a, float b) {

r = a;

i = b;

}



__device__ float magnitude2(void) {

return r*r + i*i;

}



 __device__ cuComplex operator*(const cuComplex&a) {

return cuComplex(r*a.r-i*a.i, i*a.r+r*a.i);

}



__device__ cuComplex operator+(const cuComplex&a) {

return cuComplex(r+a.r, i+a.i);

}

};



__device__ int julia(int x, int y, double* pd) {





const float scale = 1.5;

float jy = scale*(float)(DIM / 2 - y) / (DIM / 2);

float jx = scale*(float)(DIM / 2 - x) / (DIM / 2);

//cuComplex c(-0.8, 0.156);

cuComplex c(pd[0], pd[1]);

cuComplex a(jx, jy);



for (int i = 0; i < 200; i++) {

a = a*a + c;

if (a.magnitude2() > 1000)

return 0;

}

return 1;

}



__global__ void kernel(uchar *ptr, double* pd, uchar* pixel) {

int x = blockIdx.x; //x坐标

int y = blockIdx.y;//y坐标

int offset = x + y*gridDim.x;//偏移



int juliaValue = julia(x, y, pd);

ptr[offset * 4 + 0] = 255 * juliaValue;

ptr[offset * 4 + 1] = pixel[0];

ptr[offset * 4 + 2] = pixel[1];

ptr[offset * 4 + 3] = pixel[2];

}



int main() {

std::srand((int)time(0));

cv::Mat bitmap(DIM, DIM, CV_8UC4);

cv::namedWindow("", cv::WINDOW_NORMAL);

dim3 grid(DIM, DIM);



while (true) {

uchar* data = (uchar*)malloc(DIM*DIM * 4 * sizeof(uchar));

uchar* dev_bitmap;

double* pd, *dev_pd;

uchar* pixel, *dev_pixel;

pd = (double*)malloc(2 * sizeof(double));

pd[0] = -rand() / double(RAND_MAX);

pd[1] = rand() / double(RAND_MAX);

pixel = (uchar*)malloc(3 * sizeof(uchar));

pixel[0] = (rand() % 255);

pixel[1] = (rand() % 255);

pixel[2] = (rand() % 255);

cudaMalloc((void**)&dev_bitmap, DIM*DIM * 4 * sizeof(uchar));

cudaMalloc((void**)&dev_pd, 2 * sizeof(double));

cudaMalloc((void**)&dev_pixel, 3 * sizeof(uchar));

cudaMemcpy(dev_pd, pd, 2 * sizeof(double), cudaMemcpyHostToDevice);

cudaMemcpy(dev_pixel, pixel, 3 * sizeof(uchar), cudaMemcpyHostToDevice);

kernel << <grid, 1 >> > (dev_bitmap, dev_pd, dev_pixel);

cudaMemcpy(data, dev_bitmap, DIM*DIM * 4 * sizeof(uchar), cudaMemcpyDeviceToHost);

bitmap.data = data;

cv::imshow("", bitmap);

free(pd); pd = NULL;

free(pixel); pixel = NULL;

free(data); data = NULL;

cudaFree(dev_pd);

cudaFree(dev_pixel);

cudaFree(dev_bitmap);

cv::waitKey(2000);

}



return 0;

}

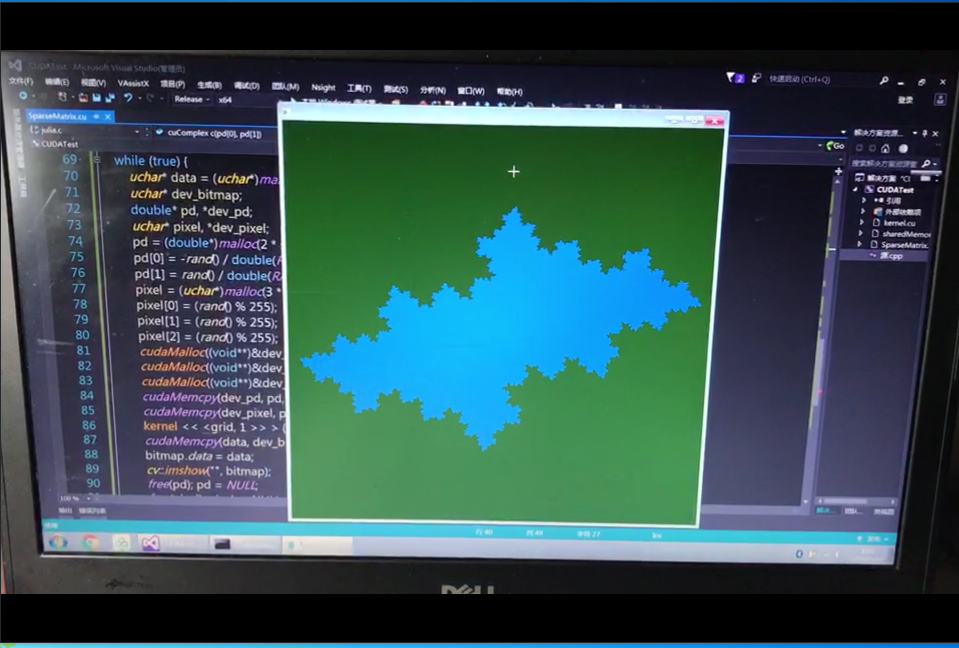

效果：
