QVBoxLayout 垂直布局，加入该布局的控件在垂直方向上按加入先后顺序排列。

QHBoxLayout 水平布局，加入该布局的控件在水平方向上按加入先后顺序排列。

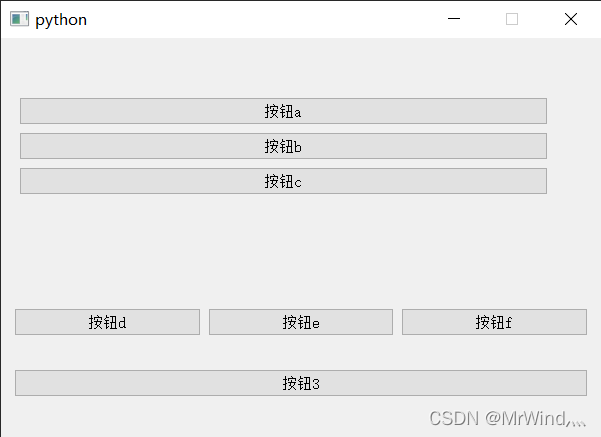

例子1

import sys
from PySide2.QtWidgets import QApplication, QVBoxLayout, QHBoxLayout, QWidget, QPushButton


class LayoutWnd(QWidget):
    def __init__(self, parent=None):
        super(LayoutWnd, self).__init__(parent)
        self.setFixedSize(600, 400)

        v_layout = QVBoxLayout()  #
        v1_layout = QVBoxLayout()  #
        h_layout = QHBoxLayout()  #

        v1_layout.addWidget(QPushButton('按钮a', self))  #
        v1_layout.addWidget(QPushButton('按钮b', self))
        v1_layout.addWidget(QPushButton('按钮c', self))

        h_layout.addWidget(QPushButton('按钮d', self))  #
        h_layout.addWidget(QPushButton('按钮e', self))
        h_layout.addWidget(QPushButton('按钮f', self))

        v_layout.addLayout(v1_layout)  #
        v_layout.addLayout(h_layout)   #
        v_layout.addWidget(QPushButton("按钮3", self))   #

        self.setLayout(v_layout)  #

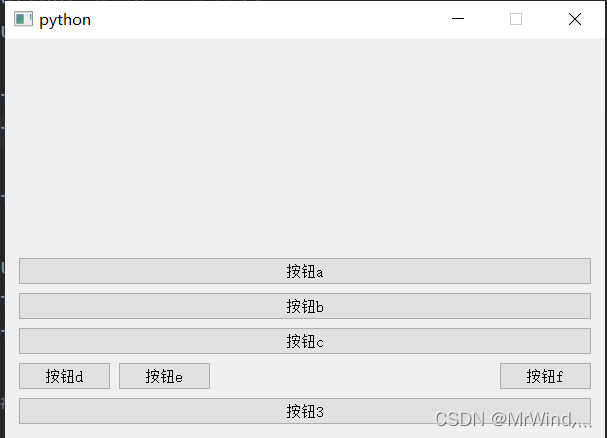

例子2（addStretch）

class LayoutWnd(QWidget):
    def __init__(self, parent=None):
        super(LayoutWnd, self).__init__(parent)
        self.setFixedSize(600, 400)

        v_layout = QVBoxLayout()
        v1_layout = QVBoxLayout()
        h_layout = QHBoxLayout()

        v1_layout.addStretch(1)  #
        v1_layout.addWidget(QPushButton('按钮a', self))
        v1_layout.addWidget(QPushButton('按钮b', self))
        v1_layout.addWidget(QPushButton('按钮c', self))

        h_layout.addWidget(QPushButton('按钮d', self))
        h_layout.addWidget(QPushButton('按钮e', self))
        h_layout.addStretch(1)  #
        h_layout.addWidget(QPushButton('按钮f', self))

        v_layout.addLayout(v1_layout)
        v_layout.addLayout(h_layout)
        v_layout.addWidget(QPushButton("按钮3", self))

        self.setLayout(v_layout)

例子3（addSpacing, setSpacing）

class LayoutWnd(QWidget):
    def __init__(self, parent=None):
        super(LayoutWnd, self).__init__(parent)
        self.setFixedSize(600, 400)

        v_layout = QVBoxLayout()
        v1_layout = QVBoxLayout()
        h_layout = QHBoxLayout()

        v1_layout.addWidget(QPushButton('按钮a', self))
        v1_layout.addWidget(QPushButton('按钮b', self))
        v1_layout.addSpacing(40)  #
        v1_layout.addWidget(QPushButton('按钮c', self))

        h_layout.addWidget(QPushButton('按钮d', self))
        h_layout.addWidget(QPushButton('按钮e', self))
        h_layout.addWidget(QPushButton('按钮f', self))
        h_layout.setSpacing(40)  #

        v_layout.addLayout(v1_layout)
        v_layout.addLayout(h_layout)
        v_layout.addWidget(QPushButton("按钮3", self))

        self.setLayout(v_layout)

例子4（setContentsMargins）

class LayoutWnd(QWidget):
    def __init__(self, parent=None):
        super(LayoutWnd, self).__init__(parent)
        self.setFixedSize(600, 400)

        v_layout = QVBoxLayout()
        v1_layout = QVBoxLayout()
        h_layout = QHBoxLayout()

        v1_layout.addWidget(QPushButton('按钮a', self))
        v1_layout.addWidget(QPushButton('按钮b', self))
        v1_layout.setContentsMargins(5, 20, 40, 80)  # left, top, right, bottom
        v1_layout.addWidget(QPushButton('按钮c', self))

        h_layout.addWidget(QPushButton('按钮d', self))
        h_layout.addWidget(QPushButton('按钮e', self))
        h_layout.addWidget(QPushButton('按钮f', self))

        v_layout.addLayout(v1_layout)
        v_layout.addLayout(h_layout)
        v_layout.addWidget(QPushButton("按钮3", self))

        self.setLayout(v_layout)

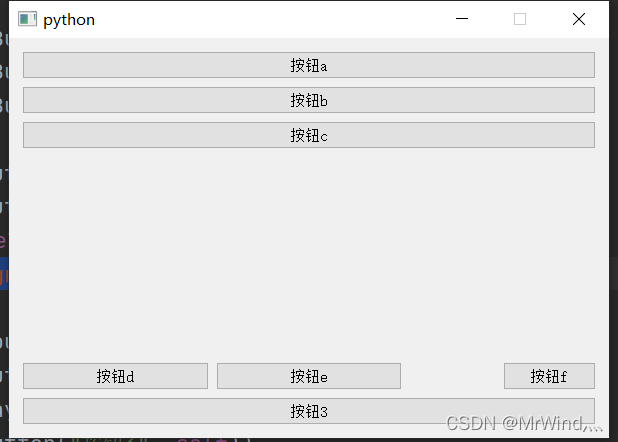

例子5（alignment）

import sys
from PySide2.QtWidgets import QApplication, QVBoxLayout, QHBoxLayout, QWidget, QPushButton
from PySide2.QtCore import Qt


class LayoutWnd(QWidget):
    def __init__(self, parent=None):
        super(LayoutWnd, self).__init__(parent)
        self.setFixedSize(600, 400)

        v_layout = QVBoxLayout()
        v1_layout = QVBoxLayout()
        h_layout = QHBoxLayout()

        v1_layout.addWidget(QPushButton('按钮a', self))
        v1_layout.addWidget(QPushButton('按钮b', self))
        v1_layout.addWidget(QPushButton('按钮c', self))

        h_layout.addWidget(QPushButton('按钮d', self))
        h_layout.addWidget(QPushButton('按钮e', self))
        h_layout.addWidget(QPushButton('按钮f', self), alignment=Qt.AlignRight)  #

        v_layout.addLayout(v1_layout)
        v_layout.addLayout(h_layout)
        v_layout.setAlignment(h_layout, Qt.AlignBottom)   #
        v_layout.addWidget(QPushButton("按钮3", self))

        self.setLayout(v_layout)

上面罗列了常用的一些函数，比如 addStretch, addSpacing, setSpacing, setContentsMargins，可参照对应的界面发生的变化。
