本文档介绍了如何安装OpenStack的Dashboard组件，并提供了修改配置以允许所有客户端访问的步骤。此外，还展示了使用`ip netns`命令查看命名空间以及通过命名空间检查路由器端口的方法，为理解OpenStack网络管理提供帮助。
Dashboard:
- 安装dashboard相关的软件包:
# yum install openstack-dashboard httpd mod_wsgi -y
- 修改dashboard的配置文件：
# /etc/openstack-dashboard/local_settings
* 表示允许所有客户端访问

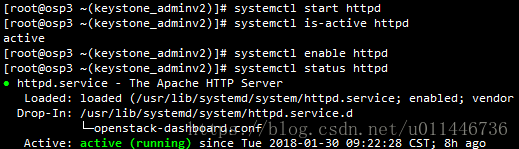

- 重启httpd服务即可。
命名空间：
- # ip netns
|
[root@neutron network-scripts]# ip netns qrouter-8031f9b4-bc30-46f3-9643-7c7a50e94672 qdhcp-199831c6-a8db-483d-9b3a-80cf17aca194 qdhcp-6f55c498-4e45-49f7-9c32-b76c766c5635 |
- 查看路由器上的port：
# ip netns exec qrouter-8031f9b4-bc30-46f3-9643-7c7a50e94672 ip a
|
[root@neutron network-scripts]# ip netns exec qrouter-8031f9b4-bc30-46f3-9643-7c7a50e94672 ip a 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever 11: qg-216b7b23-de: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN link/ether fa:16:3e:fa:7a:5d brd ff:ff:ff:ff:ff:ff inet 192.168.253.21/24 brd 192.168.253.255 scope global qg-216b7b23-de valid_lft forever preferred_lft forever inet6 fe80::f816:3eff:fefa:7a5d/64 scope link valid_lft forever preferred_lft forever 12: qr-26eafc63-d1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN link/ether fa:16:3e:57:83:33 brd ff:ff:ff:ff:ff:ff inet 10.0.0.1/24 brd 10.0.0.255 scope global qr-26eafc63-d1 valid_lft forever preferred_lft forever inet6 fe80::f816:3eff:fe57:8333/64 scope link valid_lft forever preferred_lft forever |
######################################################################################################

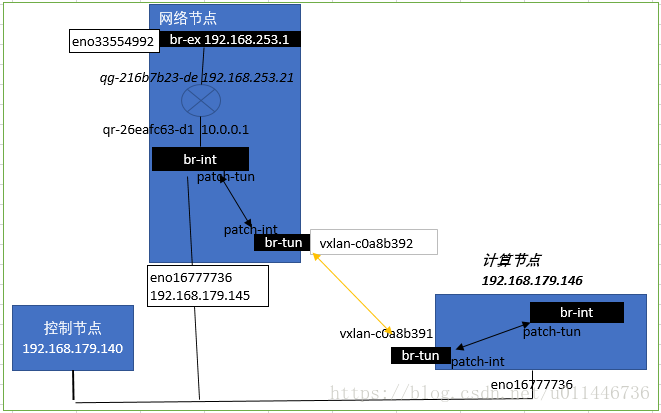

- 网络neutron总结图：
