Datacamp 笔记&代码 Unsupervised Learning in Python 第二章 Visualization with hierarchical clustering &t-SNE

本文介绍了使用Python进行无监督学习的可视化方法,包括使用SciPy进行层次聚类并绘制 dendrogram,以及利用t-SNE进行数据降维并创建散点图。通过实例展示了在谷物数据集和股票价格数据上的应用,揭示了不同链接方法对聚类结果的影响,并探讨了如何从层次聚类中提取簇标签。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

更多原始数据文档和JupyterNotebook
Github: https://github.com/JinnyR/Datacamp_DataScienceTrack_Python

Datacamp track: Data Scientist with Python - Course 23 (2)

Exercise

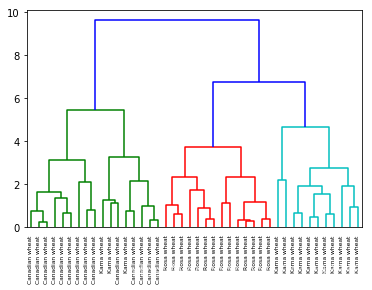

Hierarchical clustering of the grain data

In the video, you learned that the SciPy linkage()function performs hierarchical clustering on an array of samples. Use the linkage() function to obtain a hierarchical clustering of the grain samples, and use dendrogram() to visualize the result. A sample of the grain measurements is provided in the array samples, while the variety of each grain sample is given by the list varieties.

Instruction

  • Import:
    • linkage and dendrogram from scipy.cluster.hierarchy.
    • matplotlib.pyplot as plt.
  • Perform hierarchical clustering on samples using the linkage() function with the method='complete'keyword argument. Assign the result to mergings.
  • Plot a dendrogram using the dendrogram() function on mergings. Specify the keyword arguments labels=varieties, leaf_rotation=90, and leaf_font_size=6.
import pandas as pd

df = pd.read_csv('https://s3.amazonaws.com/assets.datacamp.com/production/course_2234/datasets/seeds.csv', header=None)

sample_indices = [5 * i + 1 for i in range(42)]
df = df.iloc[sample_indices]
samples = df[list(range(7))].values
varieties = list(df[7].map({1: 'Kama wheat', 2: 'Rosa wheat', 3: 'Canadian wheat'}))

# Perform the necessary imports
from scipy.cluster.hierarchy import linkage, dendrogram
import matplotlib.pyplot as plt

# Calculate the linkage: mergings
mergings = linkage(samples, method='complete')

# Plot the dendrogram, using varieties as labels
dendrogram(mergings,
           labels=varieties,
           leaf_rotation=90,
           leaf_font_size=6,
)
plt.show()

[外链图片转存失败(img-pUcfxATn-1564520577114)(output_2_0.png)]

Exercise

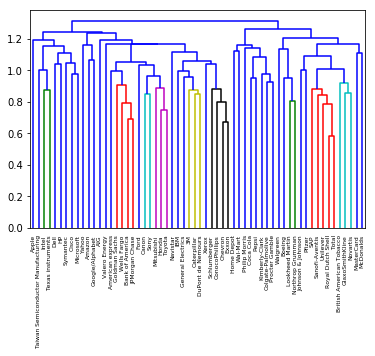

Hierarchies of stocks

In chapter 1, you used k-means clustering to cluster companies according to their stock price movements. Now, you’ll perform hierarchical clustering of the companies. You are given a NumPy array of price movements movements, where the rows correspond to companies, and a list of the company names companies. SciPy hierarchical clustering doesn’t fit into a sklearn pipeline, so you’ll need to use the normalize() function from sklearn.preprocessinginstead of Normalizer.

linkage and dendrogram have already been imported from scipy.cluster.hierarchy, and PyPlot has been imported as plt.

Instruction

  • Import normalize from sklearn.preprocessing.
  • Rescale the price movements for each stock by using the normalize() function on movements.
  • Apply the linkage() function to normalized_movements, using 'complete' linkage, to calculate the hierarchical clustering. Assign the result to mergings.
  • Plot a dendrogram of the hierarchical clustering, using the list companies of company names as the labels. In addition, specify the leaf_rotation=90, and leaf_font_size=6 keyword arguments as you did in the previous exercise.
import pandas as pd

df = pd.read_csv('https://s3.amazonaws.com/assets.datacamp.com/production/course_2072/datasets/company-stock-movements-2010-2015-incl.csv', index_col=0)
companies = list(df.index)
movements = df.values

from matplotlib import pyplot as plt
from scipy.cluster.hierarchy import linkage, dendrogram
# Import normalize
from sklearn.preprocessing import normalize

# Normalize the movements: normalized_movements
normalized_movements = normalize(movements)

# Calculate the linkage: mergings
mergings = linkage(normalized_movements, method='complete')

# Plot the dendrogram
dendrogram(mergings,
           labels=companies,
           leaf_rotation=90,
           leaf_font_size=6)
plt.show()

[外链图片转存失败(img-zWkPyAu8-1564520577116)(output_5_0.png)]

Exercise

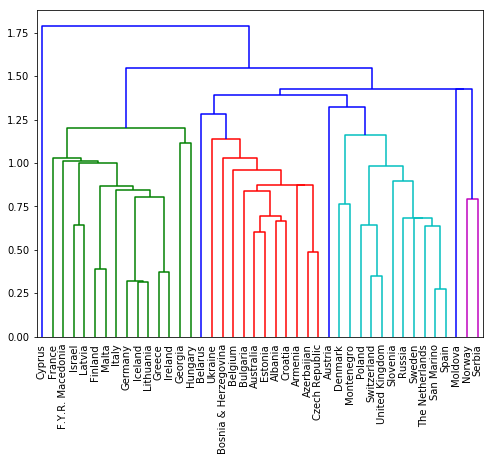

Different linkage, different hierarchical clustering!

In the video, you saw a hierarchical clustering of the voting countries at the Eurovision song contest using 'complete'linkage. Now, perform a hierarchical clustering of the voting countries with 'single' linkage, and compare the resulting dendrogram with the one in the video. Different linkage, different hierarchical clustering!

You are given an array samples. Each row corresponds to a voting country, and each column corresponds to a performance that was voted for. The list country_names gives the name of each voting country. This dataset was obtained fromEurovision.

Instruction

  • Import:
    • linkage and dendrogram from scipy.cluster.hierarchy.
    • matplotlib.pyplot as plt.
  • Perform hierarchical clustering on samples using the linkage() function with the method='single' keyword argument. Assign the result to mergings.
  • Plot a dendrogram of the hierarchical clustering, using the list country_names as the labels. In addition, specify the leaf_rotation=90, and leaf_font_size=6 keyword arguments as you have done earlier.
import pandas as pd

df = pd.read_csv('https://s3.amazonaws.com/assets.datacamp.com/production/course_2072/datasets/eurovision-2016.csv').fillna(0)

scores = pd.crosstab(index=df['From country'], columns=df['To country'], values=df['Televote Points'], aggfunc='first').fillna(12)
samples = scores.values
country_names = list(scores.index)

# Perform the necessary imports
import matplotlib.pyplot as plt
from scipy.cluster.hierarchy import linkage, dendrogram

# Calculate the linkage: mergings
mergings = linkage(samples, method='single')
fig = plt.figure(figsize=(8, 6))
# Plot the dendrogram
dendrogram(mergings,
           labels=country_names,
           leaf_rotation=90,
           leaf_font_size=10,
           )
plt.show()

[外链图片转存失败(img-k3KJUFJy-1564520577117)(output_8_0.png)]

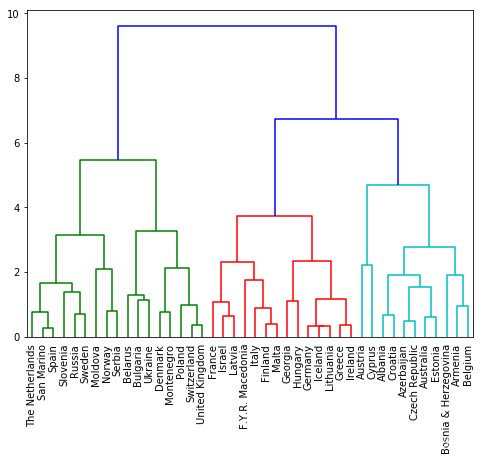

# Modified by Jinny: compare different methods

# Calculate the linkage: mergings
mergings = linkage(samples, method='complete')
fig = plt.figure(figsize=(8, 6))
# Plot the dendrogram
dendrogram(mergings,
           labels=country_names,
           leaf_rotation=90,
           leaf_font_size=10,
           )

plt.show()

[外链图片转存失败(img-BMCPgozz-1564520577118)(output_9_0.png)]

Exercise

Extracting the cluster labels

In the previous exercise, you saw that the intermediate clustering of the grain samples at height 6 has 3 clusters. Now, use the fcluster() function to extract the cluster labels for this intermediate clustering, and compare the labels with the grain varieties using a cross-tabulation.

The hierarchical clustering has already been performed and mergings is the result of the linkage() function. The list varieties gives the variety of each grain sample.

Instruction

  • Import:
    • pandas as pd.
    • fcluster from scipy.cluster.hierarchy.
  • Perform a flat hierarchical clustering by using the fcluster() function on mergings. Specify a maximum height of 6 and the keyword argument criterion='distance'.
  • Create a DataFrame df with two columns named 'labels' and 'varieties', using labels and varieties, respectively, for the column values. This has been done for you.
  • Create a cross-tabulation ct between df['labels'] and df['varieties'] to count the number of times each grain variety coincides with each cluster label.
import pandas as pd

df = pd.read_csv('https://s3.amazonaws.com/assets.datacamp.com/production/course_2234/datasets/seeds.csv', header=None)

sample_indices = [5 * i + 1 for i in range(42)]
df = df.iloc[sample_indices]
samples = df[list(range(7))].values
varieties = list(df[7].map({1: 'Kama wheat', 2: 'Rosa wheat', 3: 'Canadian wheat'}))

from scipy.cluster.hierarchy import linkage

mergings = linkage(samples, method='complete')


# Perform the necessary imports
import pandas as pd
from scipy.cluster.hierarchy import fcluster

# Use fcluster to extract labels: labels
labels = fcluster(mergings, 6, criterion='distance')

# Create a DataFrame with labels and varieties as columns: df
df = pd.DataFrame({'labels': labels, 'varieties': varieties})

# Create crosstab: ct
ct = pd.crosstab(df['labels'], df['varieties'])

# Display ct
print(ct)

varieties  Canadian wheat  Kama wheat  Rosa wheat
labels
1                      14           3           0
2                       0           0          14
3                       0          11           0

Exercise

t-SNE visualization of grain dataset

In the video, you saw t-SNE applied to the iris dataset. In this exercise, you’ll apply t-SNE to the grain samples data and inspect the resulting t-SNE features using a scatter plot. You are given an array samples of grain samples and a list variety_numbersgiving the variety number of each grain sample.

Instruction

  • Import TSNE from sklearn.manifold.
  • Create a TSNE instance called model with learning_rate=200.
  • Apply the .fit_transform() method of model to samples. Assign the result to tsne_features.
  • Select the column 0 of tsne_features. Assign the result to xs.
  • Select the column 1 of tsne_features. Assign the result to ys.
  • Make a scatter plot of the t-SNE features xs and ys. To color the points by the grain variety, specify the additional keyword argument c=variety_numbers.
import pandas as pd

df = pd.read_csv('https://s3.amazonaws.com/assets.datacamp.com/production/course_2234/datasets/seeds.csv', header=None)

samples = df[list(range(7))].values
variety_numbers = list(df[7])

from matplotlib import pyplot as plt

# Import TSNE
from sklearn.manifold import TSNE

# Create a TSNE instance: model
model = TSNE(learning_rate=200)

# Apply fit_transform to samples: tsne_features
tsne_features = model.fit_transform(samples)

# Select the 0th feature: xs
xs = tsne_features[:,0]

# Select the 1st feature: ys
ys = tsne_features[:,1]

# Scatter plot, coloring by variety_numbers
plt.scatter(xs, ys, c=variety_numbers)
plt.show()

![[外链图片转存失败(img-2SJeSNaU-1564520577121)(output_15_0.png)](https://img-blog.csdnimg.cn/20190731050555787.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3UwMTEyOTI4MTY=,size_16,color_FFFFFF,t_70)

Exercise

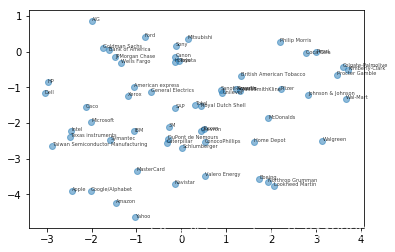

A t-SNE map of the stock market

t-SNE provides great visualizations when the individual samples can be labeled. In this exercise, you’ll apply t-SNE to the company stock price data. A scatter plot of the resulting t-SNE features, labeled by the company names, gives you a map of the stock market! The stock price movements for each company are available as the array normalized_movements (these have already been normalized for you). The list companies gives the name of each company. PyPlot (plt) has been imported for you.

Instruction

  • Import TSNE from sklearn.manifold.
  • Create a TSNE instance called model with learning_rate=50.
  • Apply the .fit_transform() method of model to normalized_movements. Assign the result to tsne_features.
  • Select column 0 and column 1 of tsne_features.
  • Make a scatter plot of the t-SNE features xs and ys. Specify the additional keyword argument alpha=0.5.
  • Code to label each point with its company name has been written for you using plt.annotate(), so just hit ‘Submit Answer’ to see the visualization!
# Import TSNE
from sklearn.manifold import TSNE

# Create a TSNE instance: model
model = TSNE(learning_rate=50)

# Apply fit_transform to normalized_movements: tsne_features
tsne_features = model.fit_transform(normalized_movements)

# Select the 0th feature: xs
xs = tsne_features[:,0]

# Select the 1th feature: ys
ys = tsne_features[:,1]

# Scatter plot
plt.scatter(xs, ys, alpha=0.5)

# Annotate the points
for x, y, company in zip(xs, ys, companies):
    plt.annotate(company, (x, y), fontsize=5, alpha=0.75)
plt.show()

[外链图片转存失败(img-1z7AVEiZ-1564520577122)(output_17_0.png)]
