AndroidR展讯平台Camera管理众多设置项

原创 于 2021-04-28 18:26:39 发布
· 890 阅读 · 2 ·
版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。

我们知道，Camera里面有很多设置，比如HDR、Flash、白平衡、倒计时，水印、PictureSize 等等，不仅有在界面上展现出来给用户设置的开关项，还有默认的没有界面展示的比如3DNR、帧率设置等等。那么众多的设置项是如何管理的呢？

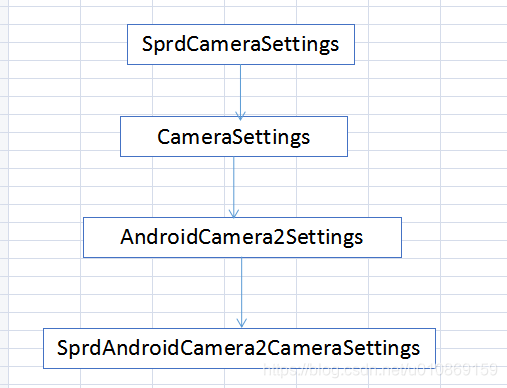

先来看下APP中直接管理Settings数据的关系链。在这里插入图片描述

跟我们之前看的CameraAgent那条线十分类似。

在介绍之前，我们先来说下在AndroidCamera2Settings中一个比较重要的成员变量
com.android.ex.camera2.utils.Camera2RequestSettingsSet;
该类前面的包名也说明了该类的路径：
frameworks\ex\camera2\utils\src\com\android\ex\camera2\utils
Camera2RequestSettingsSet 主要是维护了一个Map对象，提供了对这个map的 set、get等操作方法。同时，还提供了一个构建CaptureRequest的方法，这个方法我们在后面还会在提到。

public CaptureRequest createRequest(CameraDevice camera, int template, Surface... targets)
            throws CameraAccessException {
        if (camera == null) {
            throw new NullPointerException("Tried to create request using null CameraDevice");
        }

        Builder reqBuilder = camera.createCaptureRequest(template);
        for (Key<?> key : mDictionary.keySet()) {
            setRequestFieldIfNonNull(reqBuilder, key);
        }
        for (Surface target : targets) {
            if (target == null) {
                throw new NullPointerException("Tried to add null Surface as request target");
            }
            reqBuilder.addTarget(target);
        }
        return reqBuilder.build();
    }

    private <T> void setRequestFieldIfNonNull(Builder requestBuilder, Key<T> key) {
        T value = get(key);
        if (value != null) {
            requestBuilder.set(key, value);
        }
    }

我们以设置美颜等级为例，来跟踪下UI上操作一个开关，是如何到底层去生效的。
设置美颜等级，在PhotoModule中有接口

@Override
public void onBeautyValueChanged(int[] value) {
    Log.i(TAG, "onBeautyValueChanged setParameters Value = " + Arrays.toString(value));
    if (mCameraSettings != null) {
        mCameraSettings.setSkinWhitenLevel(value);
        if (mCameraDevice != null) {
            if (!mFirstHasStartCapture){
                mCameraDevice.applySettings(mCameraSettings);
            }
        }
    }
}

代码很简洁

  • mCameraSettings.setSkinWhitenLevel(value);
  • mCameraDevice.applySettings(mCameraSettings);

一，mCameraSettings.setSkinWhitenLevel(value);
追踪这个方法的具体实现是在SprdCameraSettings中

public void setSkinWhitenLevel(String level) {
    if (level == null) {
        return;
    } else if (level.equals("0")) {
        setSkinWhitenLevel(MAKE_UP_DEFAULT_VALUE);
    } else {
        String[] beatuyLevel = level.split(",");
        for (int i = 0; i < beatuyLevel.length; i++) {
            mBeatuyLevel[i] = Integer.parseInt(beatuyLevel[i]);
        }
    }
}

就是将我们传进来的level保存到 mBeatuyLevel 对象中去。（记住这个mBeatuyLevel ，后面有地方再来拿这个值设置到底层去）

二， mCameraDevice.applySettings(mCameraSettings);
这个是重点了。
mCameraDevice是Agent那条线中 proxy 的内部类。我们在AndroidCamera2ProxyAgent中找到了实现。

@Override
public boolean applySettings(CameraSettings settings) {
    if (settings == null) {
        Log.w(TAG, "null parameters in applySettings()");
        return false;
    }
    if (!(settings instanceof AndroidCamera2Settings)) {
        Log.e(TAG, "Provided settings not compatible with the backing framework API");
        return false;
    }

    // Wait for any state that isn't OPENED
    if (applySettingsHelper(settings, ~AndroidCamera2StateHolder.CAMERA_UNOPENED)) {
        mLastSettings = settings;
        return true;
    }
    return false;
}

关键是 applySettingsHelper 方法的实现。

我们追到到 CameraAgent中的实现

protected boolean applySettingsHelper(CameraSettings settings,  final int statesToAwait) {
    if (settings == null) {
        Log.v(TAG, "null argument in applySettings()");
        return false;
    }
    if (!getCapabilities().supports(settings)) {
        Log.w(TAG, "Unsupported settings in applySettings()");
        return false;
    }

    final CameraSettings copyOfSettings = settings.copy();
    try {
        getDispatchThread().runJob(new Runnable() {
            @Override
            public void run() {
                CameraStateHolder cameraState = getCameraState();
                // Don't bother to wait since camera is in bad state.
                /*
                 * SPRD fix bug622519 should not wait when state is unopend @{
                 * Original Code
                 *
                if (cameraState.isInvalid()) {
                    return;
                }
                 */
                if (cameraState.isInvalid() || cameraState.getState() == 1) {
                    return;
                }
                /* @} */
                cameraState.waitForStates(statesToAwait);
                getCameraHandler().obtainMessage(CameraActions.APPLY_SETTINGS, copyOfSettings)
                        .sendToTarget();
            }});
    } catch (final RuntimeException ex) {
        getAgent().getCameraExceptionHandler().onDispatchThreadException(ex);
    }
    return true;
}

其实就是发送了 CameraActions.APPLY_SETTINGS 消息。
消息在AndroidCamera2Agent中的Handler处理

case CameraActions.APPLY_SETTINGS: {
	AndroidCamera2Settings settings = (AndroidCamera2Settings) msg.obj;
     applyToRequest(settings);
     break;
 }

关键代码来了 applyToRequest 方法

private void applyToRequest(AndroidCamera2Settings settings) {
   // TODO: If invoked when in PREVIEW_READY state, a new preview size will not take effect
   mPersistentSettings.union(settings.getRequestSettings()); // ****展开1*****
   mPreviewSize = settings.getCurrentPreviewSize();
   mPhotoSize = settings.getCurrentPhotoSize();
   mThumbnailSize = settings.getExifThumbnailSize();
   mNeedThumb = settings.getNeedThumbCallBack();
   mIsVideMode = settings.getEnterVideoMode();
   mIsEISenable = settings.getEOISEnable();
   mCallbackSize = settings.getCurrentCallbackSize();
   String slowmotionValue = settings.getCurrentVideoSlowMotion();
   if (slowmotionValue != null) {
       mSlowmotion = Integer.parseInt(slowmotionValue);
   }

   if (mCameraState.getState() >= AndroidCamera2StateHolder.CAMERA_PREVIEW_ACTIVE) {
       // If we're already previewing, reflect most settings immediately
       try {
           if (mCameraState.getState() == CAMERA_RECODERING) {
               startRecoderRequest();
           } else {
               int template = CameraDevice.TEMPLATE_PREVIEW;
               if (mIsVideMode) {
                   template = CameraDevice.TEMPLATE_RECORD;
               }

               ArrayList<Surface> surfaceList = new ArrayList<>();
               surfaceList.add(mPreviewSurface);
               if(mCameraState.getState() > AndroidCamera2StateHolder.CAMERA_PREVIEW_READY){
                   if(mCameraProxy.isMotionPhotoOn && mCameraProxy.recordSurfaces != null){
                       for (int i = 0; i< mCameraProxy.recordSurfaces.size(); i++){
                           surfaceList.add(mCameraProxy.recordSurfaces.get(i));
                       }
                   }
               }

               Surface[] surfaces = new Surface[surfaceList.size()];
               surfaceList.toArray(surfaces);
               mSession.setRepeatingRequest(
                       mPersistentSettings.createRequest(mCamera,
                               template, surfaces),
                       /*listener*/mCameraResultStateCallback, /*handler*/this);// ****展开2*****
           }

       } catch (CameraAccessException ex) {
           Log.e(TAG, "Failed to apply updated request settings", ex);
       }
   } else if (mCameraState.getState() < AndroidCamera2StateHolder.CAMERA_PREVIEW_READY) {
       // If we're already ready to preview, this doesn't regress our state
       changeState(AndroidCamera2StateHolder.CAMERA_CONFIGURED);
   }
}
  • mPersistentSettings.union(settings.getRequestSettings()); // 展开1*
    这个 settings 就是CameraSettings 的对象，我们来看下其 getRequestSettings 方法
public Camera2RequestSettingsSet getRequestSettings() {
        updateRequestSettingOrForceToDefault(CONTROL_AE_REGIONS,
                legacyAreasToMeteringRectangles(mMeteringAreas));
        updateRequestSettingOrForceToDefault(CONTROL_AF_REGIONS,
                legacyAreasToMeteringRectangles(mFocusAreas));
        updateRequestSettingOrForceToDefault(CONTROL_AE_TARGET_FPS_RANGE,
                new Range(mPreviewFpsRangeMin, mPreviewFpsRangeMax));
        // TODO: mCurrentPreviewFormat
        updateRequestSettingOrForceToDefault(JPEG_QUALITY, mJpegCompressQuality);
        // TODO: mCurrentPhotoFormat
        mRequestSettings.set(SCALER_CROP_REGION, mCropRectangle);
        // TODO: mCurrentZoomIndex
        updateRequestSettingOrForceToDefault(CONTROL_AE_EXPOSURE_COMPENSATION,
                mExposureCompensationIndex);
        updateRequestFlashMode();
        updateRequestFocusMode();
        updateRequestSceneMode();
        updateRequestWhiteBalance();
        updateRequestSettingOrForceToDefault(CONTROL_VIDEO_STABILIZATION_MODE,
                mVideoStabilizationEnabled ?
                        CONTROL_VIDEO_STABILIZATION_MODE_ON : CONTROL_VIDEO_STABILIZATION_MODE_OFF);
        // OIS shouldn't be on if software video stabilization is.
        mRequestSettings.set(LENS_OPTICAL_STABILIZATION_MODE,
                mVideoStabilizationEnabled ? LENS_OPTICAL_STABILIZATION_MODE_OFF :
                        null);
        updateRequestSettingOrForceToDefault(CONTROL_AE_LOCK, mAutoExposureLocked);
        updateRequestSettingOrForceToDefault(CONTROL_AWB_LOCK, mAutoWhiteBalanceLocked);
        // TODO: mRecordingHintEnabled
        updateRequestGpsData();
        if (mExifThumbnailSize != null) {
            updateRequestSettingOrForceToDefault(JPEG_THUMBNAIL_SIZE,
                    new android.util.Size(
                            mExifThumbnailSize.width(), mExifThumbnailSize.height()));
        } else {
            updateRequestSettingOrForceToDefault(JPEG_THUMBNAIL_SIZE, null);
        }
        return mRequestSettings;
    }

我们看到很多 update开头，并且参数里面带有 大写常量的TAG类型 的方法，随便看一个方法的实现
updateRequestFlashMode：

private void updateRequestFlashMode() {
        Integer aeMode = null;
        Integer flashMode = null;
        int flashLcdMode = 0;
        if (mCurrentFlashMode != null) {
            switch (mCurrentFlashMode) {
                case AUTO: {
                    aeMode = CONTROL_AE_MODE_ON_AUTO_FLASH;
                    flashLcdMode = 1;
                    break;
                }
                case OFF: {
                    aeMode = CONTROL_AE_MODE_ON;
                    flashMode = FLASH_MODE_OFF;
                    flashLcdMode = 0;
                    break;
                }
                case ON: {
                    aeMode = CONTROL_AE_MODE_ON_ALWAYS_FLASH;
                    flashMode = FLASH_MODE_SINGLE;
                    flashLcdMode = 2;
                    break;
                }
                case TORCH: {
                    flashMode = FLASH_MODE_TORCH;
                    break;
                }
                case RED_EYE: {
                    aeMode = CONTROL_AE_MODE_ON_AUTO_FLASH_REDEYE;
                    break;
                }
                default: {
                    Log.w(TAG, "Unable to convert to API 2 flash mode: " + mCurrentFlashMode);
                    break;
                }
            }
        }
        if (mCurrentFlashType == VALUE_FRONT_FLASH_MODE_LED) {
            //set flash mode for led
            mRequestSettings.set(CONTROL_AE_MODE, aeMode);
            mRequestSettings.set(FLASH_MODE, flashMode);
        } else {
            //set flash mode for lcd
            mRequestSettings.set(SprdCaptureRequest.ANDROID_SPRD_FLASH_LCD_MODE,(byte)flashLcdMode);
        }

    }

方法中前面的case判断都是为了后面 将值set到mRequestSettings（Camera2RequestSettingsSet类型）中，依次类推，其他update方法也是将相应的TAG设置到 Camera2RequestSettingsSet 成员变量中。
在SprdAndroidCamera2Settings中复写了 AndroidCamera2Settins中的getRequestSettings方法，主要是为了补充一些TAG的update。
其中我们关注的美颜设置也在其中

requestSettings.set(CONTROL_SKIN_WHITEN_MODE, mBeatuyLevel);

这个mBeatuyLevel便是我们从PhotoModule中传过来的值了。

因此，我们得知，getRequestSettings方法的作用就是将设置项的最新值都更新到 requestSettings（Camera2RequestSettingsSet类型）中。

在回到AndroidCamera2AgentImpl#applyToRequest中，
其中也有一个 Camera2RequestSettingsSet 对象：mPersistentSettings = new Camera2RequestSettingsSet();

mPersistentSettings.union(settings.getRequestSettings());

将我们刚刚更新过得到的 Camera2RequestSettingsSet 对象，通过union方法同步到 mPersistentSettings中。

  • // 展开2*
mSession.setRepeatingRequest( mPersistentSettings.createRequest(mCamera, template, surfaces),mCameraResultStateCallback, /*handler*/this

通过在 展开1 中得到的 mPersistentSettings 对象，构建CaptureRequest，然后请求预览。
mPersistentSettings 对象，构建CaptureRequest，我们在本文最开始介绍 Camera2RequestSettingsSet 对象的时候就贴出代码了，现在截取其中的关键部分看下：

public CaptureRequest createRequest(CameraDevice camera, int template, Surface... targets)
            throws CameraAccessException {
	......
        Builder reqBuilder = camera.createCaptureRequest(template);
        for (Key<?> key : mDictionary.keySet()) {
            setRequestFieldIfNonNull(reqBuilder, key);
        }
	.......
    }

  private <T> void setRequestFieldIfNonNull(Builder requestBuilder, Key<T> key) {
        T value = get(key);
        if (value != null) {
            requestBuilder.set(key, value);
        }
    }
  1. 通过CameraDevice对象创建Builder
    Builder reqBuilder = camera.createCaptureRequest(template);
  2. 遍历 Camera2RequestSettingsSet 中维护的Map对象，将其中的值依次set到Builder中。当然，这其中就包括我们从PhotoModule中设置过来的美颜等级的key-value： CONTROL_SKIN_WHITEN_MODE, mBeatuyLevel 。
    也就是说我们设置项美颜等级成功的set到了CaptureRequest的Builder中了，那么在使用这个CaptureRequest去setRepeatingRequest，新的美颜等级效果就会生效了。

好了，Camera中设置项的管理流程就是这样的了。
