Spinrg Security原理 ------退出（一）

public final class LogoutConfigurer<H extends HttpSecurityBuilder<H>> extends
		AbstractHttpConfigurer<LogoutConfigurer<H>, H> {
	// 退出时需要做的处理，在CSRF原理节知道，会给它赋值CSRF持久化类
	private List<LogoutHandler> logoutHandlers = new ArrayList<>();
	private SecurityContextLogoutHandler contextLogoutHandler = new SecurityContextLogoutHandler();
	private String logoutSuccessUrl = "/login?logout";// 默认请求退出跳转地址
	private LogoutSuccessHandler logoutSuccessHandler;
	private String logoutUrl = "/logout";// 默认退出请求
	private RequestMatcher logoutRequestMatcher;
	private boolean permitAll;
	private boolean customLogoutSuccess;

	@Override
	public void init(H http) throws Exception {
		// 如果在配置logout时，设置了logout().permitAll()，则不对请求退出跳转地址和退出请求拦截
		if (permitAll) {
			PermitAllSupport.permitAll(http, this.logoutSuccessUrl);
			PermitAllSupport.permitAll(http, this.getLogoutRequestMatcher(http));
		}

		DefaultLoginPageGeneratingFilter loginPageGeneratingFilter = http
				.getSharedObject(DefaultLoginPageGeneratingFilter.class);
		if (loginPageGeneratingFilter != null && !isCustomLogoutSuccess()) {
			loginPageGeneratingFilter.setLogoutSuccessUrl(getLogoutSuccessUrl());
		}
	}
	@Override
	public void configure(H http) throws Exception {
		// 创建退出过滤器
		LogoutFilter logoutFilter = createLogoutFilter(http);
		http.addFilter(logoutFilter);
	}

	private LogoutFilter createLogoutFilter(H http) throws Exception {
		// 将属性contextLogoutHandler 放到退出处理器，退出时需要进行操作，清空认证信息
		logoutHandlers.add(contextLogoutHandler);
		LogoutHandler[] handlers = logoutHandlers
				.toArray(new LogoutHandler[logoutHandlers.size()]);
		// 配置退出成功处理器，如果在配置的时候没有配置.logout().logoutSuccessHandler(logoutSuccessHandler),则创建默认的
		LogoutFilter result = new LogoutFilter(getLogoutSuccessHandler(), handlers);
		// 配置退出的url  	如果在配置logout时，设置了logout().permitAll()，会在init的时候，调用getLogoutRequestMatcher会创建RequestMatcher
		result.setLogoutRequestMatcher(getLogoutRequestMatcher(http));
		result = postProcess(result);
		return result;
	}
	private LogoutSuccessHandler getLogoutSuccessHandler() {
		LogoutSuccessHandler handler = this.logoutSuccessHandler;
		if (handler == null) {
			handler = createDefaultSuccessHandler();
		}
		return handler;
	}
	private LogoutSuccessHandler createDefaultSuccessHandler() {
		SimpleUrlLogoutSuccessHandler urlLogoutHandler = new SimpleUrlLogoutSuccessHandler();
		urlLogoutHandler.setDefaultTargetUrl(logoutSuccessUrl);
		if (defaultLogoutSuccessHandlerMappings.isEmpty()) {
			return urlLogoutHandler;
		}
		// 配置包装类，如果在配置文件中没有配置.logout().defaultLogoutSuccessHandlerFor()是不其中用的
		DelegatingLogoutSuccessHandler successHandler = new DelegatingLogoutSuccessHandler(defaultLogoutSuccessHandlerMappings);
		successHandler.setDefaultLogoutSuccessHandler(urlLogoutHandler);
		return successHandler;
	}
	@SuppressWarnings("unchecked")
	private RequestMatcher getLogoutRequestMatcher(H http) {
		if (logoutRequestMatcher != null) {
			return logoutRequestMatcher;
		}
		if (http.getConfigurer(CsrfConfigurer.class) != null) {
			this.logoutRequestMatcher = new AntPathRequestMatcher(this.logoutUrl, "POST");
		}
		else {
			this.logoutRequestMatcher = new OrRequestMatcher(
				new AntPathRequestMatcher(this.logoutUrl, "GET"),
				new AntPathRequestMatcher(this.logoutUrl, "POST"),
				new AntPathRequestMatcher(this.logoutUrl, "PUT"),
				new AntPathRequestMatcher(this.logoutUrl, "DELETE")
			);
		}
		return this.logoutRequestMatcher;
	}
}

LogoutFilter

public class LogoutFilter extends GenericFilterBean {
	private RequestMatcher logoutRequestMatcher;

	private final LogoutHandler handler;
	private final LogoutSuccessHandler logoutSuccessHandler;

	public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
			throws IOException, ServletException {
		HttpServletRequest request = (HttpServletRequest) req;
		HttpServletResponse response = (HttpServletResponse) res;

		if (requiresLogout(request, response)) {
			Authentication auth = SecurityContextHolder.getContext().getAuthentication();

			if (logger.isDebugEnabled()) {
				logger.debug("Logging out user '" + auth
						+ "' and transferring to logout destination");
			}

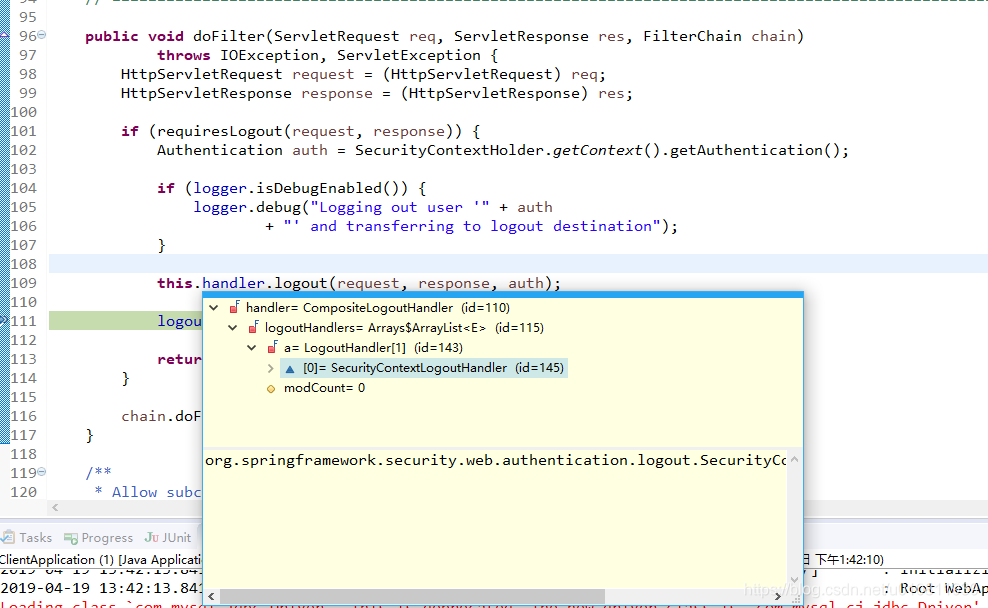

			this.handler.logout(request, response, auth);

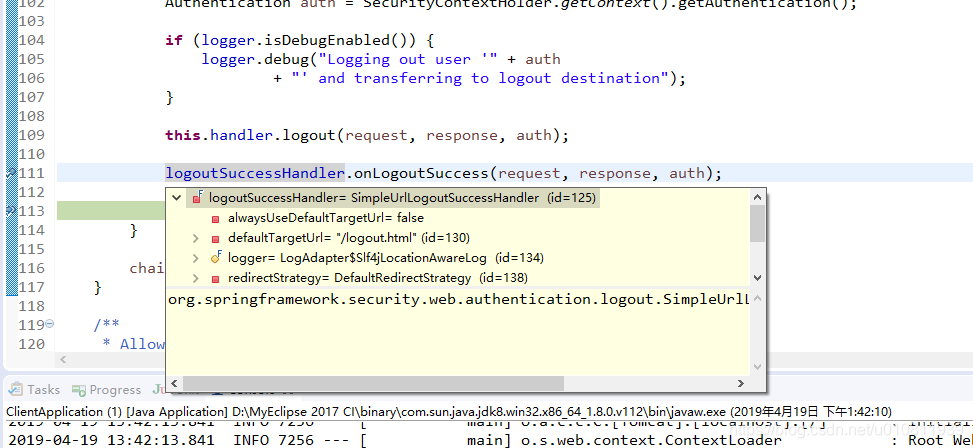

			logoutSuccessHandler.onLogoutSuccess(request, response, auth);

			return;
		}

		chain.doFilter(request, response);
	}
}
