SYSTEM:CATALOG is found but client does not have phoenix.schema.isNamespaceMappingEnabled enabled

• 问题
  Inconsistent namespace mapping properties. Cannot initiate connection as SYSTEM:CATALOG is found but client does not have phoenix.schema.isNamespaceMappingEnabled enabled
• 详细展示

java.sql.SQLException: ERROR 726 (43M10):  Inconsistent namespace mapping properties. Cannot initiate connection as SYSTEM:CATALOG is found but client does not have phoenix.schema.isNamespaceMappingEnabled enabled
	at org.apache.phoenix.exception.SQLExceptionCode$Factory$1.newException(SQLExceptionCode.java:494)
	at org.apache.phoenix.exception.SQLExceptionInfo.buildException(SQLExceptionInfo.java:150)
	at org.apache.phoenix.query.ConnectionQueryServicesImpl.ensureTableCreated(ConnectionQueryServicesImpl.java:1099)
	at org.apache.phoenix.query.ConnectionQueryServicesImpl.createTable(ConnectionQueryServicesImpl.java:1491)
	at org.apache.phoenix.schema.MetaDataClient.createTableInternal(MetaDataClient.java:2717)
	at org.apache.phoenix.schema.MetaDataClient.createTable(MetaDataClient.java:1114)
	at org.apache.phoenix.compile.CreateTableCompiler$1.execute(CreateTableCompiler.java:192)
	at org.apache.phoenix.jdbc.PhoenixStatement$2.call(PhoenixStatement.java:408)
	at org.apache.phoenix.jdbc.PhoenixStatement$2.call(PhoenixStatement.java:391)
	at org.apache.phoenix.call.CallRunner.run(CallRunner.java:53)
	at org.apache.phoenix.jdbc.PhoenixStatement.executeMutation(PhoenixStatement.java:389)
	at org.apache.phoenix.jdbc.PhoenixStatement.executeMutation(PhoenixStatement.java:378)
	at org.apache.phoenix.jdbc.PhoenixStatement.executeUpdate(PhoenixStatement.java:1806)
	at org.apache.phoenix.query.ConnectionQueryServicesImpl$12.call(ConnectionQueryServicesImpl.java:2528)
	at org.apache.phoenix.query.ConnectionQueryServicesImpl$12.call(ConnectionQueryServicesImpl.java:2491)
	at org.apache.phoenix.util.PhoenixContextExecutor.call(PhoenixContextExecutor.java:76)
	at org.apache.phoenix.query.ConnectionQueryServicesImpl.init(ConnectionQueryServicesImpl.java:2491)
	at org.apache.phoenix.jdbc.PhoenixDriver.getConnectionQueryServices(PhoenixDriver.java:255)
	at org.apache.phoenix.jdbc.PhoenixEmbeddedDriver.createConnection(PhoenixEmbeddedDriver.java:150)
	at org.apache.phoenix.jdbc.PhoenixDriver.connect(PhoenixDriver.java:221)
	at java.sql.DriverManager.getConnection(DriverManager.java:664)
	at java.sql.DriverManager.getConnection(DriverManager.java:208)
	at org.apache.phoenix.mapreduce.util.ConnectionUtil.getConnection(ConnectionUtil.java:113)
	at org.apache.phoenix.mapreduce.util.ConnectionUtil.getInputConnection(ConnectionUtil.java:58)
	at org.apache.phoenix.mapreduce.util.PhoenixConfigurationUtil.getSelectColumnMetadataList(PhoenixConfigurationUtil.java:354)
	at org.apache.phoenix.spark.PhoenixRDD.toDataFrame(PhoenixRDD.scala:118)
	at org.apache.phoenix.spark.PhoenixRelation.schema(PhoenixRelation.scala:60)
	at org.apache.spark.sql.execution.datasources.LogicalRelation.<init>(LogicalRelation.scala:39)
	at org.apache.spark.sql.DataFrameReader.load(DataFrameReader.scala:125)
	at com.goldeneggs.dmfang.common.utils.PhoenixUtils$.read(PhoenixUtils.scala:25)
	at com.goldeneggs.dmfang.data_loading.impl.DataOnlinePhoenix$$anonfun$executeConsumer$1.apply(DataOnlinePhoenix.scala:63)
	at com.goldeneggs.dmfang.data_loading.impl.DataOnlinePhoenix$$anonfun$executeConsumer$1.apply(DataOnlinePhoenix.scala:59)
	at scala.collection.IndexedSeqOptimized$class.foreach(IndexedSeqOptimized.scala:33)
	at scala.collection.mutable.ArrayOps$ofRef.foreach(ArrayOps.scala:108)
	at com.goldeneggs.dmfang.data_loading.impl.DataOnlinePhoenix.executeConsumer(DataOnlinePhoenix.scala:59)
	at com.goldeneggs.dmfang.common.executor.KafkaExecutorModel$$anonfun$execute$1.apply(KafkaExecutorModel.scala:92)
	at com.goldeneggs.dmfang.common.executor.KafkaExecutorModel$$anonfun$execute$1.apply(KafkaExecutorModel.scala:86)
	at org.apache.spark.streaming.dstream.DStream$$anonfun$foreachRDD$1$$anonfun$apply$mcV$sp$3.apply(DStream.scala:661)
	at org.apache.spark.streaming.dstream.DStream$$anonfun$foreachRDD$1$$anonfun$apply$mcV$sp$3.apply(DStream.scala:661)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1$$anonfun$apply$mcV$sp$1.apply$mcV$sp(ForEachDStream.scala:50)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1$$anonfun$apply$mcV$sp$1.apply(ForEachDStream.scala:50)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1$$anonfun$apply$mcV$sp$1.apply(ForEachDStream.scala:50)
	at org.apache.spark.streaming.dstream.DStream.createRDDWithLocalProperties(DStream.scala:426)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1.apply$mcV$sp(ForEachDStream.scala:49)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1.apply(ForEachDStream.scala:49)
	at org.apache.spark.streaming.dstream.ForEachDStream$$anonfun$1.apply(ForEachDStream.scala:49)
	at scala.util.Try$.apply(Try.scala:161)
	at org.apache.spark.streaming.scheduler.Job.run(Job.scala:39)
	at org.apache.spark.streaming.scheduler.JobScheduler$JobHandler$$anonfun$run$1.apply$mcV$sp(JobScheduler.scala:224)
	at org.apache.spark.streaming.scheduler.JobScheduler$JobHandler$$anonfun$run$1.apply(JobScheduler.scala:224)
	at org.apache.spark.streaming.scheduler.JobScheduler$JobHandler$$anonfun$run$1.apply(JobScheduler.scala:224)
	at scala.util.DynamicVariable.withValue(DynamicVariable.scala:57)
	at org.apache.spark.streaming.scheduler.JobScheduler$JobHandler.run(JobScheduler.scala:223)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)

• 原因
  Hbase服务端或客户端的Hbase-site.xml文件中没有添加 “phoenix.schema.isNamespaceMappingEnabled”支持

• 解决方案

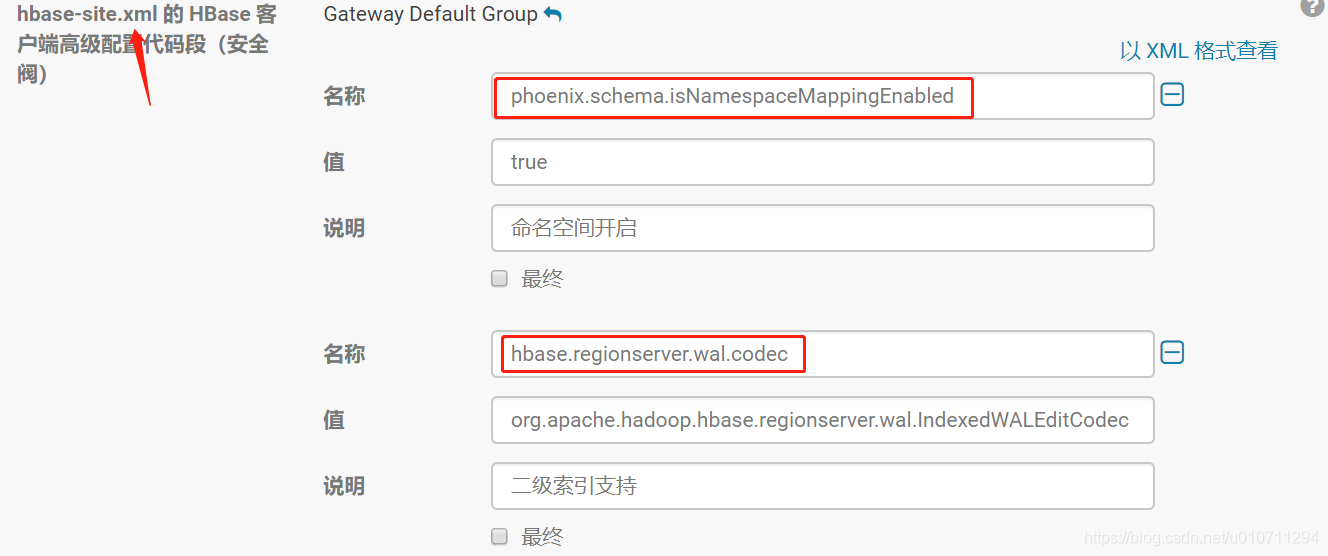

  • 第一步，cloudera manager服务端或者客户端添加配置，如图：



  • 第二步，

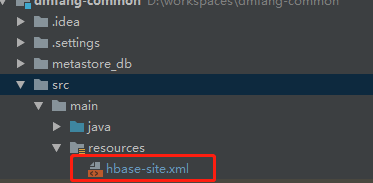

    • 假如本地测试环境：需要在项目根目录下配置Hbase-site.xml，配置内容：

        <property>
          <name>phoenix.schema.isNamespaceMappingEnabled</name>
          <value>true</value>
          <description>命名空间开启</description>
        </property>

        <property>
          <name>hbase.regionserver.wal.codec</name>
          <value>org.apache.hadoop.hbase.regionserver.wal.IndexedWALEditCodec</value>
          <description>二级索引支持</description>
        </property>

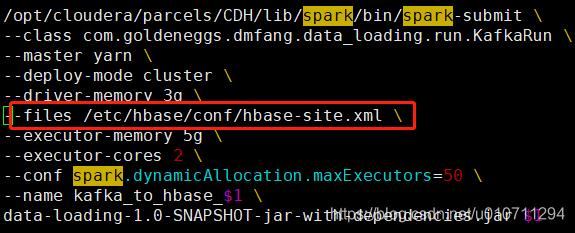

  • 假如是生产环境发生此问题，需要在spark submit 时配置hbase-site.xml文件，如下

    注意：生产环境Hbase-site.xml文件默认是在/etc/hbase/conf目录下

  • 生产环境发生此问题还有一种解决方式：目的，将Hbase-site.xml文件放入phoenix-***-client.jar包替换APACHE-PHOENIX中的client包能够保证yarn cluster与yarn client 模式都可以运行。如下

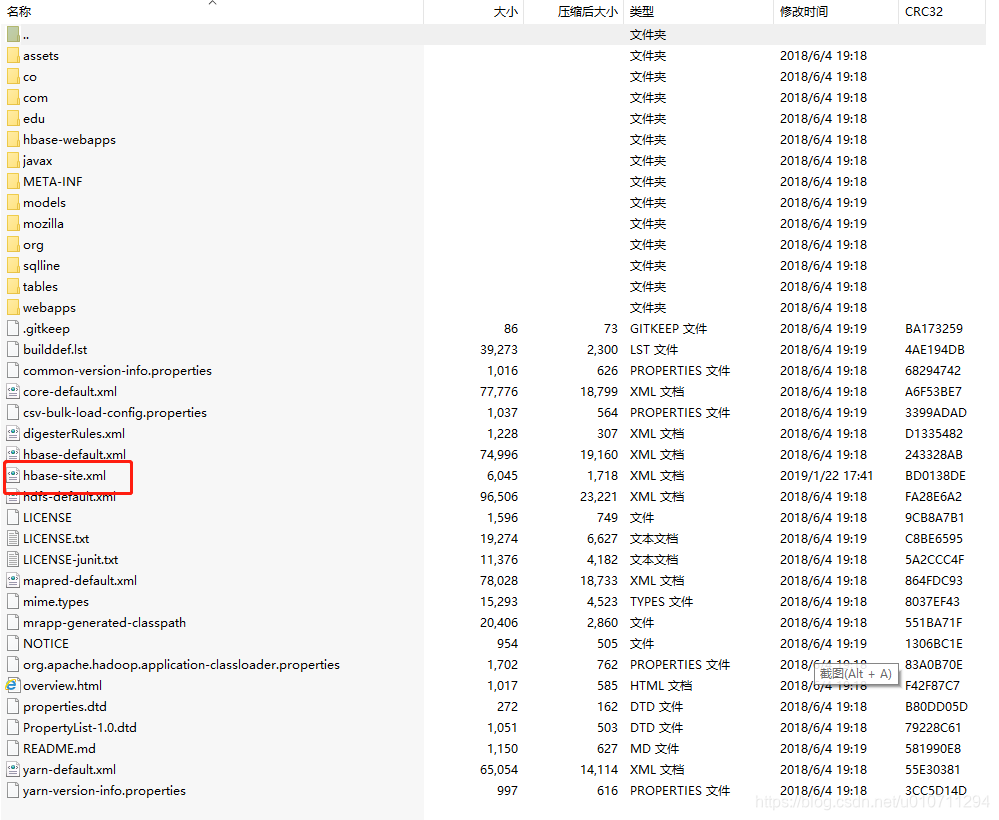

    • 使用winRAR打开phoenix-4.14.0-cdh5.12.2-client.jar，将hbase-site.xml文件放入其中：

      各个节点替换该jar包
