本节中的例子展示了如何使用JanusGraph检索诸神关系图. 关系图如下图所示.抽象数据模型使用大家都熟知的Property Graph Model ,而且这个例子描述了罗马诸神中的人物和他们所在位置之间的联系.

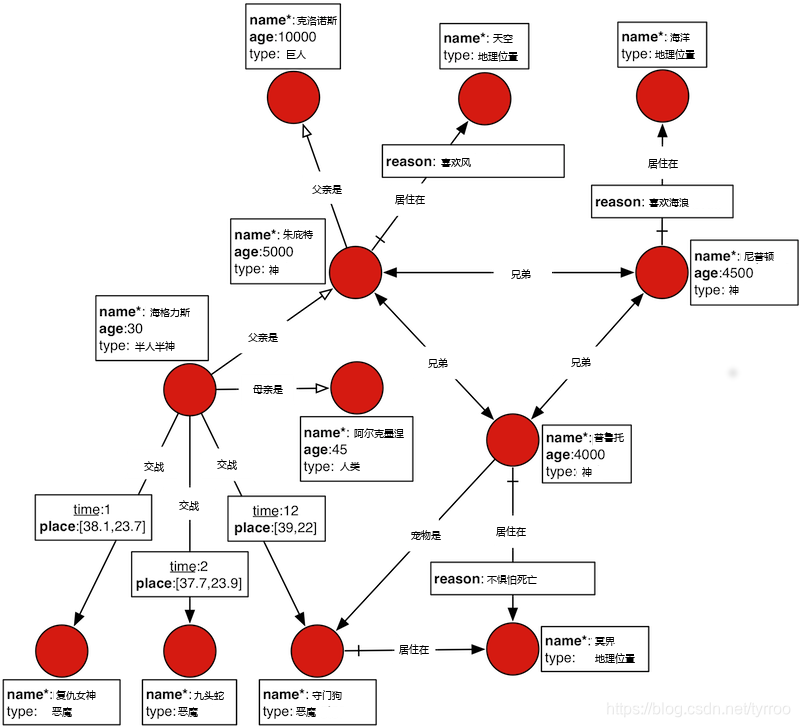

Figure 3.1. 诸神关系图
在这里插入图片描述

虚拟元素意义
粗体的关键字图的索引
粗体加星的关键字图的索引, 必须唯一
下划线的关键字顶点中心索引
空心箭头的边功能或者唯一的边(不能重复)
尾巴带横线的边单向的边, 只能按照一个方向进行访问

3.1 下载JanusGraph和运行Gremlin命令行

JanusGraph的下载地址可以从最新的发布页面获得. 下载后解压, 就可以找到Gremlin命令行. Gremlin命令行是一种REPL, 与标准Groovy命令行的的微小区别, JanusGraph仅仅是一种预安装和预加载的包.
用户可以通过从中心仓库下载JanusGraph包, 在Gremlin命令行中安装后激活JanusGraph.在下列的例子中, 确保下载janusgraph.zip文件, 并解压了这个压缩包

Important:
JanusGraph需要Java8(标准版本) 推荐使用Oracle Java8. JanusGraph 的脚本需要$JAVA_HOME环境变量指向JRE或者JDK的安装目录

$ unzip janusgraph-0.2.0-hadoop2.zip
Archive:  janusgraph-0.2.0-hadoop2.zip
  creating: janusgraph-0.2.0-hadoop2/
...
$ cd janusgraph-0.2.0-hadoop2
$ bin/gremlin.sh

         \,,,/
         (o o)
-----oOOo-(3)-oOOo-----
09:12:24 INFO  org.apache.tinkerpop.gremlin.hadoop.structure.HadoopGraph  - HADOOP_GREMLIN_LIBS is set to: /usr/local/janusgraph/lib
plugin activated: tinkerpop.hadoop
plugin activated: janusgraph.imports
gremlin>

Gremlin命令行使用Groovy翻译用户输入的命令. Groovy是java的一个扩展, 设计了许多简短标记, 可以让交互性编程语言更容易使用. 同样Gremlin-Groovy是Groovy的一个扩展, 让图的遍历更加方便.以下基本例子展示了JanusGraph使用数字, 字符串和map的基本方法. 教程的其他部分要讨论图特有的结构.

gremlin> 100-10
==>90
gremlin> "JanusGraph:" + " The Rise of Big Graph Data"
==>JanusGraph: The Rise of Big Graph Data
gremlin> [name:'aurelius', vocation:['philosopher', 'emperor']]
==>name=aurelius
==>vocation=[philosopher, emperor]

Tip:
Refer to Apache TinkerPop, SQL2Gremlin, and Gremlin Recipes for more information about using Gremlin.

3.2 读取诸神关系图到JanusGraph

以下例子创建了JanusGraph的实例, 后加载了诸神关系图. JanusGraphFactory提供一系列静态读取配置参数方法, 每个方法会根据配置参数的不同, 返回一个对应的实例. 这里的示例使用BerkeleyDB存储和Elasticsearch索引, 通过GraphOfTheGodsFactory类加载诸神关系图. 本章没有讨论配置的详细内容, 如果要查看存储、索引和配置的详细信息, 请跳到对应章节

gremlin> graph = JanusGraphFactory.open('conf/janusgraph-berkeleyje-es.properties')
==>standardjanusgraph[berkeleyje:../db/berkeley]
gremlin> GraphOfTheGodsFactory.load(graph)
==>null
gremlin> g = graph.traversal()
==>graphtraversalsource[standardjanusgraph[berkeleyje:../db/berkeley], standard]

JanusGraphFactory.open() 和 GraphOfTheGodsFactory.load()创建了一个图对象, 主要分3步

1. 为图创建了一系列全局, 顶点中心索引
2. 为图添加了顶点, 和顶点的属性
3. 为图添加了边, 和边的属性

想要看更详细的信息, 可以查看对应源码

这里使用的是JanusGraph/Cassandra, 确定加载了对应的配置文件conf/janusgraph-cassandra-es.properties, 执行了GraphOfTheGodsFactory.load()方法, 若使用HBase和es, 请读取conf/janusgraph-hbase-es.properties配置

gremlin> graph = JanusGraphFactory.open('conf/janusgraph-cassandra-es.properties')
==>standardjanusgraph[cassandrathrift:[127.0.0.1]]
gremlin> GraphOfTheGodsFactory.load(graph)
==>null
gremlin> g = graph.traversal()
==>graphtraversalsource[standardjanusgraph[cassandrathrift:[127.0.0.1]], standard]

你可能不需要使用索引, 那就读取下边几种conf/janusgraph-cassandra.properties, conf/janusgraph-berkeleyje.properties, or conf/janusgraph-hbase.properties. 另一个方法GraphOfTheGodsFactory.loadWithoutMixedIndex()来加载数据

gremlin> graph = JanusGraphFactory.open('conf/janusgraph-cassandra.properties')
==>standardjanusgraph[cassandrathrift:[127.0.0.1]]
gremlin> GraphOfTheGodsFactory.loadWithoutMixedIndex(graph, true)
==>null
gremlin> g = graph.traversal()
==>graphtraversalsource[standardjanusgraph[cassandrathrift:[127.0.0.1]], standard]

3.3. 全局索引

访问图数据库中的数据, 首先是根据图的索引定位到切入点. 切入点是一个元素(或者一组元素), 例如:一个顶点或者一个边. Gremlin路径描述了如何通过图的结构, 从切入点元素访问到其他元素.
根据图, name属性的索引是唯一的, 可以通过这种方法访问克罗诺斯(Saturn)顶点. 也就可以获得该顶点的属性map, 克罗诺斯顶点name是克罗诺斯, age是10000, type是巨人. 克罗诺斯的孙子是谁? 结果是海格力斯.

gremlin> saturn = g.V().has('name', 'saturn').next()
==>v[256]
gremlin> g.V(saturn).valueMap()
==>[name:[saturn], age:[10000]]
gremlin> g.V(saturn).in('father').in('father').values('name')
==>hercules

坐标属性也属于图的索引. 坐标是边的属性. 所以, JanusGraph可以把边放到索引中. 你可能会查询距离Athens(维度:37.97, 经度:23.72)50公里内发生的事情. 查出那个顶点是包含在其中的.

gremlin> g.E().has('place', geoWithin(Geoshape.circle(37.97, 23.72, 50)))
==>e[a9x-co8-9hx-39s][16424-battled->4240]
==>e[9vp-co8-9hx-9ns][16424-battled->12520]
gremlin> g.E().has('place', geoWithin(Geoshape.circle(37.97, 23.72, 50))).as('source').inV().as('god2').select('source').outV().as('god1').select('god1', 'god2').by('name')
==>[god1:hercules, god2:hydra]
==>[god1:hercules, god2:nemean]

图索引是JanusGraph索引结构中的一种. JanusGraph要访问全部顶点或者全部边, 图的索引会自动匹配。
JanusGraph中另一种索引被称为顶点中心索引. 顶点中心索引用来加速图的内部访问. 稍后做解释。

3.3.1 访问图的例子

海格力斯是朱庇特和埃尔克莫尼的儿子, 拥有超过常人的力量. 海格力斯父亲是神,母亲是人类, 所以他是半人半神,
Juno是朱庇特的妻子, 对他的不忠极其气愤. 为了报复, 她蒙蔽了朱庇特, 并让朱庇特杀了他的妻子和孩子.为了补偿, 海格力斯被特尔非神谕安排服役于Eurystheus.

上一节, 克罗诺斯的孙子是海格力斯, 这可以使用循环, 从克罗诺斯沿着两次父亲的路径, 可以找到海格力斯

gremlin> hercules = g.V(saturn).repeat(__.in('father')).times(2).next()
==>v[1536]

为证明海格力斯是半人半神. 需要检查他的父母身世. 可以从海格力斯访问到他的父母节点. 可以找出父母的类型是神和人类.

gremlin> g.V(hercules).out('father', 'mother')
==>v[1024]
==>v[1792]
gremlin> g.V(hercules).out('father', 'mother').values('name')
==>jupiter
==>alcmene
gremlin> g.V(hercules).out('father', 'mother').label()
==>god
==>human
gremlin> hercules.label()
==>demigod

例子展示了罗马诸神的基因关系. Property Graph Model已经足够处理事物的多个类型和关系. 在上一节, 海格力斯在Athens附近打了两次仗, 通过访问battled边可以找到这些事件.

gremlin> g.V(hercules).out('battled')
==>v[2304]
==>v[2560]
==>v[2816]
gremlin> g.V(hercules).out('battled').valueMap()
==>[name:[nemean]]
==>[name:[hydra]]
==>[name:[cerberus]]
gremlin> g.V(hercules).outE('battled').has('time', gt(1)).inV().values('name')
==>cerberus
==>hydra

battled边的time属性会被顶点中心索引管理. 对指定的边进行查找或过滤, 要比扫描全部的边再过滤要更快.JanusGraph可以自动使用顶点中心索引.

gremlin> g.V(hercules).outE('battled').has('time', gt(1)).inV().values('name').toString()
==>[GraphStep([v[24744]],vertex), VertexStep(OUT,[battled],edge), HasStep([time.gt(1)]), EdgeVertexStep(IN), PropertiesStep([name],value)]

3.3.2 更复杂的例子

普鲁托住在冥界. 他跟明海格力的联系是, 明海格力打过他的宠物.尽管这样, 明海格力是他的侄子, 普鲁托会怎样处理对他侄子的无礼.
Gremlin提供更多的例子. 每一个实例的解释

gremlin> pluto = g.V().has('name', 'pluto').next()
==>v[2048]
gremlin> // who are pluto's cohabitants?
gremlin> g.V(pluto).out('lives').in('lives').values('name')
==>pluto
==>cerberus
gremlin> // pluto can't be his own cohabitant
gremlin> g.V(pluto).out('lives').in('lives').where(is(neq(pluto))).values('name')
==>cerberus
gremlin> g.V(pluto).as('x').out('lives').in('lives').where(neq('x')).values('name')
==>cerberus

3.3.2.2. 普鲁托的兄弟们

gremlin> // where do pluto's brothers live?
gremlin> g.V(pluto).out('brother').out('lives').values('name')
==>sky
==>sea
gremlin> // which brother lives in which place?
gremlin> g.V(pluto).out('brother').as('god').out('lives').as('place').select('god', 'place')
==>[god:v[1024], place:v[512]]
==>[god:v[1280], place:v[768]]
gremlin> // what is the name of the brother and the name of the place?
gremlin> g.V(pluto).out('brother').as('god').out('lives').as('place').select('god', 'place').by('name')
==>[god:jupiter, place:sky]
==>[god:neptune, place:sea]

普鲁托不畏惧死亡, 所以他住在冥界. 相反, 他的兄弟们选择住在充满爱的地方.

gremlin> g.V(pluto).outE('lives').values('reason')
==>no fear of death
gremlin> g.E().has('reason', textContains('loves'))
==>e[6xs-sg-m51-e8][1024-lives->512]
==>e[70g-zk-m51-lc][1280-lives->768]
gremlin> g.E().has('reason', textContains('loves')).as('source').values('reason').as('reason').select('source').outV().values('name').as('god').select('source').inV().values('name').as('thing').select('god', 'reason', 'thing')
==>[god:neptune, reason:loves waves, thing:sea]
==>[god:jupiter, reason:loves fresh breezes, thing:sky]
