本文主要探讨Makefile的通用模版。

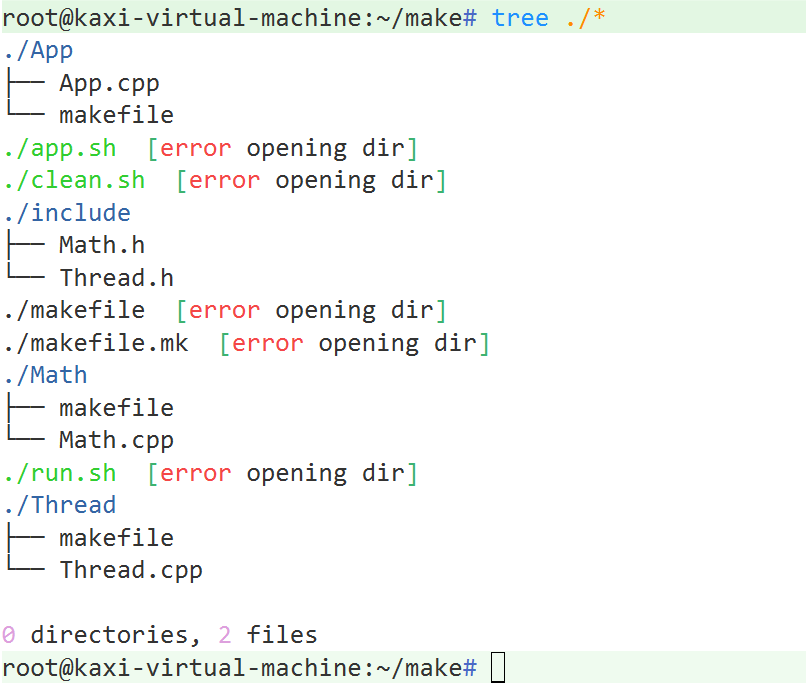

项目文件结构图

模版介绍

#项目模版支持子模块动态和静态两种编译

静态编译： sh run.sh 1

静态清理： sh clean.sh 1

动态编译： sh run.sh

动态清理： sh clean.sh

默认产生可执行程序 ：app

运行程序： sh app.sh



#编译默认产生的文件 ： lib   bin

lib 			库文件

bin				可执行程序文件

#默认产生的文件目录为当前主目录,即make目录



#项目文件阐述

make				项目主目录

	makefile		主makefile

	makefile.mk 	公共makefile

	run.sh			项目编译脚本

	clean.sh		项目清理脚本

    app.sh          程序运行脚本

	inlude			头文件目录

		Math.h 		子模块头文件

		Thread.h 	子模块头文件

	Math			子模块目录

		makefile    子模块makefile

		Math.cpp 	子模块源码

	Thread			子模块目录

		makefile    子模块makefile

		Thread.cpp 	子模块源码

	App				主模块目录

		makefile    主模块makefile

		App.c       主模块源码

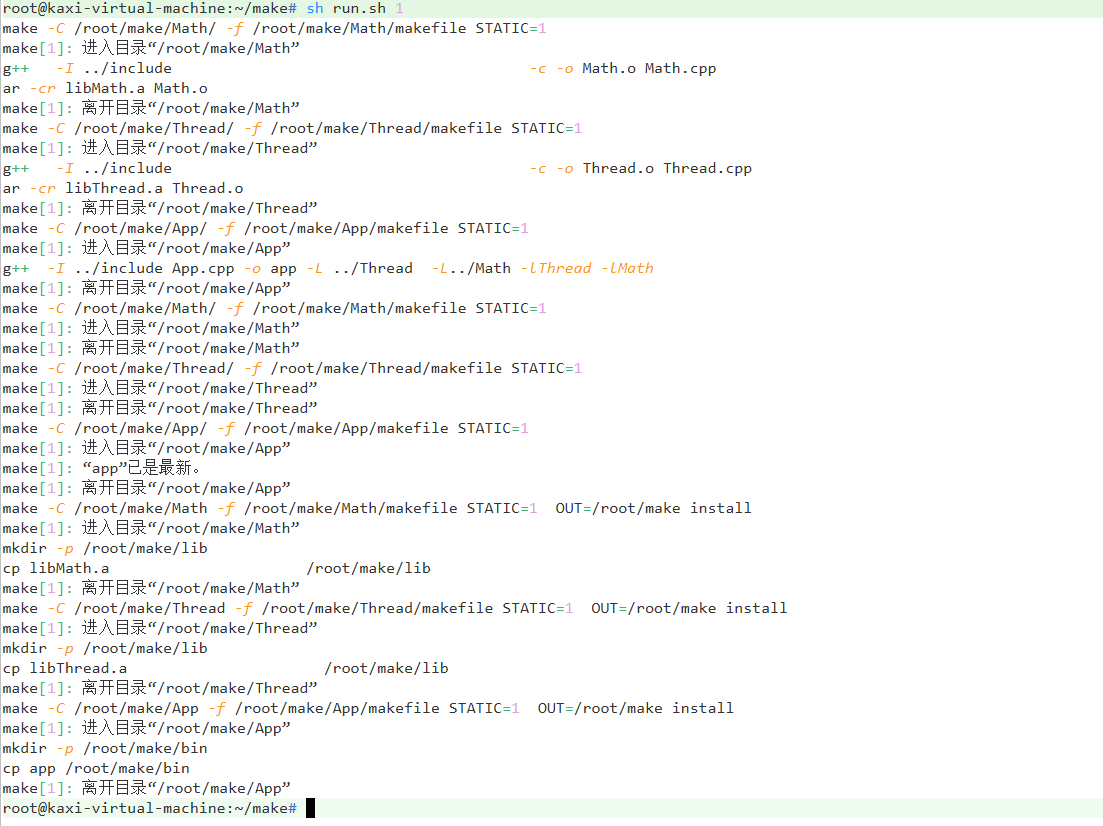

静态编译示例

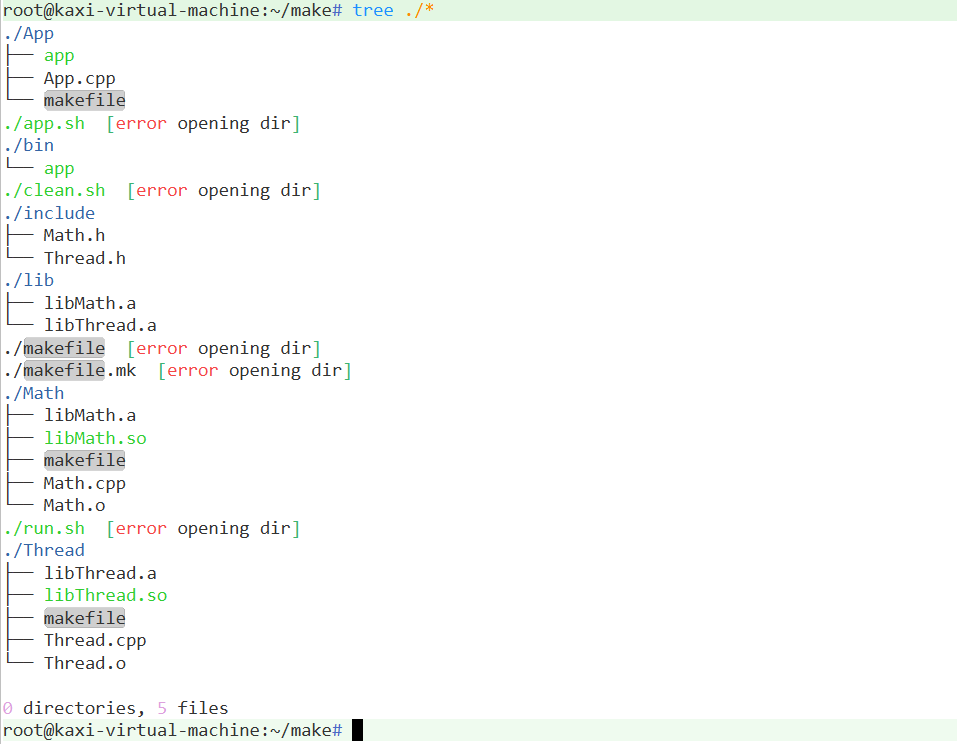

静态编译结果

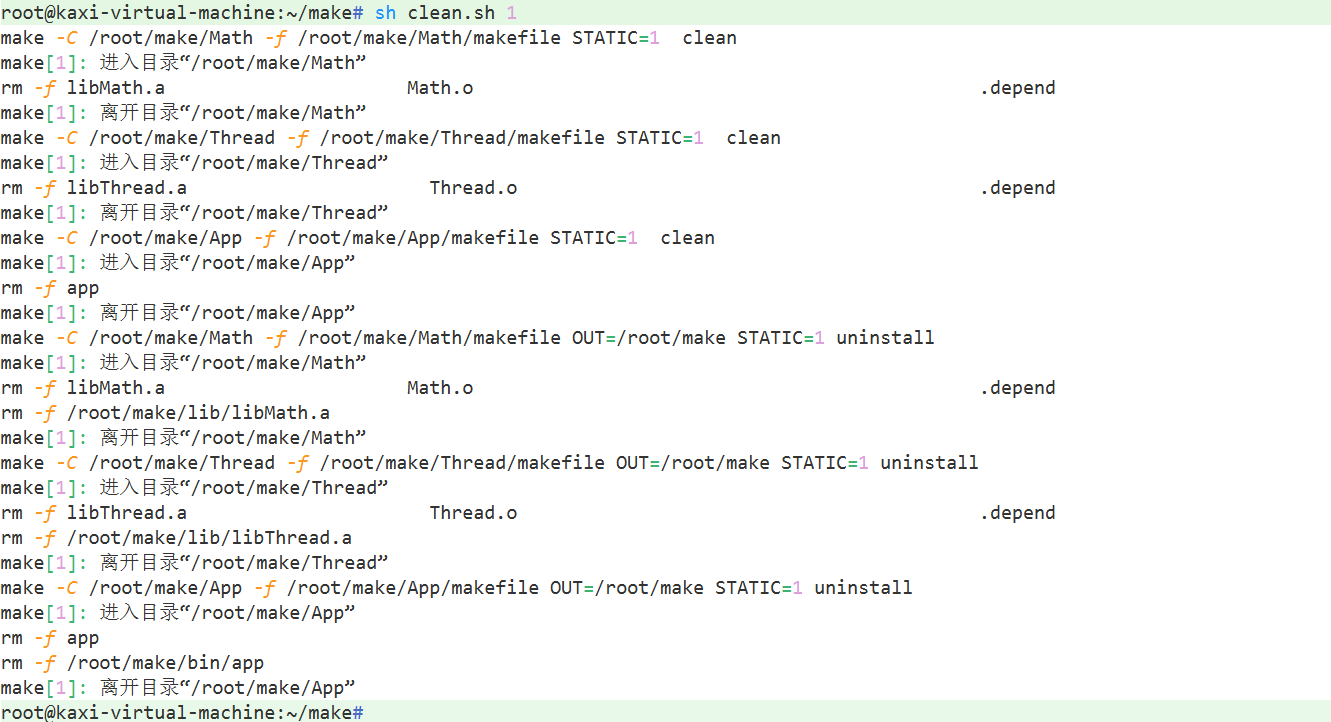

静态清理示例

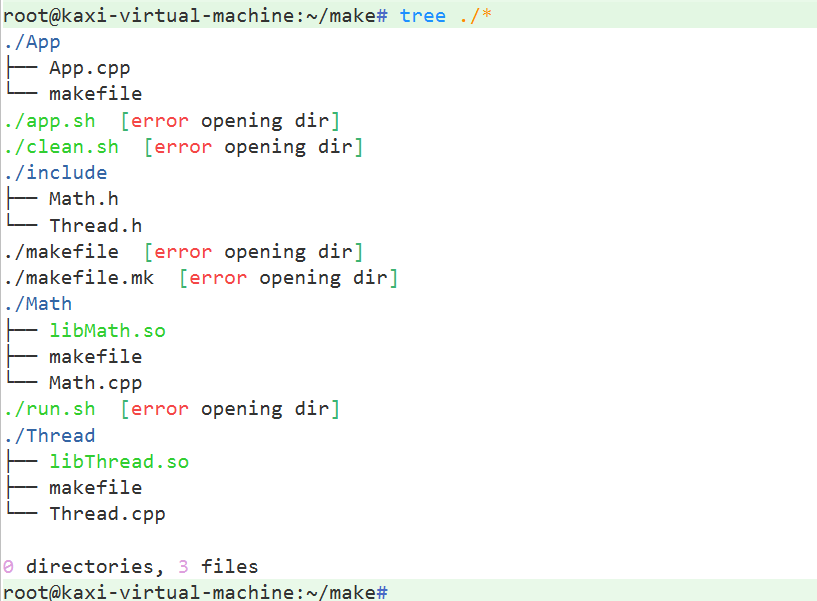

静态清理结果

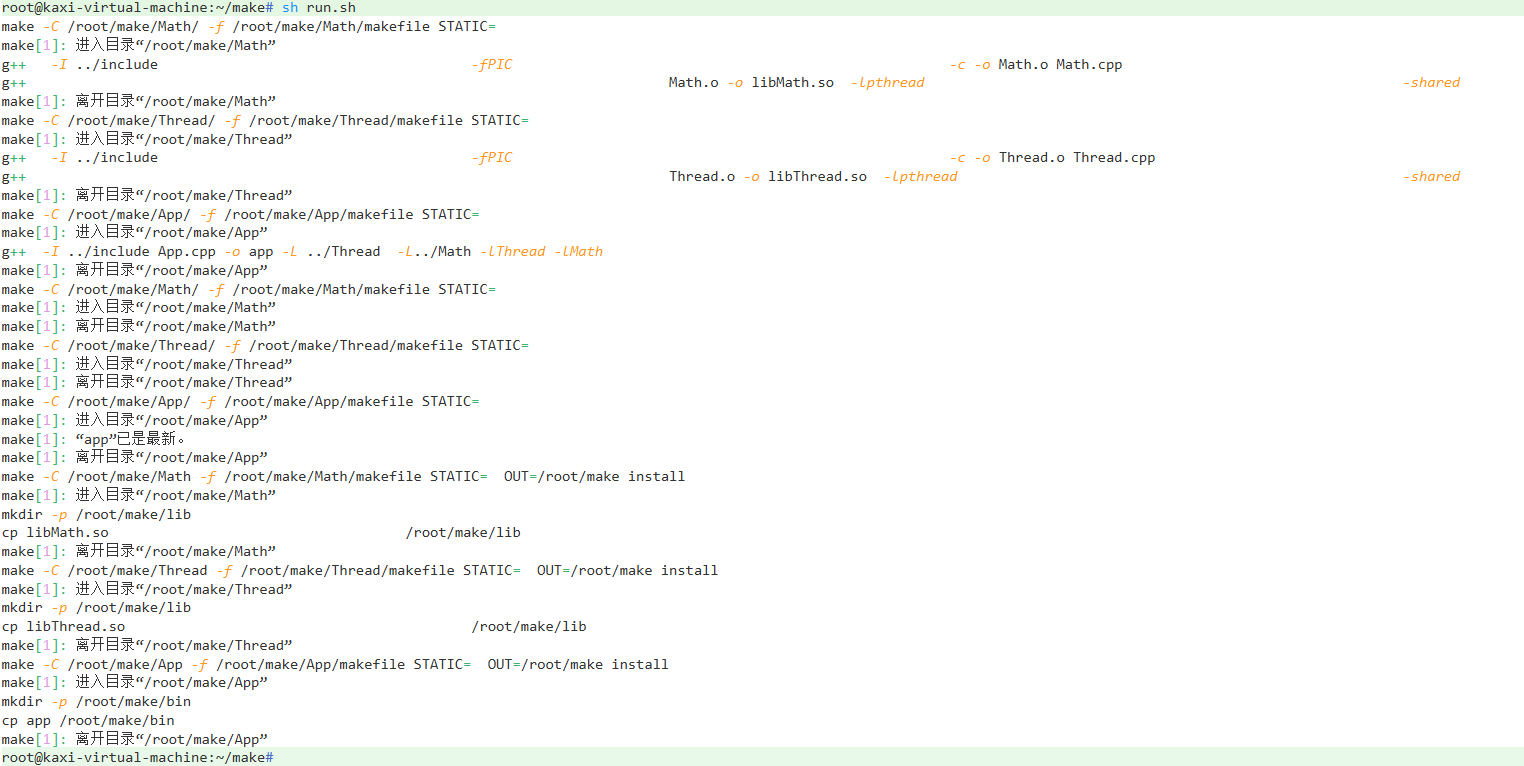

动态编译

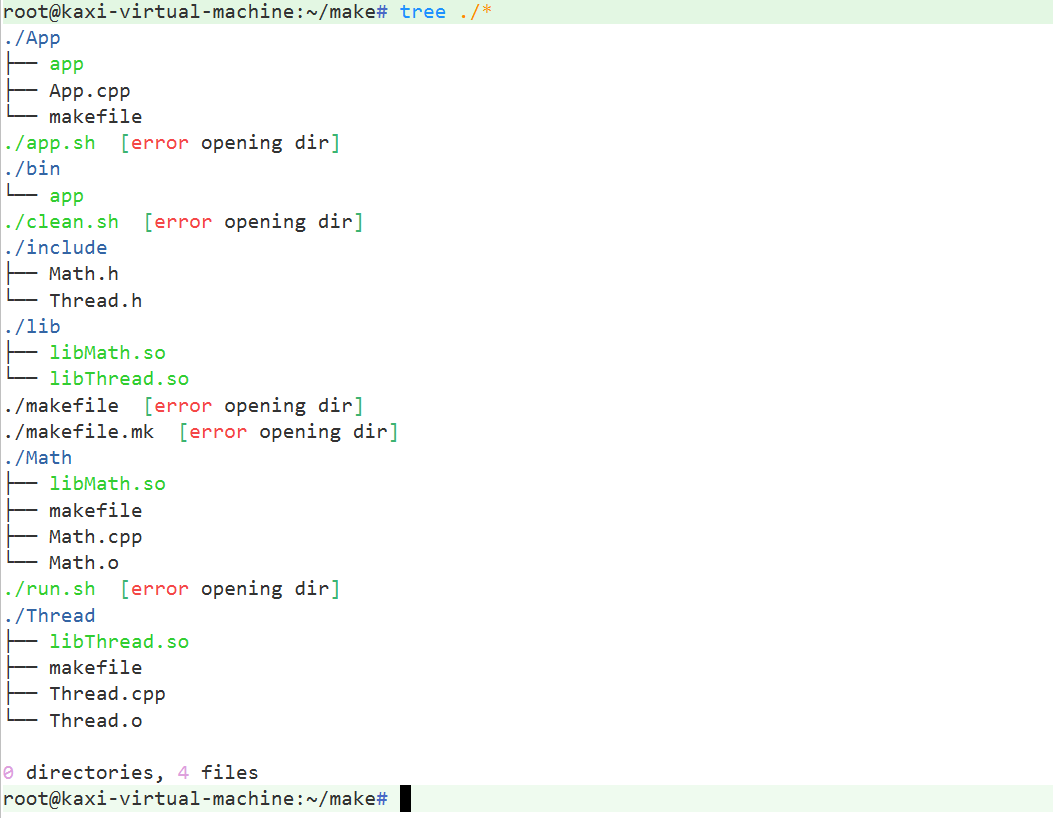

动态编译结果

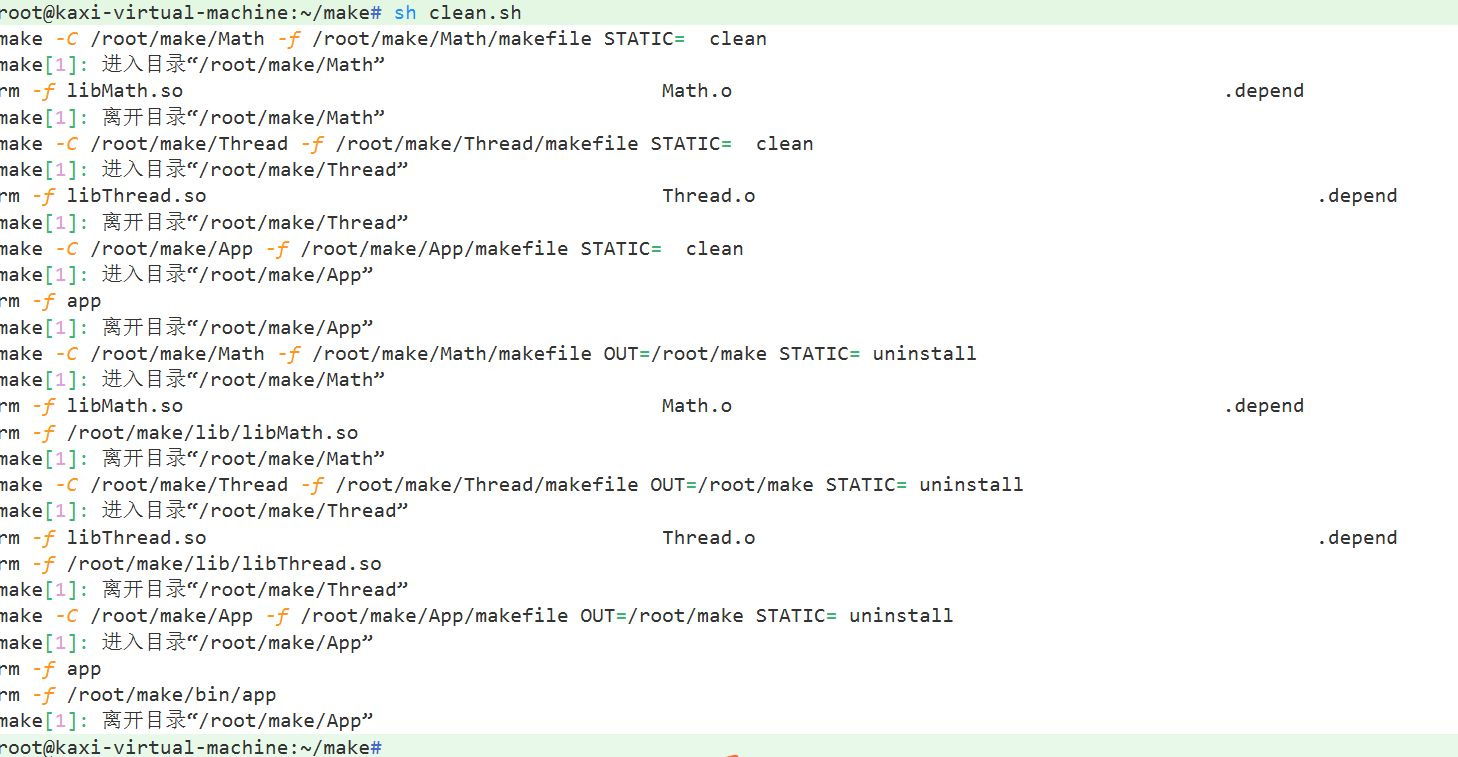

动态清理

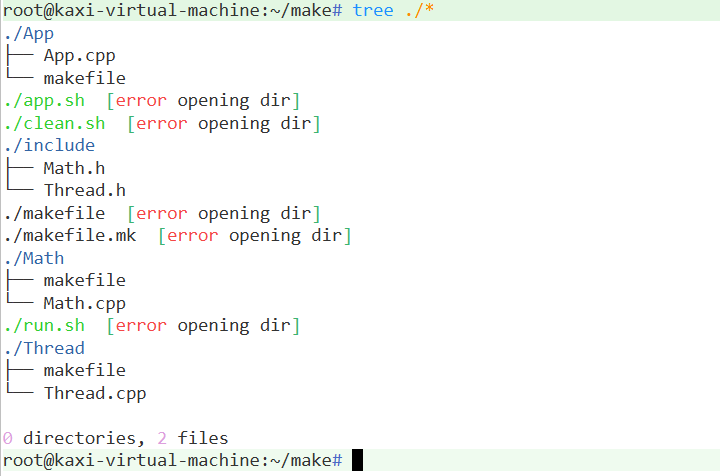

动态清理结果

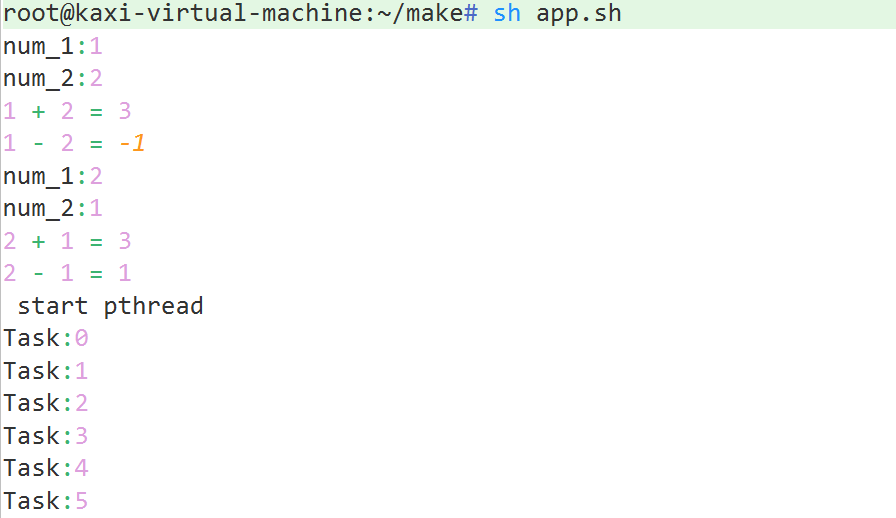

运行程序

模版文件

run.sh

#!/bin/bash

export LD_PATH

make STATIC_COMP=${1}

make STATIC_COMP=${1} install

clean.sh

#!/bin/bash

make STATIC_COMP=${1} clean

make STATIC_COMP=${1} uninstall

rm -rf $(pwd)/lib $(pwd)/bin

app.sh

#!/bin/bash

export LD_LIBRARY_PATH=$(pwd)/lib:$LD_LIBRARY_PATH

$(pwd)/bin/app 1

make/makefile

TARGET=Math Thread App
LDIR=$(shell pwd)
STATIC_COMP=0
OUT_FILE=$(shell pwd)
CTARGET=$(foreach n,$(TARGET),$(LDIR)/$n)
ITAG=_install
UTAG=_uninstall
ITARGET=$(foreach n,$(TARGET),$(LDIR)/$n$(ITAG))
UTARGET=$(foreach n,$(TARGET),$(LDIR)/$n$(UTAG))

all:$(TARGET)
$(TARGET):
        $(MAKE) -C $(LDIR)/$@/ -f $(LDIR)/$@/makefile STATIC=$(STATIC_COMP)

clean:$(CTARGET)
$(CTARGET):
        $(MAKE) -C $@ -f $@/makefile STATIC=$(STATIC_COMP)  clean

install:$(ITARGET)
$(ITARGET):$(TARGET)
        $(MAKE) -C $(subst $(ITAG),,$@) -f $(subst $(ITAG),,$@)/makefile STATIC=$(STATIC_COMP)  OUT=$(OUT_FILE) install

uninstall:$(UTARGET)
$(UTARGET):
        $(MAKE) -C $(subst $(UTAG),,$@) -f $(subst $(UTAG),,$@)/makefile OUT=$(OUT_FILE) STATIC=$(STATIC_COMP) uninstall

.PHONY: clean install uninstall all $(CTARGET) $(ITARGET) $(TARGET) $(UTARGET)

make/makefile.mk

ifndef TARGET
        TARGET:= $(notdir $(shell pwd))                                 #获取当前路径
endif

CXXFLAGS:=$(CXXFLAGS)  -I ../include                                    #编译选项
LDLIBS:=$(LDLIBS) -lpthread                                             #链库
LDFLAGS:=$(LDFLAGS)                                                                             #编库选项
OUT:=/usr                                                                                               #输出路径

SRCS:=$(shell find $(shell pwd) -type f -name "*.cpp")                   #获取源码集合
OBJS:=$(patsubst %.cpp,%.o,$(SRCS))                                      #获取依赖集合

#编库前奏
ifeq ($(LIBTYPE),.so)
        TARGET:=lib$(strip $(TARGET)).so                                  #strip剔除空格
        LDLIBS:=$(LDLIBS) -shared                                         #共享库
        CXXFLAGS:=$(CXXFLAGS) -fPIC                                       #位置无关
endif

ifeq ($(LIBTYPE),.a)
        TARGET:=lib$(strip $(TARGET)).a                                   #strip剔除空格
endif

#编译
all:depend $(TARGET)
depend:
        @$(CXX) $(CXXFLAGS) -MM $(SRCS) > .depend
-include .depend

#生成程序
#$@目标集合,$^去重依赖集合
$(TARGET):$(OBJS)
ifeq ($(LIBTYPE),.a)
        $(AR) -cr $@ $^
else
        $(CXX) $(LDFLAGS) $^ -o $@ $(LDLIBS)
endif

define INSTALL
        -mkdir -p $(2)
        cp $(1) $(2)
endef

install:$(TARGET)
        $(call INSTALL,$(TARGET),$(OUT)/lib)

uninstall:clean
        $(RM) $(OUT)/lib/$(TARGET)

#清理
clean:
        $(RM) $(TARGET) $(OBJS) .depend

.PHONY: clean all depend install uninstall

include/Math.h

#ifndef __MATH_H__
#define __MATH_H__
class Math
{
                public:
                                Math();
                                Math(int num_1, int num_2):num_1(num_1),num_2(num_2){};
                                void get_num();
                                void set_num(int num_1, int num_2);
                                int add_num();
                                int dec_num();
                private:
                                int num_1;
                                int num_2;
};

#endif

include/Thread.h

#ifndef __THREAD__H__
#define __THREAD__H__

#include <thread>

class Thread
{
        public:
                virtual void start_pthread();
                virtual void wait_pthread();
                virtual void pthread_task() = 0;
        private:
                std::thread th;
};

#endif

Math/makefile

ifeq ($(STATIC),1)
LIBTYPE=.a
else
LIBTYPE=.so
endif
include ../makefile.mk

Math/Math.cpp

#include <iostream>
#include "Math.h"

int Math::add_num()
{
        return num_1 + num_2;
}

int Math::dec_num()
{
        return num_1 - num_2;
}

void Math::get_num()
{
        std::cout << "num_1:" << num_1 << std::endl;
        std::cout << "num_2:" << num_2 << std::endl;
}

void Math::set_num(int num_1, int num_2)
{
        this->num_1 = num_1;
        this->num_2 = num_2;
}

Thread/makefile

ifeq ($(STATIC),1)
LIBTYPE=.a
else
LIBTYPE=.so
endif
include ../makefile.mk

Thread/Thread.cpp

#include <iostream>
#include "Thread.h"

void Thread::start_pthread()
{
        std::cout << " start pthread" << std::endl;
        th = std::thread(&Thread::pthread_task,this);
}

void Thread::wait_pthread()
{
        th.join();
}

App/makefile

TARGET:=app
CXXFLAGS:=$(CXXFLAGS)  -I ../include                    #编译选项
LDLIBS:=$(LDLIBS) -lMath -lThread                       #链库
LDFLAGS:=-L  ../Thread  -L ../Math                      #编库选项
OUT:=/usr                                               #输出路径
SRCS:=$(shell find $(shell pwd) -type f -name "*.cpp")  #获取源码集合
OBJS:=$(patsubst %.cpp,%.o,$(SRCS))                     #获取依赖集合

#编译
all:depend $(TARGET)
depend:
        @$(CXX) $(CXXFLAGS) -MM $(SRCS) > .depend
-include .depend

$(TARGET):$(OBJS)
        $(CXX) $(CXXFLAGS) $^ -o $@ $(LDFLAGS) $(LDLIBS)

define INSTALL
        -mkdir -p $(2)/bin
        cp $(1) $(2)/bin
endef

install:$(TARGET)
        $(call INSTALL,$(TARGET),$(OUT))

uninstall:clean
        $(RM) $(OUT)/bin/$(TARGET)

clean:
        $(RM) $(TARGET)

.PHONY: clean install uninstall

App/App.cpp

#include <iostream>
#include <chrono>
#include <thread>
#include "Thread.h"
#include "Math.h"

class Task: public Thread
{
        public:
                        Task(int sec):sec(sec){};

                        void pthread_task()
                        {
                                for(int i = 0; ; i++)
                                {
                                        std::cout << "Task:" << i << std::endl;
                                        std::this_thread::sleep_for(std::chrono::seconds(sec));
                                }
                        }

        private:
                        unsigned int sec;
};

int main(int argc, char *argv[])
{
        if(argc != 2)
        {
                std::cout << "input param error" << std::endl;
                return 0;
        }

        Math m(1,2);
        m.get_num();
        std::cout << "1 + 2 = " << m.add_num() << std::endl;
        std::cout << "1 - 2 = " << m.dec_num() << std::endl;
        m.set_num(2,1);
        m.get_num();
    std::cout << "2 + 1 = " << m.add_num() << std::endl;
    std::cout << "2 - 1 = " << m.dec_num() << std::endl;

        Task t(atoi(argv[1]));
        t.start_pthread();
        t.wait_pthread();

        return 0;
}
