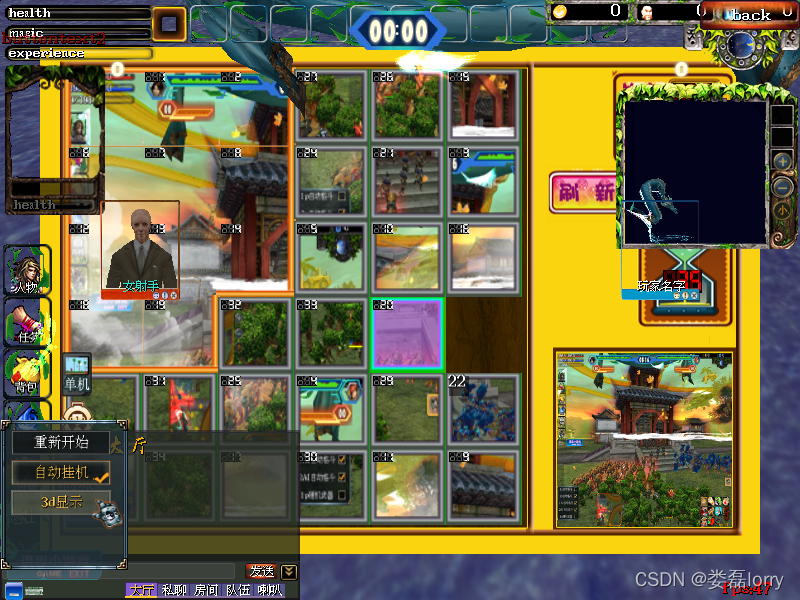

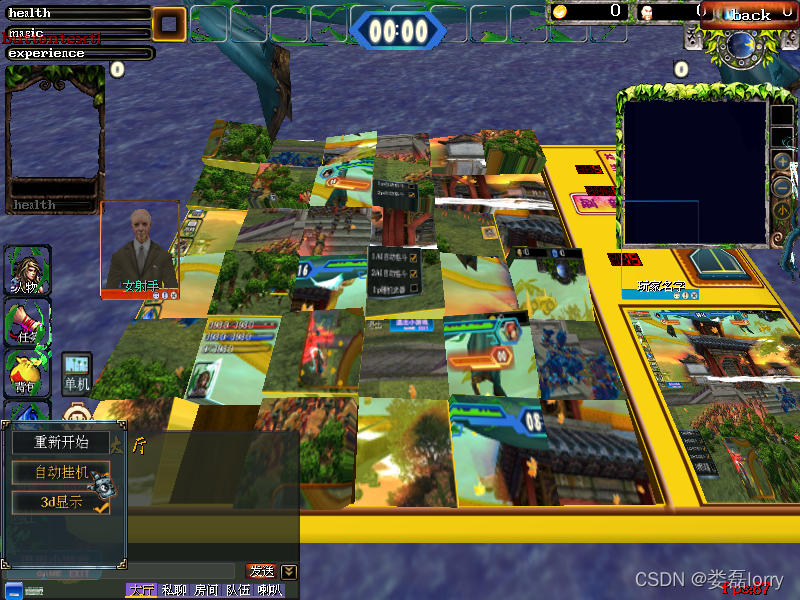

这是《最强大脑》里出现过的一个拼图游戏。这个游戏的自动拼图算法是一个N数码问题。原始图片被切割成n x n个小块，游戏可能出现的总状态数为 n平方的阶乘。
即使最简单的n=3，3阶分割也有(3*3)! = 362880个状态。4阶分割时，拼图状态数飙升到(4*4)! = 20922789888000。那么100阶分割呢，(100*100)! 绝对的天文数字。如何来实现任意阶的拼图算法呢？
方案一：
我们很容易想到的方法，按打乱的顺序逆序还原，有点作弊之嫌。
方案二：
A*算法剪枝， 避免电脑出现一万年也算不完任务的情况。当阶数n足够大的时候效率仍然是堪忧的。
方案三：
本游戏采用的算法，模拟人脑的思路。100*100阶的拼图也能很快求解，而且可以分步执行，即一次只计算一步，很适合游戏ai。 此方法也有一个缺点，不是最优解，求解出来的步数有点长。
算法：先将色块和空格移动到目标位置附近，然后执行相应的公式化步骤。
具体直接看源码吧
//========================================================
// @Date: 2016.05
// @File: SourceDemoClient/Pintu/MiniGamePintu.h
// @Brief: MiniGamePintu
// @Author: LouLei
// @Email: twopointfive@163.com
// @Copyright (Crapell) - All Rights Reserved
//========================================================
#ifndef __MiniGamePintu__H__
#define __MiniGamePintu__H__
#include "Rpg/MiniGame.h"
//拼图1 空格移动
class MiniGameSlidingBlock:public MiniGame
{
public:
struct Cell
{
int texID;
int x,y;
};
struct CellMesh
{
vec3 vVertex[8];
vec2 tVertex[8];
};
MiniGameSlidingBlock();
virtual~MiniGameSlidingBlock();
virtual bool Start();
virtual bool Stop();
virtual bool Render();
virtual void RenderUI();
virtual bool Update();
virtual bool Free();
virtual void OnSize();
virtual bool KeepResource(bool once,int& circle,String& nextTip);
//三种类型结构
virtual MiniPlayer* CreatePlayer();
virtual MiniPlayer* CreateRobot ();
virtual MiniPlayer* CreateRole ();
void UpdateGameRect();
bool IsEnd();
void MoveEmpty(int key);
bool IsCellOK(int x,int y);
bool IsCellEmpty(int x,int y);
Cell* GetCell(int texID);
bool AIMoveSrcUp(int srcX,int srcY,int tarX,int tarY,int empX,int empY);
bool AIMoveSrcDown(int srcX,int srcY,int tarX,int tarY,int empX,int empY);
bool AIMoveSrcLeft(int srcX,int srcY,int tarX,int tarY,int empX,int empY);
bool AIMoveSrcRight(int srcX,int srcY,int tarX,int tarY,int empX,int empY);
//protected:
float m_accumeTime;
TexturePtr m_texBack;
TexturePtr m_texPic;
TexturePtr m_texFrame;
TexturePtr m_texFrame2;
TexturePtr m_texCloud;
int m_Level;
RectF m_gameRect;
RectF m_rectLevel;
vec2I m_cellNum;
int m_cellNumXY;
vec2I m_cellExtend;
Cell* m_emptyCell;
Cell* m_cells;
CellMesh* m_cellMeshs;
Cell m_movingCell;
vec2 m_movingDir;
float m_movingTime;
bool m_workingWithAI;
Cell* m_aiSrcCell;
int m_aiCompleteSize;
int m_stepNum;
int m_aiTryNum;
int m_aiTrys[64];
//box 索引
int CellIndex[30];
};
extern MiniGameSlidingBlock* G_SlideBlockGame;
#endif
//========================================================
// @Date: 2016.05
// @File: SourceDemoClient/Pintu/MiniGamePintu.cpp
// @Brief: MiniGamePintu
// @Author: LouLei
// @Email: twopointfive@163.com
// @Copyright (Crapell) - All Rights Reserved
//========================================================
#include "General/Pch.h"
#include "General/General.h"
#include "General/StringUtil.h"
#include "General/Timer.h"
#include "General/Window.h"
#include "Gui/GuiMgr.h"
#include "Gui/RpgGuis.h"
#include "Gui/GuiControlMisc.h"
#include "Input/InputMgr.h"
#include "MiniGameSlidingBlock.h"
#include "Render/Camera.h"
#include "Render/Font.h"
#include "Render/RendDriver.h"
#include "Render/Terrain.h"
#include "Render/MC_MovieClip.h"
#include "Render/Shader.h"
#include "Sound/SoundManager.h"
#include "General/List.cpp"
#include "General/Pce.h"
//static float MovingTime = 0.001f;
static float MovingTime = 0.08f;
static float GameRectWidth2D = 460;
static float GameRectWidth3D = 66;
MiniGameSlidingBlock* G_SlideBlockGame;
MiniGameSlidingBlock::MiniGameSlidingBlock()
:m_cells(NULL)
{
G_SlideBlockGame = this;
//m_Level = 0;
m_Level = 4;
//box 索引
/*
0 1
2 3
4 5
6 7
*/
int indexs[30] =
{
0,2,1,
1,2,3,
3,2,6,
3,6,7,
1,3,7,
1,7,5,
0,1,5,
0,5,4,
2,0,4,
2,4,6
};
memcpy(CellIndex,indexs,sizeof(CellIndex));
}
MiniGameSlidingBlock::~MiniGameSlidingBlock()
{
Free();
G_SlideBlockGame = NULL;
}
bool MiniGameSlidingBlock::Start()
{
//m_myRolePlayer = NULL;
if(!MiniGame::Start())
return false;
m_gameState = MS_Gamming;
m_accumeTime = 0;
//进入miniplaygui，（选人、选关卡都已在房间里进行完毕)。
if(GetStyle()) G_GuiMgr->PushGui(GetStyle()->playGUI.c_str(),GL_DIALOG);
G_TextureMgr->AddTexture(m_texBack, "data/minigame/Pintu/backframe.png");
G_TextureMgr->AddTexture(m_texPic, "data/minigame/Pintu/pic1.png");
G_TextureMgr->AddTexture(m_texFrame, "data/minigame/Pintu/frame.png");
G_TextureMgr->AddTexture(m_texFrame2, "data/minigame/Pintu/frame2.png");
//G_TextureMgr->AddTexture(m_texCloud, "data/environment/clouds/cloud2.png");
G_TextureMgr->AddTexture(m_texCloud, "data/environment/clouds/cloud_1.png");
//
if (m_movieScene == NULL)
{
LoadConfig loader(LoadConfig::GenDonotReShrinkBound, true, true);
m_movieScene = new RendSys::MovieClip;
m_movieScene->LoadFromFile("data/minigame/pintu/board.movie", &loader);
Frame frame;
frame.SetPos(m_startPos);
m_movieScene->SetProgramFrame(&frame);
m_movieScene->Advance();
}
if (m_movieScene->IsLoadComplete() == false)
{
m_gameState = MS_End;
return false;
}
m_movieScene->GetMovieClip("preview")->ReAttachTexture(m_texPic);
//m_cellNum.x = 6;
//m_cellNum.y = 7;
m_cellNum.x = 2+m_Level;
m_cellNum.y = 2+m_Level;
m_cellNumXY = m_cellNum.x*m_cellNum.y;
UpdateGameRect();
m_workingWithAI=FALSE;
m_aiSrcCell = NULL;
m_aiTryNum = 0;
m_aiCompleteSize = -1;
m_stepNum = 0;
m_movingTime = 0;
m_movingCell.texID = -1;
//
m_cells = new Cell[m_cellNumXY];
for(int i=0;i<m_cellNumXY;i++)
{
m_cells[i].texID =i;
m_cells[i].x =i%m_cellNum.x;
m_cells[i].y =i/m_cellNum.x;
}
m_emptyCell = &m_cells[m_cellNumXY - 1];
m_emptyCell->texID = -1;
//
int num = 0;
for(int i=1;i<200;i++)
{
int ran1=Rand()%(m_cellNumXY-1);//empty不交换
int ran2=Rand()%(m_cellNumXY-1);
if(ran1!=ran2)
{
num++;
Swap(m_cells[ran1].texID,m_cells[ran2].texID);
}
}
if (num%2==1)
{
//必须交换偶数次
Swap(m_cells[0].texID,m_cells[1].texID);
}
//
/*
0 1
2 3
4 5
6 7
*/
m_cellMeshs = new CellMesh[m_cellNumXY];
TerrainData terrain;
//terrain.New(48,48,GameRectWidth3D/48,GameRectWidth3D/48);
terrain.New(17,17,GameRectWidth3D/16,GameRectWidth3D/16);
terrain.FillFractSurface(0,0,10,0.5f,false,0);
Cell* cell;
CellMesh* mesh;
vec2 cellExtend3D;
cellExtend3D.x = GameRectWidth3D/m_cellNum.x;
cellExtend3D.y = GameRectWidth3D/m_cellNum.y;
for(int i=0;i<m_cellNumXY;i++)
{
cell = &m_cells[i];
float X0 = 0;
float X1 = cellExtend3D.x;
float Z0 = 0;
float Z1 = cellExtend3D.y;
float Y0 = 0;
mesh = &m_cellMeshs[i];
mesh->vVertex[0].x = X0;
mesh->vVertex[0].y = terrain.GetHeight(cell->x,cell->y);
mesh->vVertex[0].z = Z0;
mesh->vVertex[4].x = X0;
mesh->vVertex[4].y = Y0;
mesh->vVertex[4].z = Z0;
mesh->vVertex[1].x = X1;
mesh->vVertex[1].y = terrain.GetHeight(cell->x+1,cell->y);
mesh->vVertex[1].z = Z0;
mesh->vVertex[5].x = X1;
mesh->vVertex[5].y = Y0;
mesh->vVertex[5].z = Z0;
mesh->vVertex[2].x = X0;
mesh->vVertex[2].y = terrain.GetHeight(cell->x,cell->y+1);
mesh->vVertex[2].z = Z1;
mesh->vVertex[6].x = X0;
mesh->vVertex[6].y = Y0;
mesh->vVertex[6].z = Z1;
mesh->vVertex[3].x = X1;
mesh->vVertex[3].y = terrain.GetHeight(cell->x+1,cell->y+1);
mesh->vVertex[3].z = Z1;
mesh->vVertex[7].x = X1;
mesh->vVertex[7].y = Y0;
mesh->vVertex[7].z = Z1;
float TX0 = float(cell->x)/m_cellNum.x;
float TX1 = float(cell->x+1)/m_cellNum.x;
float TZ0 = float(cell->y)/m_cellNum.y;
float TZ1 = float(cell->y+1)/m_cellNum.y;
mesh->tVertex[0].x = TX0;
mesh->tVertex[0].y = TZ0;
mesh->tVertex[4].x = TX0;
mesh->tVertex[4].y = TZ0;
mesh->tVertex[1].x = TX1;
mesh->tVertex[1].y = TZ0;
mesh->tVertex[5].x = TX1;
mesh->tVertex[5].y = TZ0;
mesh->tVertex[2].x = TX0;
mesh->tVertex[2].y = TZ1;
mesh->tVertex[6].x = TX0;
mesh->tVertex[6].y = TZ1;
mesh->tVertex[3].x = TX1;
mesh->tVertex[3].y = TZ1;
mesh->tVertex[7].x = TX1;
mesh->tVertex[7].y = TZ1;
}
//
for(int i = 0; i < m_allPlayerNum; i++)
{
if(m_miniPlayer[i])
m_miniPlayer[i]->Start();
}
//设置摄像机
CameraCtrlerTarget* ctrler = new CameraCtrlerTarget;
ctrler->SetDistToTar(60);
ctrler->SetTarPos(m_startPos);
G_Camera->PushCtrler(ctrler);
G_Camera->SetEuler(0, -60, 0);
//片头摄像机
PushIntroCamera();
return true;
}
MiniPlayer* MiniGameSlidingBlock::CreatePlayer()
{
return new MiniPlayer;
}
MiniPlayer* MiniGameSlidingBlock::CreateRobot()
{
return new MiniPlayer;
}
MiniPlayer* MiniGameSlidingBlock::CreateRole()
{
return new MiniPlayer;
}
bool MiniGameSlidingBlock::Stop()
{
// char buf[256];
G_GuiMgr->PopGui("MiPintu_PlayGui");
{
if (m_myPlayer && m_myPlayer->m_liveNum>0)
{
G_GuiMgr->GetGui<Rpg_ResultDialog>()->ShowResult(true);
}
else
{
G_GuiMgr->GetGui<Rpg_ResultDialog>()->ShowResult(false);
}
G_GuiMgr->PushGui("Rpg_ResultDialog",GL_DIALOGBOTTOM);
}
MiniGame::Stop();
return true;
}
bool MiniGameSlidingBlock::Render()
{
if (m_3dMode)
{
G_RendDriver->EndUI();
if(m_movieScene==NULL
||m_movieScene->IsLoadComplete()==false)
return false;
G_RendDriver->SetRenderStateEnable(RS_DEPTH_TEST,true);
m_movieScene->RendClip();
////画等级
//m_rectLevel = RectF(BoardRect2D.x+623, BoardRect2D.y+24, 39, 23);
//if(m_rectLevel.IsPointIn(G_Mouse->GetMousePos()))
//{
// G_RendDriver->Color4f(1, 1, 0, 1);
//}
//else
//{
// G_RendDriver->Color4f(1, 0, 0, 1);
//}
//m_texLcdNumber->Bind();
//DrawLcd(3,m_Level+1, m_rectLevel);
//G_RendDriver->Color4f(1, 1, 1, 1);
////画时间和得分
//m_texLcdNumber->Bind();
//G_RendDriver->Color4f(1, 0, 0, 1);
//DrawLcd(3,m_gameTime, RectF(BoardRect2D.x +613, BoardRect2D.y+213, 39, 23));
////DrawLcd(3,m_life, RectF(m_uiOffset.x+623, m_uiOffset.y +52, 39, 23));
//DrawLcd(4,m_stepNum, RectF(BoardRect2D.x+623, BoardRect2D.y +79, 52, 23));
//
G_RendDriver->Color4f(1.0f, 1.0f, 1.0f, 1.0f);
G_RendDriver->SetRenderStateEnable(RS_TEXTURE_2D,true);
m_texPic->Bind();
//cell
Cell* cell;
CellMesh* mesh;
for(int i = 0;i<m_cellNumXY;i++)
{
cell = &m_cells[i];
if (cell->texID!=-1
&&cell->texID!=m_movingCell.texID)
{
mesh = &m_cellMeshs[cell->texID];
G_RendDriver->PushMatrix();
G_RendDriver->Translatef(m_gameRect.x+cell->x *m_cellExtend.x,
m_startPos.y+9,
m_gameRect.y+cell->y *m_cellExtend.y);
G_RendDriver->RendTrigon(10,mesh->vVertex,mesh->tVertex,NULL,NULL,CellIndex,8);
G_RendDriver->PopMatrix();
//G_RendDriver->Color4f(0.0f, 0.0f, 0.0f, 0.5f);
//G_RendDriver->DrawRect(RectF(dst.x+3,dst.y+3,20,20));
//G_FontMgr->SetColor(Color(1.0f, 1.0f, 1.0f, 1.0f));
//sprintf(buf,"%d",cell->texID);
//G_FontMgr->TextAtPos(dst,buf);
}
}
//moving
if (m_movingCell.texID!=-1)
{
vec2 pos;
pos.x = m_movingCell.x *m_cellExtend.x;
pos.y = m_movingCell.y *m_cellExtend.y;
pos += m_movingDir*vec2(m_cellExtend.x,m_cellExtend.y)*(1-m_movingTime/MovingTime);
mesh = &m_cellMeshs[m_movingCell.texID];
G_RendDriver->PushMatrix();
G_RendDriver->Translatef(m_gameRect.x+pos.x,
m_startPos.y+9,
m_gameRect.y+pos.y);
G_RendDriver->RendTrigon(10,mesh->vVertex,mesh->tVertex,NULL,NULL,CellIndex,8);
G_RendDriver->PopMatrix();
// G_RendDriver->Color4f(0.0f, 0.0f, 0.0f, 0.5f);
// G_RendDriver->DrawRect(RectF(dst.x+3,dst.y+3,20,20));
// sprintf(buf,"%d",m_movingCell.texID);
// G_FontMgr->SetColor(Color(1.0f, 1.0f, 1.0f, 1.0f));
// G_FontMgr->TextAtPos(dst,buf);
}
}
else
{
//G_RendDriver->ClearClipRect();
G_RendDriver->BeginUI();
//frame
G_RendDriver->Color4f(1.0f, 1.0f, 1.0f, 1.0f);
m_texBack->Bind();
G_RendDriver->DrawTextureRect(BoardRect2D, RectF(0, 0, 1, 1));
//
G_RendDriver->PushMatrix();
G_RendDriver->Translatef(m_gameRect.x,-m_gameRect.y,0);
vec2 dst;
//cell
char buf[128];
vec2I tex;
//纹理排序后速度微小增加
//picture
Cell* cell = m_cells;
m_texPic->Bind();
G_RendDriver->Color4f(1.0f, 1.0f, 1.0f, 1.0f);
if (G_ShaderMgr&& G_ShaderMgr->m_curEffect)
{
G_ShaderMgr->MapChangeParm();
}
for(int i = 0;i<m_cellNumXY;i++,cell++)
{
if (cell->texID!=-1
&&cell->texID!=m_movingCell.texID)
{
tex.x = cell->texID%m_cellNum.x;
tex.y = cell->texID/m_cellNum.x;
dst.x = cell->x *m_cellExtend.x;
dst.y = cell->y *m_cellExtend.y;
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),
RectF(float(tex.x)/m_cellNum.x,float(tex.y)/m_cellNum.y,1.0f/m_cellNum.x,1.0f/m_cellNum.y));
}
}
//cloud
cell = m_cells;
m_texCloud->Bind();
for(int i = 0;i<m_cellNumXY;i++,cell++)
{
if (cell->texID!=-1
&&cell->texID!=m_movingCell.texID)
{
tex.x = cell->texID%m_cellNum.x;
tex.y = cell->texID/m_cellNum.x;
dst.x = cell->x *m_cellExtend.x;
dst.y = cell->y *m_cellExtend.y;
//
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),
RectF(float(tex.x)/m_cellNum.x+m_gameTime*0.1f,float(tex.y)/m_cellNum.y,1.0f/m_cellNum.x,1.0f/m_cellNum.y));
}
}
//frame
cell = m_cells;
m_texFrame->Bind();
for(int i = 0;i<m_cellNumXY;i++,cell++)
{
if (cell->texID!=-1
&&cell->texID!=m_movingCell.texID)
{
tex.x = cell->texID%m_cellNum.x;
tex.y = cell->texID/m_cellNum.x;
dst.x = cell->x *m_cellExtend.x;
dst.y = cell->y *m_cellExtend.y;
int t = 0;
if (m_workingWithAI && cell==m_aiSrcCell)
{
t = 1;
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),RectF(t/10.0f,0,1/10.0f,1));
}
else
{
if (IsCellOK(cell->x,cell->y))
{
RectF frameRect(dst.x-2,dst.y-2,m_cellExtend.x+4,m_cellExtend.y+4);
if (IsCellOK(cell->x-1,cell->y)==false)
{
t = 2;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x+1,cell->y)==false)
{
t = 3;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x,cell->y-1)==false)
{
t = 4;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x,cell->y+1)==false)
{
t = 5;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
}
else
{
if (IsCellOK(cell->x,cell->y+1)==false)
{
t = 0;
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),RectF(t/10.0f,0,1/10.0f,1));
}
}
}
}
}
//text
cell = m_cells;
m_texLcdNumber->Bind();
for(int i = 0;i<m_cellNumXY;i++,cell++)
{
if (cell->texID!=-1
&&cell->texID!=m_movingCell.texID)
{
tex.x = cell->texID%m_cellNum.x;
tex.y = cell->texID/m_cellNum.x;
dst.x = cell->x *m_cellExtend.x;
dst.y = cell->y *m_cellExtend.y;
DrawLcd(3,cell->texID, RectF(dst.x+3,dst.y+3,20,10));
//slow
//G_RendDriver->Color4f(0.0f, 0.0f, 0.0f, 0.5f);
//G_RendDriver->DrawRect(RectF(dst.x+3,dst.y+3,20,20));
//G_FontMgr->SetColor(Color(1.0f, 1.0f, 1.0f, 1.0f));
//sprintf(buf,"%d",cell->texID);
//G_FontMgr->TextAtPos(dst,buf);
}
}
//moving
if (m_movingCell.texID!=-1)
{
tex.x = m_movingCell.texID%m_cellNum.x;
tex.y = m_movingCell.texID/m_cellNum.x;
dst.x = m_movingCell.x *m_cellExtend.x;
dst.y = m_movingCell.y *m_cellExtend.y;
dst += m_movingDir*vec2(m_cellExtend.x,m_cellExtend.y)*(1-m_movingTime/MovingTime);
G_RendDriver->Color4f(1.0f, 1.0f, 1.0f, 1.0f);
m_texPic->Bind();
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),
RectF(float(tex.x)/m_cellNum.x,float(tex.y)/m_cellNum.y,1.0f/m_cellNum.x,1.0f/m_cellNum.y));
m_texFrame->Bind();
if (IsCellOK(m_movingCell.x,m_movingCell.y))
{
Cell* cell = &m_movingCell;
RectF frameRect(dst.x-2,dst.y-2,m_cellExtend.x+4,m_cellExtend.y+4);
int t = 0;
if (IsCellOK(cell->x-1,cell->y)==false)
{
t = 2;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x+1,cell->y)==false)
{
t = 3;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x,cell->y-1)==false)
{
t = 4;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
if (IsCellOK(cell->x,cell->y+1)==false)
{
t = 5;
G_RendDriver->DrawTextureRect(frameRect,RectF(t/10.0f,0,1/10.0f,1));
}
}
else
{
int t = 0;
if (m_workingWithAI && m_aiSrcCell && m_movingCell.texID==m_aiSrcCell->texID)
t = 1;
G_RendDriver->DrawTextureRect(RectF(dst.x,dst.y,m_cellExtend.x,m_cellExtend.y),RectF(t/10.0f,0,1/10.0f,1));
}
G_RendDriver->Color4f(0.0f, 0.0f, 0.0f, 0.5f);
G_RendDriver->DrawRect(RectF(dst.x+3,dst.y+3,20,20));
sprintf(buf,"%d",m_movingCell.texID);
G_FontMgr->SetColor(Color(1.0f, 1.0f, 1.0f, 1.0f));
G_FontMgr->TextAtPos(dst,buf);
}
G_RendDriver->PopMatrix();
//preview
G_RendDriver->Color4f(1.0f, 1.0f, 1.0f, 1.0f);
RectF previewRect(BoardRect2D.x+517,BoardRect2D.y+306,175,175.0f/m_texPic->GetWidth()*m_texPic->GetHeight());
m_texPic->Bind();
G_RendDriver->DrawTextureRect(previewRect, RectF(0, 0, 1, 1));
}
//
if (m_3dMode)
{
G_RendDriver->PushMatrix();
G_RendDriver->MultMatrix(mat2Dto3D);
}
//画等级
m_rectLevel = RectF(BoardRect2D.x+633, BoardRect2D.y+36, 39, 23);
if(m_rectLevel.IsPointIn(G_Mouse->GetMousePos()))
{
G_RendDriver->Color4f(1, 1, 0, 1);
}
else
{
G_RendDriver->Color4f(1, 0, 0, 1);
}
m_texLcdNumber->Bind();
DrawLcd(3,m_Level+1, m_rectLevel);
G_RendDriver->Color4f(1, 1, 1, 1);
//画时间和得分
m_texLcdNumber->Bind();
G_RendDriver->Color4f(1, 0, 0, 1);
DrawLcd(3,m_gameTime, RectF(BoardRect2D.x +623, BoardRect2D.y+223, 39, 23));
DrawLcd(4,m_stepNum, RectF(BoardRect2D.x+633, BoardRect2D.y +89, 52, 23));
if (m_3dMode)
{
G_RendDriver->PopMatrix();
}
return true;
}
void MiniGameSlidingBlock::RenderUI()
{
Render();
G_RendDriver->BeginUI();
}
void MiniGameSlidingBlock::UpdateGameRect()
{
float width__ = m_texBack->GetWidth();
float height_ = m_texBack->GetHeight();
SetBoardRect(RectF((G_Window->m_iWidth-width__)/2,(G_Window->m_iHeight-height_)/2,width__,height_),
RectF(m_startPos.x-50,m_startPos.z-33,100,66),
m_startPos.y+10.1f);
if (m_3dMode)
{
m_gameRect = RectF(m_startPos.x-38, m_startPos.z-GameRectWidth3D/2, GameRectWidth3D,GameRectWidth3D);
}
else
{
m_gameRect = RectF(BoardRect2D.x + 26, BoardRect2D.y + 22, GameRectWidth2D,GameRectWidth2D);
}
m_cellExtend.x = m_gameRect.width/m_cellNum.x;
m_cellExtend.y = m_gameRect.height/m_cellNum.y;
//取整
if (m_3dMode==false)
{
m_gameRect.width = m_cellExtend.x*m_cellNum.x;
m_gameRect.height = m_cellExtend.y*m_cellNum.y;
}
}
bool MiniGameSlidingBlock::Update()
{
MiniGame::Update();
m_movieScene->Advance();
UpdateGameRect();
if (m_movingCell.texID!=-1)
{
m_movingTime += G_Timer->GetStepTimeLimited();
if (m_movingTime>MovingTime)
{
m_movingTime = MovingTime;
}
}
if (G_SlideBlockGame->IsButtonDowning(MOUSE_LEFT))
{
int click = 0;
if (m_3dMode)
{
vec3 dir;
vec3 start;
G_Camera->GetMouseTray(start,dir);
RayMovieCollideRes res;
res.vStart = start;
res.vEnd = start+PICKLEN*dir;
res.justBond = false;
if(m_movieScene->GetMovieClip("board")->IntersectTray(res))
{
vec2 point(res.resPos.x- m_gameRect.x,res.resPos.z- m_gameRect.y);
click = int(point.x/m_cellExtend.x) + int(point.y/m_cellExtend.y)*m_cellNum.x;
}
}
else
{
vec2 point = G_Mouse->GetMousePos()-m_gameRect.GetPos();
click = int(point.x/m_cellExtend.x) + int(point.y/m_cellExtend.y)*m_cellNum.x;
}
int empty = (m_emptyCell->x) + (m_emptyCell->y)*m_cellNum.x;
if(click - empty == 1)
{
MoveEmpty(DIK_RIGHT);
}
else if(click - empty == -1)
{
MoveEmpty(DIK_LEFT);
}
else if(click - empty == m_cellNum.x)
{
MoveEmpty(DIK_DOWN);
}
else if(click - empty == -m_cellNum.x)
{
MoveEmpty(DIK_UP);
}
else
{
PlaySound__("data/sound/poker/cannot.wav");
}
if(m_rectLevel.IsPointIn(G_Mouse->GetMousePos()))
{
//重新开始
m_Level++;
m_Level%=10;
//Start();
}
}
if (G_SlideBlockGame->IsKeyDowning(KeyLeft))
{
MoveEmpty(DIK_LEFT);
}
else if (G_SlideBlockGame->IsKeyDowning(KeyRight))
{
MoveEmpty(DIK_RIGHT);
}
else if (G_SlideBlockGame->IsKeyDowning(KeyUp))
{
MoveEmpty(DIK_UP);
}
else if (G_SlideBlockGame->IsKeyDowning(KeyDown))
{
MoveEmpty(DIK_DOWN);
}
//算法优化：毗邻后可以不断的移位大循环圈 而不是小循环圈， 这样可以在大循环圈内构造长的正确序列一起移位 正确序列越长加速效果越好
if (m_workingWithAI
&&IsEnd()==false
&&(m_movingCell.texID==-1||m_movingTime>=MovingTime)
)
{
if (m_aiTryNum)
{
m_aiTryNum--;
MoveEmpty(m_aiTrys[m_aiTryNum]);
}
else
{
//将块srcTexID挪动到tarX，tarY
int empX = m_emptyCell->x;
int empY = m_emptyCell->y;
//最后两排两列
if (m_aiCompleteSize>=m_cellNum.x-2-1
&&m_aiCompleteSize>=m_cellNum.y-2-1)
{
//找要匹配的色块
m_aiSrcCell = NULL;
int srcTexID = -1;
int aiCompleteSizeX = -1;
//底面两排
for(int size = 0;size<m_cellNum.x-2;size++)
{
if(IsCellOK(size,m_cellNum.y-2)
&&IsCellOK(size,m_cellNum.y-1)
)
{
aiCompleteSizeX = size;
continue;
}
int index1 = (m_cellNum.y-2)*m_cellNum.x+size;
int index2 = index1 + m_cellNum.x;
//正好颠倒，特殊处理避免死循环
/*
|index2 |any |
|index1 |empty |
*/
if(m_cells[index2].texID==index1
&&m_cells[index1].texID==index2
)
{
//
if (empY<m_cellNum.y-1)
{
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
break;
}
if (empX>size+1)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
break;
}
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
//先移动倒叙插入
//for (int i=m_cellNum.y-1-empY;i>0;i--)
//{
// m_aiTrys[m_aiTryNum++] = DIK_DOWN;
//}
//for (int i=empX-size-1;i>0;i--)
//{
// m_aiTrys[m_aiTryNum++] = DIK_LEFT;
//}
break;
}
//特殊处理避免死循环
/*
|empty |index2 |
|index1 |any |
*/
if(m_cells[index2].texID==index1
&&m_cells[index1].texID==-1
&&m_cells[index1+m_cellNum.x].texID==index2
)
{
//变成
/*
|index2 |any |
|index1 |empty |
*/
MoveEmpty(DIK_DOWN);
break;
}
if(m_cells[m_cellNumXY-m_cellNum.x+size].texID==index1)//先将index1挪到左下角，再将index2挪到左下角时index1自动归位
{
/*
|empty |any |
|index1 |index2| index2归位时index1自动归位
*/
srcTexID = index2;
}
else
{
srcTexID = index1;
}
//找到色块位置
m_aiSrcCell = GetCell(srcTexID);
int srcX = m_aiSrcCell->x;
int srcY = m_aiSrcCell->y;
int tarX = aiCompleteSizeX+1;
int tarY = m_cellNum.y-1;
//先毗邻
if (abs(empX-srcX)>1 || abs(empY-srcY)>1)
{
if (empY<m_cellNum.y-2)
{
//先毗邻y
if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
else if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
}
else
{
//先毗邻x (空白从底面两排毗邻到右面两排)
if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
else if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
}
}
else
{
//先挪到底部
if (srcY<m_cellNum.y-1)
{
AIMoveSrcDown(srcX,srcY,tarX,tarY,empX,empY);
}
else if (srcX>tarX)
{
//挪到左边
AIMoveSrcLeft(srcX,srcY,tarX,tarY,empX,empY);
}
}
break;
}
//右面两排
int aiCompleteSizeY = -1;
if (aiCompleteSizeX>=m_cellNum.x-2-1)
{
for(int size = 0;size<m_cellNum.y-2;size++)
{
if(IsCellOK(m_cellNum.x-2,size)
&&IsCellOK(m_cellNum.x-1,size)
)
{
aiCompleteSizeY = size;
continue;
}
int index1 = size*m_cellNum.x+(m_cellNum.x-2);
int index2 = index1 + 1;
//正好颠倒，特殊处理避免死循环
/*
|index2 |index1|
|any |empty |
*/
if(m_cells[index2].texID==index1
&&m_cells[index1].texID==index2
)
{
//
if (empX<m_cellNum.x-1)
{
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
break;
}
if (empY>size+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
break;
}
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
//先移动倒叙插入
//for (int i=m_cellNum.x-1-empX;i>0;i--)
//{
// m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
//}
//for (int i=empY-size-1;i>0;i--)
//{
// m_aiTrys[m_aiTryNum++] = DIK_UP;
//}
break;
}
//特殊处理避免死循环
/*
|empty |index1|
|index2|any |
*/
if(m_cells[index2].texID==index1
&&m_cells[index1].texID==-1
&&m_cells[index1+m_cellNum.x].texID==index2
)
{
//变成
/*
|index2 |index1|
|any |empty |
*/
MoveEmpty(DIK_DOWN);
break;
}
if(m_cells[index2].texID==index1)//先将index1挪到右上角，再讲index2挪到右上角时index1自动归位
{
srcTexID = index2;
}
else
{
srcTexID = index1;
}
//找到色块位置
m_aiSrcCell = GetCell(srcTexID);
int srcX = m_aiSrcCell->x;
int srcY = m_aiSrcCell->y;
int tarX = m_cellNum.x-1;
int tarY = aiCompleteSizeY+1;
//先毗邻
if (abs(empX-srcX)>1 || abs(empY-srcY)>1)
{
if (empY<m_cellNum.y-2)
{
//先毗邻y
if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
else if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
}
else
{
//先毗邻x
if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
else if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
}
}
else
{
//先挪到右部
if (srcX<m_cellNum.x-1)
{
AIMoveSrcRight(srcX,srcY,tarX,tarY,empX,empY);
}
else if (srcY>tarY)
{
//挪到上边
AIMoveSrcUp(srcX,srcY,tarX,tarY,empX,empY);
}
}
break;
}
}
//最后四个
if (aiCompleteSizeY>=m_cellNum.y-2-1)
{
//没结束就顺时针转
if(empY==m_cellNum.y-2)
{
if (empX==m_cellNum.x-2)
{
MoveEmpty(DIK_RIGHT);
}
else
{
MoveEmpty(DIK_DOWN);
}
}
else
{
if (empX==m_cellNum.x-2)
{
MoveEmpty(DIK_UP);
}
else
{
MoveEmpty(DIK_LEFT);
}
}
//if(m_emptyCell->x==m_cellNum.x-2)
//{
// MoveEmpty(DIK_RIGHT);
//}
//else if(m_emptyCell->y==m_cellNum.y-2)
//{
// MoveEmpty(DIK_DOWN);
//}
}
}
//先拼左上角
else
{
//找到不匹配的色块
m_aiSrcCell = NULL;
int srcTexID = -1;
//for(int i = 0;i<m_cellNumXY-1;i++)
//{
// if(m_cells[i].texID !=-1
// && m_cells[i].texID != i)
// {
// srcTexID = i;
// break;
// }
//}
m_aiCompleteSize = -1;
int maxSize = max(m_cellNum.x,m_cellNum.y);
for(int size = 0;size<maxSize;size++)
{
int index = 0;
for(int i = 0;i<size;i++)
{
index = size*m_cellNum.x+i;
if(IsCellOK(i,size)==false)
{
srcTexID = index;
break;
}
if(size>=m_cellNum.y-2 ) //最下面两排另拼
{
break;
}
}
if (srcTexID!=-1)
{
break;
}
for(int j = 0;j<=size;j++)
{
index = j*m_cellNum.x+size;
if(IsCellOK(size,j)==false)
{
srcTexID = index;
break;
}
if(size>=m_cellNum.x-2) //最右面两排另拼
{
break;
}
}
if (srcTexID!=-1)
{
break;
}
m_aiCompleteSize = size;
}
//找到色块位置
m_aiSrcCell = GetCell(srcTexID);
int srcX = m_aiSrcCell->x;
int srcY = m_aiSrcCell->y;
//
int tarX = m_aiSrcCell->texID%m_cellNum.x;
int tarY = m_aiSrcCell->texID/m_cellNum.x;
if (abs(empX-srcX)>1 || abs(empY-srcY)>1)
{
//先毗邻
if (empY<srcY ||
(empX>=empY && empX>srcX))
{
//先毗邻y
if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
else if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
}
else
{
//先毗邻x
if (empX>srcX+1)
{
MoveEmpty(DIK_LEFT);
}
else if (empX<=srcX-1)
{
MoveEmpty(DIK_RIGHT);
}
else if (empY>srcY+1)
{
MoveEmpty(DIK_UP);
}
else if (empY<=srcY-1)
{
MoveEmpty(DIK_DOWN);
}
}
}
else
{
if (srcX>srcY)
{
//先y
if(tarY<srcY)
{
AIMoveSrcUp(srcX,srcY,tarX,tarY,empX,empY);
}
else if(tarY>srcY)
{
AIMoveSrcDown(srcX,srcY,tarX,tarY,empX,empY);
}
else if(tarX>srcX)
{
AIMoveSrcRight(srcX,srcY,tarX,tarY,empX,empY);
return true;
}
else if(tarX<srcX)
{
AIMoveSrcLeft(srcX,srcY,tarX,tarY,empX,empY);
return true;
}
}
else
{
//先x
if(tarX>srcX)
{
AIMoveSrcRight(srcX,srcY,tarX,tarY,empX,empY);
return true;
}
else if(tarX<srcX)
{
AIMoveSrcLeft(srcX,srcY,tarX,tarY,empX,empY);
return true;
}
else if(tarY<srcY)
{
AIMoveSrcUp(srcX,srcY,tarX,tarY,empX,empY);
}
else if(tarY>srcY)
{
AIMoveSrcDown(srcX,srcY,tarX,tarY,empX,empY);
}
}
}
}
}
}
IsEnd();
return true;
}
bool MiniGameSlidingBlock::AIMoveSrcUp(int srcX,int srcY,int tarX,int tarY,int empX,int empY)
{
//将空格转到上侧
//倒叙插入移动
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
//第1排
if(empX==srcX-1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX+1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
//第2排
else if(empX==srcX-1 && empY==srcY)
{
if (IsCellOK(empX,empY-1)==false)
{
//不会破坏已经拼好的
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
else
{
if (srcY<m_cellNum.y-1)
{
//下面绕过去
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else
{
//上面绕过去
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
}
}
else if(empX==srcX+1 && empY==srcY)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
//第3排
else if(empX==srcX-1 && empY==srcY+1)
{
if (srcX<m_cellNum.x-1)
{
//首选右面绕过去
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else
{
//左面绕过去
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
}
else if(empX==srcX && empY==srcY+1)
{
if (srcX<m_cellNum.x-1)
{
//首选右面绕过去
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else
{
//左面绕过去
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
}
else if(empX==srcX+1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
return true;
}
bool MiniGameSlidingBlock::AIMoveSrcDown(int srcX,int srcY,int tarX,int tarY,int empX,int empY)
{
//将空格转到下侧
//倒叙插入移动
m_aiTrys[m_aiTryNum++] = DIK_UP;
//第1排
if(empX==srcX-1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else if(empX==srcX && empY==srcY-1)
{
if (srcX<m_cellNum.x-1)
{
//首选右面绕过去
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else
{
//左面绕过去
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
}
else if(empX==srcX+1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
//第2排
else if(empX==srcX-1 && empY==srcY)
{
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else if(empX==srcX+1 && empY==srcY)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
//第3排
else if(empX==srcX-1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX+1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
return true;
}
bool MiniGameSlidingBlock::AIMoveSrcLeft(int srcX,int srcY,int tarX,int tarY,int empX,int empY)
{
//将空格转到左侧
//倒叙插入移动
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
//第1排
if(empX==srcX-1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else if(empX==srcX && empY==srcY-1)
{
if (IsCellOK(empX-1,empY)==false
|| srcX>= m_cellNum.x-1) //没法从右绕
{
//不会破坏已经拼好的
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
else
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
}
else if(empX==srcX+1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
//第2排
else if(empX==srcX+1 && empY==srcY)
{
if (srcY<m_cellNum.y-1)
{
//首选下面绕过去
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else
{
//上面绕过去
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
}
//第3排
else if(empX==srcX+1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
else if(empX==srcX && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
}
else if(empX==srcX-1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
return true;
}
bool MiniGameSlidingBlock::AIMoveSrcRight(int srcX,int srcY,int tarX,int tarY,int empX,int empY)
{
//将空格转到右侧
//倒叙插入移动
m_aiTrys[m_aiTryNum++] = DIK_LEFT;
//第1排
if(empX==srcX-1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX+1 && empY==srcY-1)
{
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
//第2排
else if(empX==srcX-1 && empY==srcY)
{
if (srcY<m_cellNum.y-1)
{
//首选下面绕过去
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
}
else
{
//上面绕过去
m_aiTrys[m_aiTryNum++] = DIK_DOWN;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
}
//第3排
else if(empX==srcX-1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
m_aiTrys[m_aiTryNum++] = DIK_RIGHT;
}
else if(empX==srcX+1 && empY==srcY+1)
{
m_aiTrys[m_aiTryNum++] = DIK_UP;
}
return true;
}
bool MiniGameSlidingBlock::Free()
{
MiniGame::Free();
SafeDeleteArray(m_cellMeshs);
SafeDeleteArray(m_cells);
return true;
}
void MiniGameSlidingBlock::OnSize()
{
}
bool MiniGameSlidingBlock::KeepResource(bool once, int& circle, String& nextTip)
{
return true;
}
void MiniGameSlidingBlock::MoveEmpty(int key)
{
m_stepNum++;
Cell* srcCell;
Cell* tarCell = m_emptyCell;
bool sucess = false;
switch(key)
{
case DIK_LEFT:
if(m_emptyCell->x>0)
{
srcCell = m_emptyCell-1;
sucess = true;
}
break;
case DIK_RIGHT:
if(m_emptyCell->x<m_cellNum.x-1)
{
srcCell = m_emptyCell+1;
sucess = true;
}
break;
case DIK_UP:
if(m_emptyCell->y>0)
{
srcCell = m_emptyCell - m_cellNum.x;
sucess = true;
}
break;
case DIK_DOWN:
if(m_emptyCell->y<m_cellNum.y-1)
{
srcCell = m_emptyCell + m_cellNum.x;
sucess = true;
}
break;
}
if (sucess)
{
m_movingDir = vec2(srcCell->x-m_emptyCell->x,srcCell->y-m_emptyCell->y);
if (srcCell==m_aiSrcCell)
{
m_aiSrcCell = m_emptyCell;
}
m_movingCell.x = m_emptyCell->x;
m_movingCell.y = m_emptyCell->y;
m_movingCell.texID = srcCell->texID;
m_movingTime = 0;
Swap(tarCell->texID,srcCell->texID);
m_emptyCell = srcCell;
if (IsCellOK(tarCell->x,tarCell->y))
{
PlaySound__("data/sound/event_equip.wav");
}
else
{
PlaySound__("data/sound/ui_click.wav");
}
}
else
{
PlaySound__("data/sound/poker/cannot.wav");
}
}
bool MiniGameSlidingBlock::IsEnd()
{
//if (m_gameState==MS_End)
//{
// return true;
//}
int lastState = m_gameState;
if (m_cells[m_cellNumXY-1].texID!=-1)
{
return false;
}
for(int i = 0;i<m_cellNumXY-1;i++)
{
if(m_cells[i].texID != i)
return false;
}
m_gameState = MS_End;
if (lastState!=MS_End)
{
m_Level++;
m_Level %= 10;
}
return true;
}
bool MiniGameSlidingBlock::IsCellOK(int x,int y)
{
if (x<0||x>m_cellNum.x-1
||y<0||y>m_cellNum.y-1)
{
return false;
}
int index = y*m_cellNum.x+x;
if(m_cells[index].texID != index)
return false;
return true;
}
bool MiniGameSlidingBlock::IsCellEmpty(int x,int y)
{
int index = y*m_cellNum.x+x;
if(m_cells[index].texID != -1)
return false;
return true;
}
MiniGameSlidingBlock::Cell* MiniGameSlidingBlock::GetCell(int texID)
{
//找到色块位置
for(int i = 0;i<m_cellNumXY;i++)
{
if(m_cells[i].texID == texID)
{
return &m_cells[i];
}
}
return NULL;
}
附送一份3D模型切割算法，方便制作3D版拼图游戏：
//========================================================
// @Date: 2016.05
// @File: Include/Render/ReproductMesh.h
// @Brief: ReproductMesh
// @Author: LouLei
// @Email: twopointfive@163.com
// @Copyright (Crapell) - All Rights Reserved
//========================================================
#pragma once
#ifndef __ReproductMesh__H__
#define __ReproductMesh__H__
//#include "Math/Mathlib.h"
#include "Render/RendDriver.h"
#include <vector>
class TopoSegment;
class TopoVertex;
class TopoFace;
class TopoVertexSet;
class TopoVertexPtrSet;
class TopoFaceSet;
class Sloid;
class TVertex;
class Box;
//typedef unsigned int IndexInt;
static const float _ModellerEpsilon = 0.001f;//1e-6f;
class TVertex
{
public:
float u;
float v;
float w;
float r;
float g;
float b;
};
class Line3D
{
public:
Line3D();
Line3D(TopoFace * face1, TopoFace * face2);
Line3D(const vec3 & direction, const vec3 & point);
//!到参考点的有向距离
float getPointToPointDistance(const vec3 & otherPoint);
//!线段交点
vec3 getLineIntersection(Line3D * otherLine);
//!线面相交
vec3 getPlaneIntersection(const vec3 & normal, const vec3 & planePoint, bool & bResult);
void perturbDirection();
vec3 m_pos;
vec3 m_dir;
};
class TopoSegment
{
public:
TopoSegment();
TopoSegment(Line3D & line, TopoFace & face, int sign1, int sign2, int sign3);
enum Status
{
VERTEX = 1,
FACE = 2,
EDGE = 3,
};
//!起点状态：在面的端点上还是边上或面上
int startType;
//!中段状态：在面的边上或面上
int middleType;
//!结束点状态
int endType;
/** nearest vertex from the starting point */
TopoVertex * startVertex;
TopoVertex * endVertex;
//!两个面的交线
vec3 startPos;
vec3 endPos;
//!两个面的交线
Line3D line;
//
int endsNum;
/** distance from the segment starting point to the point defining the plane */
float startDist;
float endDist;
bool intersect(const TopoSegment & segment);
private:
bool setVertex(TopoVertex * vertex);
bool setEdge(TopoVertex * vertex1, TopoVertex * vertex2);
void swapEnds();
};
class TopoVertex
{
public:
enum Status
{
UNKNOWN = 1,
INSIDE = 2,
OUTSIDE = 3,
BOUNDARY = 4,
};
TopoVertex();
TopoVertex(const TopoVertex & v);
TopoVertex(const vec3 & position, const TVertex & tVertex, Status eStatus);
virtual ~TopoVertex();
TopoVertex & operator=(const TopoVertex & v);
bool equals(TopoVertex * vertex);
void addAdjacentVertex(TopoVertex * adjacentVertex);
void mark(Status eStatus);
TopoVertexPtrSet * m_adjacentVertices;
vec3 pos;
TVertex tVertex;
Status status;
};
class TopoFace
{
public:
enum Status
{
UNKNOWN = 1,
INSIDE = 2,//被切割sloid的面 包含于 切割sloid的内部
OUTSIDE = 3,//外部
SAME = 4,//被切割sloid的面 共面于 切割sloid的某个面
OPPOSITE = 5,//被切割sloid的面 反共面于 切割sloid的某个面
};
TopoFace();
TopoFace(const TopoFace & v);
TopoFace(TopoVertex * v1, TopoVertex * v2, TopoVertex * v3);
~TopoFace();
TopoFace& operator=(const TopoFace & face);
bool equals_pointersmatch(TopoFace * pFace);
bool equals(TopoFace * pOtherObject);
//!预计算提高速度，不会失效
Box* getBound();
vec3& getNormal();
float getArea();
void invert();
bool simpleClassify();
void rayTraceClassify(Sloid & object);
//!判断点在面内
bool hasPoint(const vec3 & point);
Status status;
Box* bound;
vec3 normal;
TopoVertex * v1;
TopoVertex * v2;
TopoVertex * v3;
};
class TopoVertexPtrSet
{
public:
TopoVertexPtrSet();
virtual ~TopoVertexPtrSet();
TopoVertex * GetTopoVertexPtr(int nIndex);
void AddTopoVertexPtr(TopoVertex * pPointer);
int GetTopoVertexPtrNum();
void ClearTopoVertexPtr();
TopoVertex* operator[](int index);
private:
typedef std::vector<TopoVertex *> Vertices;
Vertices m_pPointers;
};
class TopoVertexSet
{
public:
TopoVertexSet();
virtual ~TopoVertexSet();
TopoVertex * GetTopoVertex(int nIndex);
TopoVertex * AddTopoVertex(const TopoVertex & vertex);
int GetTopoVertexNum();
TopoVertex& operator[](int index);
bool HasTopoVertex(TopoVertex * pVertex);
int IndexOfTopoVertex(TopoVertex * pVertex);
void ClearTopoVertex();
private:
typedef std::vector<TopoVertex *> Vertices;
Vertices m_pVertices;
};
class TopoFaceSet
{
public:
TopoFaceSet();
virtual ~TopoFaceSet();
TopoFace * GetTopoFace(int i);
void SetTopoFace(int i, TopoFace & vFace);
TopoFace * AddTopoFace(TopoFace & vFace);
TopoFace * InsertTopoFace(int i, TopoFace & vFace);
void RemoveTopoFace(int i);
int GetTopoFaceNum();
void ClearTopoFace();
private:
TopoFace * m_pFaces;
int m_nMaxSize;
int m_nSize;
};
//==================^_^==================^_^==================^_^==================^_^
class Sloid
{
public:
Sloid();
virtual ~Sloid();
//!使用object来切分自身
void SplitFaces(Sloid * pObject);
void Translate(const vec3 & t);
void Render();
void RefMesh(RendSys::Mesh* mesh);
//private:
TopoFace* AddTopoFace(TopoVertex * v1, TopoVertex * v2, TopoVertex * v3);
TopoVertex* AddTopoVertex(const vec3 & pos, const TVertex & tVertex, int status);
float ComputeDistance(TopoVertex & vertex, TopoFace & face);
void SplitFace(int faceIndex, TopoSegment & segment1, TopoSegment & segment2);
//插值纹理坐标
void CalTopoVertexTex(TopoVertex * v1, TopoVertex * v2,const vec3 & pos, TopoVertex * result);
void CalTopoVertexTex(TopoVertex * v1, TopoVertex * v2,TopoVertex * v3,const vec3 & pos, TopoVertex * result);
//一个三角形切割为2、3、4、5个
void BreakFaceInTwo(int faceIndex, const vec3 & newPos, int splitEdge);
void BreakFaceInTwo(int faceIndex, const vec3 & newPos, TopoVertex & endVertex);
void BreakFaceInThree(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, TopoVertex & startVertex, TopoVertex & endVertex);
void BreakFaceInThree(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, int splitEdge);
void BreakFaceInThree(int faceIndex, const vec3 & newPos, TopoVertex & endVertex);
void BreakFaceInThree(int faceIndex, const vec3 & newPos);
void BreakFaceInFour (int faceIndex, const vec3 & newPos1, const vec3 & newPos2, TopoVertex & endVertex);
void BreakFaceInFive (int faceIndex, const vec3 & newPos1, const vec3 & newPos2, int linedVertex);
//!标记面在切割sloid的内部还是外部..
void ClassifyFaces(Sloid & pObject);
//!反转内部面，减法使用
void InvertInsideFaces();
void GenTopologyFromRend();
void GenRendFromTopology();
void Free();
TopoVertexSet * m_topoVertexs;
TopoFaceSet * m_topoFaces;
Box * m_bound;
int m_indexNum;
int m_vVertexNum;
int m_tVertexNum;
//Vertex* m_vVertexs;
//TVertex* m_tVertexs;
//Trigon* m_trigons;
IndexInt* m_indexs;
vec3* m_vertexs;
TVertex* m_tVertexs;
};
//==================^_^==================^_^==================^_^==================^_^
//!注意所有面逆时针顺序要统一
class BooleanModeller
{
public:
Sloid * m_pSloid1;
Sloid * m_pSloid2;
//!注意初始化后原来的solid topology已经被分割了，可能需要重新GenTopologyData
BooleanModeller(Sloid * solid1, Sloid * solid2);
Sloid * GetUnion();
Sloid * GetIntersection();
Sloid * GetDifference();
private:
void MergeSloid(Sloid* pSrcSloid, Sloid* pDstSloid, int faceStatus1, int faceStatus2);
void PreMergeSloid(Sloid* pSrcSloid, Sloid* pDstSloid, int faceStatus1, int faceStatus2);
};
#endif
//========================================================
// @Date: 2016.05
// @File: SourceLib/Render/ReproductMesh.cpp
// @Brief: ReproductMesh
// @Author: LouLei
// @Email: twopointfive@163.com
// @Copyright (Crapell) - All Rights Reserved
//========================================================
#include "General/Pch.h"
#include "General/General.h"
#include "Render/MC_Misc.h"
#include "Render/MC_MovieClip.h"
#include "Render/MC_Boolean.h"
#include "Math/MathLibAdvance.h"
#include "Ozcollide/box.h"
#include "General/Pce.h"
//constructive solid geometry modeller
#pragma warning(disable : 4244)
#pragma warning(disable: 4305)
Line3D::Line3D()
{
m_pos = vec3(0,0,0);
m_dir = vec3(1,0,0);
}
Line3D::Line3D(const vec3 & directioni, const vec3 & pointi)
{
m_dir = directioni;
m_dir.Normalize();
m_pos = pointi;
}
Line3D::Line3D(TopoFace * face1, TopoFace * face2)
{
vec3 normalFace1 = face1->getNormal();
vec3 normalFace2 = face2->getNormal();
m_dir = Cross(normalFace1, normalFace2);
//m_direction长度为0，则两个面平行
if (!(m_dir.Length()<_ModellerEpsilon))
{
//getting a line point, zero is set to a coordinate whose direction
//component isn't zero (line intersecting its origin plan)
float d1 = -normalFace1.Dot(face1->v1->pos);
float d2 = -normalFace2.Dot(face2->v1->pos);
if(fabs(m_dir.x)>_ModellerEpsilon)
{
m_pos.x = 0;
m_pos.y = (d2*normalFace1.z - d1*normalFace2.z)/m_dir.x;
m_pos.z = (d1*normalFace2.y - d2*normalFace1.y)/m_dir.x;
}
else if(fabs(m_dir.y)>_ModellerEpsilon)
{
m_pos.x = (d1*normalFace2.z - d2*normalFace1.z)/m_dir.y;
m_pos.y = 0;
m_pos.z = (d2*normalFace1.x - d1*normalFace2.x)/m_dir.y;
}
else
{
m_pos.x = (d2*normalFace1.y - d1*normalFace2.y)/m_dir.z;
m_pos.y = (d1*normalFace2.x - d2*normalFace1.x)/m_dir.z;
m_pos.z = 0;
}
}
m_dir.Normalize();
}
//到参考点的有向距离
float Line3D::getPointToPointDistance(const vec3 & otherPoint)
{
vec3 dif = otherPoint - m_pos;
float distance = dif.Length();
if ((dif.Dot(m_dir))<0)
{
return -distance;
}
else
{
return distance;
}
}
//线段交点
vec3 Line3D::getLineIntersection(Line3D * otherLine)
{
//x = x1 + a1*t = x2 + b1*s
//y = y1 + a2*t = y2 + b2*s
//z = z1 + a3*t = z2 + b3*s
vec3 linePos = otherLine->m_pos;
vec3 lineDir = otherLine->m_dir;
float t;
if(fabs(m_dir.y*lineDir.x-m_dir.x*lineDir.y)>_ModellerEpsilon)
{
t = (-m_pos.y*lineDir.x+linePos.y*lineDir.x+lineDir.y*m_pos.x-lineDir.y*linePos.x)/(m_dir.y*lineDir.x-m_dir.x*lineDir.y);
}
else if (fabs(-m_dir.x*lineDir.z+m_dir.z*lineDir.x)>_ModellerEpsilon)
{
t=-(-lineDir.z*m_pos.x+lineDir.z*linePos.x+lineDir.x*m_pos.z-lineDir.x*linePos.z)/(-m_dir.x*lineDir.z+m_dir.z*lineDir.x);
}
else if (fabs(-m_dir.z*lineDir.y+m_dir.y*lineDir.z)>_ModellerEpsilon)
{
t = (m_pos.z*lineDir.y-linePos.z*lineDir.y-lineDir.z*m_pos.y+lineDir.z*linePos.y)/(-m_dir.z*lineDir.y+m_dir.y*lineDir.z);
}
else
{
return vec3(0,0,0);
}
vec3 vResult = m_pos + m_dir * t;
return vResult;
}
//线面相交
vec3 Line3D::getPlaneIntersection(const vec3 & normal, const vec3 & planePoint, bool & bResult)
{
bResult = true;
//Ax + By + Cz + D = 0
//x = x0 + t(x1 ?x0)
//y = y0 + t(y1 ?y0)
//z = z0 + t(z1 ?z0)
//(x1 - x0) = dx, (y1 - y0) = dy, (z1 - z0) = dz
//t = -(A*x0 + B*y0 + C*z0 )/(A*dx + B*dy + C*dz)
float A = normal.x;
float B = normal.y;
float C = normal.z;
float D = (normal.Dot(planePoint)) * -1.0f;
float numerator = (normal.Dot(m_pos)) + D;
float denominator = (normal.Dot(m_dir));
//线面平行
if(fabs(denominator)<_ModellerEpsilon)
{
//线在面上
if(fabs(numerator)<_ModellerEpsilon)
{
return m_pos;
}
else
{
//平行 分离
bResult = false;
return vec3(0,0,0);
}
}
//线面相交
else
{
float t = -numerator/denominator;
vec3 resultPoint = m_pos + m_dir * t;
return resultPoint;
}
}
float LineRandomNum()
{
int nRand = Rand() % 10000;
float fRand = (float)nRand;
fRand *= 0.0001f;
fRand *= 2.0f;
fRand -= 1.0f;
return fRand;
}
void Line3D::perturbDirection()
{
//direction.x += LineRandomNum();
//direction.y += LineRandomNum();
//direction.z += LineRandomNum();
m_dir.x += LineRandomNum() * 0.001f;
m_dir.y += LineRandomNum() * 0.001f;
m_dir.z += LineRandomNum() * 0.001f;
//direction.Normalise();
}
TopoSegment::TopoSegment()
{
}
TopoSegment::TopoSegment(Line3D & line, TopoFace & face, int sign1, int sign2, int sign3)
{
(*this).line = line;
endsNum = 0;
if(sign1 == 0)
{
//点1在面上（距离为0）
setVertex(face.v1);
//点2 3同侧 - 只有一个点相交 VERTEX-VERTEX VERTEX
if(sign2 == sign3)
{
setVertex(face.v1);
}
}
if(sign2 == 0)
{
setVertex(face.v2);
if(sign1 == sign3)
{
setVertex(face.v2);
}
}
if(sign3 == 0)
{
setVertex(face.v3);
if(sign1 == sign2)
{
setVertex(face.v3);
}
}
//切割边
if(endsNum != 2)
{
//点1 2异侧
if((sign1==1 && sign2==-1)||(sign1==-1 && sign2==1))
{
setEdge(face.v1, face.v2);
}
if((sign2==1 && sign3==-1)||(sign2==-1 && sign3==1))
{
setEdge(face.v2, face.v3);
}
if((sign3==1 && sign1==-1)||(sign3==-1 && sign1==1))
{
setEdge(face.v3, face.v1);
}
}
}
bool TopoSegment::intersect(const TopoSegment & segment)
{
if(endDist<segment.startDist+_ModellerEpsilon ||segment.endDist<startDist+_ModellerEpsilon)
{
return false;
}
else
{
return true;
}
}
/**
* Sets an end as vertex (starting point if none end were defined, ending point otherwise)
* @param vertex the vertex that is an segment end
* @return false if all the ends were already defined, true otherwise
*/
bool TopoSegment::setVertex(TopoVertex * vertex)
{
if(endsNum == 0)
{
//起点
startVertex = vertex;
startType = VERTEX;
startDist = line.getPointToPointDistance(vertex->pos);
startPos = startVertex->pos;
endsNum++;
return true;
}
if(endsNum == 1)
{
//终点
endVertex = vertex;
endType = VERTEX;
endDist = line.getPointToPointDistance(vertex->pos);
endPos = endVertex->pos;
endsNum++;
//defining middle based on the starting point
//VERTEX-VERTEX-VERTEX
//if(startVertex.equals(endVertex)) // Need close-enough-to...
if(true)
{
middleType = VERTEX;
}
//VERTEX-EDGE-VERTEX
else if(startType==VERTEX)
{
middleType = EDGE;
}
//the ending point distance should be smaller than starting point distance
if(startDist>endDist)
{
swapEnds();
}
return true;
}
else
{
return false;
}
}
/**
* @param vertex1 one of the vertices of the intercepted edge
* @param vertex2 one of the vertices of the intercepted edge
* @return false if all ends were already defined, true otherwise
*/
bool TopoSegment::setEdge(TopoVertex * vertex1, TopoVertex * vertex2)
{
vec3 point1 = vertex1->pos;
vec3 point2 = vertex2->pos;
vec3 edgeDirection(point2.x - point1.x, point2.y - point1.y, point2.z - point1.z);
Line3D edgeLine(edgeDirection, point1);
if(endsNum==0)
{
startVertex = vertex1;
startType = EDGE;
startPos = line.getLineIntersection(&edgeLine);
startDist = line.getPointToPointDistance(startPos);
middleType = FACE;
endsNum++;
return true;
}
else if(endsNum==1)
{
endVertex = vertex1;
endType = EDGE;
endPos = line.getLineIntersection(&edgeLine);
endDist = line.getPointToPointDistance(endPos);
middleType = FACE;
endsNum++;
//the ending point distance should be smaller than starting point distance
if(startDist>endDist)
{
swapEnds();
}
return true;
}
else
{
return false;
}
}
/** Swaps the starting point and the ending point */
void TopoSegment::swapEnds()
{
float distTemp = startDist;
startDist = endDist;
endDist = distTemp;
int typeTemp = startType;
startType = endType;
endType = typeTemp;
TopoVertex * vertexTemp = startVertex;
startVertex = endVertex;
endVertex = vertexTemp;
vec3 posTemp = startPos;
startPos = endPos;
endPos = posTemp;
}
//==================^_^==================^_^==================^_^==================^_^
TopoVertex::TopoVertex()
{
m_adjacentVertices = new TopoVertexPtrSet();
status = UNKNOWN;
}
TopoVertex::TopoVertex(const vec3 & position, const TVertex & tVertex_, Status status)
{
tVertex = tVertex_;
pos = position;
m_adjacentVertices = new TopoVertexPtrSet();
status = status;
}
TopoVertex::TopoVertex(const TopoVertex & v)
{
tVertex = v.tVertex;
pos = v.pos;
m_adjacentVertices = new TopoVertexPtrSet();
status = v.status;
}
TopoVertex & TopoVertex::operator=(const TopoVertex & v)
{
tVertex = v.tVertex;
pos = v.pos;
m_adjacentVertices = new TopoVertexPtrSet();
status = v.status;
return *this;
}
TopoVertex::~TopoVertex()
{
SafeDelete(m_adjacentVertices);
}
//TopologyVertex & TopologyVertex::operator=(const TopologyVertex & v)
//{
// for(int i = 0; i < v.m_adjacentVertices->length(); i++)
// {
// m_adjacentVertices->add(v.m_adjacentVertices->GetVertexPtr(i));
// }
//
// status = v.status;
// color = v.color;
// x = v.x;
// y = v.y;
// z = v.z;
// return *this;
//}
//判断是否同一个点
bool TopoVertex::equals(TopoVertex * vertex)
{
//float _ModellerEpsilon = 1.0f;
float _ModellerEpsilon = 0.01f;
bool bPositionMatch =
(fabs(pos.x-vertex->pos.x)<_ModellerEpsilon &&
fabs(pos.y-vertex->pos.y)<_ModellerEpsilon &&
fabs(pos.z-vertex->pos.z)<_ModellerEpsilon);
bool bColorMatch =
(tVertex.r == vertex->tVertex.r) &&
(tVertex.g == vertex->tVertex.g) &&
(tVertex.b == vertex->tVertex.b);
return bPositionMatch && bColorMatch;
}
void TopoVertex::addAdjacentVertex(TopoVertex * adjacentVertex)
{
bool bAlready = false;
for(int i = 0; i < m_adjacentVertices->GetTopoVertexPtrNum(); i++)
{
TopoVertex * pVertexI = m_adjacentVertices->GetTopoVertexPtr(i);
//已经存在该指针
if(pVertexI == adjacentVertex)
{
bAlready = true;
}
}
if(!bAlready)
{
m_adjacentVertices->AddTopoVertexPtr(adjacentVertex);
}
}
void TopoVertex::mark(Status status)
{
status = status;
//return;
for(int i = 0; i < m_adjacentVertices->GetTopoVertexPtrNum(); i++)
{
TopoVertex * pVertexI = m_adjacentVertices->GetTopoVertexPtr(i);
if(pVertexI->status==TopoVertex::UNKNOWN)
{
pVertexI->mark(status);
}
}
}
//==================^_^==================^_^==================^_^==================^_^
TopoVertexPtrSet::TopoVertexPtrSet()
{
}
TopoVertexPtrSet::~TopoVertexPtrSet()
{
m_pPointers.clear();
}
TopoVertex * TopoVertexPtrSet::GetTopoVertexPtr(int nIndex)
{
if(nIndex < 0) return 0;
if(nIndex >= m_pPointers.size()) return 0;
TopoVertex * pVertex = m_pPointers[nIndex];
return pVertex;
}
int TopoVertexPtrSet::GetTopoVertexPtrNum()
{
return m_pPointers.size();
}
void TopoVertexPtrSet::AddTopoVertexPtr(TopoVertex * pPointer)
{
m_pPointers.push_back(pPointer);
}
TopoVertex* TopoVertexPtrSet::operator[](int index)
{
if(index < 0) return 0;
if(index >= m_pPointers.size()) return 0;
TopoVertex * pVertex = m_pPointers[index];
return pVertex;
}
void TopoVertexPtrSet::ClearTopoVertexPtr()
{
m_pPointers.clear();
}
//==================^_^==================^_^==================^_^==================^_^
TopoVertexSet::TopoVertexSet()
{
}
TopoVertexSet::~TopoVertexSet()
{
for(int i = 0; i < m_pVertices.size(); i++)
{
delete m_pVertices[i];
}
m_pVertices.clear();
}
TopoVertex * TopoVertexSet::GetTopoVertex(int nIndex)
{
if(nIndex < 0) return 0;
if(nIndex >= m_pVertices.size()) return 0;
TopoVertex * pVertex = m_pVertices[nIndex];
return pVertex;
}
int TopoVertexSet::GetTopoVertexNum()
{
return m_pVertices.size();
}
TopoVertex * TopoVertexSet::AddTopoVertex(const TopoVertex & vertex)
{
//if(m_nNumVertices >= m_nMaxVertices) return 0;
m_pVertices.push_back(new TopoVertex(vertex));
return m_pVertices[m_pVertices.size() - 1];
//return &m_pVertices[m_nNumVertices - 1];
}
TopoVertex& TopoVertexSet::operator[](int index)
{
TopoVertex * pVertex = GetTopoVertex(index);
return *pVertex;
}
bool TopoVertexSet::HasTopoVertex(TopoVertex * pVertex)
{
// Match pointers or content??
for(int i = 0; i < GetTopoVertexNum(); i++)
{
TopoVertex * pOurVertex = GetTopoVertex(i);
if(pOurVertex == pVertex)
{
return true;
}
}
return false;
}
int TopoVertexSet::IndexOfTopoVertex(TopoVertex * pVertex)
{
for(int i = 0; i < GetTopoVertexNum(); i++)
{
TopoVertex * pOurVertex = GetTopoVertex(i);
if(pOurVertex == pVertex)
{
return i;
}
}
return -1;
}
void TopoVertexSet::ClearTopoVertex()
{
for(int i = 0; i < m_pVertices.size(); i++)
{
delete m_pVertices[i];
}
m_pVertices.clear();
}
//==================^_^==================^_^==================^_^==================^_^
TopoFace::TopoFace()
{
v1 = 0;
v2 = 0;
v3 = 0;
status = UNKNOWN;
bound = new Box();
}
TopoFace::TopoFace(const TopoFace & face)
{
status = face.status;
v1 = face.v1;
v2 = face.v2;
v3 = face.v3;
bound = new Box();
bound->setFromPoints(v1->pos,v2->pos);
bound->mergePoint(v3->pos);
vec3 xy = v2->pos - v1->pos;
vec3 xz = v3->pos - v1->pos;
normal = Cross(xy, xz);
normal.Normalize();
}
TopoFace::TopoFace(TopoVertex * v1i, TopoVertex * v2i, TopoVertex * v3i)
{
v1 = v1i;
v2 = v2i;
v3 = v3i;
status = UNKNOWN;
bound = new Box();
bound->setFromPoints(v1->pos,v2->pos);
bound->mergePoint(v3->pos);
vec3 xy = v2->pos - v1->pos;
vec3 xz = v3->pos - v1->pos;
normal = Cross(xy, xz);
normal.Normalize();
}
TopoFace::~TopoFace()
{
SafeDelete(bound);
}
TopoFace& TopoFace::operator=(const TopoFace & face)
{
status = face.status;
v1 = face.v1;
v2 = face.v2;
v3 = face.v3;
if(bound==NULL)
bound = new Box();
bound->setFromPoints(v1->pos,v2->pos);
bound->mergePoint(v3->pos);
vec3 xy = v2->pos - v1->pos;
vec3 xz = v3->pos - v1->pos;
normal = Cross(xy, xz);
normal.Normalize();
return *this;
}
bool TopoFace::equals_pointersmatch(TopoFace * pFace)
{
TopoFace & face = *pFace;
bool cond = v1 == face.v1 && v2 == face.v2 && v3 == face.v3;
return cond;
}
bool TopoFace::equals(TopoFace * pFace)
{
TopoFace & face = *pFace;
bool cond1 = v1->equals(face.v1) && v2->equals(face.v2) && v3->equals(face.v3);
bool cond2 = v1->equals(face.v2) && v2->equals(face.v3) && v3->equals(face.v1);
bool cond3 = v1->equals(face.v3) && v2->equals(face.v1) && v3->equals(face.v2);
return cond1 || cond2 || cond3;
}
Box* TopoFace::getBound()
{
//只是加点而不减少点 也不改变点所以无需重新计算
#ifdef _DEBUG
//Box old = *bound;
//bound->setFromPoints(v1->pos,v2->pos);
//bound->mergePoint(v3->pos);
//if (old.min!=bound->min)
//{
// MsgBox(0,"TopoFace::getBound","error",MB_OK);
//}
//if (old.max!=bound->max)
//{
// MsgBox(0,"TopoFace::getBound","error",MB_OK);
//}
#endif
return bound;
}
vec3& TopoFace::getNormal()
{
#ifdef _DEBUG
//vec3 xy = v2->pos - v1->pos;
//vec3 xz = v3->pos - v1->pos;
//vec3 newnormal = Cross(xy, xz);
//newnormal.Normalize();
//if (normal!=newnormal)
//{
// MsgBox(0,"TopoFace::getBound","error",MB_OK);
//}
#endif
return normal;
}
float TopoFace::getArea()
{
//area = (a * c * sen(B))/2
vec3 xy = v2->pos - v1->pos;
vec3 xz = v3->pos - v1->pos;
vec3 yz = v3->pos - v2->pos;
float a = xy.Length();
float c = xz.Length();
float b = yz.Length();
float _ModellerEpsilon = 0.001f;
if (a<_ModellerEpsilon||c<_ModellerEpsilon||b<_ModellerEpsilon)
{
//继续计算出来有误差
return 0;
}
xy.Normalize();
xz.Normalize();
float fDot = xy.Dot(xz);
float fAngle = SafeAcos(fDot);
return (a * c * sin(fAngle))/2.0f;
//float a = xy.LengthSq();
//float c = xz.LengthSq();
//xy.Normalize();
//xz.Normalize();
//float fDot = xy.Dot(xz);
//return sqrt(a*c*(1-fDot*fDot))/2.0f;
}
void TopoFace::invert()
{
TopoVertex * vertexTemp = v2;
v2 = v1;
v1 = vertexTemp;
}
bool TopoFace::simpleClassify()
{
int status1 = v1->status;
int status2 = v2->status;
int status3 = v3->status;
if(status1==TopoVertex::INSIDE)
{
status = INSIDE;
return true;
}
if(status1==TopoVertex::OUTSIDE)
{
status = OUTSIDE;
return true;
}
if(status2==TopoVertex::INSIDE)
{
status = INSIDE;
return true;
}
if(status2==TopoVertex::OUTSIDE)
{
status = OUTSIDE;
return true;
}
if(status3==TopoVertex::INSIDE)
{
status = INSIDE;
return true;
}
if(status3==TopoVertex::OUTSIDE)
{
status = OUTSIDE;
return true;
}
return false;
}
void TopoFace::rayTraceClassify(Sloid & sloid)
{
//从面的重心沿法线发射线
vec3 p0 = (v1->pos + v2->pos + v3->pos)/3.0f;
Line3D ray(getNormal(),p0);
bool success;
float dotProduct, distance;
vec3 intersectPos;
TopoFace * closestFace = 0;
float closestDistance;
//float TOL = 0.0001f;
do
{
success = true;
closestDistance = 99999999.9f;
//other solid...
for(int i=0;i<sloid.m_topoFaces->GetTopoFaceNum();i++)
{
TopoFace & otherFace = *(sloid.m_topoFaces->GetTopoFace(i));
dotProduct = otherFace.getNormal().Dot(ray.m_dir);
bool bIntersect = false;
intersectPos = ray.getPlaneIntersection(otherFace.getNormal(), otherFace.v1->pos, bIntersect);
//相交
if(bIntersect)
{
distance = ray.getPointToPointDistance(intersectPos);
//整条线在面上..
if(fabs(distance)<_ModellerEpsilon && fabs(dotProduct)<_ModellerEpsilon)
{
//disturb the ray in order to not lie into another plane ？
ray.perturbDirection();
success = false;
break;
}
//只有起点在面上
else if(fabs(distance)<_ModellerEpsilon && fabs(dotProduct)>_ModellerEpsilon)
{
//如果射线和面相交，即交点在面上
if(otherFace.hasPoint(intersectPos))
{
//此时起点距离最近为0
closestFace = &otherFace;
closestDistance = 0;
break;
}
}
//起点也不在面上 且正向相交distance>0
else if(fabs(dotProduct)>_ModellerEpsilon && distance>_ModellerEpsilon)
{
//记录最近距离的分割面
if(distance<closestDistance)
{
if(otherFace.hasPoint(intersectPos))
{
closestDistance = distance;
closestFace = &otherFace;
}
}
}
}
}
}while(success==false);
if(closestFace==0)
{
//和所有的分割面不相交
status = OUTSIDE;
}
else
{
dotProduct = closestFace->getNormal().Dot(ray.m_dir);
//distance = 0:
if(fabs(closestDistance)<_ModellerEpsilon)
{
if(dotProduct>_ModellerEpsilon)
{
//共面
status = SAME;
}
else if(dotProduct<-_ModellerEpsilon)
{
//反共面
status = OPPOSITE;
}
}
else if(dotProduct>_ModellerEpsilon)
{
//正向相交，内部dot>0
status = INSIDE;
}
else if(dotProduct<-_ModellerEpsilon)
{
status = OUTSIDE;
}
}
}
//判断点在面内
bool TopoFace::hasPoint(const vec3 & point)
{
vec3 u = v2->pos - v1->pos;
vec3 v = v3->pos - v1->pos;
vec3 w = point - v1->pos;
float uu = u.Dot(u);
float uv = u.Dot(v);
float vv = v.Dot(v);
float wu = w.Dot(u);
float wv = w.Dot(v);
float d = uv * uv - uu * vv;
float invD = 1 / d;
float s = (uv * wv - vv * wu) * invD;
if (s < 0 || s > 1)
return false;
float t = (uv * wu - uu * wv) * invD;
if (t < 0 || (s + t) > 1)
return false;
return true;
}
TopoFaceSet::TopoFaceSet()
{
m_nMaxSize = 20000;
m_nSize = 0;
m_pFaces = new TopoFace[m_nMaxSize];
}
TopoFaceSet::~TopoFaceSet()
{
delete [] m_pFaces;
}
int TopoFaceSet::GetTopoFaceNum()
{
return m_nSize;
}
TopoFace * TopoFaceSet::GetTopoFace(int i)
{
if(i < 0) return 0;
if(i >= m_nSize) return 0;
return &m_pFaces[i];
}
void TopoFaceSet::SetTopoFace(int i, TopoFace & vFace)
{
if(i < 0) return;
if(i >= m_nSize) return;
m_pFaces[i] = vFace;
}
TopoFace * TopoFaceSet::AddTopoFace(TopoFace & vFace)
{
if(m_nSize >= m_nMaxSize)
{
return 0;
}
m_pFaces[m_nSize] = vFace;
m_nSize++;
return &m_pFaces[m_nSize - 1];
}
TopoFace * TopoFaceSet::InsertTopoFace(int i, TopoFace & vFace)
{
if(m_nSize >= m_nMaxSize)
{
return 0;
}
// Shift everything along
for(int j = m_nSize; j >= i+1; j--)
{
m_pFaces[j] = m_pFaces[j-1];
}
m_pFaces[i] = vFace;
m_nSize++;
return &m_pFaces[i];
}
void TopoFaceSet::RemoveTopoFace(int i)
{
if(m_nSize <= 0)
{
return;
}
for(int j = i; j < m_nSize-1; j++)
{
m_pFaces[j] = m_pFaces[j+1];
}
m_nSize--;
}
void TopoFaceSet::ClearTopoFace()
{
m_nSize = 0;
}
//==================^_^==================^_^==================^_^==================^_^
Sloid::Sloid()
:m_vertexs(NULL)
,m_tVertexs(NULL)
,m_indexs(NULL)
{
m_topoVertexs = new TopoVertexSet();
m_topoFaces = new TopoFaceSet();
m_bound = 0;
m_indexNum = 0;
m_vVertexNum = 0;
m_tVertexNum = 0;
}
Sloid::~Sloid()
{
Free();
SafeDelete(m_topoVertexs) ;
SafeDelete(m_topoFaces);
SafeDelete(m_bound);
}
void Sloid::Free()
{
SafeDeleteArray (m_vertexs);
SafeDeleteArray (m_tVertexs);
SafeDeleteArray (m_indexs);
}
TopoFace * Sloid::AddTopoFace(TopoVertex * v1, TopoVertex * v2, TopoVertex * v3)
{
float _ModellerEpsilon = 0.1;
if(!(v1->equals(v2)||v1->equals(v3)||v2->equals(v3)))
{
TopoFace face(v1, v2, v3);
//不加面积很小的面
if(face.getArea()<_ModellerEpsilon)
return 0;
TopoFace * pAddedFace = (*m_topoFaces).AddTopoFace(face);
return pAddedFace;
}
else
{
return 0;
}
}
TopoVertex * Sloid::AddTopoVertex(const vec3 & pos, const TVertex & tVertex, int status)
{
int i;
TopoVertex * pVertex;
TopoVertex vertex(pos, tVertex, (TopoVertex::Status)status);
for(i=0;i<m_topoVertexs->GetTopoVertexNum();i++)
{
//已经存在点
pVertex = m_topoVertexs->GetTopoVertex(i);
if(vertex.equals(pVertex))
{
pVertex->status = ((TopoVertex::Status)status);
return pVertex;
}
}
pVertex = m_topoVertexs->AddTopoVertex(vertex);
return pVertex;
}
//使用object来切分自身
void Sloid::SplitFaces(Sloid * sloid2)
{
if(m_bound->isOverlap(*sloid2->m_bound)==false)
return;
Line3D line;
TopoFace * face1;
TopoFace * face2;
TopoSegment segmentf1p2, segmentf2p1;
float distFace1Vert1, distFace1Vert2, distFace1Vert3, distFace2Vert1, distFace2Vert2, distFace2Vert3;
int signFace1Vert1, signFace1Vert2, signFace1Vert3, signFace2Vert1, signFace2Vert2, signFace2Vert3;
int numFacesBefore = m_topoFaces->GetTopoFaceNum();
int numFacesStart = m_topoFaces->GetTopoFaceNum();
int facesIgnored = 0;
//int faceNum1 = m_topologyFaces->GetSize();
for(int i=0;i<m_topoFaces->GetTopoFaceNum();i++)
{
face1 = m_topoFaces->GetTopoFace(i);
TopoFace face1Orig = *face1;
if(face1->getBound()->isOverlap(*sloid2->m_bound))
{
//遍历face2
for(int j=0;j<sloid2->m_topoFaces->GetTopoFaceNum();j++)
{
face2 = sloid2->m_topoFaces->GetTopoFace(j);
TopoFace face2Orig = *face2;
if(face1->getBound()->isOverlap(*face2->getBound()))
{
//distance from the face1 vertices to the face2 plane
distFace1Vert1 = ComputeDistance(*(face1->v1), *face2);
distFace1Vert2 = ComputeDistance(*(face1->v2), *face2);
distFace1Vert3 = ComputeDistance(*(face1->v3), *face2);
//距离的正负
signFace1Vert1 = (distFace1Vert1>_ModellerEpsilon? 1 :(distFace1Vert1<-_ModellerEpsilon? -1 : 0));
signFace1Vert2 = (distFace1Vert2>_ModellerEpsilon? 1 :(distFace1Vert2<-_ModellerEpsilon? -1 : 0));
signFace1Vert3 = (distFace1Vert3>_ModellerEpsilon? 1 :(distFace1Vert3<-_ModellerEpsilon? -1 : 0));
//全0为共面coplanar
//同号不相交，异号相交
if (!(signFace1Vert1==signFace1Vert2 && signFace1Vert2==signFace1Vert3))
{
//distance from the face2 vertices to the face1 plane
distFace2Vert1 = ComputeDistance(*(face2->v1), *face1);
distFace2Vert2 = ComputeDistance(*(face2->v2), *face1);
distFace2Vert3 = ComputeDistance(*(face2->v3), *face1);
//距离的正负
signFace2Vert1 = (distFace2Vert1>_ModellerEpsilon? 1 :(distFace2Vert1<-_ModellerEpsilon? -1 : 0));
signFace2Vert2 = (distFace2Vert2>_ModellerEpsilon? 1 :(distFace2Vert2<-_ModellerEpsilon? -1 : 0));
signFace2Vert3 = (distFace2Vert3>_ModellerEpsilon? 1 :(distFace2Vert3<-_ModellerEpsilon? -1 : 0));
//全0为共面coplanar
//同号不相交，异号相交
if (!(signFace2Vert1==signFace2Vert2 && signFace2Vert2==signFace2Vert3))
{
line = Line3D(face1, face2);
//face1、plane2 的相交线
segmentf1p2 = TopoSegment(line, *face1, signFace1Vert1, signFace1Vert2, signFace1Vert3);
segmentf2p1 = TopoSegment(line, *face2, signFace2Vert1, signFace2Vert2, signFace2Vert3);
//线段相交时 两个面才相交
if(segmentf1p2.intersect(segmentf2p1))
{
//PART II - SUBDIVIDING NON-COPLANAR POLYGONS
int lastNumFaces = m_topoFaces->GetTopoFaceNum();
SplitFace(i, segmentf1p2, segmentf2p1);
if(numFacesStart*20<m_topoFaces->GetTopoFaceNum())
{
//可能死循环
//return;
}
// "if the face in the position isn't the same, there was a break"
//if(face1!=getFace(i))
if(!(face1->equals_pointersmatch(&face1Orig)))
{
//if 拆分后没变化
if(face1Orig.equals(m_topoFaces->GetTopoFace(m_topoFaces->GetTopoFaceNum()-1)))
{
//一般不会进入
if(i!=(m_topoFaces->GetTopoFaceNum()-1))
{
m_topoFaces->RemoveTopoFace(m_topoFaces->GetTopoFaceNum()-1);
m_topoFaces->InsertTopoFace(i, face1Orig);
}
else
{
continue;
}
}
else
{
// This is because the whole face list was shunted down when the current face was removed, so
// the next face is the face at the current position in the list.
i--;
break;
}
}
}
}
}
}
}
}
}
}
/**
* Computes closest distance from a vertex to a plane
*
* @param vertex vertex used to compute the distance
* @param face face representing the plane where it is contained
* @return the closest distance from the vertex to the plane
*/
float Sloid::ComputeDistance(TopoVertex & vertex, TopoFace & face)
{
vec3 normal = face.getNormal();
return normal.Dot(vertex.pos) - normal.Dot(face.v1->pos);
}
/**
* @param segment1 segment representing the intersection of the face with the plane
* of another face
* @return segment2 segment representing the intersection of other face with the
* plane of the current face plane
*/
void Sloid::SplitFace(int faceIndex, TopoSegment & segment1, TopoSegment & segment2)
{
TopoVertex startPosVertex, endPosVertex;
vec3 startPos, endPos;
int startType, endType, middleType;
float startDist, endDist;
TopoFace & face = *m_topoFaces->GetTopoFace(faceIndex);
TopoVertex * startVertex = segment1.startVertex;
TopoVertex * endVertex = segment1.endVertex;
//starting point: deeper starting point
if (segment2.startDist > segment1.startDist+_ModellerEpsilon)
{
startDist = segment2.startDist;
startType = segment1.middleType;
startPos = segment2.startPos;
}
else
{
startDist = segment1.startDist;
startType = segment1.startType;
startPos = segment1.startPos;
}
//ending point: deepest ending point
if (segment2.endDist < segment1.endDist-_ModellerEpsilon)
{
endDist = segment2.endDist;
endType = segment1.middleType;
endPos = segment2.endPos;
}
else
{
endDist = segment1.endDist;
endType = segment1.endType;
endPos = segment1.endPos;
}
middleType = segment1.middleType;
//set vertex to BOUNDARY if it is start type
if (startType == TopoSegment::VERTEX)
{
startVertex->status=(TopoVertex::BOUNDARY);
}
//set vertex to BOUNDARY if it is end type
if (endType == TopoSegment::VERTEX)
{
endVertex->status=(TopoVertex::BOUNDARY);
}
//VERTEX-_______-VERTEX
if (startType == TopoSegment::VERTEX && endType == TopoSegment::VERTEX)
{
return;
}
//______-EDGE-______
else if (middleType == TopoSegment::EDGE)
{
//gets the edge
int splitEdge;
if ((startVertex == face.v1 && endVertex == face.v2) || (startVertex == face.v2 && endVertex == face.v1))
{
splitEdge = 1;
}
else if ((startVertex == face.v2 && endVertex == face.v3) || (startVertex == face.v3 && endVertex == face.v2))
{
splitEdge = 2;
}
else
{
splitEdge = 3;
}
//VERTEX-EDGE-EDGE
if (startType == TopoSegment::VERTEX)
{
BreakFaceInTwo(faceIndex, endPos, splitEdge);
return;
}
//EDGE-EDGE-VERTEX
else if (endType == TopoSegment::VERTEX)
{
BreakFaceInTwo(faceIndex, startPos, splitEdge);
return;
}
// EDGE-EDGE-EDGE
else if (startDist == endDist)
{
BreakFaceInTwo(faceIndex, endPos, splitEdge);
}
else
{
if((startVertex == face.v1 && endVertex == face.v2) || (startVertex == face.v2 && endVertex == face.v3) || (startVertex == face.v3 && endVertex == face.v1))
{
BreakFaceInThree(faceIndex, startPos, endPos, splitEdge);
}
else
{
BreakFaceInThree(faceIndex, endPos, startPos, splitEdge);
}
}
return;
}
//______-FACE-______
//VERTEX-FACE-EDGE
else if (startType == TopoSegment::VERTEX && endType == TopoSegment::EDGE)
{
BreakFaceInTwo(faceIndex, endPos, *endVertex);//ori
//BreakFaceInTwo(faceIndex, endPos, *startVertex);
}
//EDGE-FACE-VERTEX
else if (startType == TopoSegment::EDGE && endType == TopoSegment::VERTEX)
{
BreakFaceInTwo(faceIndex, startPos, *startVertex);//ori
//BreakFaceInTwo(faceIndex, startPos, *endVertex);
}
//VERTEX-FACE-FACE
else if (startType == TopoSegment::VERTEX && endType == TopoSegment::FACE)
{
BreakFaceInThree(faceIndex, endPos, *startVertex);
}
//FACE-FACE-VERTEX
else if (startType == TopoSegment::FACE && endType == TopoSegment::VERTEX)
{
BreakFaceInThree(faceIndex, startPos, *endVertex);
}
//EDGE-FACE-EDGE
else if (startType == TopoSegment::EDGE && endType == TopoSegment::EDGE)
{
BreakFaceInThree(faceIndex, startPos, endPos, *startVertex, *endVertex);
}
//EDGE-FACE-FACE
else if (startType == TopoSegment::EDGE && endType == TopoSegment::FACE)
{
BreakFaceInFour(faceIndex, startPos, endPos, *startVertex);
}
//FACE-FACE-EDGE
else if (startType == TopoSegment::FACE && endType == TopoSegment::EDGE)
{
BreakFaceInFour(faceIndex, endPos, startPos, *endVertex);
}
//FACE-FACE-FACE
else if (startType == TopoSegment::FACE && endType == TopoSegment::FACE)
{
vec3 segmentVector(startPos.x-endPos.x, startPos.y-endPos.y, startPos.z-endPos.z);
//if the intersection segment is a point only...
if (fabs(segmentVector.x)<_ModellerEpsilon && fabs(segmentVector.y)<_ModellerEpsilon && fabs(segmentVector.z)<_ModellerEpsilon)
{
BreakFaceInThree(faceIndex, startPos);
return;
}
//gets the vertex more lined with the intersection segment
int linedVertex;
vec3 linedVertexPos;
vec3 vertexVector = endPos - face.v1->pos;
vertexVector.Normalize();
float dot1 = fabs(segmentVector.Dot(vertexVector));
vertexVector = endPos -face.v2->pos;
vertexVector.Normalize();
float dot2 = fabs(segmentVector.Dot(vertexVector));
vertexVector = endPos -face.v3->pos;
vertexVector.Normalize();
float dot3 = fabs(segmentVector.Dot(vertexVector));
if (dot1 > dot2 && dot1 > dot3)
{
linedVertex = 1;
linedVertexPos = face.v1->pos;
}
else if (dot2 > dot3 && dot2 > dot1)
{
linedVertex = 2;
linedVertexPos = face.v2->pos;
}
else
{
linedVertex = 3;
linedVertexPos = face.v3->pos;
}
// Now find which of the intersection endpoints is nearest to that vertex.
if ((linedVertexPos - startPos).Length() > (linedVertexPos - endPos).Length())
{
BreakFaceInFive(faceIndex, startPos, endPos, linedVertex);
}
else
{
BreakFaceInFive(faceIndex, endPos, startPos, linedVertex);
}
}
}
void Sloid::CalTopoVertexTex(TopoVertex * v1, TopoVertex * v2,const vec3 & pos, TopoVertex * result)
{
float rat = 0.5f;
float len = (v2->pos-v1->pos).Length();
if (len>0)
{
rat = (pos-v1->pos).Length()/len;
if (rat>1)
{
rat=1;
}
}
float invRat = 1-rat;
result->tVertex.u = rat*v2->tVertex.u + v1->tVertex.u*invRat;
result->tVertex.v = rat*v2->tVertex.v + v1->tVertex.v*invRat;
result->tVertex.w = rat*v2->tVertex.w + v1->tVertex.w*invRat;
}
void Sloid::CalTopoVertexTex(TopoVertex * v1, TopoVertex * v2,TopoVertex * v3,const vec3 & pos, TopoVertex * result)
{
vec2 res = GetUVOnTrigon(v1->pos,v2->pos,v3->pos,
vec2(v1->tVertex.u,v1->tVertex.v),vec2(v2->tVertex.u,v2->tVertex.v),vec2(v3->tVertex.u,v3->tVertex.v),pos);
result->tVertex.u = res.x;
result->tVertex.v = res.y;
result->tVertex.w = 1;
}
/**
分割线穿过一个顶点和邻边，一个三角形拆分为两个
* Face breaker for VERTEX-EDGE-EDGE / EDGE-EDGE-VERTEX
* @param faceIndex 待拆的面
* @param newPos 拆边上的点
* @param splitEdge 待拆的边
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInTwo(int faceIndex, const vec3 & newPos, int splitEdge)
{
TopoFace & face = *m_topoFaces->GetTopoFace(faceIndex);
TopoVertex * vertex = AddTopoVertex(newPos, face.v1->tVertex, TopoVertex::BOUNDARY);
if (splitEdge == 1)
{
//分割线v1~p，p在邻边e1上
AddTopoFace(face.v1, vertex, face.v3);
AddTopoFace(vertex, face.v2, face.v3);
CalTopoVertexTex(face.v1,face.v2,newPos,vertex);
}
else if (splitEdge == 2)
{
AddTopoFace(face.v2, vertex, face.v1);
AddTopoFace(vertex, face.v3, face.v1);
CalTopoVertexTex(face.v3,face.v2,newPos,vertex);
}
else
{
AddTopoFace(face.v3, vertex, face.v2);
AddTopoFace(vertex, face.v1, face.v2);
CalTopoVertexTex(face.v1,face.v3,newPos,vertex);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
分割线穿过一个顶点和对边，一个三角形拆分为两个
* Face breaker for VERTEX-FACE-EDGE / EDGE-FACE-VERTEX
* @param faceIndex 待拆的面
* @param newPos 拆边（对边）上的点
* @param endVertex 经过的顶点
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInTwo(int faceIndex, const vec3 & newPos, TopoVertex & endVertex)
{
TopoFace & face = *m_topoFaces->GetTopoFace(faceIndex);
TopoVertex * vertex = AddTopoVertex(newPos, face.v1->tVertex, TopoVertex::BOUNDARY);
if (endVertex.equals(face.v1))
{
//穿过点1，边2
AddTopoFace(face.v1, vertex, face.v3);
AddTopoFace(vertex, face.v2, face.v3);
CalTopoVertexTex(face.v1,face.v2,newPos,vertex);
}
else if (endVertex.equals(face.v2))
{
AddTopoFace(face.v2, vertex, face.v1);
AddTopoFace(vertex, face.v3, face.v1);
CalTopoVertexTex(face.v3,face.v2,newPos,vertex);
}
else
{
AddTopoFace(face.v3, vertex, face.v2);
AddTopoFace(vertex, face.v1, face.v2);
CalTopoVertexTex(face.v1,face.v3,newPos,vertex);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
//??? my
//void Sloid::BreakFaceInTwo(int faceIndex, const vec3 & newPos, Vertex & startVertex)
//{
// Face & face = *m_topologyFaces->GetFace(faceIndex);
// Vertex * vertex = addVertex(newPos, face.v1->color, Vertex::BOUNDARY);
//
// if (startVertex.equals(face.v3))
// {
// //穿过点1，边2
// addFace(face.v1, vertex, face.v3);
// addFace(vertex, face.v2, face.v3);
// }
// else if (startVertex.equals(face.v1))
// {
// addFace(face.v2, vertex, face.v1);
// addFace(vertex, face.v3, face.v1);
// }
// else
// {
// addFace(face.v3, vertex, face.v2);
// addFace(vertex, face.v1, face.v2);
// }
//
// m_topologyFaces->RemoveFace(faceIndex);
//}
/**
分割线包含于一条边，一个三角形拆分为3个
* Face breaker for EDGE-EDGE-EDGE
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInThree(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, int splitEdge)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex1 = AddTopoVertex(newPos1, face.v1->tVertex, TopoVertex::BOUNDARY);
TopoVertex * vertex2 = AddTopoVertex(newPos2, face.v1->tVertex, TopoVertex::BOUNDARY);
if (splitEdge == 1)
{
AddTopoFace(face.v1, vertex1, face.v3);
AddTopoFace(vertex1, vertex2, face.v3);
AddTopoFace(vertex2, face.v2, face.v3);
CalTopoVertexTex(face.v1,face.v2,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,newPos2,vertex2);
}
else if (splitEdge == 2)
{
AddTopoFace(face.v2, vertex1, face.v1);
AddTopoFace(vertex1, vertex2, face.v1);
AddTopoFace(vertex2, face.v3, face.v1);
CalTopoVertexTex(face.v3,face.v2,newPos1,vertex1);
CalTopoVertexTex(face.v3,face.v2,newPos2,vertex2);
}
else
{
AddTopoFace(face.v3, vertex1, face.v2);
AddTopoFace(vertex1, vertex2, face.v2);
AddTopoFace(vertex2, face.v1, face.v2);
CalTopoVertexTex(face.v1,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v3,newPos2,vertex2);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
* VERTEX-FACE-FACE / FACE-FACE-VERTEX
分割线一个点在端点，一个点在面内部
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInThree(int faceIndex, const vec3 & newPos, TopoVertex & endVertex)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex = AddTopoVertex(newPos, face.v1->tVertex, TopoVertex::BOUNDARY);
//if (endVertex.equals(face.v1))
//{
// addFace(face.v1, face.v2, vertex);
// addFace(face.v2, face.v3, vertex);
// addFace(face.v3, face.v1, vertex);
//}
//else if (endVertex.equals(face.v2))
//{
// addFace(face.v2, face.v3, vertex);
// addFace(face.v3, face.v1, vertex);
// addFace(face.v1, face.v2, vertex);
//}
//else
{
AddTopoFace(face.v3, face.v1, vertex);
AddTopoFace(face.v1, face.v2, vertex);
AddTopoFace(face.v2, face.v3, vertex);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos,vertex);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
* Face breaker for EDGE-FACE-EDGE
分割线切掉一个角
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInThree(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, TopoVertex & startVertex, TopoVertex & endVertex)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex1 = AddTopoVertex(newPos1, face.v1->tVertex, TopoVertex::BOUNDARY);
TopoVertex * vertex2 = AddTopoVertex(newPos2, face.v1->tVertex, TopoVertex::BOUNDARY);
if (startVertex.equals(face.v1) && endVertex.equals(face.v2))
{
//切角2
AddTopoFace(face.v1, vertex1, vertex2);
AddTopoFace(face.v1, vertex2, face.v3);
AddTopoFace(vertex1, face.v2, vertex2);
CalTopoVertexTex(face.v1,face.v2,newPos1,vertex1);
CalTopoVertexTex(face.v2,face.v3,newPos2,vertex2);
}
else if (startVertex.equals(face.v2) && endVertex.equals(face.v1))
{
//反切角2
AddTopoFace(face.v1, vertex2, vertex1);
AddTopoFace(face.v1, vertex1, face.v3);
AddTopoFace(vertex2, face.v2, vertex1);
CalTopoVertexTex(face.v1,face.v2,newPos1,vertex1);
CalTopoVertexTex(face.v2,face.v3,newPos2,vertex2);
}
else if (startVertex.equals(face.v2) && endVertex.equals(face.v3))
{
//切角3
AddTopoFace(face.v2, vertex1, vertex2);
AddTopoFace(face.v2, vertex2, face.v1);
AddTopoFace(vertex1, face.v3, vertex2);
CalTopoVertexTex(face.v2,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v3,newPos2,vertex2);
}
else if (startVertex.equals(face.v3) && endVertex.equals(face.v2))
{
AddTopoFace(face.v2, vertex2, vertex1);
AddTopoFace(face.v2, vertex1, face.v1);
AddTopoFace(vertex2, face.v3, vertex1);
CalTopoVertexTex(face.v2,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v3,newPos2,vertex2);
}
else if (startVertex.equals(face.v3) && endVertex.equals(face.v1))
{
//切角1
AddTopoFace(face.v3, vertex1, vertex2);
AddTopoFace(face.v3, vertex2, face.v2);
AddTopoFace(vertex1, face.v1, vertex2);
CalTopoVertexTex(face.v1,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,newPos2,vertex2);
}
else
{
AddTopoFace(face.v3, vertex2, vertex1);
AddTopoFace(face.v3, vertex1, face.v2);
AddTopoFace(vertex2, face.v1, vertex1);
CalTopoVertexTex(face.v1,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,newPos2,vertex2);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
* Face breaker for FACE-FACE-FACE (a point only)
分割线包含于面内？
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInThree(int faceIndex, const vec3 & newPos)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex = AddTopoVertex(newPos, face.v1->tVertex, TopoVertex::BOUNDARY);
AddTopoFace(face.v1, face.v2, vertex);
AddTopoFace(face.v2, face.v3, vertex);
AddTopoFace(face.v3, face.v1, vertex);
CalTopoVertexTex(face.v1,face.v3,face.v3,newPos,vertex);
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
* Face breaker for EDGE-FACE-FACE / FACE-FACE-EDGE
分割线一个点在边上，一个点在面内部
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInFour(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, TopoVertex & endVertex)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex1 = AddTopoVertex(newPos1, face.v1->tVertex, TopoVertex::BOUNDARY);
TopoVertex * vertex2 = AddTopoVertex(newPos2, face.v1->tVertex, TopoVertex::BOUNDARY);
if (endVertex.equals(face.v1))
{
//vertex2在内部
AddTopoFace(face.v1, vertex1, vertex2);
AddTopoFace(vertex1, face.v2, vertex2);
AddTopoFace(face.v2, face.v3, vertex2);
AddTopoFace(face.v3, face.v1, vertex2);
CalTopoVertexTex(face.v1,face.v2,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos2,vertex2);
}
else if (endVertex.equals(face.v2))
{
AddTopoFace(face.v2, vertex1, vertex2);
AddTopoFace(vertex1, face.v3, vertex2);
AddTopoFace(face.v3, face.v1, vertex2);
AddTopoFace(face.v1, face.v2, vertex2);
CalTopoVertexTex(face.v2,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos2,vertex2);
}
else
{
AddTopoFace(face.v3, vertex1, vertex2);
AddTopoFace(vertex1, face.v1, vertex2);
AddTopoFace(face.v1, face.v2, vertex2);
AddTopoFace(face.v2, face.v3, vertex2);
CalTopoVertexTex(face.v3,face.v1,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos2,vertex2);
}
m_topoFaces->RemoveTopoFace(faceIndex);
}
/**
* Face breaker for FACE-FACE-FACE
分割线一个点在面内部，另一个点也在面内部
v1
/\
/ \
e1/ \e3
/ \
v2/________\v3
e2
*/
void Sloid::BreakFaceInFive(int faceIndex, const vec3 & newPos1, const vec3 & newPos2, int linedVertex)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(faceIndex));
TopoVertex * vertex1 = AddTopoVertex(newPos1, face.v1->tVertex, TopoVertex::BOUNDARY);
TopoVertex * vertex2 = AddTopoVertex(newPos2, face.v1->tVertex, TopoVertex::BOUNDARY);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos1,vertex1);
CalTopoVertexTex(face.v1,face.v2,face.v3,newPos2,vertex2);
float cont = 0;
if (linedVertex == 1)
{
AddTopoFace(face.v2, face.v3, vertex1);
AddTopoFace(face.v2, vertex1, vertex2);
AddTopoFace(face.v3, vertex2, vertex1);
AddTopoFace(face.v2, vertex2, face.v1);
AddTopoFace(face.v3, face.v1, vertex2);
}
else if(linedVertex == 2)
{
AddTopoFace(face.v3, face.v1, vertex1);
AddTopoFace(face.v3, vertex1, vertex2);
AddTopoFace(face.v1, vertex2, vertex1);
AddTopoFace(face.v3, vertex2, face.v2);
AddTopoFace(face.v1, face.v2, vertex2);
}
else
{
AddTopoFace(face.v1, face.v2, vertex1);
AddTopoFace(face.v1, vertex1, vertex2);
AddTopoFace(face.v2, vertex2, vertex1);
AddTopoFace(face.v1, vertex2, face.v3);
AddTopoFace(face.v2, face.v3, vertex2);
}
// Calling it at the end, because the java garbage collection won't destroy it until after the end of the function,
// (when there is nothing referencing it anymore)
m_topoFaces->RemoveTopoFace(faceIndex);
}
//标记面在切割sloid的内部还是外部..
void Sloid::ClassifyFaces(Sloid & sloid)
{
//清空重建邻边拓补信息
//for(int i=0;i<m_topologyVertexs->GetSize();i++)
//{
//}
//for(int i=0;i<m_topologyFaces->GetSize();i++)
//{
// TopologyFace & face = *(m_topologyFaces->GetFace(i));
// face.v1->addAdjacentVertex(face.v2);
// face.v1->addAdjacentVertex(face.v3);
// face.v2->addAdjacentVertex(face.v1);
// face.v2->addAdjacentVertex(face.v3);
// face.v3->addAdjacentVertex(face.v1);
// face.v3->addAdjacentVertex(face.v2);
//}
//
for(int i=0;i<m_topoFaces->GetTopoFaceNum();i++)
{
TopoFace & face = *(m_topoFaces->GetTopoFace(i));
//
if(face.simpleClassify()==false)
{
face.rayTraceClassify(sloid);
if(face.v1->status==TopoVertex::UNKNOWN)
{
face.v1->mark((TopoVertex::Status)face.status);
}
if(face.v2->status==TopoVertex::UNKNOWN)
{
face.v2->mark((TopoVertex::Status)face.status);
}
if(face.v3->status==TopoVertex::UNKNOWN)
{
face.v3->mark((TopoVertex::Status)face.status);
}
}
}
}
//反转内部面，减法使用
void Sloid::InvertInsideFaces()
{
TopoFace * face = 0;
for(int i=0;i<m_topoFaces->GetTopoFaceNum();i++)
{
face = m_topoFaces->GetTopoFace(i);
if(face->status==TopoFace::INSIDE)
{
face->invert();
}
}
}
void Sloid::GenTopologyFromRend()
{
///后期拓补处理
m_topoVertexs->ClearTopoVertex();
m_topoFaces->ClearTopoFace();
TopoVertex * v1 = 0;
TopoVertex * v2 = 0;
TopoVertex * v3 = 0;
TopoVertex * topoVertex = 0;
TopoVertexPtrSet * tmpTopoVertexPtrSet = new TopoVertexPtrSet();
//
for(int i=0;i<m_vVertexNum;i++)
{
topoVertex = AddTopoVertex(m_vertexs[i], m_tVertexs[i], TopoVertex::UNKNOWN);
tmpTopoVertexPtrSet->AddTopoVertexPtr(topoVertex);
}
// faces
for(int i=0; i<m_indexNum; i=i+3)
{
v1 = tmpTopoVertexPtrSet->GetTopoVertexPtr(m_indexs[i]);
v2 = tmpTopoVertexPtrSet->GetTopoVertexPtr(m_indexs[i+1]);
v3 = tmpTopoVertexPtrSet->GetTopoVertexPtr(m_indexs[i+2]);
AddTopoFace(v1, v2, v3);
}
//create bound
if (m_bound==NULL)
{
m_bound = new Box();
}
m_bound->setFromPoints(m_vertexs[0],m_vertexs[1]);
for(int i=1;i<m_vVertexNum;i++)
{
m_bound->mergePoint(m_vertexs[i]);
}
delete tmpTopoVertexPtrSet;
}
void Sloid::GenRendFromTopology()
{
//m_topologyVertexs->clear();
//m_vertices->clear();
//for(int i = 0; i < m_topoVertexs->GetNumVertices(); i++)
//{
// TopoVertex * pVertex = m_topoVertexs->GetVertex(i);
// //m_vertexs.AddVector(pVertex->pos);
// m_vertexs.SetVector(i,pVertex->pos);
//}
}
void Sloid::Translate(const vec3 & t)
{
for(int i = 0; i < m_vVertexNum; i++)
{
vec3 v = m_vertexs[i];
v = v + t;
m_vertexs[i] = v;
}
GenTopologyFromRend();
}
void Sloid::Render()
{
G_RendDriver->SetRenderStateEnable(RS_DEPTH_TEST,true);
G_RendDriver->SetRenderStateEnable(RS_TEXTURE_2D,true);
G_RendDriver->SetRenderStateEnable(RS_ALPHA_TEST,true);
G_RendDriver->SetRenderStateEnable(RS_BLEND,true);
G_RendDriver->BlendFunc(RS_SRC_ALPHA,RS_ONE_MINUS_SRC_ALPHA);
G_RendDriver->AlphaFunc(RS_GREATER,0.0f);
G_RendDriver->Color4f(1,1,1,1);
// for (int i=0;i<8;i++)
// {
// G_RendDriver->SetSamplerState(i, SS_MINFILTER, TF_LINEAR);
// G_RendDriver->SetSamplerState(i, SS_MAGFILTER, TF_LINEAR);
// }
G_RendDriver->RendBegin(RS_TRIANGLES);
int nNumTriangles = m_indexNum / 3;
for(int i = 0; i < nNumTriangles; i++)
{
int nIndex1 = m_indexs[i * 3 + 0];
int nIndex2 = m_indexs[i * 3 + 1];
int nIndex3 = m_indexs[i * 3 + 2];
vec3 vP1 = m_vertexs[nIndex1];
vec3 vP2 = m_vertexs[nIndex2];
vec3 vP3 = m_vertexs[nIndex3];
TVertex col1 = m_tVertexs[nIndex1];
TVertex col2 = m_tVertexs[nIndex2];
TVertex col3 = m_tVertexs[nIndex3];
//glColor4f(col1.r, col1.g, col1.b, 255);
G_RendDriver->TexCoord2f(col1.u, col1.v);
G_RendDriver->Vertex3f(vP1.x, vP1.y, vP1.z);
//glColor4f(col2.r, col2.g, col2.b, 255);
G_RendDriver->TexCoord2f(col2.u, col2.v);
G_RendDriver->Vertex3f(vP2.x, vP2.y, vP2.z);
//glColor4f(col3.r, col3.g, col3.b, 255);
G_RendDriver->TexCoord2f(col3.u, col3.v);
G_RendDriver->Vertex3f(vP3.x, vP3.y, vP3.z);
}
G_RendDriver->RendEnd();
//glLineWidth(1);
//glDisable(GL_TEXTURE_2D);
//glDisable (GL_DEPTH_TEST);
//glBegin(GL_LINES);
//for(int i = 0; i < nNumTriangles; i++)
//{
// int nIndex1 = m_indexs[i * 3 + 0];
// int nIndex2 = m_indexs[i * 3 + 1];
// int nIndex3 = m_indexs[i * 3 + 2];
// vec3 vP1 = m_vertexs[nIndex1];
// vec3 vP2 = m_vertexs[nIndex2];
// vec3 vP3 = m_vertexs[nIndex3];
// TVertex col1 = m_tVertexs[nIndex1];
// TVertex col2 = m_tVertexs[nIndex2];
// TVertex col3 = m_tVertexs[nIndex3];
// glColor4ub(200,200,200, 255);
// glVertex3d(vP1.x, vP1.y, vP1.z);
// glVertex3d(vP2.x, vP2.y, vP2.z);
// glVertex3d(vP2.x, vP2.y, vP2.z);
// glVertex3d(vP3.x, vP3.y, vP3.z);
// glVertex3d(vP3.x, vP3.y, vP3.z);
// glVertex3d(vP1.x, vP1.y, vP1.z);
//}
//glEnd();
//glLineWidth(1);
//glColor4ub(255,255,255, 255);
}
void Sloid::RefMesh(RendSys::Mesh* mesh)
{
Free();
if (mesh)
{
//添加点面
m_vVertexNum = mesh->m_vVertexNum;
m_vertexs= new vec3[m_vVertexNum];
for(int i = 0; i < m_vVertexNum; i++)
{
Mesh::Vertex& v =mesh->m_vVertexs[i];
m_vertexs[i] = vec3(v.x,v.y,v.z);
}
//
m_indexNum = mesh->m_trigonNum*3;
m_indexs = new IndexInt[m_indexNum];
for(int i = 0; i < mesh->m_trigonNum; i++)
{
Mesh::Trigon& f = mesh->m_trigons[i];
m_indexs[i*3] = f.vIndex[0];
m_indexs[i*3+1] = f.vIndex[1];
m_indexs[i*3+2] = f.vIndex[2];
}
//
m_tVertexs = new TVertex[m_vVertexNum];
TVertex col;
float colorr = (Rand() % 255)/255.0f;
float colorg = (Rand() % 255)/255.0f;
float colorb = (Rand() % 255)/255.0f;
for(int i = 0; i < m_vVertexNum; i++)
{
float colorr = (Rand() % 255)/255.0f;
float colorg = (Rand() % 255)/255.0f;
float colorb = (Rand() % 255)/255.0f;
Mesh::TVertex& v =mesh->m_tVertexs[i];
col.r = colorr;
col.g = colorg;
col.b = colorb;
col.u = v.u;
col.v = v.v;
m_tVertexs[i] = (col);
}
}
GenTopologyFromRend();
}
//==================^_^==================^_^==================^_^==================^_^
BooleanModeller::BooleanModeller(Sloid * solid1, Sloid * solid2)
{
m_pSloid1 = solid1;
m_pSloid2 = solid2;
//切割
m_pSloid1->SplitFaces(m_pSloid2);
//模拟爆炸不做联合不补面时可以省略分割sloid2
m_pSloid2->SplitFaces(m_pSloid1);
//classify faces as being inside or outside the other solid
m_pSloid1->ClassifyFaces(*m_pSloid2);
m_pSloid2->ClassifyFaces(*m_pSloid1);
}
Sloid * BooleanModeller::GetUnion()
{
Sloid *result = new Sloid();
PreMergeSloid(m_pSloid1, result, TopoFace::OUTSIDE, TopoFace::SAME);
PreMergeSloid(m_pSloid2, result, TopoFace::OUTSIDE, TopoFace::OUTSIDE);
result->m_indexs = new IndexInt[result->m_indexNum];//肯比实际的多少许
result->m_vertexs = new vec3[result->m_vVertexNum];
result->m_tVertexs = new TVertex[result->m_tVertexNum];
result->m_indexNum = 0;
result->m_vVertexNum = 0;
result->m_tVertexNum = 0;
MergeSloid(m_pSloid1, result, TopoFace::OUTSIDE, TopoFace::SAME);
MergeSloid(m_pSloid2, result, TopoFace::OUTSIDE, TopoFace::OUTSIDE);
//拓扑的面依赖于点指针不遍即时加入
//result->GenRendFromTopology();
return result;
}
Sloid * BooleanModeller::GetIntersection()
{
Sloid *result = new Sloid();
PreMergeSloid(m_pSloid1, result, TopoFace::INSIDE, TopoFace::SAME);
PreMergeSloid(m_pSloid2, result, TopoFace::INSIDE, TopoFace::INSIDE);
result->m_indexs = new IndexInt[result->m_indexNum];//肯比实际的多少许
result->m_vertexs = new vec3[result->m_vVertexNum];
result->m_tVertexs = new TVertex[result->m_tVertexNum];
result->m_indexNum = 0;
result->m_vVertexNum = 0;
result->m_tVertexNum = 0;
MergeSloid(m_pSloid1, result, TopoFace::INSIDE, TopoFace::SAME);
MergeSloid(m_pSloid2, result, TopoFace::INSIDE, TopoFace::INSIDE);
//result->GenRendFromTopology();
return result;
}
Sloid * BooleanModeller::GetDifference()
{
m_pSloid2->InvertInsideFaces();
Sloid *result = new Sloid();
PreMergeSloid(m_pSloid1, result, TopoFace::OUTSIDE, TopoFace::OPPOSITE);
PreMergeSloid(m_pSloid2, result, TopoFace::INSIDE, TopoFace::INSIDE);
result->m_indexs = new IndexInt[result->m_indexNum];//肯比实际的多少许
result->m_vertexs = new vec3[result->m_vVertexNum];
result->m_tVertexs = new TVertex[result->m_tVertexNum];
result->m_indexNum = 0;
result->m_vVertexNum = 0;
result->m_tVertexNum = 0;
MergeSloid(m_pSloid1, result, TopoFace::OUTSIDE, TopoFace::OPPOSITE);
MergeSloid(m_pSloid2, result, TopoFace::INSIDE, TopoFace::INSIDE);//减法：sloid的内部面作为补面，需要反转法线。
//result->GenRendFromTopology();
m_pSloid2->InvertInsideFaces();
return result;
}
void BooleanModeller::MergeSloid(Sloid* pSrcSloid, Sloid* pDstSloid, int faceStatus1, int faceStatus2)
{
for(int i=0;i<pSrcSloid->m_topoFaces->GetTopoFaceNum();i++)
{
TopoFace & face = *(pSrcSloid->m_topoFaces->GetTopoFace(i));
if(face.status==faceStatus1 || face.status==faceStatus2)
{
TopoVertexPtrSet faceVerts;
faceVerts.AddTopoVertexPtr(face.v1);
faceVerts.AddTopoVertexPtr(face.v2);
faceVerts.AddTopoVertexPtr(face.v3);
for(int j=0;j<faceVerts.GetTopoVertexPtrNum();j++)
{
if(pDstSloid->m_topoVertexs->HasTopoVertex(faceVerts[j]))
{
pDstSloid->m_indexs[pDstSloid->m_indexNum] = pDstSloid->m_topoVertexs->IndexOfTopoVertex(faceVerts[j]);
pDstSloid->m_indexNum++;
}
else
{
pDstSloid->m_indexs[pDstSloid->m_indexNum] = pDstSloid->m_topoVertexs->GetTopoVertexNum();
pDstSloid->m_topoVertexs->AddTopoVertex(*faceVerts[j]);
pDstSloid->m_vertexs[pDstSloid->m_vVertexNum] = faceVerts[j]->pos;
pDstSloid->m_tVertexs[pDstSloid->m_tVertexNum] = faceVerts[j]->tVertex;
pDstSloid->m_indexNum++;
pDstSloid->m_vVertexNum++;
pDstSloid->m_tVertexNum++;
}
}
}
}
}
void BooleanModeller::PreMergeSloid(Sloid* pSrcSloid, Sloid* pDstSloid, int faceStatus1, int faceStatus2)
{
for(int i=0;i<pSrcSloid->m_topoFaces->GetTopoFaceNum();i++)
{
TopoFace & face = *(pSrcSloid->m_topoFaces->GetTopoFace(i));
if(face.status==faceStatus1 || face.status==faceStatus2)
{
pDstSloid->m_indexNum+=3;
pDstSloid->m_vVertexNum+=3;
pDstSloid->m_tVertexNum+=3;
}
}
}
完
扫一扫
8168
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
