基于本地知识库的AI客服系统（支持转人工）开发和实施文档

原创 于 2025-06-30 11:41:53 发布 · 1.3k 阅读 · 22 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#人工智能 #ai #rag #ragflow #AI客服 #Python #开源

阅读原文

建议阅读原文，始终查看最新文档版本，获得最佳阅读体验：《基于知识库的AI客服系统开发和实施文档》

前言

本文详细说明如何实施我开发的AI客服系统

项目总结报告

请点击：《基于知识库的AI客服系统 - 项目总结报告》

源代码

代码已开源，github项目网址为：iamtornado/AI-Assistant

开发环境

Windows11系统，用trae国内版（基于vs code）开发

python版本：3.13

技术选型

我选择了以下技术栈：

前端与应用框架: Chainlit

一个用于快速构建聊天应用的Python框架，提供了用户认证、会话管理和友好的UI。其支持实时渲染，比如，消息中如果有代码，则会自动显示代码块，方便阅读。

知识库与问答引擎: RAGFlow

领先的检索增强生成（RAG）平台，负责知识的存储、检索和智能问答。其还支持多语言、MCP、agent等。

人工客服平台: Rocket.Chat

一个功能强大的开源团队沟通协作平台，用作人工客服的工作台。

消息队列: Redis

利用其发布/订阅和Stream数据结构，实现各服务间的异步消息通信，确保系统的响应速度和稳定性。

Web服务: FastAPI

用于构建接收Rocket.Chat消息的Webhook服务，性能卓越。

身份认证: Keycloak

通过OAuth 2.0协议，为Chainlit提供统一、安全的用户身份认证服务。keycloak对接的是企业LDAP，因此用户可以直接通过现有的域账号登录AI客服系统。

系统架构图

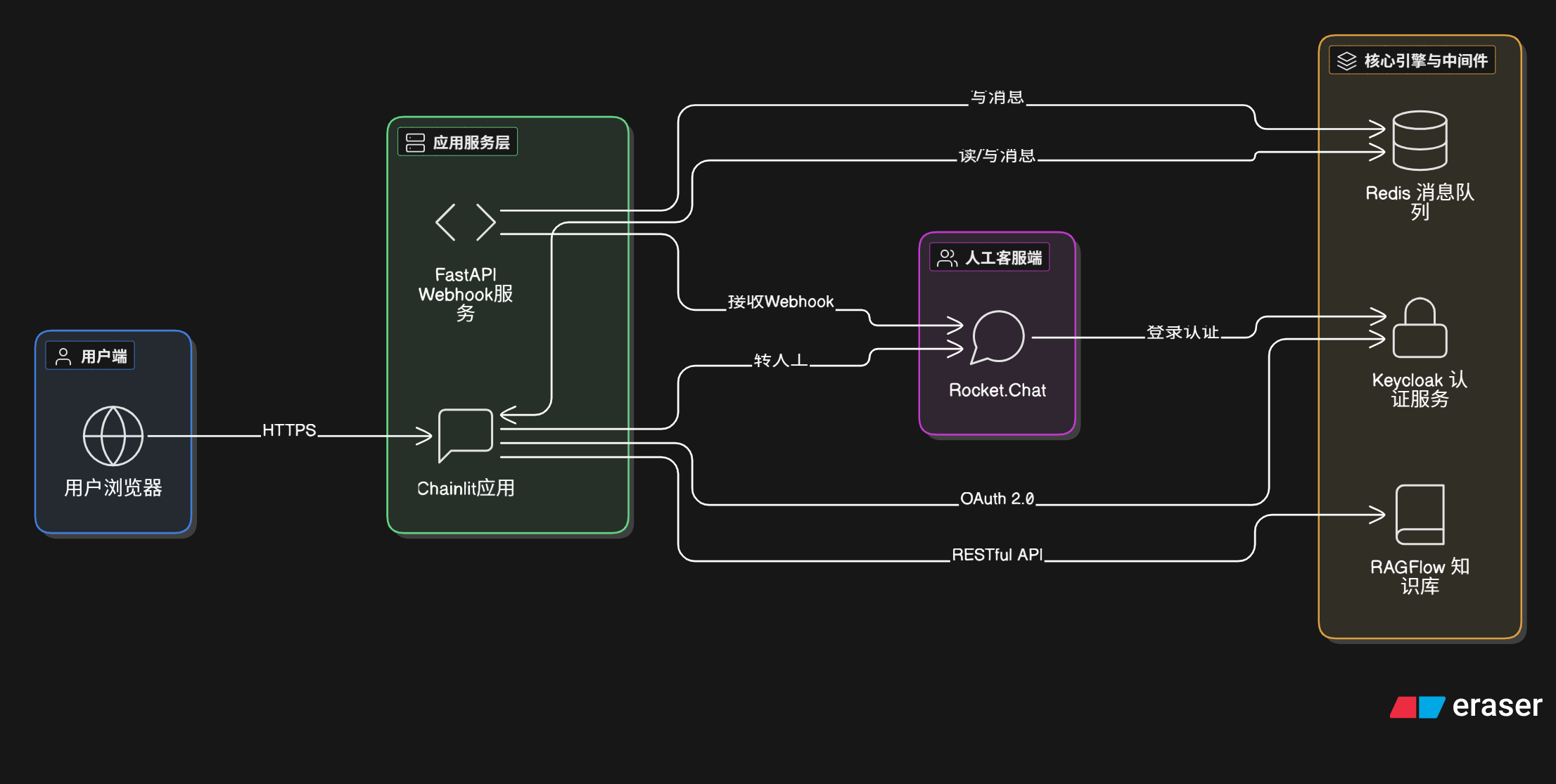

总体架构图

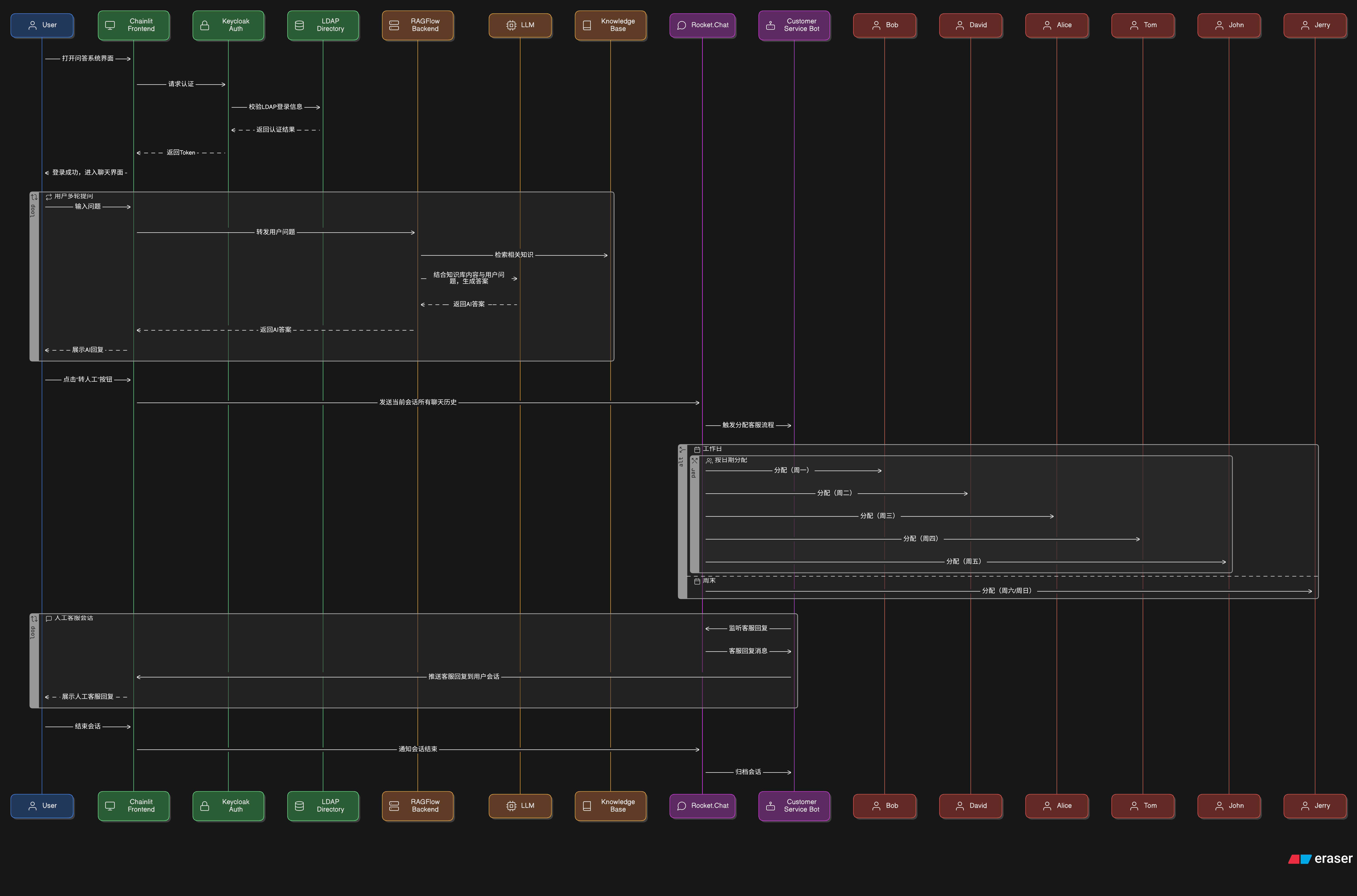

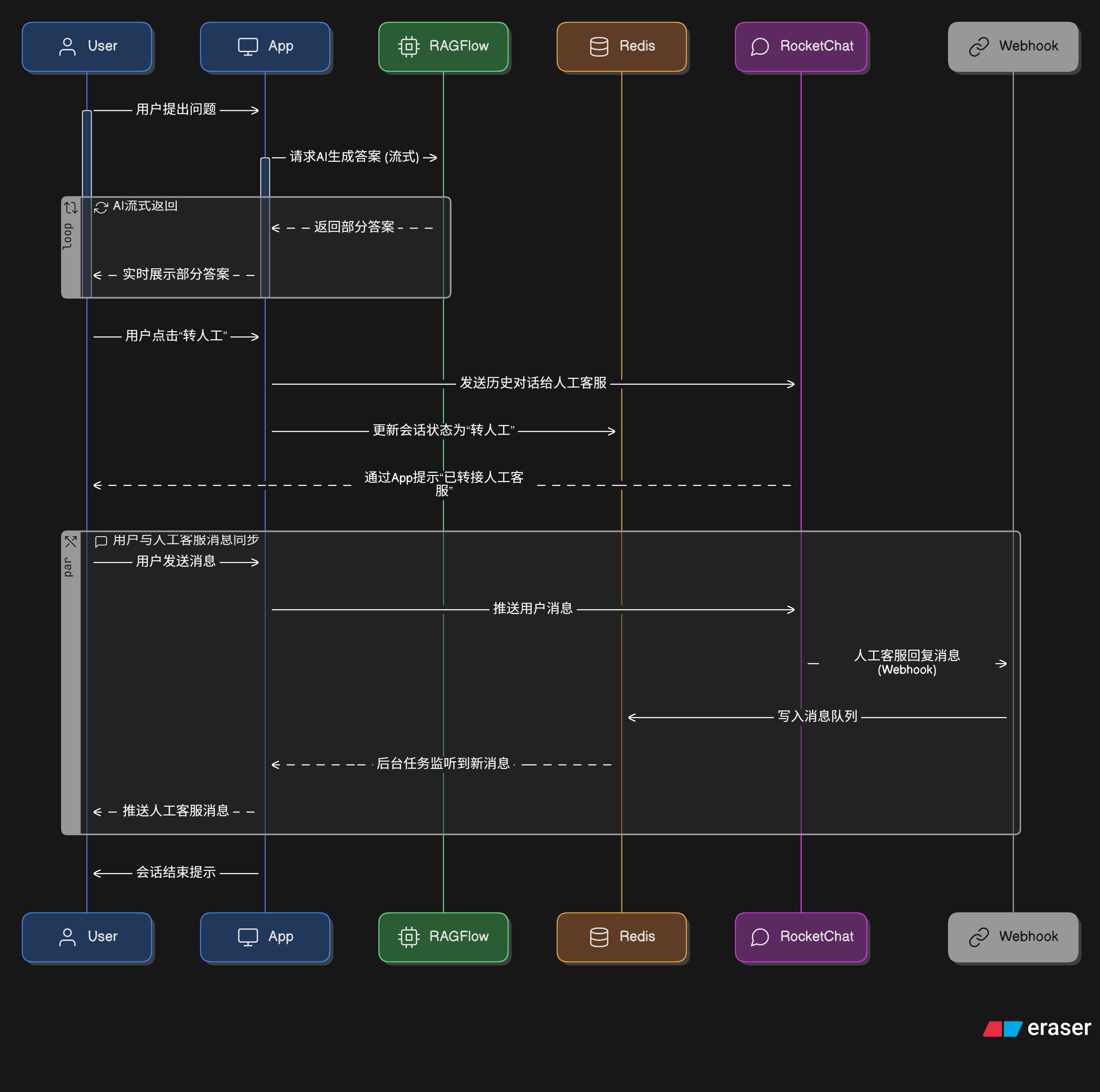

时序图



以上图形是利用 DiagramGPT（eraser） 生成的

前端（chainlit）

安装chainlit

参考资料：Installation - Chainlit

Linux系统

首先要安装python和pip，此过程省略

注意，下面几行命令是在ubuntu desktop 24.04系统上运行的，Windows系统命令有所区别

#创建虚拟环境
python3 -m venv chainlit
#激活虚拟环境
source ./chainlit/bin/activate

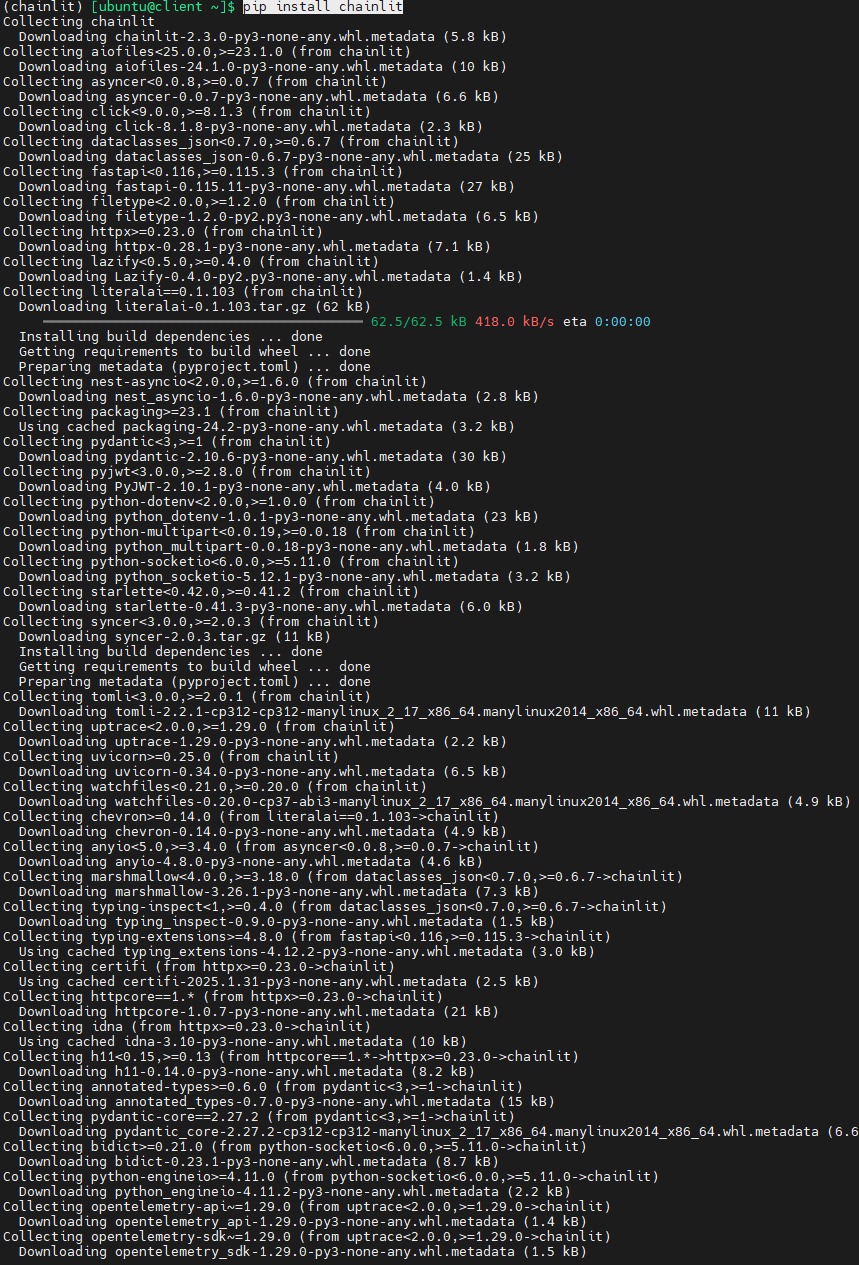

#用pip安装chainlit包
pip install -U chainlit



Windows系统，trae（vs code）

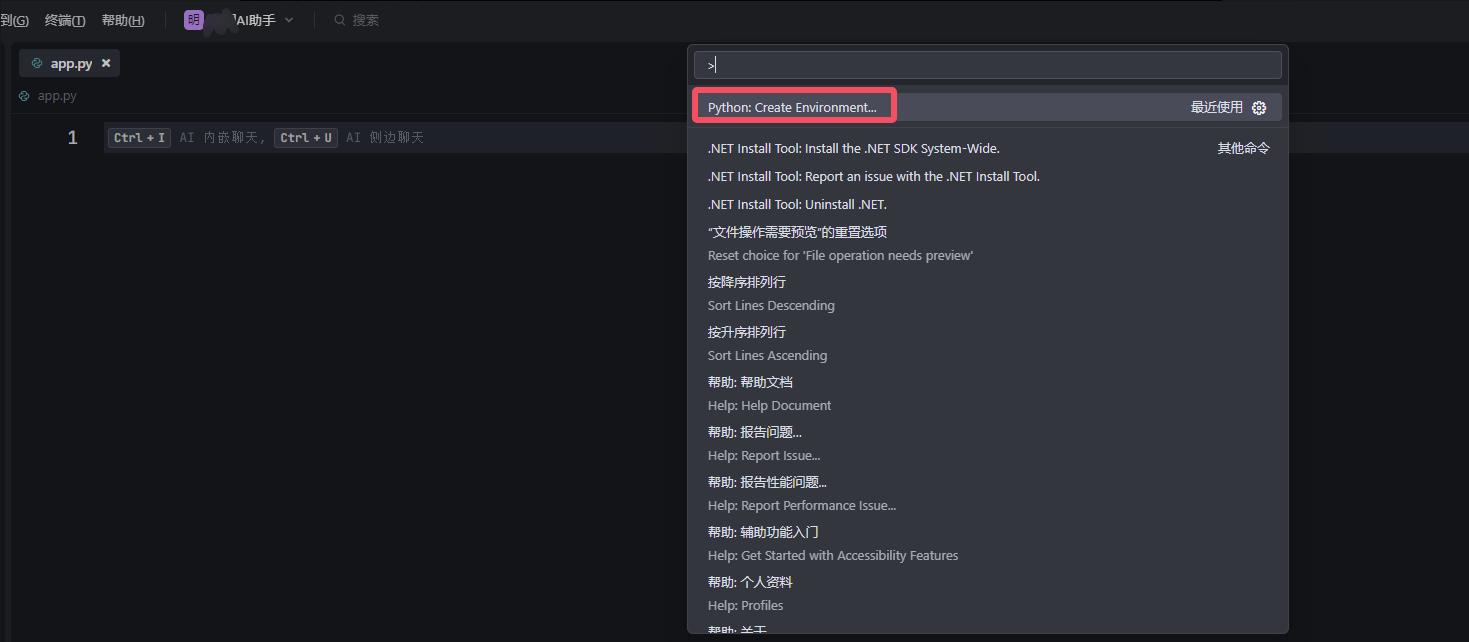

先通过vs code创建一个空的app.py文件，然后通过命令面板创建虚拟环境

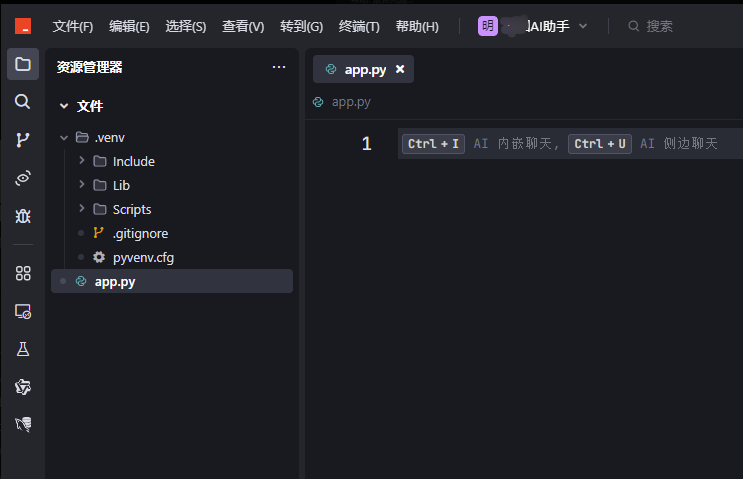

成功创建虚拟环境后，就可以在资源管理中看到自动生成了.env文件夹


激活虚拟环境

.venv\Scripts\activate


检查当前python解释器是不是虚拟环境中的解释器，如果不是，务必选择虚拟环境中的解释器

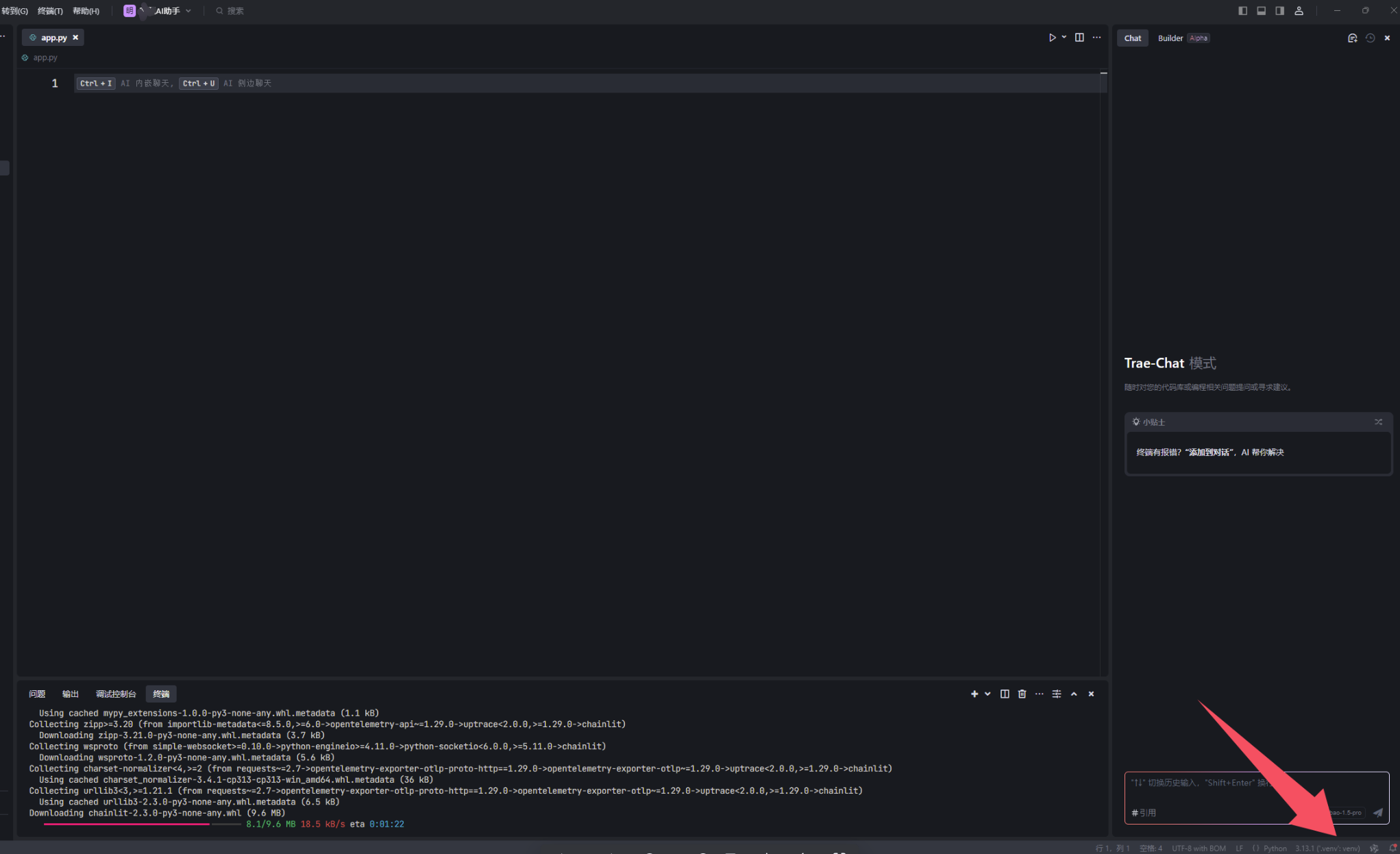

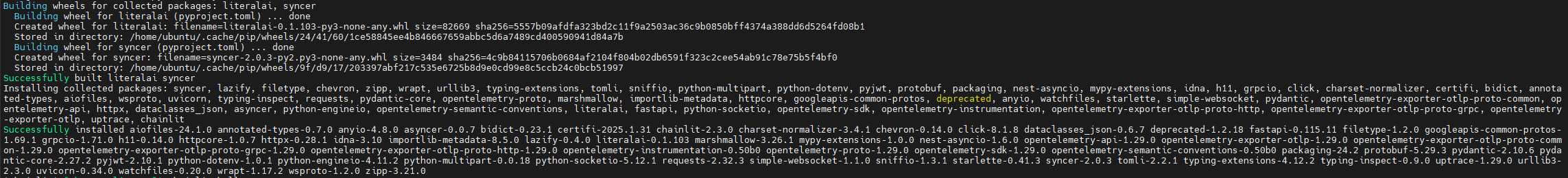

用pip安装chainlit包，时间会比较长，因为国内下载包会比较慢

pip install --upgrade chainlit

初步了解chainlit–编写极简应用逻辑

参考资料：In Pure Python - Chainlit

如果你对chainlit已经有了初步了解，可以直接看下一小节。

这是一个非常简单的应用，就是会将用户的输入再返回，前面加上Received:

import chainlit as cl


@cl.on_message
async def main(message: cl.Message):
    # Your custom logic goes here...

    # Send a response back to the user
    await cl.Message(
        content=f"Received: {

     message.content}",
    ).send()

设置环境变量（API key）

下面这种方式是用于临时设置环境变量

$env:OPENAI_API_KEY = "<替换为你的API key>"

官方建议用.env文件设置环境变量，官方文档为Environment Variables - Chainlit

运行应用

在终端中导航到app.py文件所在的文件夹，然后运行命令：

chainlit run app.py -w

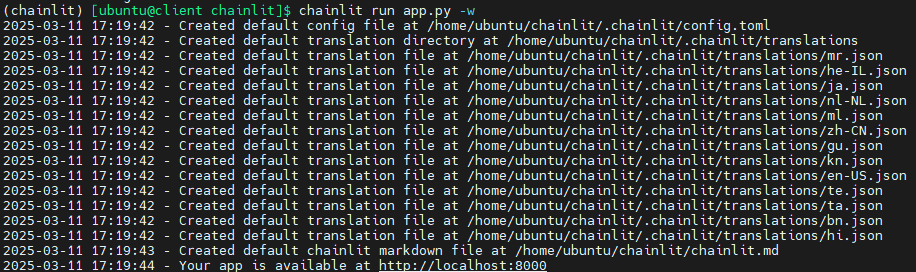

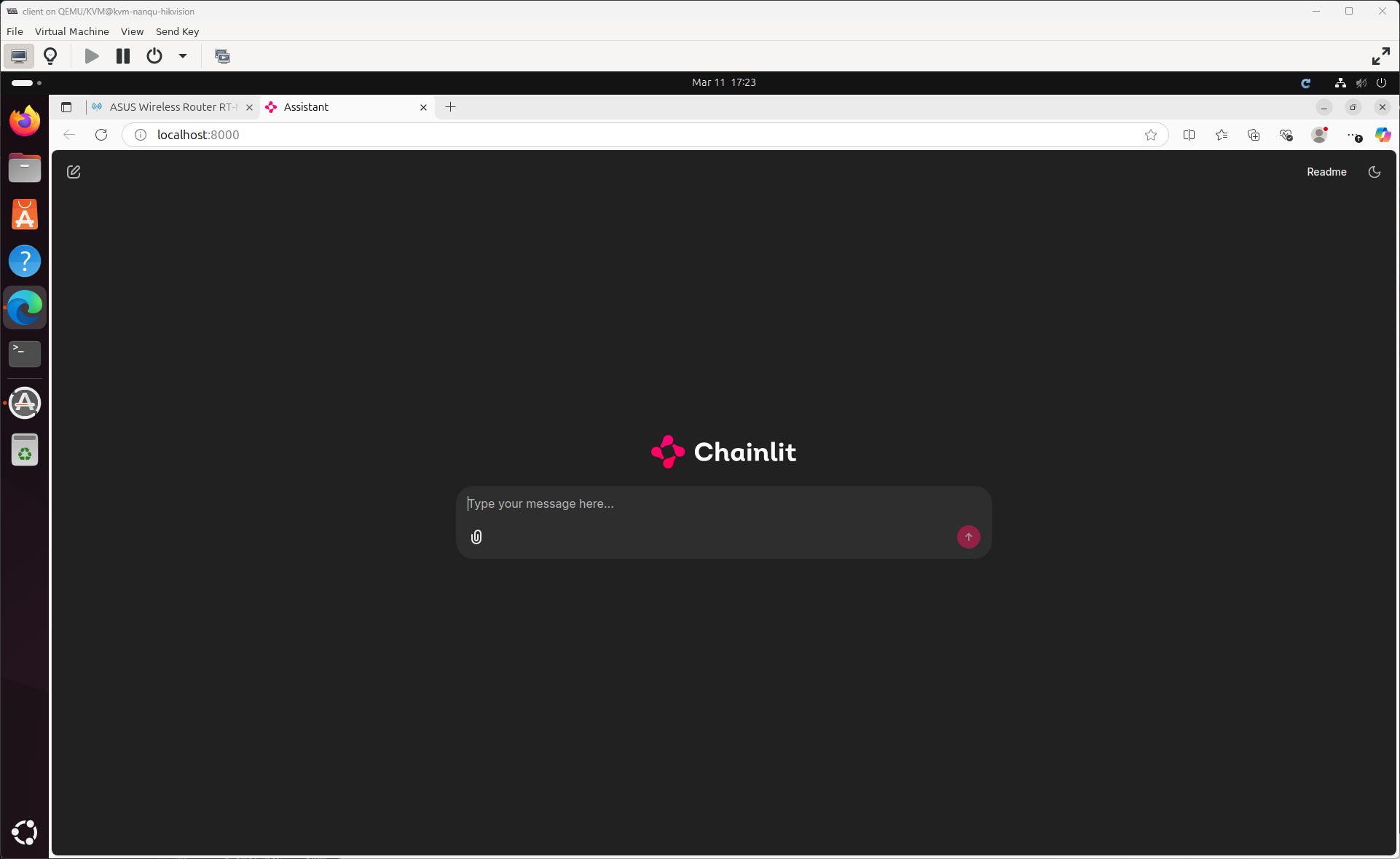

下图是Linux系统中的截图

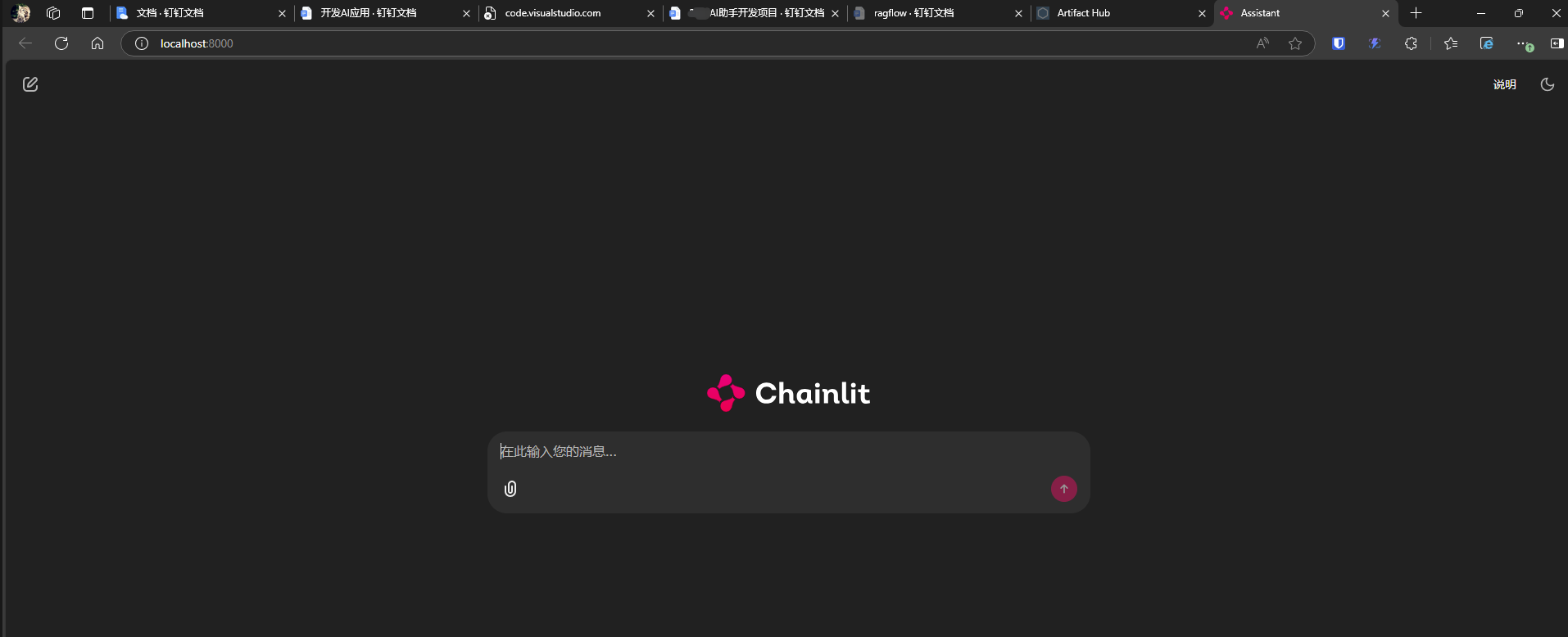

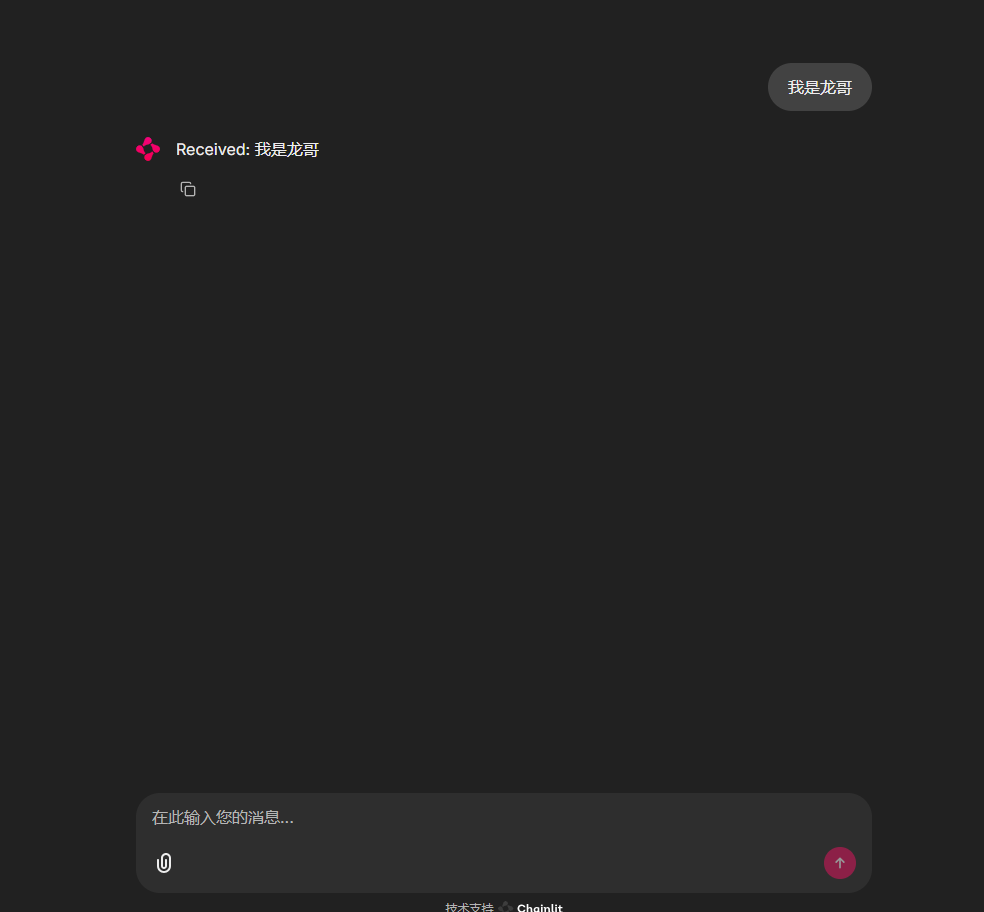

会自动打开浏览器

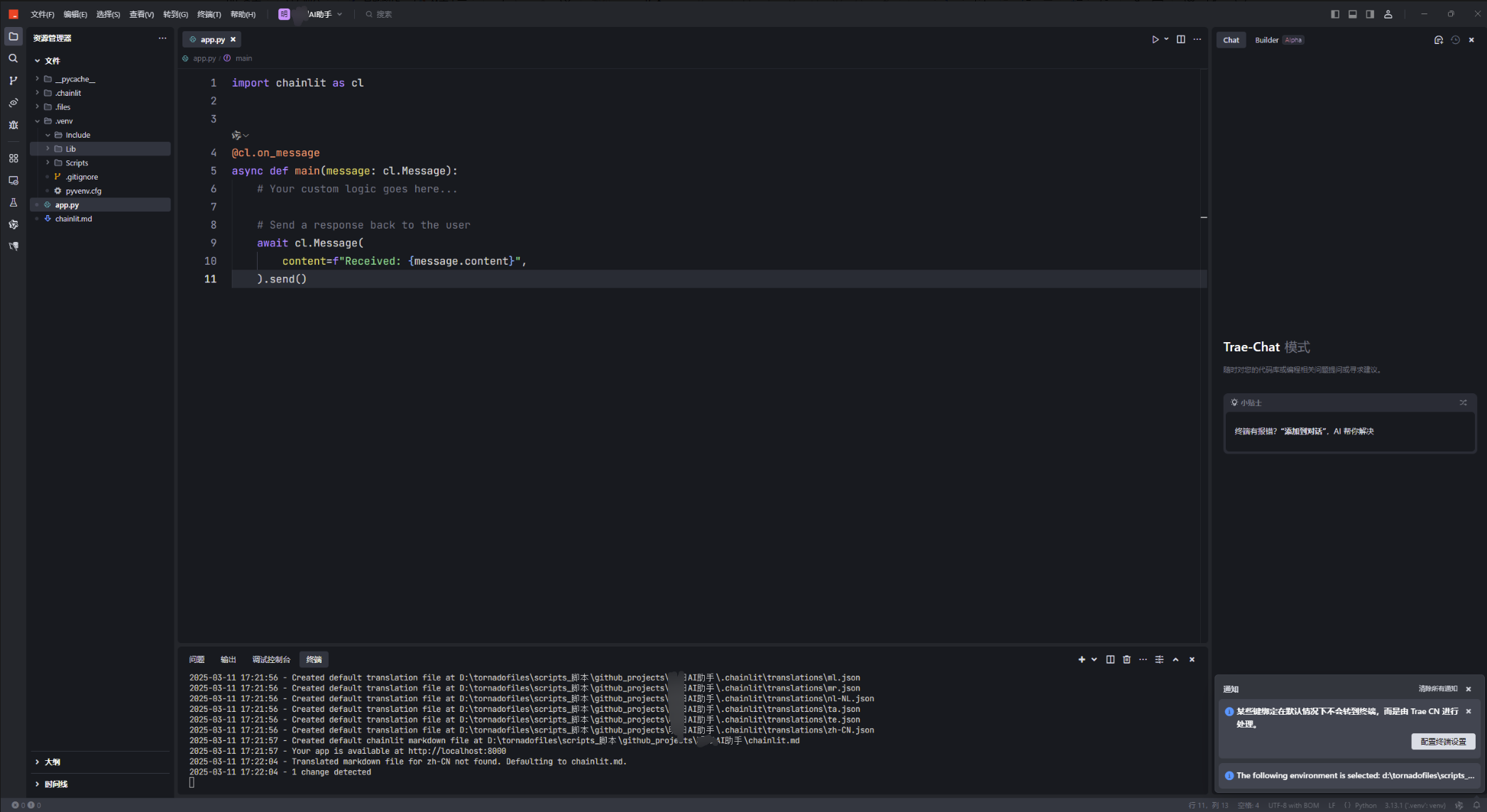

下面是Windows系统中trae的截图，也会自动在Windows系统默认浏览器中打开网页

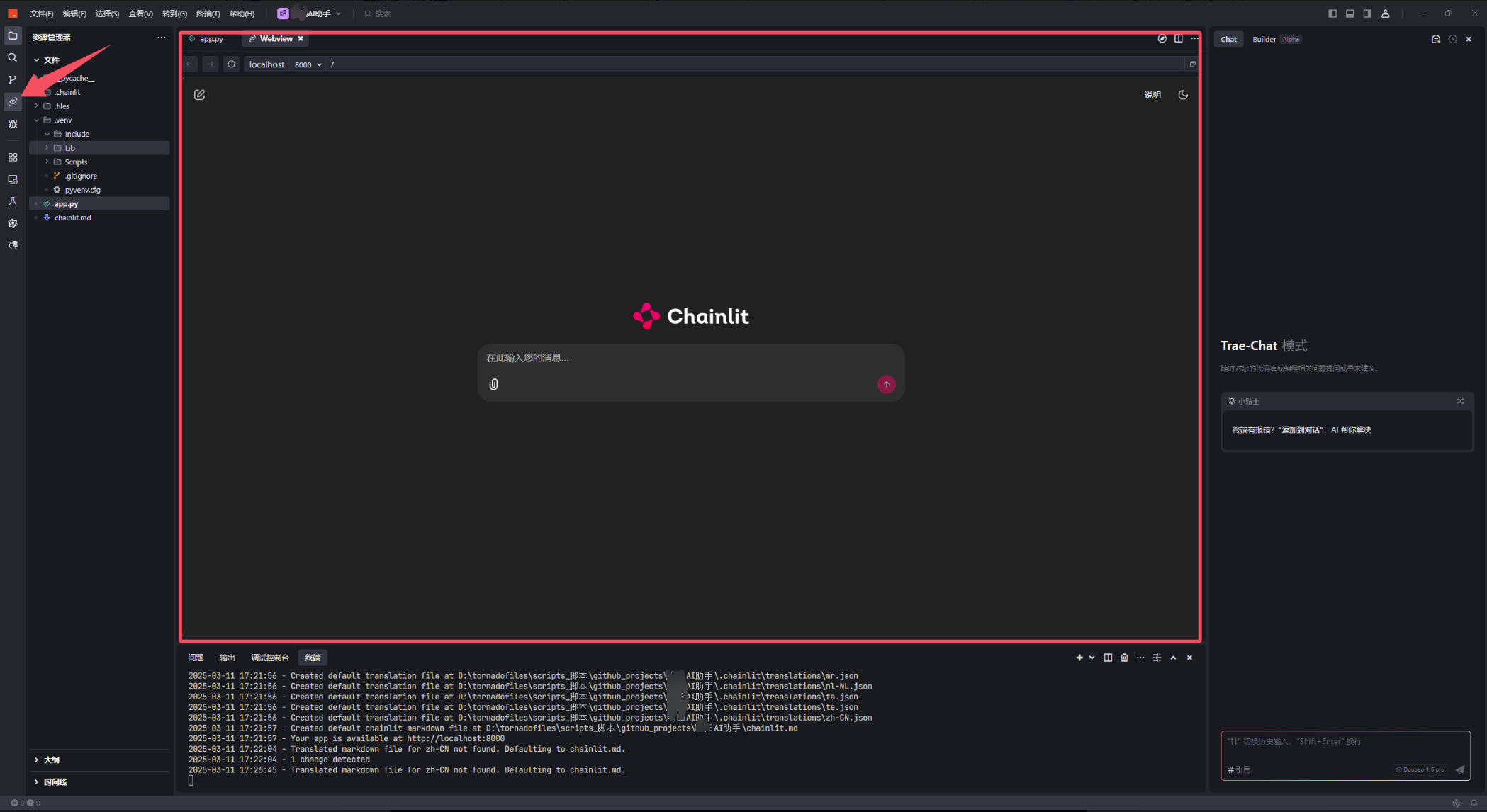

也可以通过trae的webview功能直接预览，更加方便开发调试



实现对接LDAP（存在问题，请勿阅读）

本小节的内容是我在做实验时记录的，存在问题，请直接阅读下一小节，了解如何将keycloak对接企业LDAP（Microsoft AD）

部署keycloak

参考资料：Docker - Keycloak

:::

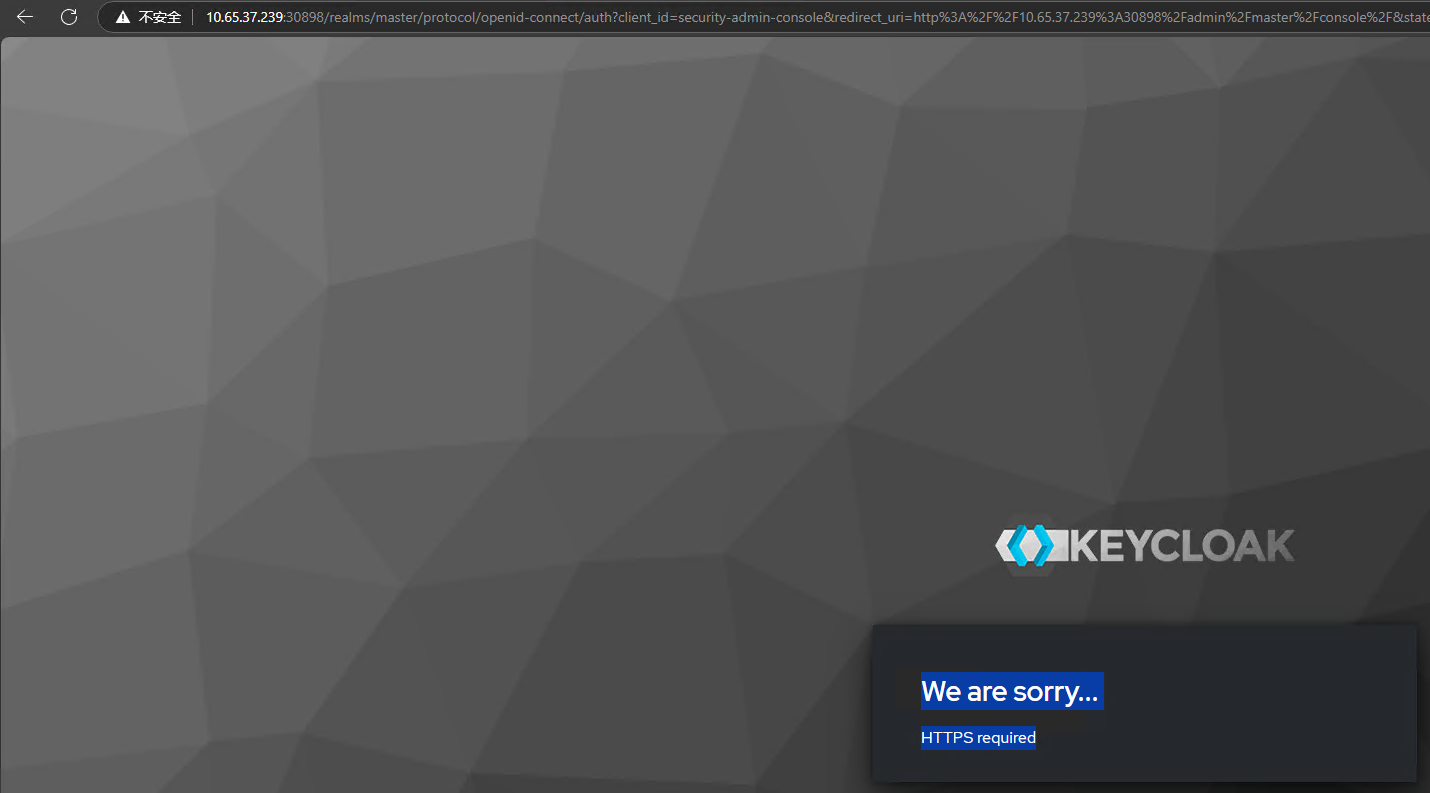

我在k8s部署keycloak时（无论是helmkeycloak 24.4.12 · bitnami/bitnami，还是官方的教程Kubernetes - Keycloak），发现一个问题，用web登录，一直提示“We are sorry… HTTPS required”，但是用docker部署没有这个问题。

我想应该是这两种方式强制要求用https

官方还提供了通过operator的方式部署keycloak，我没有试过。Keycloak Operator Installation - Keycloak

https://operatorhub.io/operator/keycloak-operator

:::

用docker部署（无持久存储）

不建议用下面的方式部署keycloak，重启容器后，所有数据都会丢失

#注意，下行命令中的--dns=192.168.124.7参数含义为让容器使用此dns，如果不指定，则容器内的程序无法访问企业内部网络，从而导致无法进行dns解析，在连接LDAP时会报错
docker run -p 8080:8080 -e KC_BOOTSTRAP_ADMIN_USERNAME=admin -e KC_BOOTSTRAP_ADMIN_PASSWORD=admin --dns=192.168.124.7 docker.1ms.run/keycloak/keycloak:26.2.5 start-dev
用docker部署（持久存储）

对于开发环境和测试环境，建议用下面的方法部署keycloak，数据不会丢失，保存在本地（以文件形式）

mkdir -p /opt/keycloak/data
sudo chmod -R a+rwx /opt/keycloak/data


docker run -d \
  --name keycloak \
  -p 8080:8080 \
  -e KC_DB=dev-file \
  -v /opt/keycloak/data:/opt/keycloak/data \
  -e KC_BOOTSTRAP_ADMIN_USERNAME=admin \
  -e KC_BOOTSTRAP_ADMIN_PASSWORD=admin \
  docker.1ms.run/keycloak/keycloak:26.2.5 start-dev

:::
如果出现下面的错误日志，则说明容器或者说是keycloak程序无法解析域名解析，需要调整dns，使其能解析指定域名

2025-03-12 11:50:46,712 ERROR [org.keycloak.services] (executor-thread-17) KC-SERVICES0055: Error when connecting to LDAP: dc-t.dltornado2.com:389: javax.naming.CommunicationException: dc-t.dltornado2.com:389 [Root exception is java.net.UnknownHostException: dc-t.dltornado2.com]

    at java.naming/com.sun.jndi.ldap.Connection.<init>(Connection.java:251)

    at java.naming/com.sun.jndi.ldap.LdapClient.<init>(LdapClient.java:141)

    at java.naming/com.sun.jndi.ldap.LdapClient.getInstance(LdapClient.java:1620)

    at java.naming/com.sun.jndi.ldap.LdapCtx.connect(LdapCtx.java:2848)

    at java.naming/com.sun.jndi.ldap.LdapCtx.<init>(LdapCtx.java:349)

    at java.naming/com.sun.jndi.ldap.LdapCtxFactory.getLdapCtxFromUrl(LdapCtxFactory.java:229)

    at java.naming/com.sun.jndi.ldap.LdapCtxFactory.getUsingURL(LdapCtxFactory.java:189)

    at java.naming/com.sun.jndi.ldap.LdapCtxFactory.getUsingURLs(LdapCtxFactory.java:247)

    at java.naming/com.sun.jndi.ldap.LdapCtxFactory.getLdapCtxInstance(LdapCtxFactory.java:154)

    at java.naming/com.sun.jndi.ldap.LdapCtxFactory.getInitialContext(LdapCtxFactory.java:84)

    at java.naming/javax.naming.spi.NamingManager.getInitialContext(NamingManager.java:520)

    at java.naming/javax.naming.InitialContext.getDefaultInitCtx(InitialContext.java:305)

    at java.naming/javax.naming.InitialContext.init(InitialContext.java:236)

    at java.naming/javax.naming.ldap.InitialLdapContext.<init>(InitialLdapContext.java:154)

    at org.keycloak.storage.ldap.idm.store.ldap.LDAPContextManager.createLdapContext(LDAPContextManager.java:81)

    at org.keycloak.storage.ldap.idm.store.ldap.LDAPContextManager.getLdapContext(LDAPContextManager.java:106)

    at org.keycloak.services.managers.LDAPServerCapabilitiesManager.testLDAP(LDAPServerCapabilitiesManager.java:202)

    at org.keycloak.services.resources.admin.TestLdapConnectionResource.testLDAPConnection(TestLdapConnectionResource.java:92)

    at org.keycloak.services.resources.admin.TestLdapConnectionResource$quarkusrestinvoker$testLDAPConnection\_d65ae9343a71f2736595679e81594225f9de5d6f.invoke(Unknown Source)

    at org.jboss.resteasy.reactive.server.handlers.InvocationHandler.handle(InvocationHandler.java:29)

    at io.quarkus.resteasy.reactive.server.runtime.QuarkusResteasyReactiveRequestContext.invokeHandler(QuarkusResteasyReactiveRequestContext.java:141)

    at org.jboss.resteasy.reactive.common.core.AbstractResteasyReactiveContext.run(AbstractResteasyReactiveContext.java:147)

    at io.quarkus.vertx.core.runtime.VertxCoreRecorder$14.runWith(VertxCoreRecorder.java:635)

    at org.jboss.threads.EnhancedQueueExecutor$Task.doRunWith(EnhancedQueueExecutor.java:2516)

    at org.jboss.threads.EnhancedQueueExecutor$Task.run(EnhancedQueueExecutor.java:2495)

    at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1521)

    at org.jboss.threads.DelegatingRunnable.run(DelegatingRunnable.java:11)

    at org.jboss.threads.ThreadLocalResettingRunnable.run(ThreadLocalResettingRunnable.java:11)

    at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)

    at java.base/java.lang.Thread.run(Thread.java:1583)

Caused by: java.net.UnknownHostException: dc-t.dltornado2.com

    at java.base/sun.nio.ch.NioSocketImpl.connect(NioSocketImpl.java:567)

    at java.base/java.net.SocksSocketImpl.connect(SocksSocketImpl.java:327)

    at java.base/java.net.Socket.connect(Socket.java:751)

    at java.naming/com.sun.jndi.ldap.Connection.createConnectionSocket(Connection.java:340)

    at java.naming/com.sun.jndi.ldap.Connection.createSocket(Connection.java:283)

    at java.naming/com.sun.jndi.ldap.Connection.<init>(Connection.java:230)

    ... 29 more

:::

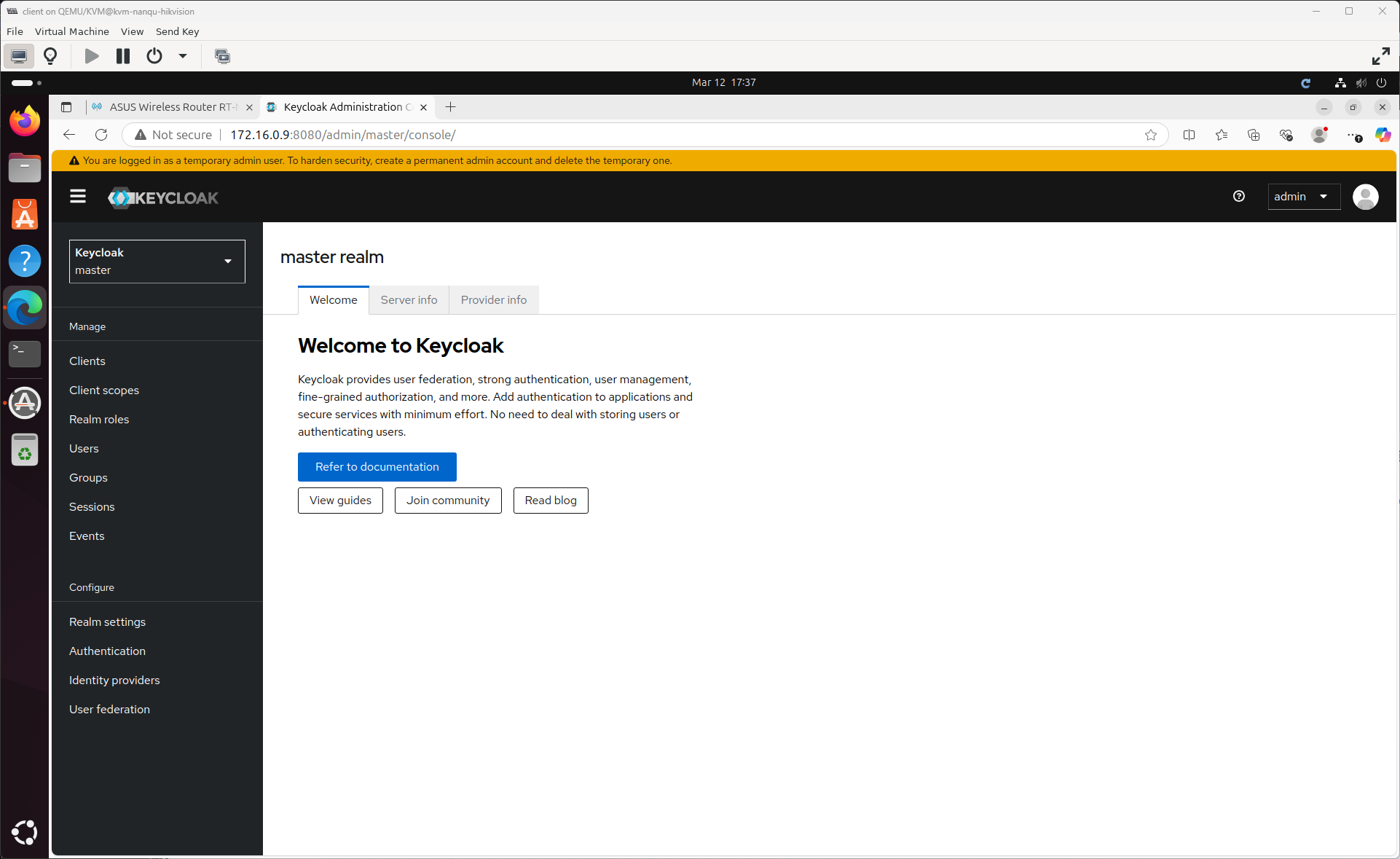

然后通过web访问，网址是：http://server_ip:8080

需要登录，用户名是admin 密码是一样的，这是来自于上面的命令，设置了环境变量，可以更改环境变量。

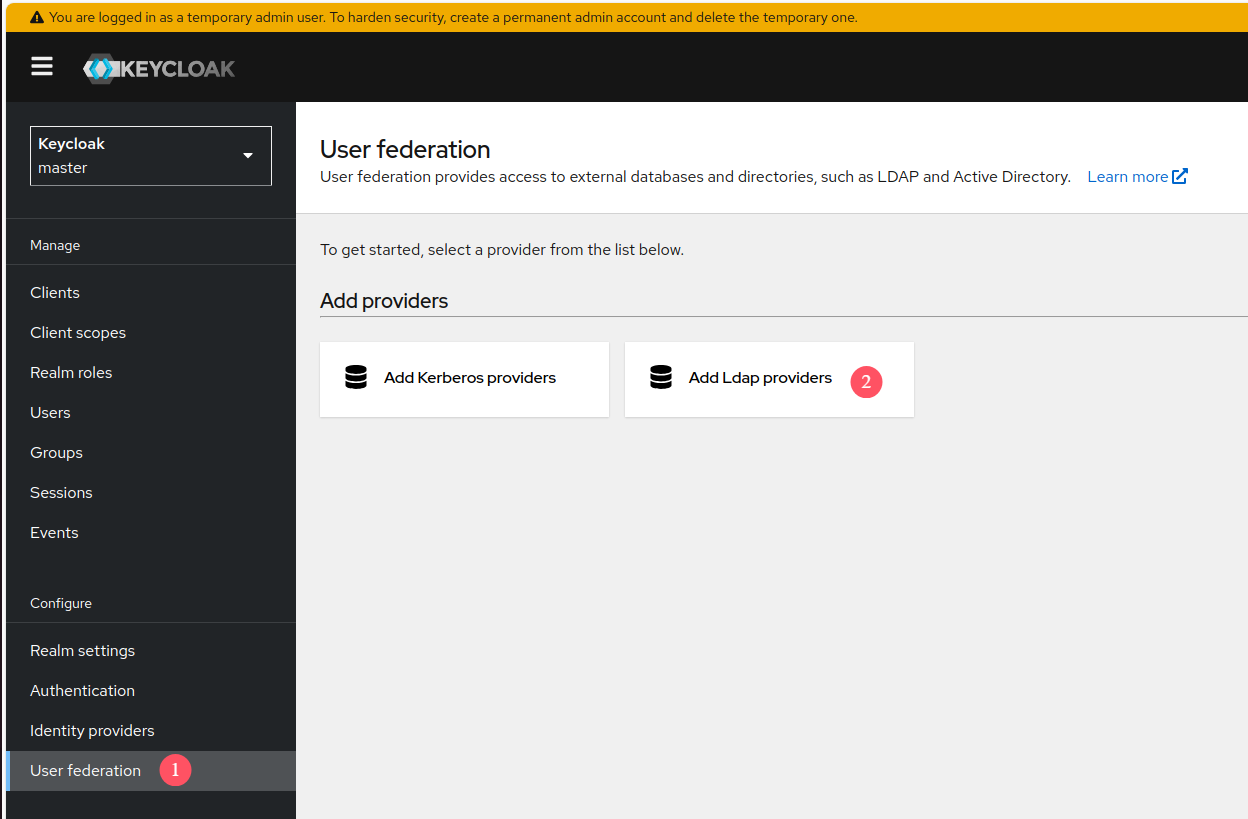

添加一个provider

参考资料：Server Administration Guide

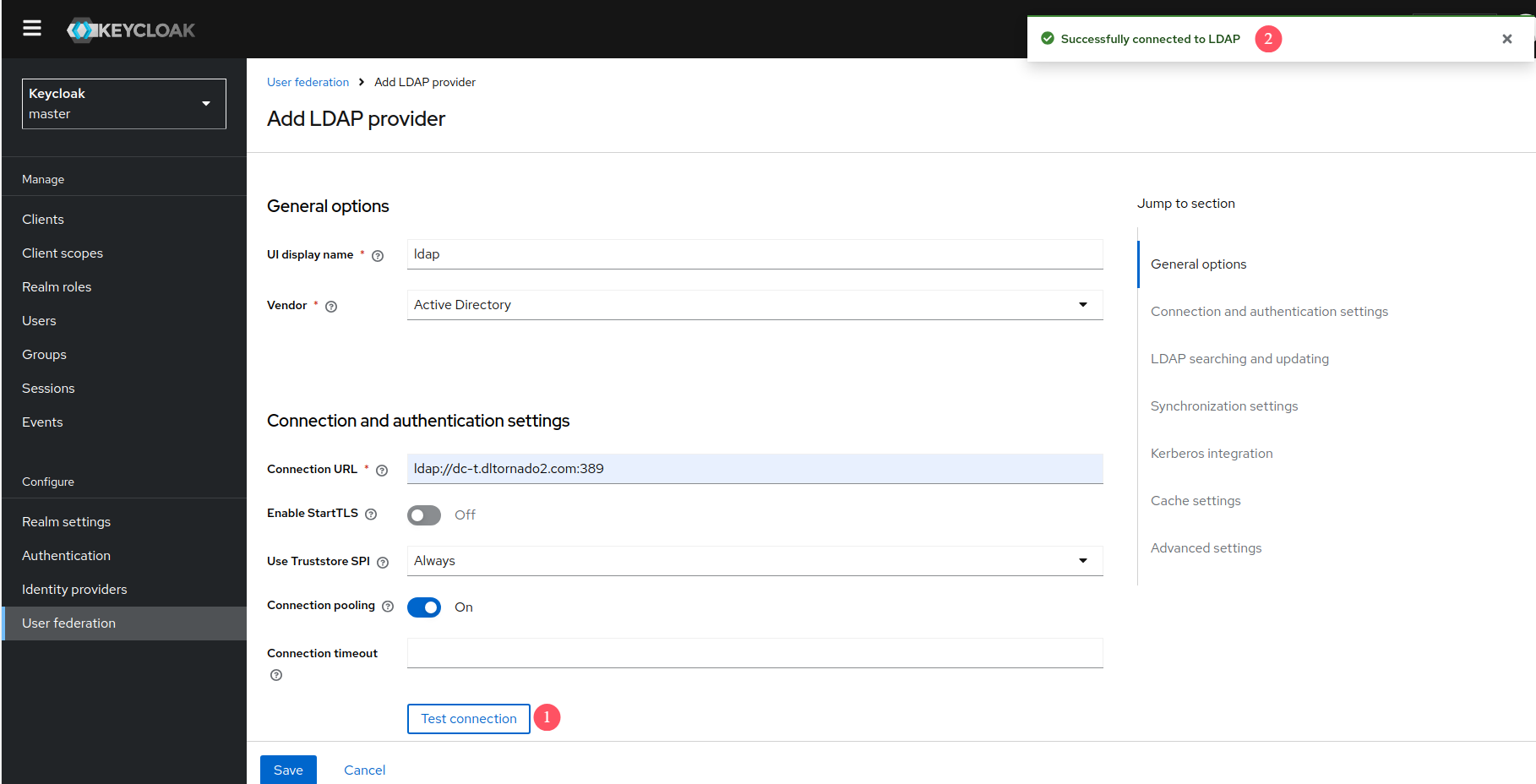

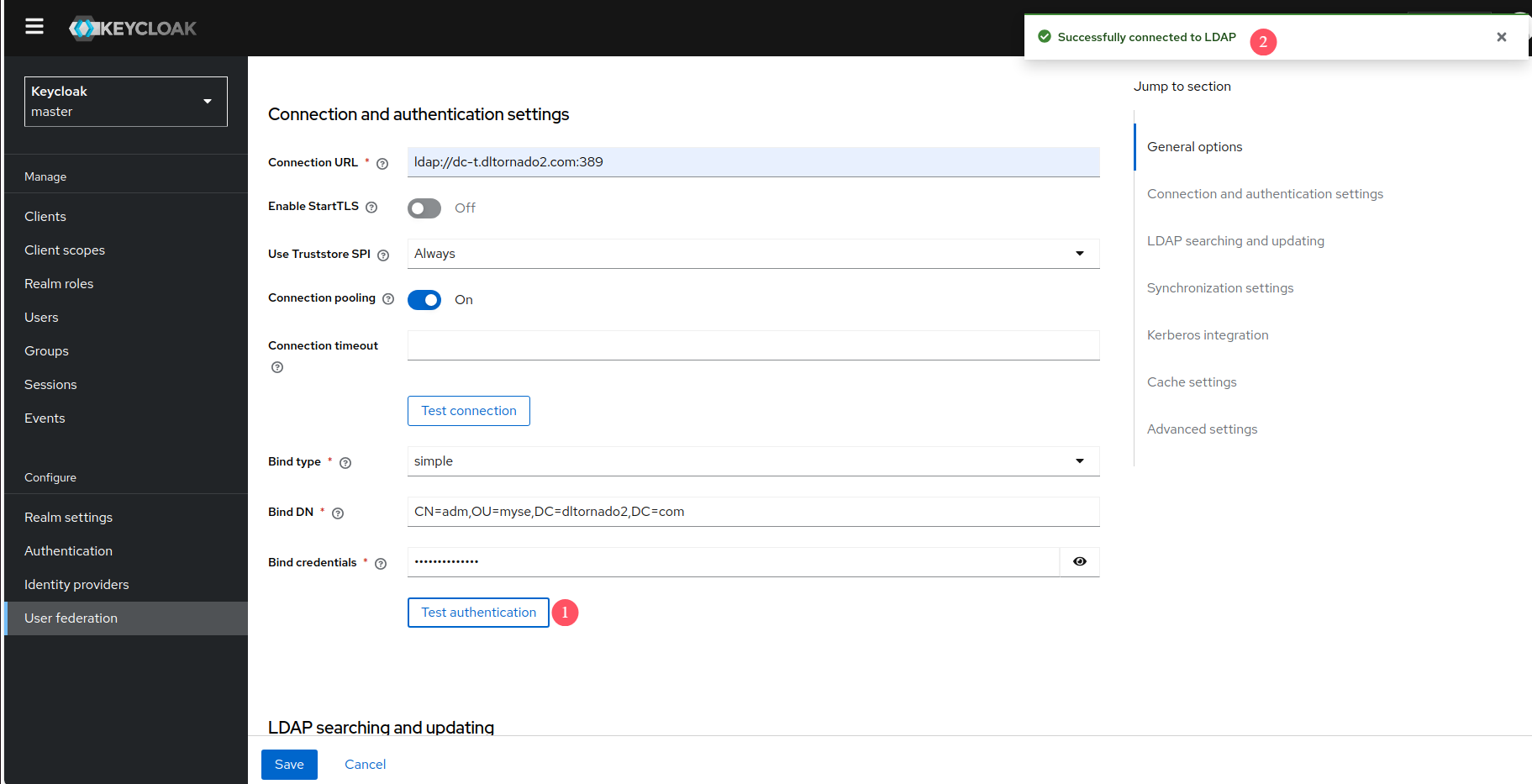

测试LDAP连接：


测试认证：

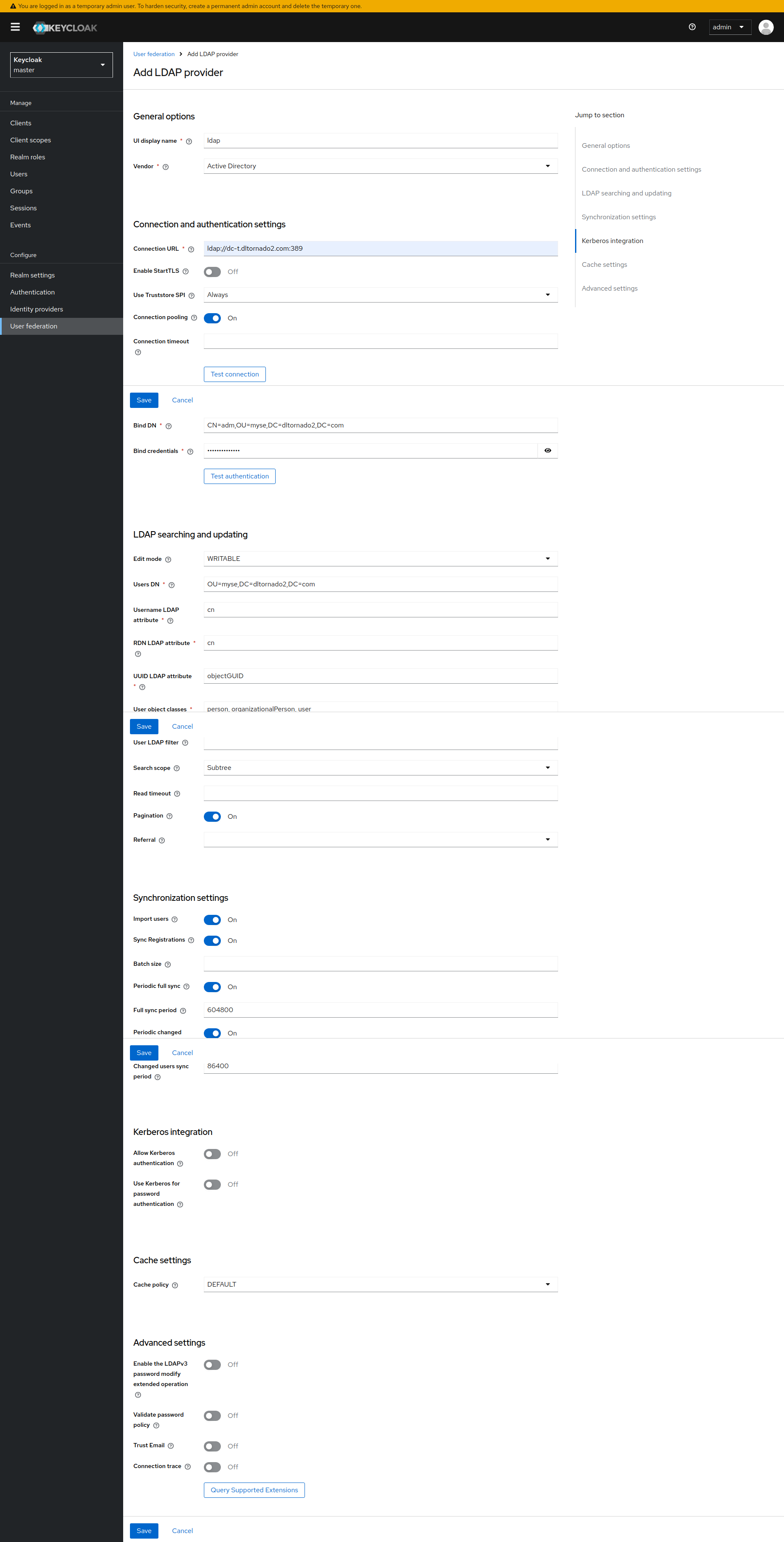

其它选项填写示例：


Keycloak OAuth客户端配置

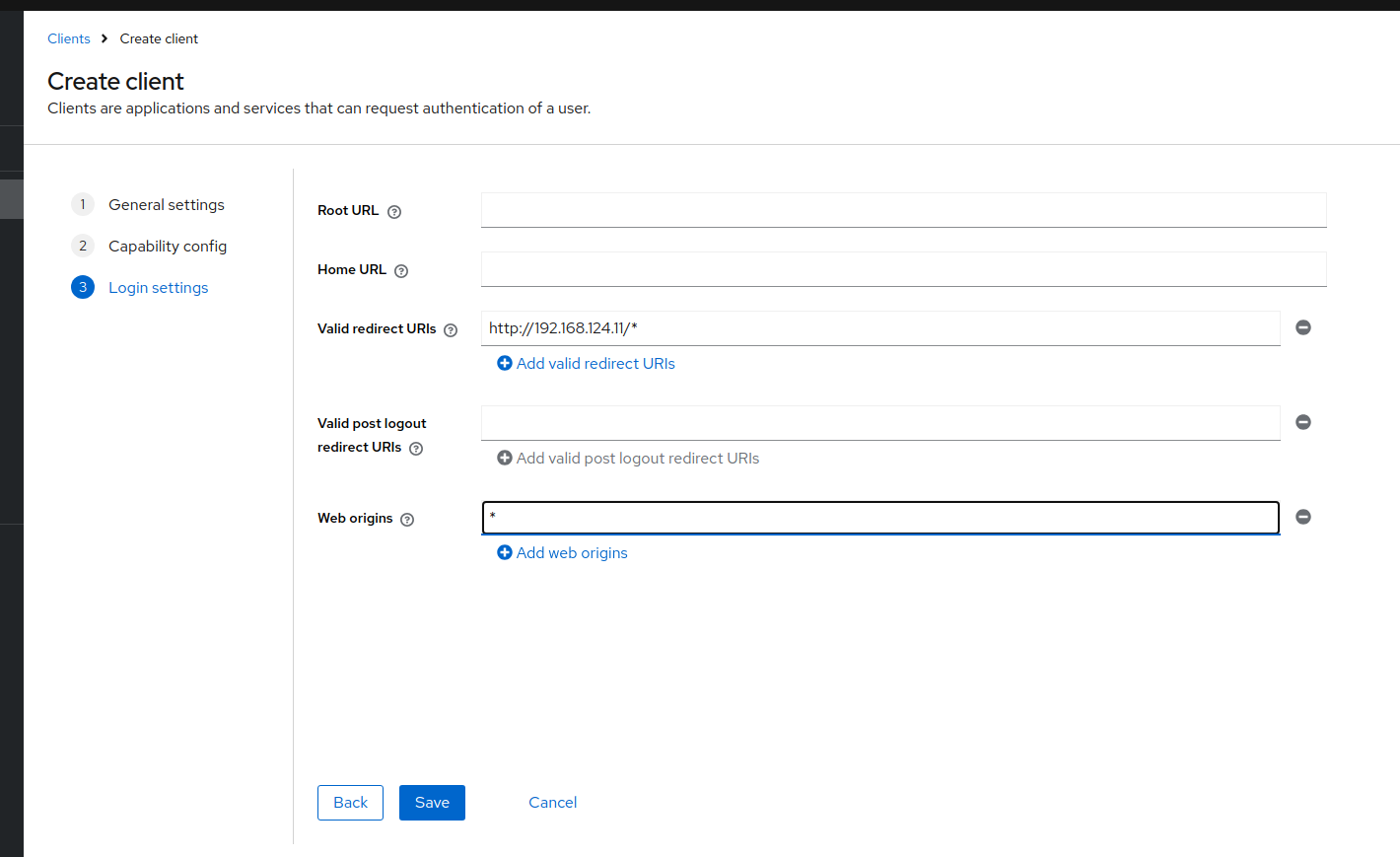

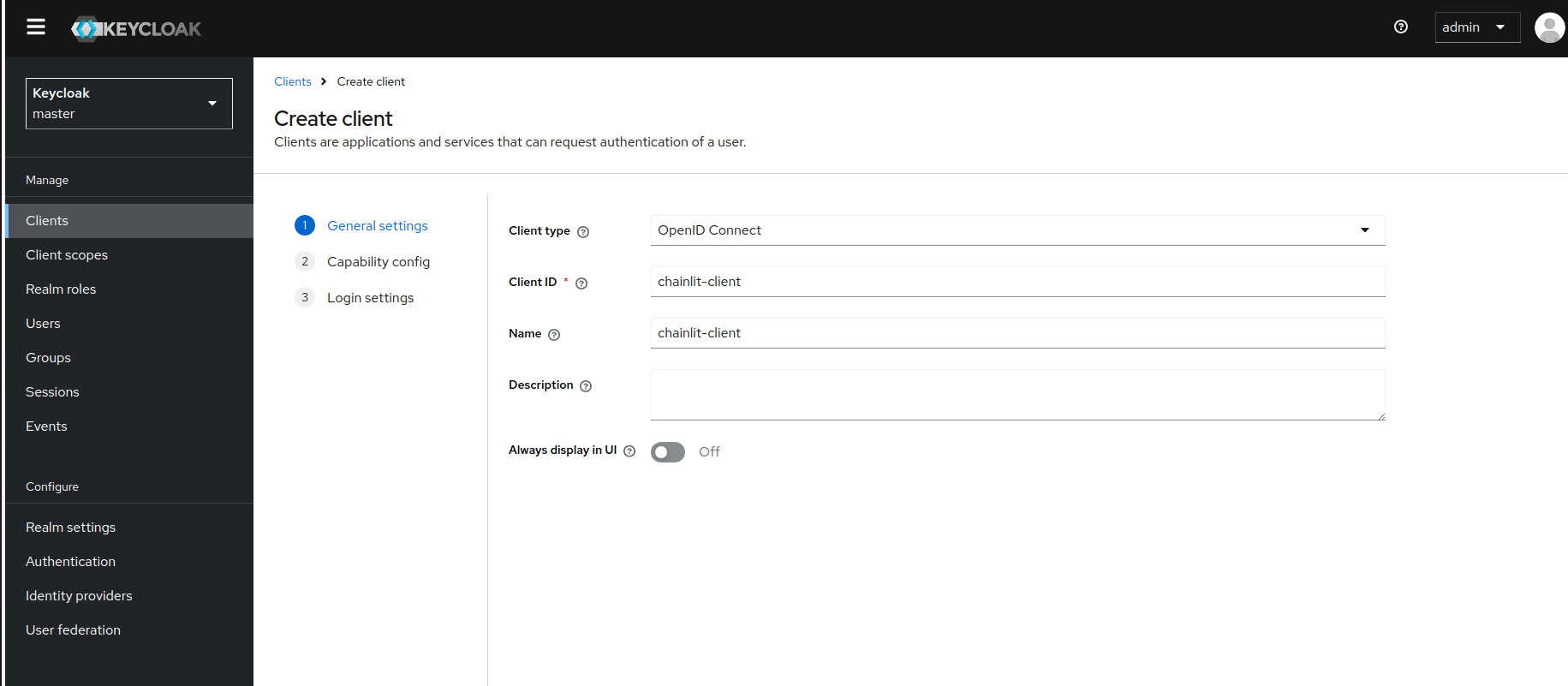

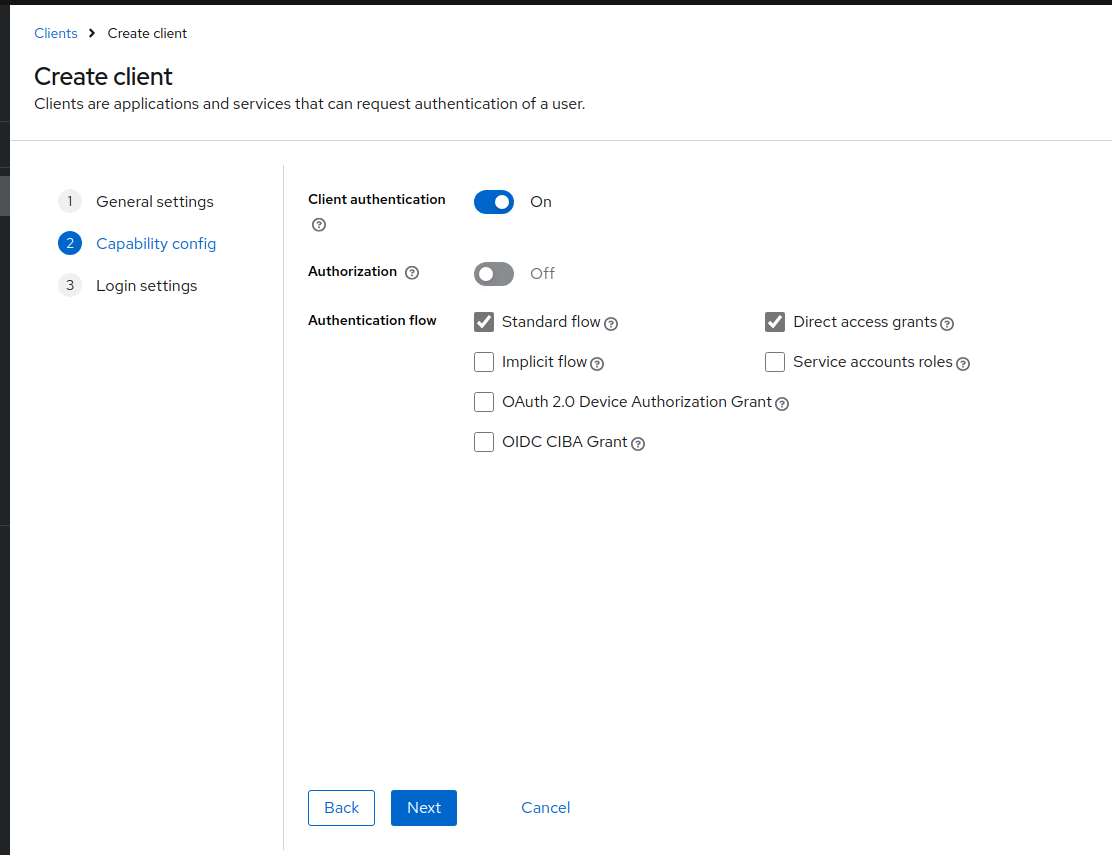

在Realm中创建新Client

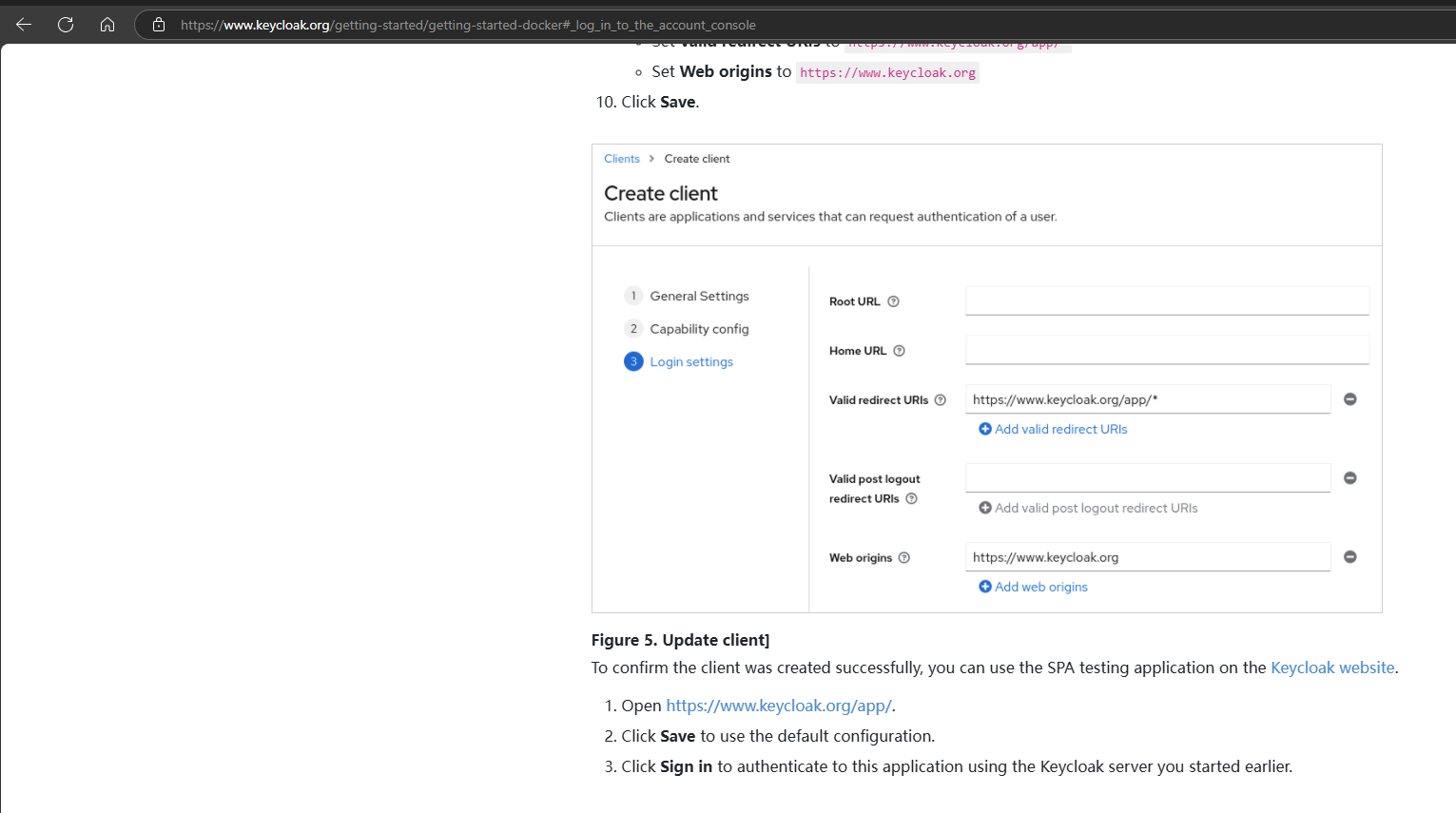

验证刚刚创建的client是否成功

参考资料：Docker - Keycloak

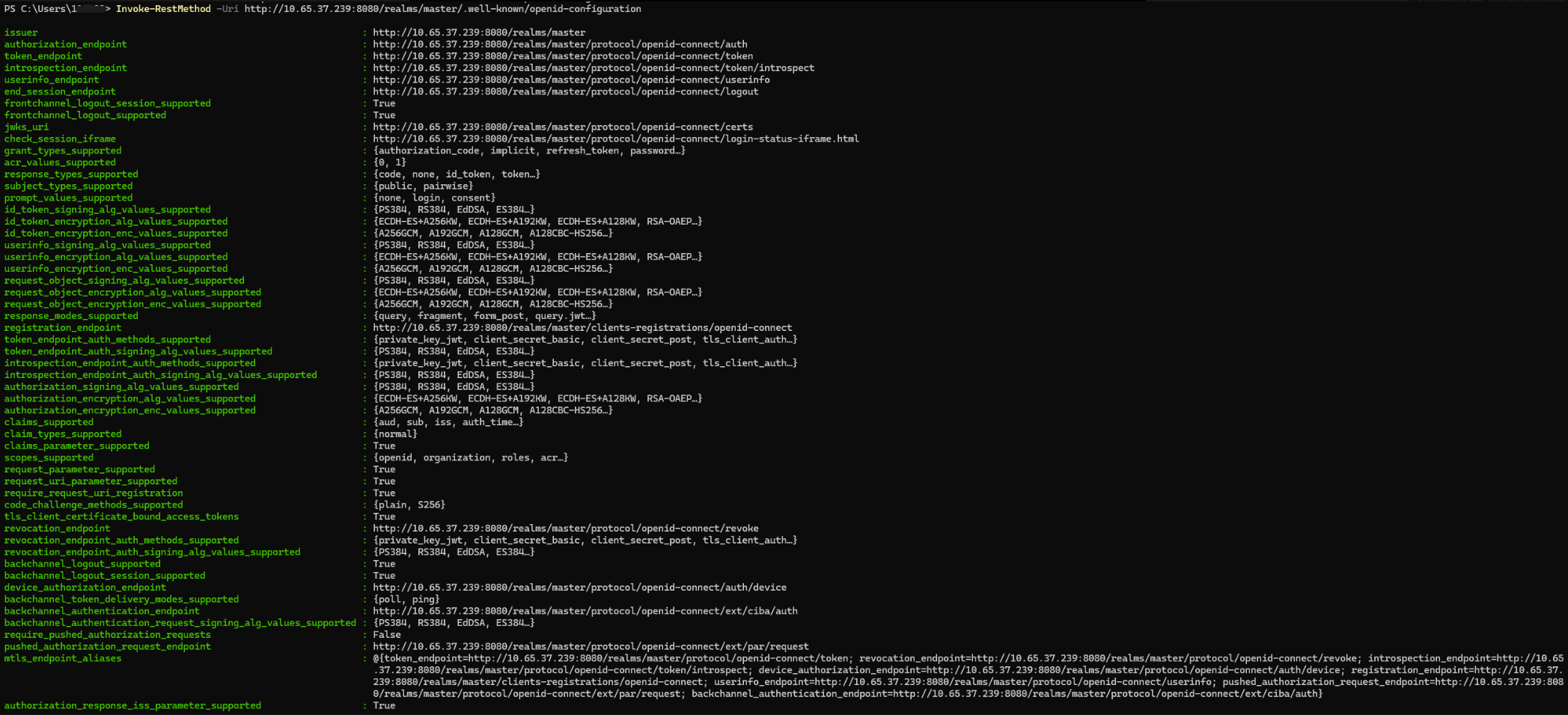

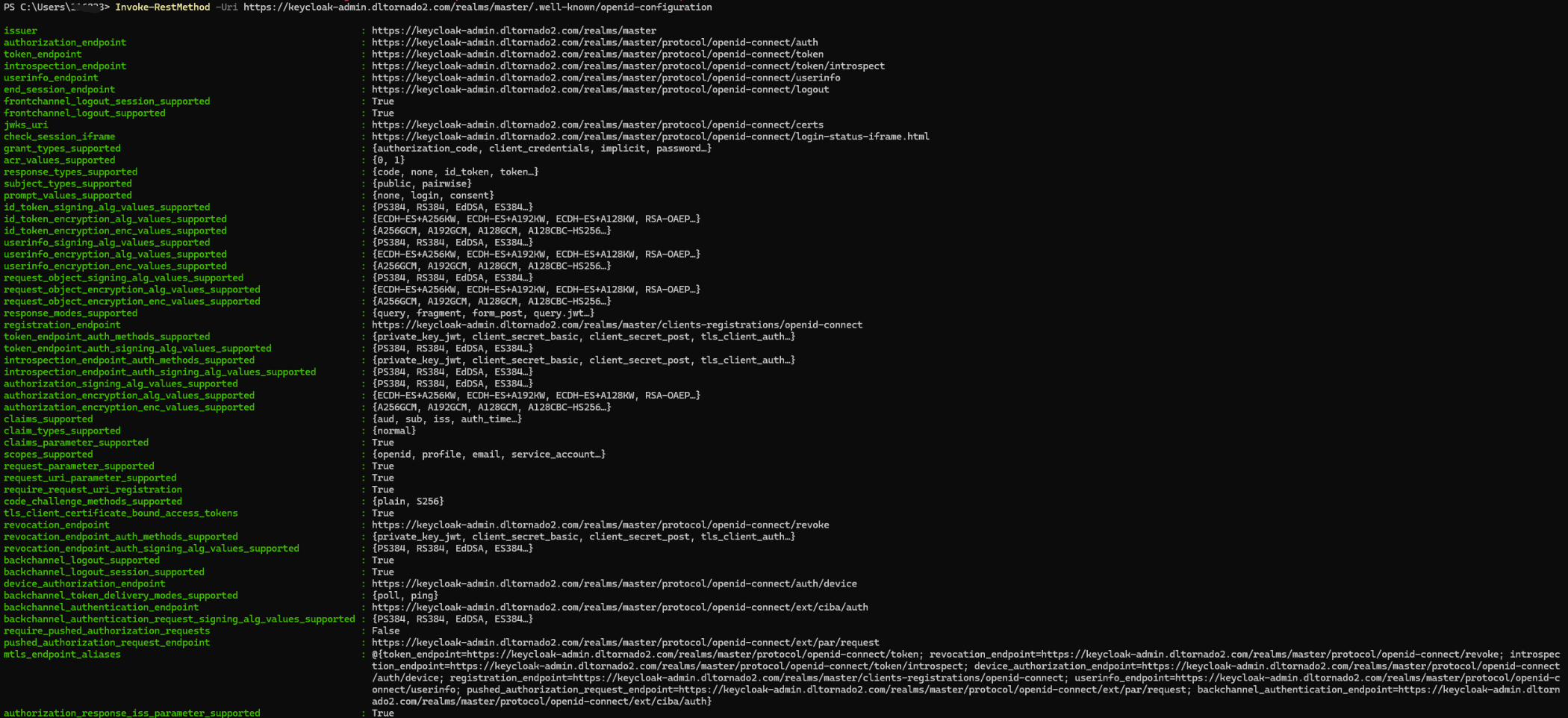

查询各个endpoint url的值，与keycloak连接的应用需要用到这些endpoint url

参考资料：OAuth - Chainlit

Invoke-RestMethod -Uri http://10.65.37.239:8080/realms/master/.well-known/openid-configuration

Invoke-RestMethod -Uri https://keycloak-admin.dltornado2.com/realms/master/.well-known/openid-configuration

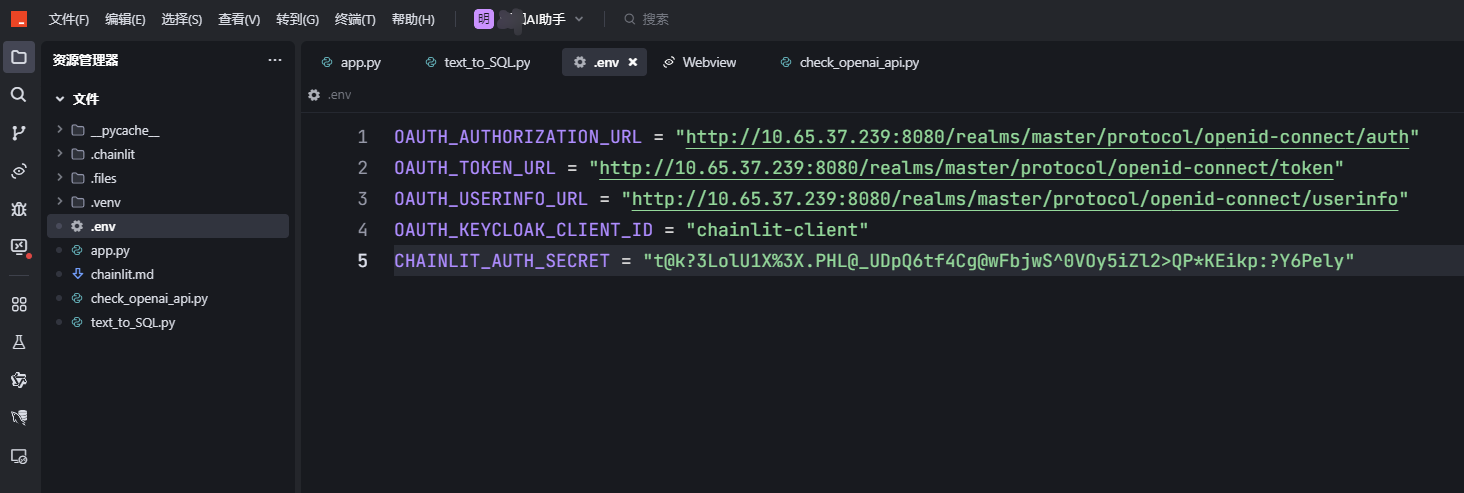

从上面的输出，我们可以知道，对于chainlit，需要配置的环境变量的值为

OAUTH_AUTHORIZATION_URL=http://10.65.37.239:8080/realms/master/protocol/openid-connect/auth
OAUTH_TOKEN_URL=http://10.65.37.239:8080/realms/master/protocol/openid-connect/token
OAUTH_USERINFO_URL=http://10.65.37.239:8080/realms/master/protocol/openid-connect/userinfo

OAUTH_KEYCLOAK_CLIENT_ID=chainlit-client
#下方的环境变量的值可以通过chainlit.exe create-secret这个命令生成
CHAINLIT_AUTH_SECRET="t@k?3LolU1X%3X.PHL@_UDpQ6tf4Cg@wFbjwS^0VOy5iZl2>QP*KEikp:?Y6Pely"


设置环境变量

参考资料：OAuth - Chainlit

请使用.env文件设置环境变量，而不是通过终端命令


注意：下面第二行，等号两边不能有空格，否则执行程序时会将环境变量设置为none

# OAUTH_KEYCLOAK_BASE_URL = "http://10.65.37.239:8080"
OAUTH_KEYCLOAK_BASE_URL=http://10.65.37.239:8080
OAUTH_KEYCLOAK_REALM = "master"
OAUTH_KEYCLOAK_CLIENT_ID = "chainlit-client"
OAUTH_KEYCLOAK_CLIENT_SECRET = "t@k?3LolU1X%3X.PHL@_UDpQ6tf4Cg@wFbjwS^0VOy5iZl2>QP*KEikp:?Y6Pely"  # 这里需要你填入实际的客户端密钥
OAUTH_KEYCLOAK_NAME = "chainlit-Keycloak"

OAUTH_KEYCLOAK_CLIENT_ID

OAUTH_KEYCLOAK_CLIENT_SECRET

OAUTH_KEYCLOAK_REALM

OAUTH_KEYCLOAK_BASE_URL

OAUTH_KEYCLOAK_NAME

实验时，我发现在输入用户名密码后，页面报错了，如下图：

分析日志后，是因为chainlit向keycloak发送请求时使用的是http而不是https，必须要使用https才行，因此需要对于keycloak配置证书以使用https

后续研究，发现，不是必须要用https，用http也是可以的，出现问题的原因其实是环境变量设置错误，请参考此文：《chainlit身份验证方案oauth2.0及常用社交应用账户集成》


以下是chainlit的部分日志：

 File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\uvicorn\middleware\proxy_headers.py", line 60, in __call__
    return await self.app(scope, receive, send)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\applications.py", line 1054, in __call__
    await super().__call__(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\applications.py", line 113, in __call__
    await self.middleware_stack(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\errors.py", line 187, in __call__
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\errors.py", line 165, in __call__
    await self.app(scope, receive, _send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\cors.py", line 85, in __call__
    await self.app(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\exceptions.py", line 62, in __call__
    await wrap_app_handling_exceptions(self.app, conn)(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 53, in wrapped_app
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 42, in wrapped_app
    await app(scope, receive, sender)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 715, in __call__
    await self.middleware_stack(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 735, in app
    await route.handle(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 288, in handle
    await self.app(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 76, in app
    await wrap_app_handling_exceptions(app, request)(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 53, in wrapped_app
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 42, in wrapped_app
    await app(scope, receive, sender)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 73, in app
    response = await f(request)
               ^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\routing.py", line 301, in app
    raw_response = await run_endpoint_function(
                   ^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    ...<3 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\routing.py", line 212, in run_endpoint_function
    return await dependant.call(**values)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\chainlit\server.py", line 637, in oauth_callback
    token = await provider.get_token(code, url)
            ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\chainlit\oauth_providers.py", line 715, in get_token
    response = await client.post(
               ^^^^^^^^^^^^^^^^^^
    ...<2 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1859, in post
    return await self.request(
           ^^^^^^^^^^^^^^^^^^^
    ...<13 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1540, in request
    return await self.send(request, auth=auth, follow_redirects=follow_redirects)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1629, in send
    response = await self._send_handling_auth(
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    ...<4 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1657, in _send_handling_auth
    response = await self._send_handling_redirects(
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    ...<3 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1694, in _send_handling_redirects
    response = await self._send_single_request(request)
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_client.py", line 1730, in _send_single_request
    response = await transport.handle_async_request(request)
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_transports\default.py", line 393, in handle_async_request
    with map_httpcore_exceptions():
         ~~~~~~~~~~~~~~~~~~~~~~~^^
  File "C:\Program Files\Python313\Lib\contextlib.py", line 162, in __exit__
    self.gen.throw(value)
    ~~~~~~~~~~~~~~^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_transports\default.py", line 118, in map_httpcore_exceptions
    raise mapped_exc(message) from exc
httpx.ReadTimeout
INFO:     192.168.124.11:61808 - "GET /favicon.ico HTTP/1.1" 200 OK
INFO:     192.168.124.11:65425 - "GET / HTTP/1.1" 200 OK
INFO:     192.168.124.11:65425 - "GET /auth/config HTTP/1.1" 200 OK
INFO:     192.168.124.11:65426 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:65429 - "GET /project/translations?language=zh-CN HTTP/1.1" 200 OK
INFO:     192.168.124.11:65429 - "GET /login HTTP/1.1" 200 OK
INFO:     192.168.124.11:65429 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:65426 - "GET /auth/config HTTP/1.1" 200 OK
INFO:     192.168.124.11:65425 - "GET /project/translations?language=zh-CN HTTP/1.1" 200 OK
INFO:     192.168.124.11:65425 - "GET /auth/oauth/chainlit-Keycloak HTTP/1.1" 307 Temporary Redirect
INFO:     192.168.124.11:65487 - "GET /user HTTP/1.1" 401 Unauthorized
2025-03-14 19:43:19 - HTTP Request: POST http://10.65.37.239:8080/realms/master/protocol/openid-connect/token "HTTP/1.1 502 Bad Gateway"
INFO:     192.168.124.11:65425 - "GET /auth/oauth/chainlit-Keycloak/callback?state=cY.Z%3AJl3eKdK%2Fg96248L8ef?lTXrEemD&session_state=fd05d8be-8824-423e-a46a-812dd3153207&iss=http%3A%2F%2F10.65.37.239%3A8080%2Frealms%2Fmaster&code=1e1ad80e-2a61-40e7-8d9a-af4c6b3890e1.fd05d8be-8824-423e-a46a-812dd3153207.5a90b396-a6c7-4708-a12e-b5351668252e HTTP/1.1" 500 Internal Server Error
ERROR:    Exception in ASGI application
Traceback (most recent call last):
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\uvicorn\protocols\http\h11_impl.py", line 403, in run_asgi
    result = await app(  # type: ignore[func-returns-value]
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
        self.scope, self.receive, self.send
        ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\uvicorn\middleware\proxy_headers.py", line 60, in __call__
    return await self.app(scope, receive, send)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\applications.py", line 1054, in __call__
    await super().__call__(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\applications.py", line 113, in __call__
    await self.middleware_stack(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\errors.py", line 187, in __call__
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\errors.py", line 165, in __call__
    await self.app(scope, receive, _send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\cors.py", line 85, in __call__
    await self.app(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\middleware\exceptions.py", line 62, in __call__
    await wrap_app_handling_exceptions(self.app, conn)(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 53, in wrapped_app
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 42, in wrapped_app
    await app(scope, receive, sender)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 715, in __call__
    await self.middleware_stack(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 735, in app
    await route.handle(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 288, in handle
    await self.app(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 76, in app
    await wrap_app_handling_exceptions(app, request)(scope, receive, send)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 53, in wrapped_app
    raise exc
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\_exception_handler.py", line 42, in wrapped_app
    await app(scope, receive, sender)
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\starlette\routing.py", line 73, in app
    response = await f(request)
               ^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\routing.py", line 301, in app
    raw_response = await run_endpoint_function(
                   ^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    ...<3 lines>...
    )
    ^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\fastapi\routing.py", line 212, in run_endpoint_function
    return await dependant.call(**values)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\chainlit\server.py", line 637, in oauth_callback
    token = await provider.get_token(code, url)
            ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\chainlit\oauth_providers.py", line 719, in get_token
    response.raise_for_status()
    ~~~~~~~~~~~~~~~~~~~~~~~~~^^
  File "d:\tornadofiles\scripts_脚本\github_projects\DreamAI-AI助手\.venv\Lib\site-packages\httpx\_models.py", line 829, in raise_for_status
    raise HTTPStatusError(message, request=request, response=self)
httpx.HTTPStatusError: Server error '502 Bad Gateway' for url 'http://10.65.37.239:8080/realms/master/protocol/openid-connect/token'
For more information check: https://developer.mozilla.org/en-US/docs/Web/HTTP/Status/502

下面是keycloak中出现的日志：

Non-secure context detected; cookies are not secured

对接企业LDAP

将keycloak与LDAP集成后，用户就可以直接通过企业内部的域账号登录应用了。

详细步骤请参考此文：《chainlit身份验证方案oauth2.0及常用社交应用账户集成》

keycloak故障诊断

internal server error

用浏览器访问，登录账户后，提示“internal server error”，chainlit的日志如下，其中关键是“httpx.ConnectError: [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: unable to get local issuer certificate”

这说明证书验证出现了问题，无法找到本地的root ca

 chainlit.exe run .\text_to_SQL.py -d --host 192.168.124.11
2025-06-09 15:01:05 - Loaded .env file
https://keycloak-admin.dltornado2.com
master
chainlit-client
S=l@E.9ONQ~66XggeZZdhYn.ti=3%:kM5U7hGlH1y=T4gK1IoFBZgS@1metLI_T~
chainlit-Keycloak
INFO:     Started server process [4380]
INFO:     Waiting for application startup.
2025-06-09 15:01:08 - Your app is available at http://192.168.124.11:8000
INFO:     Application startup complete.
INFO:     Uvicorn running on http://192.168.124.11:8000 (Press CTRL+C to quit)
INFO:     192.168.124.11:63143 - "GET / HTTP/1.1" 200 OK
INFO:     192.168.124.11:63143 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:63144 - "GET /auth/config HTTP/1.1" 200 OK
INFO:     192.168.124.11:63161 - "GET /project/translations?language=zh-CN& HTTP/1.1" 200 OK
INFO:     192.168.124.11:63161 - "GET /login HTTP/1.1" 200 OK
INFO:     192.168.124.11:63161 - "GET /auth/config HTTP/1.1" 200 OK
INFO:     192.168.124.11:63144 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:63143 - "GET /project/translations?language=zh-CN& HTTP/1.1" 200 OK
INFO:     192.168.124.11:63251 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:63273 - "GET /user HTTP/1.1" 401 Unauthorized
INFO:     192.168.124.11:63274 - "GET /project/translations?language=zh-CN& HTTP/1.1" 200 OK
INFO:     192.168.124.11:63274 - "GET /auth/oauth/chainlit-Keycloak HTTP/1.1" 307 Temporary Redirect
INFO:     192.168.124.11:63274 - "GET /auth/oauth/chainlit-Keycloak/callback?state=h%25%2FcOw_eex9gdLW?7.agzb8?tVia4%25_%24&session_state=cf707a93-9532-4a49-adfc-f7650aa7cbaf&iss=https%3A%2F%2Fkeycloak-admin.dltornado2.com%2Frealms%2Fmaster&code=b0360efd-30fd-4d0b-a3fa-3a3fc4db9ede.cf707a93-9532-4a49-adfc-f7650aa7cbaf.6cc6b113-468a-4426-852a-b0cf586ed621 HTTP/1.1" 500 Inter
最低0.47元/天 解锁文章
评论
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

红包 添加红包
表情包 插入表情
表情包 代码片
 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
